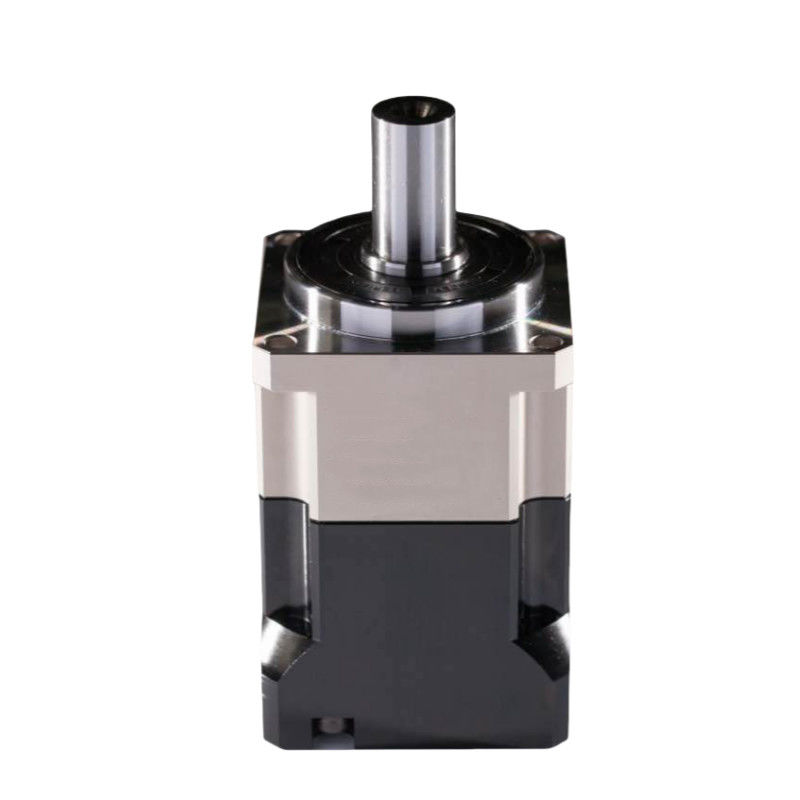

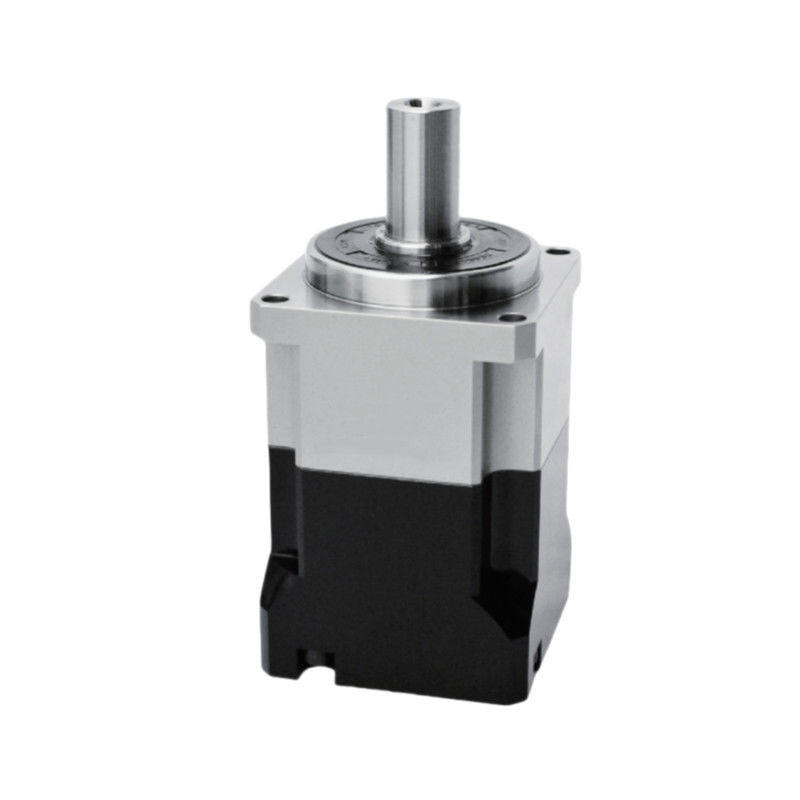

Customized Shaft Mount Gearbox Precision Planetary Reducer
Customized Shaft Mount Gearbox Precision Planetary Reducer Customized Shaft Mount Gearbox Precision Planetary Reducer
Product Details
Product:
NB Series Planetary Gearboxes
Model:
NB042, NB060, NB090, NB115, NB142, NB180, NB220
Ratio:
3 To 100
Segment:
Single, Double
Efficiency:
≥97%
Service Life:
20000 Hours
Continuous Operation:
10000 Hours
Protection Class:
IP65
Operating Temperature:
-10℃-90℃
Ultraprecise Backlash:
≤3 Arcmin
Application:
Laser Cutting，manipulator，printing Equipment，automobile Manufacturing, Pharmaceutical Industry
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
To Be Negotiated
Packaging Details
Carton Box
Delivery Time
3-4 Weeks
Payment Terms
T/T
Supply Ability
20000 Sets per Month
RELATED PRODUCTS
Good price Integrated Planetarium ND Series Planetary Reducer Gearbox High Precision online video

Integrated Planetarium ND Series Planetary Reducer Gearbox High Precision

Get Best Price
Good price ODM ISO9001 Planetary Gearbox Reducer IP65 Waterproof online video

ODM ISO9001 Planetary Gearbox Reducer IP65 Waterproof

Get Best Price
Good price Precision Dual Right Angle Hollow Shaft Gearbox Power Transmission ODM online video

Precision Dual Right Angle Hollow Shaft Gearbox Power Transmission ODM

Get Best Price
Good price Power Transmission Right Angle Gearbox Hollow Shaft Drive Customized online video

Power Transmission Right Angle Gearbox Hollow Shaft Drive Customized

Get Best Price
Contact Us
Contact Now
Product Description

Customized Shaft Mount Gearbox Precision Planetary Reducer 0Customized Shaft Mount Gearbox Precision Planetary Reducer 1

Specification Segment number Ratio NB042 NB060 NB090 NB115 NB142 NB180 NB220
Rated output torque Nm single 3 — 50 120 190 320 550 1080
4 18 45 130 270 510 990 1610
5 20 55 150 310 610 1140 1900
6 18 50 140 290 570 1040 1800
7 18 45 130 280 520 1040 1710
8 16 40 110 240 470 950 1520
9 13 35 95 210 420 850 1250
10 13 35 95 210 420 850 1250
double 15 — 50 120 190 320 550 1080
16 19 — — — — — —
20 18 45 130 270 510 990 1610
25 20 55 150 310 610 1140 1900
30 19 50 140 290 570 1040 1800
35 18 45 130 280 520 1040 1710
40 16 40 110 240 470 950 1520
45 13 35 95 210 420 850 1420
50 20 55 150 310 610 1140 1900
60 19 50 140 290 570 1040 1800
70 18 45 130 280 520 1040 1710
80 16 40 110 240 470 950 1520
90 13 35 95 210 420 850 1250
100 13 35 95 210 420 850 1250
Rotary inertia Kg.cm3 single 3 — 0.16 0.61 3.25 9.21 28.98 69.61
4 0.03 0.14 0.48 2.74 7.54 23.67 54.37
5 0.03 0.13 0.47 2.71 7.42 23.29 53.27
6 0.03 0.13 0.45 2.65 7.25 22.75 51.72
7 0.03 0.13 0.45 2.62 7.14 22.48 50.97
8 0.03 0.13 0.44 2.58 7.07 22.59 50.84
9 0.03 0.13 0.44 2.57 7.04 22.53 50.63
10 0.03 0.13 0.44 2.57 7.03 22.51 50.56
double 15 — 0.13 0.47 0.47 2.71 7.42 23.29
16 0.03 — — — — — —
20 0.03 0.13 0.47 0.47 2.71 7.42 23.29
25 0.03 0.13 0.47 0.47 2.71 7.42 23.29
30 0.03 0.13 0.47 0.47 2.71 7.42 23.29
35 0.03 0.13 0.47 0.47 2.71 7.42 23.29
40 0.03 0.13 0.47 0.47 2.71 7.42 23.29
45 0.03 0.13 0.47 0.47 2.71 7.42 23.29
50 0.03 0.13 0.44 0.44 2.57 7.03 22.51
60 0.03 0.13 0.44 0.44 2.57 7.03 22.51
70 0.03 0.13 0.44 0.44 2.57 7.03 22.51
80 0.03 0.13 0.44 0.44 2.57 7.03 22.51
90 0.03 0.13 0.44 0.44 2.57 7.03 22.51
100 0.03 0.13 0.44 0.44 2.57 7.03 22.51

Customized Shaft Mount Gearbox Precision Planetary Reducer 2Customized Shaft Mount Gearbox Precision Planetary Reducer 3Customized Shaft Mount Gearbox Precision Planetary Reducer 4Customized Shaft Mount Gearbox Precision Planetary Reducer 5Customized Shaft Mount Gearbox Precision Planetary Reducer 6Customized Shaft Mount Gearbox Precision Planetary Reducer 7Customized Shaft Mount Gearbox Precision Planetary Reducer 8

Parameters Table Segment number Ratio NB042 NB060 NB090 NB115 NB142 NB180 NB220
Max acceleration torque Nm 1,2 1.8 times rated output torque
Emergency stop torque Nm 1,2 3 times rated output torque
Rated input speed rmp 1 3~10 5000 5000 4000 4000 3000 3000 2000
2 15~100 5000 5000 4000 4000 3000 3000 2000
Max input speed rmp 1 3~10 10000 10000 8000 8000 6000 6000 4000
2 15~100 10000 10000 8000 8000 6000 6000 4000
Ultraprecise backlash arcmin 1 3~10 — — ≤1 ≤1 ≤1 ≤1 ≤1
2 15~100 — — — ≤3 ≤3 ≤3 ≤3
Precise backlash arcmin 1 3~10 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3 ≤3
2 15~100 ≤5 ≤5 ≤5 ≤5 ≤5 ≤5 ≤5
Standard backlash arcmin 1 3~10 ≤5 ≤5 ≤5 ≤5 ≤5 ≤5 ≤5
2 15~100 ≤7 ≤7 ≤7 ≤7 ≤7 ≤7 ≤7
Orsional rigidity Nm/arcmin 1,2 3~100 3.2 8 14 27 52 148 305
Max. radial Force N 1,2 3~100 980 1730 3250 7000 9600 14500 27800
Max. axial Force N 1,2 3~100 490 865 1625 3500 4800 7250 13900
Tilting moment Nm 1,2 3~100 34 77 152 325 530 920 1840
Service Life hr 1,2 3~100 20000hr(continuous operation 10000hr)
Efficiency % 1 3~10 ≥97%
% 2 15~100 ≥94%
Weight kg 1 3~10 0.6 1.3 3.7 7.8 14.5 29.0 48.0
kg 2 15~100 0.8 1.9 5.3 9.0 17.5 33.0 60.0
Operating Temperature ℃ 1,2 3~100 -10℃-90℃
Lubrication 　 1,2 3~100 Synthetic grease
Protection Class 　 1,2 3~100 IP65
Mounting Position 　 1,2 3~100 Any direction
Noise Level (N1=3000rpm,Non-Loaded) dB(A) 1 3~10 ≤56 ≤58 ≤60 ≤63 ≤65 ≤67 ≤70
2 15~100 ≤56 ≤60 ≤63 ≤63 ≤65 ≤67 ≤70
　 　 　 3 — 0.16 0.61 3.25 9.21 28.98 69.61
