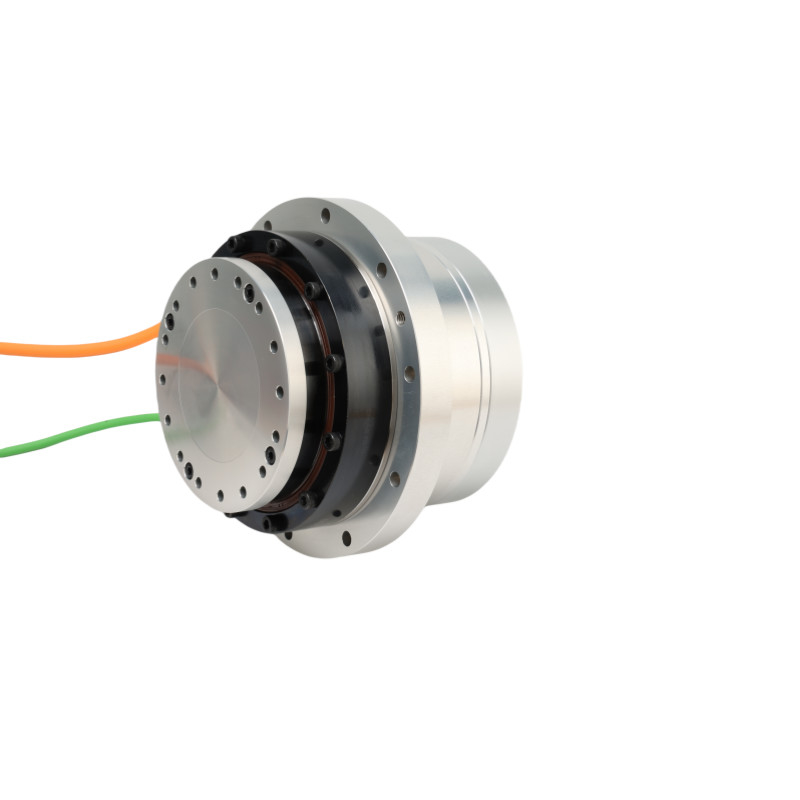

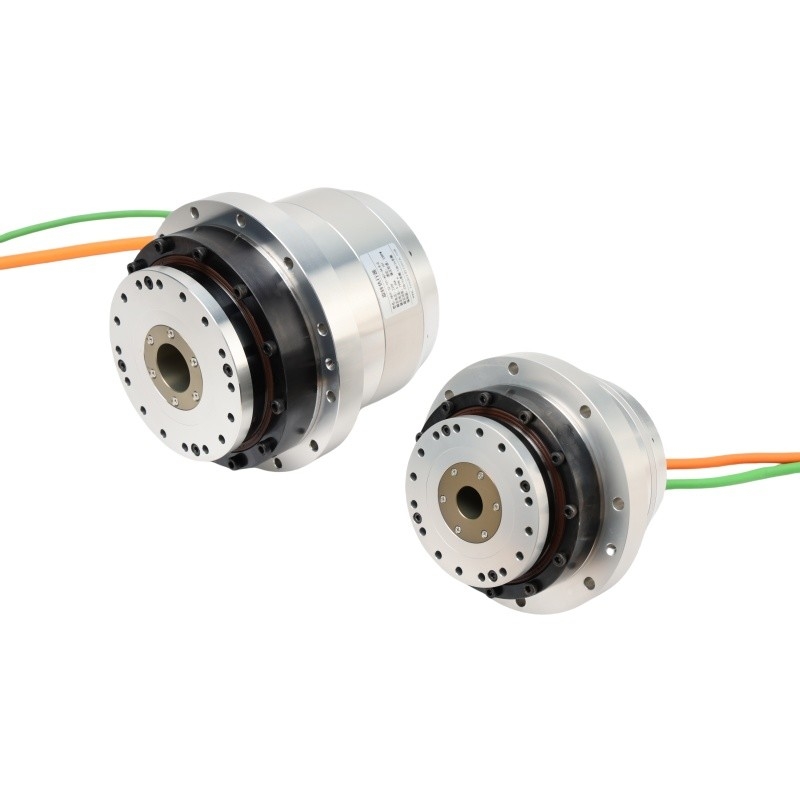

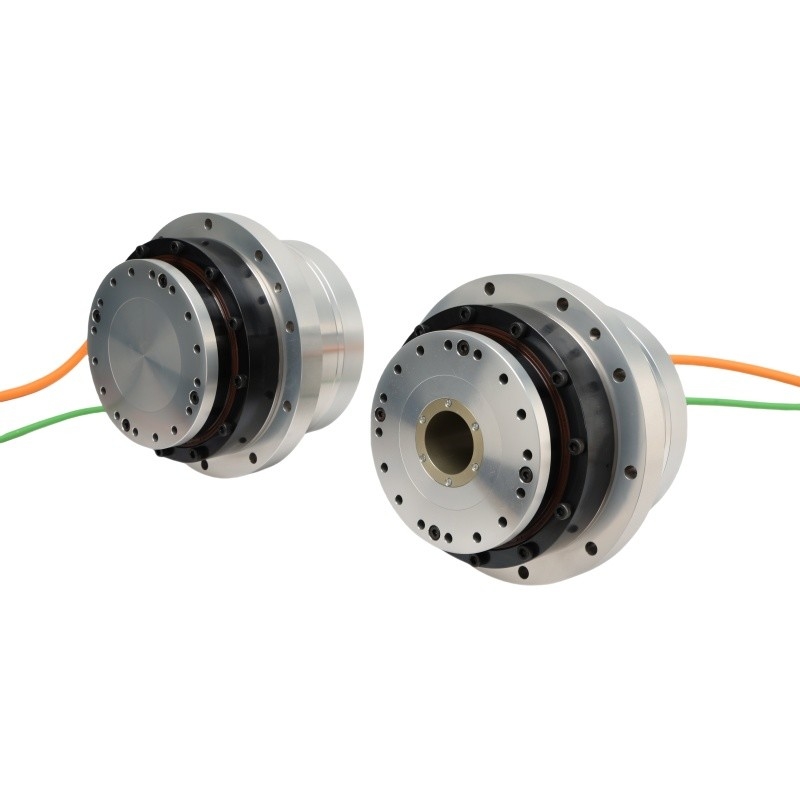

High Tilting Rigidity And High Torque Solid Shaft HASF Series Model 14 Flanged Rotary Actuators

Name: OEM Flanged Rotary Harmonic Actuator Gear Motor Model 14
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: Side Outlet HASF Series Flanged Rotary Actuators
Availability: InStock

Product characteristics

Integrated Design

Combines a high-torque harmonic reducer, a direct drive motor, and an optional multi-turn absolute encoder with a hollow shaft for optical applications.

High Performance

Features high tilting rigidity, high torque, insensitivity to load inertia changes during operation, low-speed creep-free performance, and smooth operation.

Long Lifespan

Maintains accuracy over a long lifespan with minimal degradation.

Zero Backlash

Nearly zero backlash due to the excellent characteristics of the harmonic reducer and the motor's rigidity.

Parameters Table Of HASF

Series HASF			14
Reduction ratio			51	81	101
220VAC	Peak torque	N·m	23	29	34
	Rated torque	N·m	8.6	13.5	13.5
	Maximum speed	rpm	118	74	59
	Rated speed	rpm	59	37	30
	Maximum current	Arms	2.09	1.66	1.56
	Rated current	Arms	0.78	0.77	0.62
	Torque constant	N m/Arms	11.02	17.5	21.82
	Phase resistance	Ohms(20℃)	7.5
	Phase inductance	mH	11.5
	Back EMF	Vrms/krpm	25
48VDC	Peak torque	N·m	23	29	34
	Rated torque	N·m	8.6	13.5	13.5
	Maximum speed	rpm	98	62	50
	Rated speed	rpm	59	37	30
	Maximum current	Arms	5.12	4.07	3.83
	Rated current	Arms	1.92	1.89	1.52
	Torque constant	N m/Arms	4.49	7.13	8.89
	Phase resistance	Ohms(20℃)	0.85
	Phase inductance	mH	1
	Back EMF	Vrms/krpm	6.5
Absolute Encoder	Encoder type		Absolute encoder
	Resolution (single motor revolution)	bit	23,24 bits
	Motor Multi-turn counter	bit	16
Uni-directional positional accuracy		Arc sec	≤90	≤80	≤70
Repeatability of positioning accuracy		Arc sec	≤15	≤10	≤10
Overturning stiffness		x104 N·m /rad	8
Torsional stiffness		x104 N·m /rad	0.46	0.6
Inertia moment	Without brake	kg*m2	3.6*10^-5
Inertia moment	With brake	kg*m2	3.7*10^-5
Mass	Without brake	Kg	1.66
Mass	With brake	Kg	2
Number of motor poles		Pole	16
Ambient conditions			Operating temperature: 0~40℃ Storage temperature: -20~60℃ Operating humidity/Storage humidity: 20~80%RH (no condensation) Vibration resistance: 24.5m/s2 (frequency: 10~400Hz) No dust or metal powder , corrosive gases, flammable gases, oil mist and other indoor use, avoid direct sunlight Below 1000m altitude
Motor insulation			Insulation resistance: more than 100MΩ(DC500V)
			Dielectric strength: AC1500V/ 1 minute
			Insulation class: F
Degrees of Protection			Totally enclosed self-cooled type (IP65)
