Place of Origin:
Jiangsu, China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
Side Outlet HASF Series Flanged Rotary Actuators
video

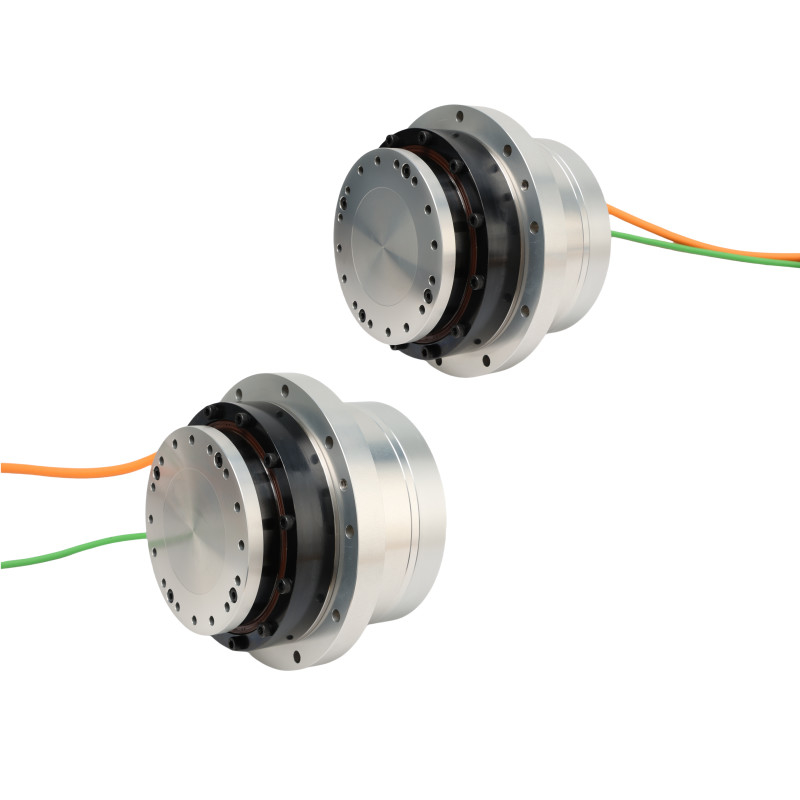

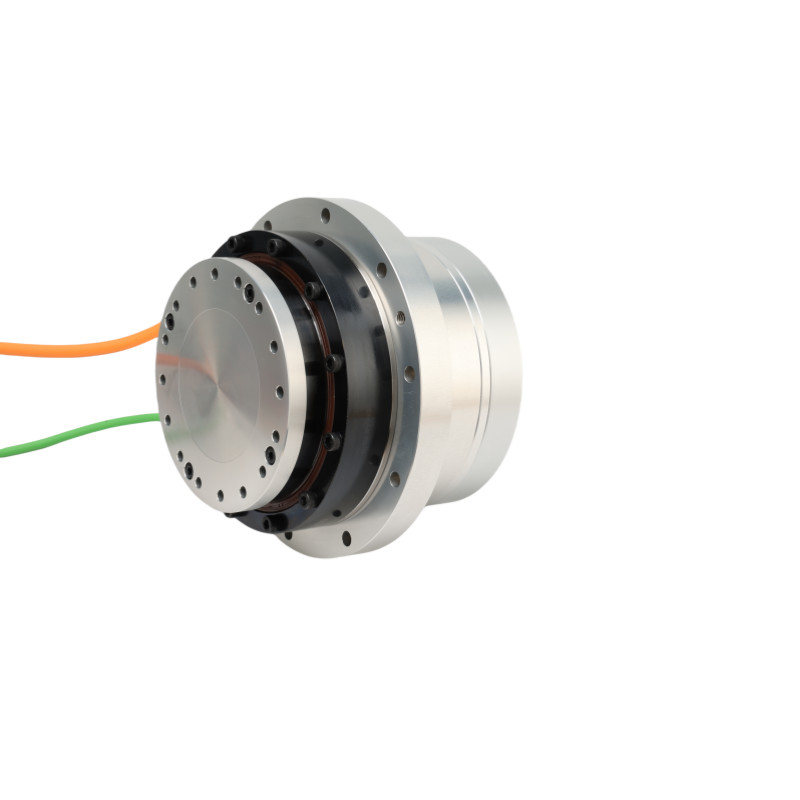

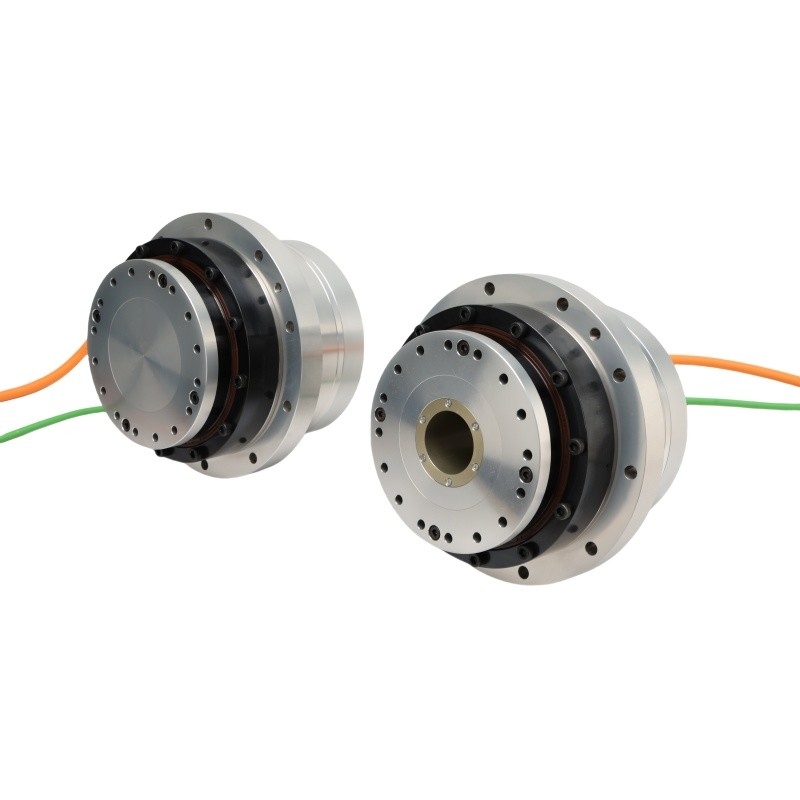

High Accuracy And High Torque Solid Shaft HASF Series Model 20 Flanged Rotary Actuators
Rotary actuators are mechanical devices designed to produce rotational motion or torque about a central axis. They are used extensively in various industrial, automotive, aerospace, and other applications where controlled rotary movement is required.
Industrial Automation
1. Robotic Arms: Rotary actuators are integral components of robotic arms and manipulators used in assembly lines, pick-and-place operations, and other automated tasks.
2. Conveyors and Material Handling: Actuators control rotary movements in conveyor systems, sorting mechanisms, and material handling equipment.
3. Packaging Machinery: Actuators facilitate the rotary movements in packaging machines for tasks such as sealing, labeling, and filling.
Automotive Industry
1. Steering Systems: Electric and hydraulic rotary actuators are used in electric power steering systems (EPS) and hydraulic power steering (HPS) systems to assist with steering control.
2. Throttle Control: Actuators are used to control the throttle valve position in modern engines, ensuring precise control of engine speed and power output.
3. Transmission Systems: Rotary actuators are employed in automated manual transmissions (AMTs) and dual-clutch transmissions (DCTs) to facilitate gear shifting.
Energy and Utilities:
1. Valve Actuation: Rotary actuators control valves in pipelines, process industries, and utilities for regulating flow rates, pressure, and fluid direction.
2. Renewable Energy: Actuators are used in solar tracking systems to orient solar panels towards the sun for optimal energy capture.
Medical and Healthcare:
1. Diagnostic Equipment: Rotary actuators are used in medical devices such as CT scanners and MRI machines for precise positioning and movement of imaging components.
2. Surgical Robotics: Actuators enable precise movement and control in surgical robotic systems, enhancing surgical precision and minimally invasive procedures.
| Series HAS | 20 | ||||||
| Reduction ratio | 51 | 81 | 101 | 121 | 161 | ||
| 220VAC | Peak torque | N·m | 69 | 91 | 102 | 108 | 113 |
| Rated torque | N·m | 30 | 48 | 58 | 61 | 61 | |
| Maximum speed | rpm | 98 | 62 | 50 | 41 | 31 | |
| Rated speed | rpm | 51 | 32 | 26 | 21 | 16 | |
| Maximum current | Arms | 6.04 | 5.02 | 4.51 | 3.98 | 3.13 | |
| Rated current | Arms | 2.63 | 2.65 | 2.56 | 2.25 | 1.69 | |
| Torque constant | N m/Arms | 11.42 | 18.14 | 22.62 | 27.1 | 36.06 | |
| Phase resistance | Ohms(20℃) | 6.2 | |||||
| Phase inductance | mH | 7.7 | |||||
| Back EMF | Vrms/krpm | 25 | |||||
| 48VDC | Peak torque | N·m | 69 | 91 | 102 | 108 | 113 |
| Rated torque | N·m | 39 | 58 | 61 | 61 | 61 | |
| Maximum speed | rpm | 86 | 54 | 44 | 36 | 27 | |
| Rated speed | rpm | 51 | 32 | 26 | 21 | 16 | |
| Maximum current | Arms | 15.37 | 12.77 | 11.48 | 10.14 | 7.98 | |
| Rated current | Arms | 8.69 | 8.14 | 6.86 | 5.73 | 4.31 | |
| Torque constant | N m/Arms | 4.49 | 7.13 | 8.89 | 10.65 | 14.17 | |
| Phase resistance | Ohms(20℃) | 0.4 | |||||
| Phase inductance | mH | 0.9 | |||||
| Back EMF | Vrms/krpm | 7.7 | |||||
| Absolute Encoder | Encoder type | Absolute encoder | |||||
| Resolution (single motor revolution) | bit | 23,24 bits | |||||
| Motor Multi-turn counter | bit | 16 | |||||
| Uni-directional positional accuracy | Arc sec | ≤75 | ≤75 | ≤60 | ≤50 | ≤50 | |
| Repeatability of positioning accuracy | Arc sec | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | |
| Overturning stiffness | x104 N·m /rad | 24 | |||||
| Torsional stiffness | x104 N·m /rad | 1.8 | 2.3 | ||||
| Inertia moment | Without brake | kg*m2 | 8.8*10^-5 | ||||
| With brake | kg*m2 | 9.17*10^-5 | |||||
| Mass | Without brake | Kg | 2.4 | ||||
| With brake | Kg | 2.96 | |||||
| Number of motor poles | Pole | 16 | |||||
| Ambient conditions | Operating temperature: 0~40℃ Storage temperature: -20~60℃ Operating humidity/Storage humidity: 20~80%RH (no condensation) Vibration resistance: 24.5m/s2 (frequency: 10~400Hz) No dust or metal powder , corrosive gases, flammable gases, oil mist and other indoor use, avoid direct sunlight Below 1000m altitude |
||||||
| Motor insulation | Insulation resistance: more than 100MΩ(DC500V) | ||||||
| Dielectric strength: AC1500V/ 1 minute | |||||||
| Insulation class: F | |||||||
| Degrees of Protection | Totally enclosed self-cooled type (IP65) | ||||||
