TTGV/ TTGH Technical Specification Table TTGV/ TTGH Technical Specification Table
Specification		TTGV-110 TTGH-110	TTGV-150 TTGH-150	TTGV-150 TTGH-150	TTGV-220 TTGH-220	TTGV-270 TTGH-270	TTGV-330 TTGH-330	TTGV-390 TTGH-390	TTGV-450 TTGH-450	TTGV-550 TTGH-550	TTGV-650 TTGH-650
Ratio		15/20/25/30	15/20/25/30	15/20/25/30	15/20/25/30	15/20/25/30	15/20/25/30	15/20/25/30	20/25/30/35	20/25/30/35	20/25/30/35
		35/40/50/60	35/40/50/60	35/40/50/60	35/40/50/60	35/40/50/60	35/40/50/60	35/40/50/60	40/50/60/70	40/50/60/70	40/50/60/70
			70/80	70/80/90/100	70/80/90/100	70/80/90/100	70/80/90/100	70/80/90/100	80/90/100/120	80/90/100/120	80/90/100/120
					120	120	120	120	139	139	139
Rated output torque	Nm kgf-m	400	600	1200	2100	5000	9500	15000	22000	40000	58000
Acceleration and braking torque	Nm kgf-m	1200	1800	3600	6300	15000	28500	45000	66000	120000	174000
Instantaneous maximum allowable torque	Nm kgf-m	2000	3000	6000	10500	25000	47500	75000	110000	200000	290000
Rated input speed	Nr (rpm)	3000	3000	3000	2000	1500	1500	1000	1000	1000	1000
Allowable maximum input speed	Nmax (rpm)	2500	5000	5000	4000	2000	2000	1500	1500	1500	1500
Backlash	arc.min	≤7.0	≤7.0	≤7.0	≤7.0	≤7.0	≤8.0	≤10.0	≤5.0	≤5.0	≤7.0
Max. axial force	N	4000	5000	7500	25000	75000	82000	120000	150000	220000	400000
Start Efficiency	%	≥90	≥90	≥90	≥90	≥90	≥90	≥85	≥85	≥85	≥85
Noise	db	＜62	＜63	＜65	＜65	＜70	＜70	＜70	＜70	＜70	＜72
Weight	KG	15	33	43	80	136	225	350	515	—	—

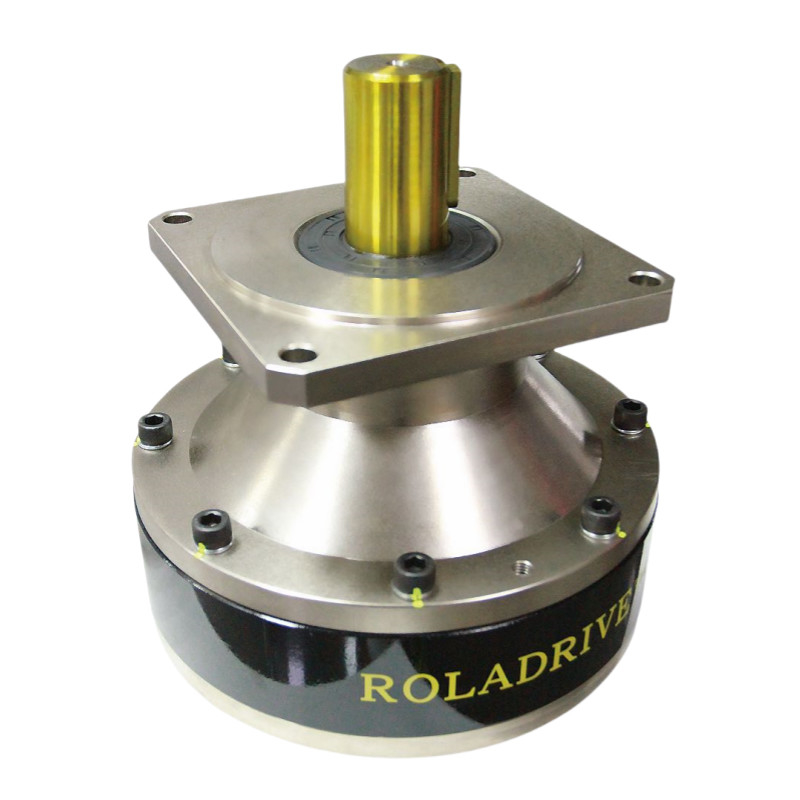

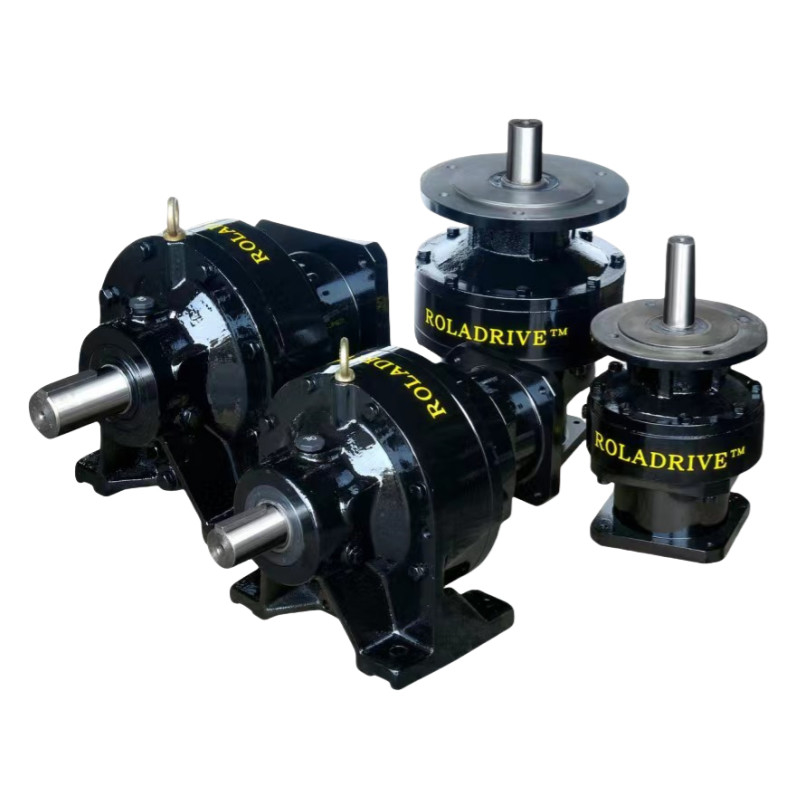

High Torque High Rigidity Special Reducer For Large Bending Machine

Large Bending Machine high torque reducer
