Name: High Precision Hollow Shaft Rotary Table Servo Rotary Gearbox Actuator Hollow Rotating Platform
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: HRG Series
Price: Negotiable USD
Availability: InStock

Home > products > Hollow Rotary Table >

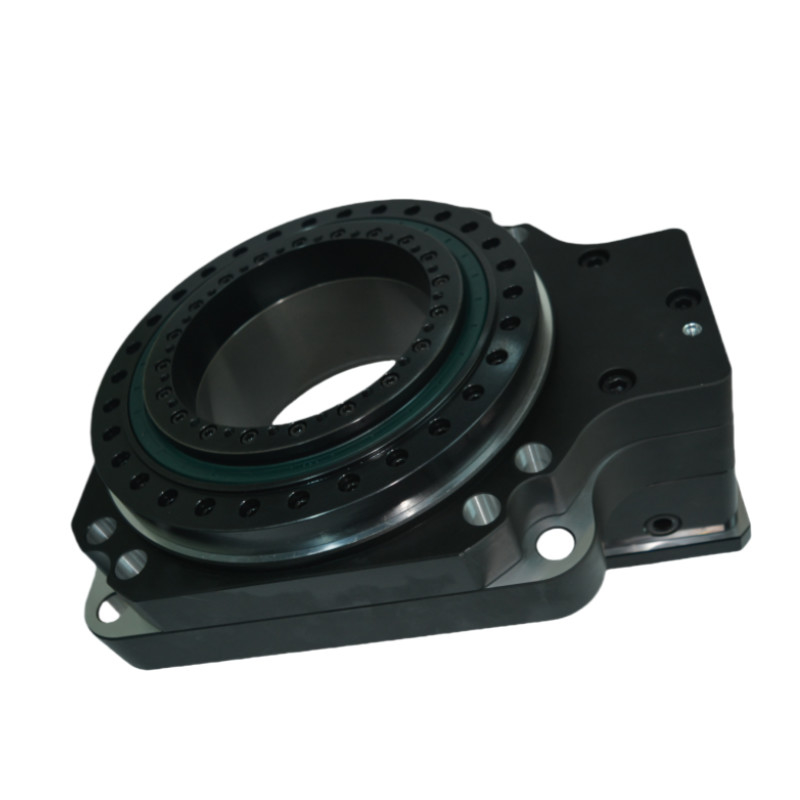

High Precision Hollow Shaft Rotary Table Servo Rotary Gearbox Actuator Hollow Rotating Platform

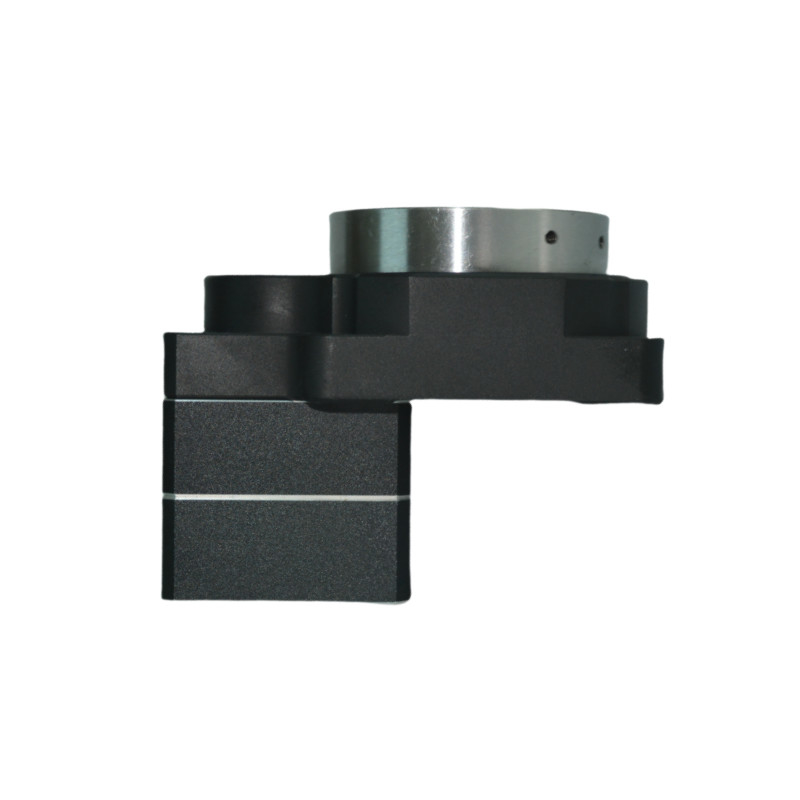

Servo Rotary Gearbox Actuator Rotary Table

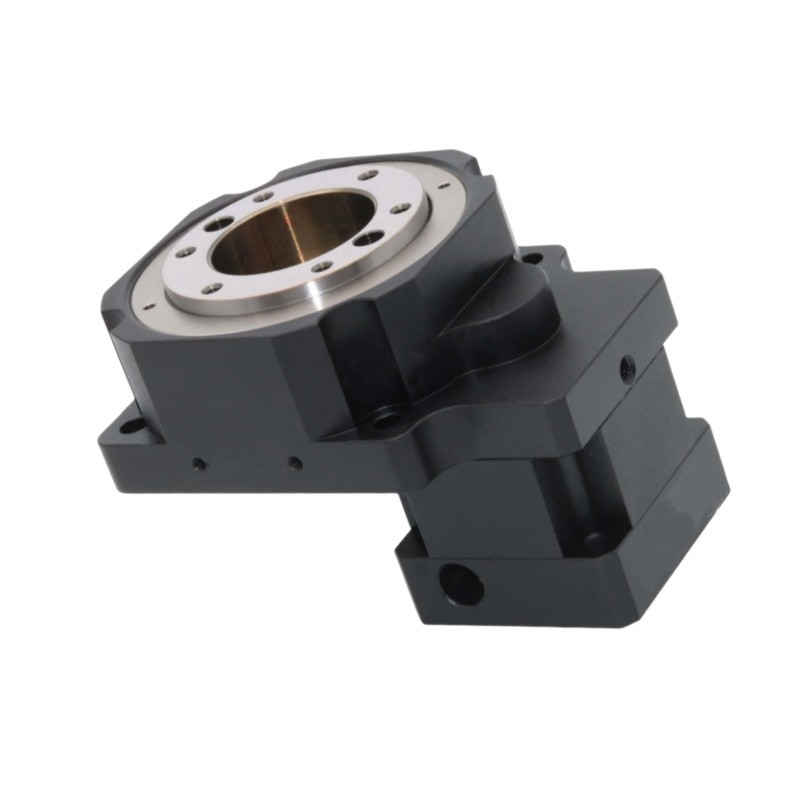

High Precision Hollow Shaft Rotary Table

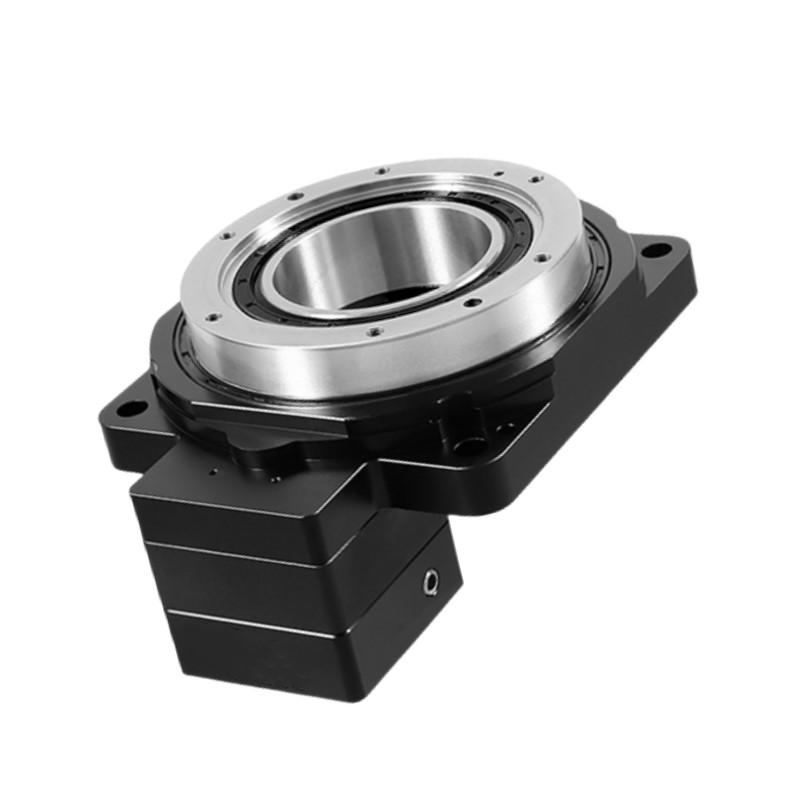

Hollow Rotating Platform Rotary Table

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

HRG Series

Request A Quote

High Precision Hollow Shaft Rotary Table Servo Rotary Gearbox Actuator Hollow Rotating Platform

Product Details

Product:

HRG 60 Hollow Rotary Table

Output Platform Support:

Crossed Roller Bearing

Shift Motion:

360°（Rotation At Any Angle)

Matching Motor(Size):

Φ8-Φ30-Φ45-M3

Reduction Ratio:

Rated Output Torque:

5NM

Max Acceleration Torque:

9NM

Emergency Stop Torque:

15NM

Operating Temperature:

－10℃~90℃

Level Of Production:

IP65

Level Of Noise:

≤65dB

Payment & Shipping Terms

Minimum Order Quantity

To Be Negotiated

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Hollow Rotary Actuator Rotating Platform Table For High Precision Planetary Gearbox

Get Best Price

High Precision Hollow Rotary Platform With Planetary Gearbox For Heavy Load Planetary Reduction Rotary Table

Get Best Price

Heavy Load Planetary Reduction Rotary Table For Heavy Duty Hollow Rotary Stage

Get Best Price

High Precision Hollow Rotating Platform For Heavy Load Planetary Reduction Rotary Table

Get Best Price

Contact Now

Product Description

HRG Series Hollow Rotary Table

The hollow rotating platform is a revolutionary product designed for various rotational motion applications. It can replace DD motors and cam splitters while combining high efficiency, precision, rigidity, and cost-effectiveness. This product represents a breakthrough in rotational motion mechanisms, achieving a balance between these elements with a repeat positioning accuracy of ≤5 arc seconds. It easily accommodates motors and provides stable load capacity, compatible with AC servo motors or stepper motors for arbitrary angle segmentation. This not only meets the numerical control capabilities that traditional splitters cannot achieve but also offers positioning accuracy comparable to DD motors. It significantly reduces costs and delivers unexpected benefits.

Features

Compatible with servo motors ranging from 100 to 750W.
Workpieces can be directly secured.
The rotating platform surface allows for direct locking of workpieces, enhancing loading convenience.
Convenient wiring; this hollow design facilitates both wiring and piping.
High precision, with positioning accuracy of less than one arc minute and repeat positioning accuracy of ±15 seconds.
Smooth operation; the platform rotates steadily, smoothly, and with rapid positioning.
Compatible with various motors; the hollow rotating platform can be driven by servo motors from different brands.

Model	Specification	Hollow diameter	Ratio
Model	(mm)	(mm)	Ratio
HRG60-05K	60	28	5

Performance Parameter

Output Platform Support	Crossed Roller Bearing	Permissible Output Speed	200rpm	Rotational Inertia	735x10-7 kg.m2
Shift Motion	360°(Rotation at any Angle)	Repetitive Positioning Accuracy	±15 arc sec	Positioning Accuracy	≤30 arc sec
Matching Motor(Size)	Φ8-Φ30-Φ45-M3	Allowable Axial Load	250N	Lubrication	Synthetic Grease
Reduction Ratio	5	Allowable Radial Load	125N	operating temperature	－10℃~90℃
Rated Output Torque	5NM	Parallelism of Output Platform	0.02mm	Service Life	20000h
Max Acceleration Torque	9NM	Runout of Output Platform Surface	0.01mm	Level of Production	IP65
Emergency Stop Torque	15NM	Runout of Output Platform Excircle	0.01mm	Level of Noise	≤65dB

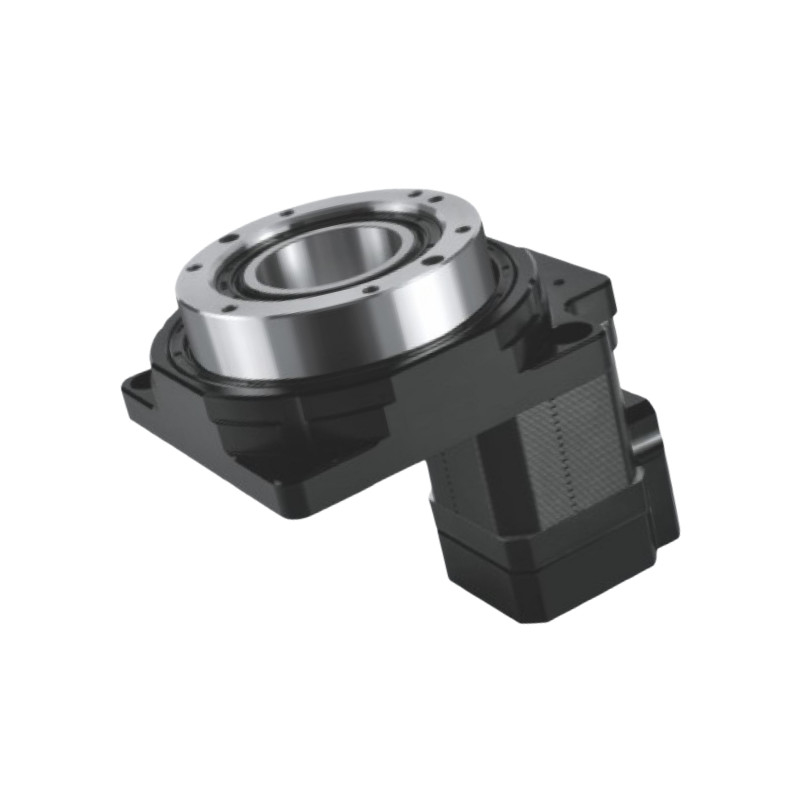

Detailed Images

Drawings

High Precision Hollow Shaft Rotary Table Servo Rotary Gearbox Actuator Hollow Rotating Platform 5

Installation instructions for Hollow Rotary Table

Packing and Shipping

High Precision Hollow Shaft Rotary Table Servo Rotary Gearbox Actuator Hollow Rotating Platform 8
