Place of Origin:
China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
HRG Series
The hollow rotary platform is an advanced mechanical device designed for precise rotational motion applications. It features a unique hollow design that allows for easy routing of cables and pipes, enhancing its versatility in various setups.
High Precision:
Achieves repeat positioning accuracy of less than 5 arc seconds, ensuring reliable performance in demanding applications.
High Rigidity:
Supported by precision crossed roller bearings, the platform can withstand significant radial, axial, and overturning forces, providing over ten times the rigidity of traditional bearings.
Flexible Motor Compatibility:
Easily configurable to accommodate various brands and types of motors, including servo and stepper motors, through customizable flanges and input shafts.
Efficient Torque Output:
Utilizes a single-stage helical gear reduction mechanism to increase output torque, with gears rated below level 5 for precision.
Convenient Loading:
The platform surface allows for direct locking of workpieces, streamlining the loading process and enhancing operational efficiency.
Smooth Operation:
Designed for stable and smooth rotation, ensuring quick positioning and minimal vibration during operation.
Robust Construction:
Built to endure a variety of operational stresses while maintaining high performance, making it suitable for industrial and automation applications.
The hollow rotary platform is ideal for applications requiring high precision, flexibility, and robustness, making it a valuable asset in robotics, manufacturing, and automation industries.
 |
Model | Specification | Hollow diameter | Ratio |
| (mm) | (mm) | |||
| HRG110-05K HRG110-10K |
110 | 35 |
5 10 |
Performance Parameter
| HRG110-05/10K | |||||
| Output Platform Support | Crossed Roller Bearing | Permissible Output Speed | 200rpm | Rotational Inertia | 1483x10-6 kg.m2 |
| Shift Motion | 360°(Rotation at any Angle) | Repetitive Positioning Accuracy | ±15 arc sec | Positioning Accuracy | ≤30 arc sec |
| Matching Motor(Size) | Φ14-Φ50-Φ70-M4 | Allowable Axial Load | 2000N | Lubrication | Synthetic Grease |
| Reduction Ratio | 5, 10 | Allowable Radial Load | 1200N | operating temperature | －10℃~90℃ |
| Rated Output Torque | 35NM | Parallelism of Output Platform | 0.02mm | Service Life | 20000h |
| Max Acceleration Torque | 70NM | Runout of Output Platform Surface | 0.01mm | Level of Production | IP65 |
| Emergency Stop Torque | 105NM | Runout of Output Platform Excircle | 0.01mm | Level of Noise | ≤65dB |

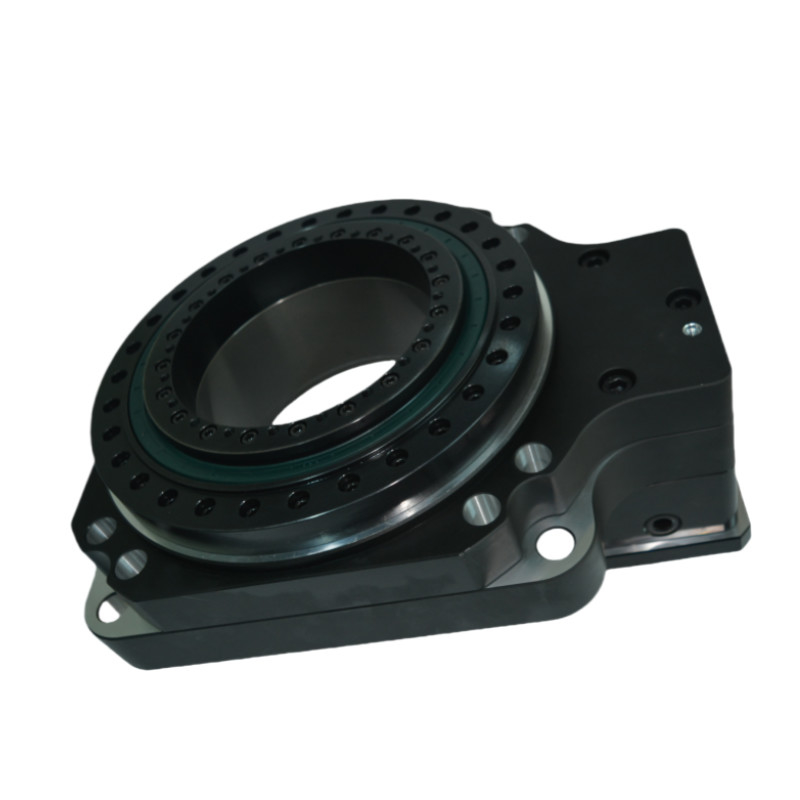

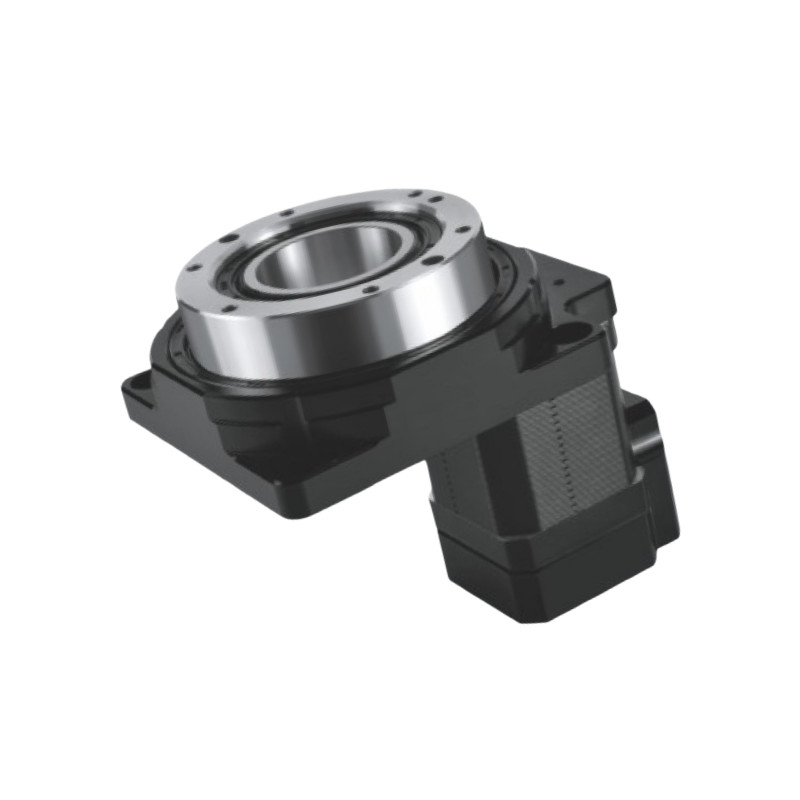

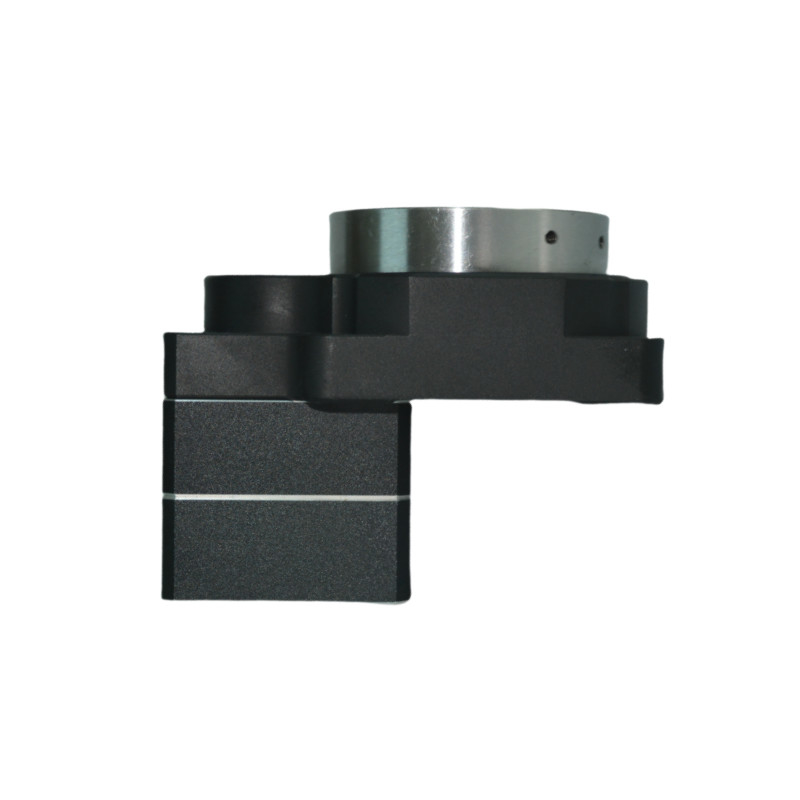

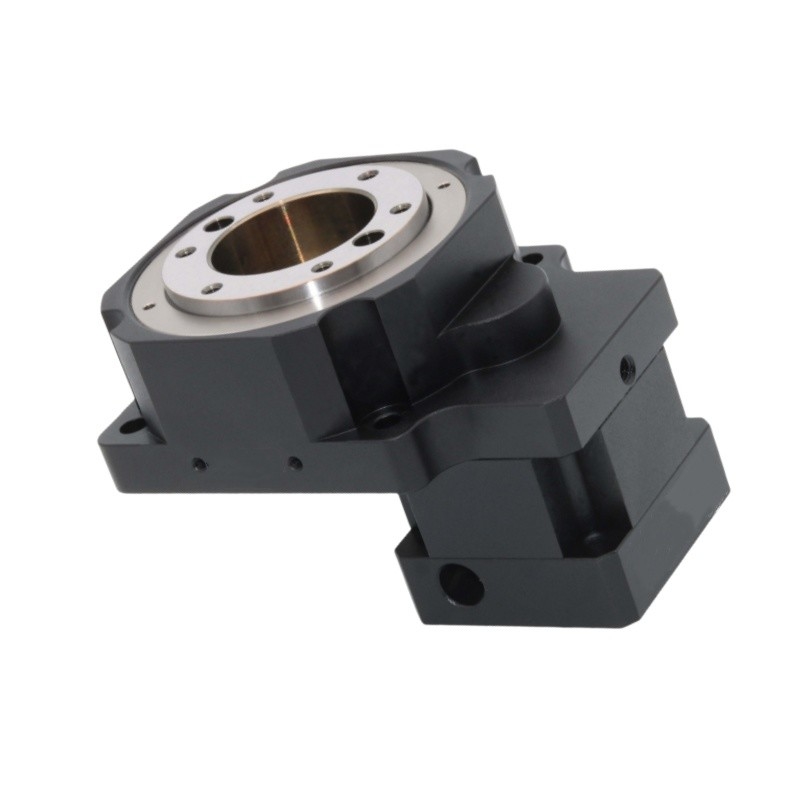

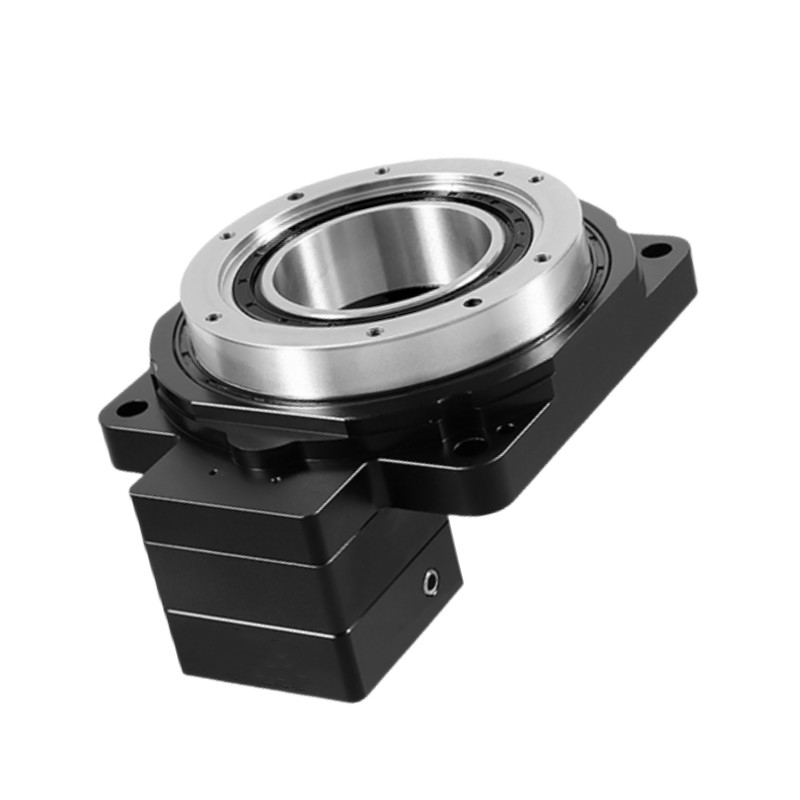

Detailed Images
|
|
|
|
