HRG 85A Series Hollow Planetary Integrated Rotary Table
The Hollow Planetary Integrated Rotary Table is a specialized piece of equipment used in various applications, particularly in robotics, automation, and precision machining. It typically features a hollow structure that allows for the routing of cables, fluids, or other materials through the center, which helps keep the workspace organized and free from tangling.
Key Features
High Precision:
Achieves repeat positioning accuracy of less than 5 arc seconds, ensuring reliable performance in demanding applications.
High Rigidity:
Supported by precision crossed roller bearings, the platform can withstand significant radial, axial, and overturning forces, providing over ten times the rigidity of traditional bearings.
Flexible Motor Compatibility:
Easily configurable to accommodate various brands and types of motors, including servo and stepper motors, through customizable flanges and input shafts.
Efficient Torque Output:
Utilizes a single-stage helical gear reduction mechanism to increase output torque, with gears rated below level 5 for precision.
Robust Construction:
Built to endure a variety of operational stresses while maintaining high performance, making it suitable for industrial and automation applications.
 |
Model |
Model |
Model |
Ratio |
| Hollow Rotary Table |
Planetary Reducer |
|
HRG110A
|
HRG110 |
HA060 |
5,7 10
|
Performance Parameter
| HRG85A-05 |
| Output Platform Support |
Crossed Roller Bearing |
Permissible Output Speed |
200rpm |
Rotational Inertia |
1203x10-6 kg.m2 |
| Shift Motion |
360°(Rotation at any Angle) |
Repetitive Positioning Accuracy |
±15 arc sec |
Positioning Accuracy |
≤30 arc sec |
| Matching Motor(Size) |
200-400W ServoMotor
Φ14-Φ50-Φ70-M4 |
Allowable Axial Load |
500N |
Lubrication |
Synthetic Grease |
| Reduction Ratio |
25 |
35 |
50 |
Allowable Radial Load |
250N |
operating temperature |
－10℃~90℃ |
| Rated Output Torque |
18NM |
Parallelism of Output Platform |
0.02mm |
Service Life |
20000h |
| Max Acceleration Torque |
32.4NM |
Runout of Output Platform Surface |
0.01mm |
Level of Production |
IP65 |
| Emergency Stop Torque |
54NM |
Runout of Output Platform Excircle |
0.01mm |
Level of Noise |
≤65dB |
| HRG85A-10 |
| Output Platform Support |
Crossed Roller Bearing |
Permissible Output Speed |
200rpm |
Rotational Inertia |
1203x10-6 kg.m2 |
| Shift Motion |
360°(Rotation at any Angle) |
Repetitive Positioning Accuracy |
±15 arc sec |
Positioning Accuracy |
≤30 arc sec |
| Matching Motor(Size) |
200-400W ServoMotor
Φ14-Φ50-Φ70-M4 |
Allowable Axial Load |
500N |
Lubrication |
Synthetic Grease |
| Reduction Ratio |
70 |
100 |
Allowable Radial Load |
250N |
operating temperature |
‘－10℃~90℃ |
| Rated Output Torque |
14NM |
Parallelism of Output Platform |
0.02mm |
Service Life |
20000h |
| Max Acceleration Torque |
25.2NM |
Runout of Output Platform Surface |
0.01mm |
Level of Production |
IP65 |
| Emergency Stop Torque |
42NM |
Runout of Output Platform Excircle |
0.01mm |
Level of Noise |
≤65dB |

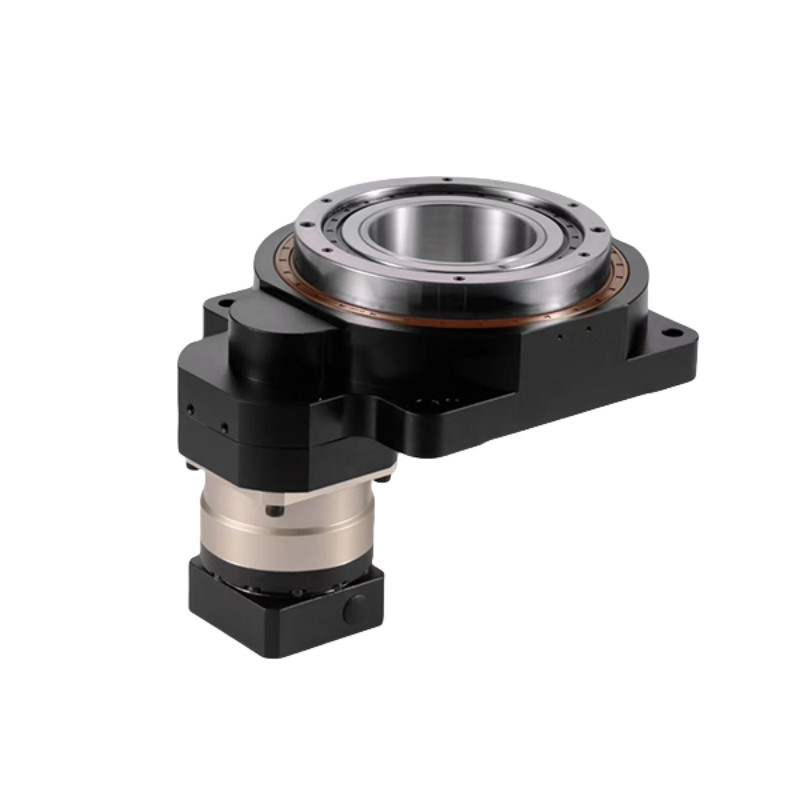

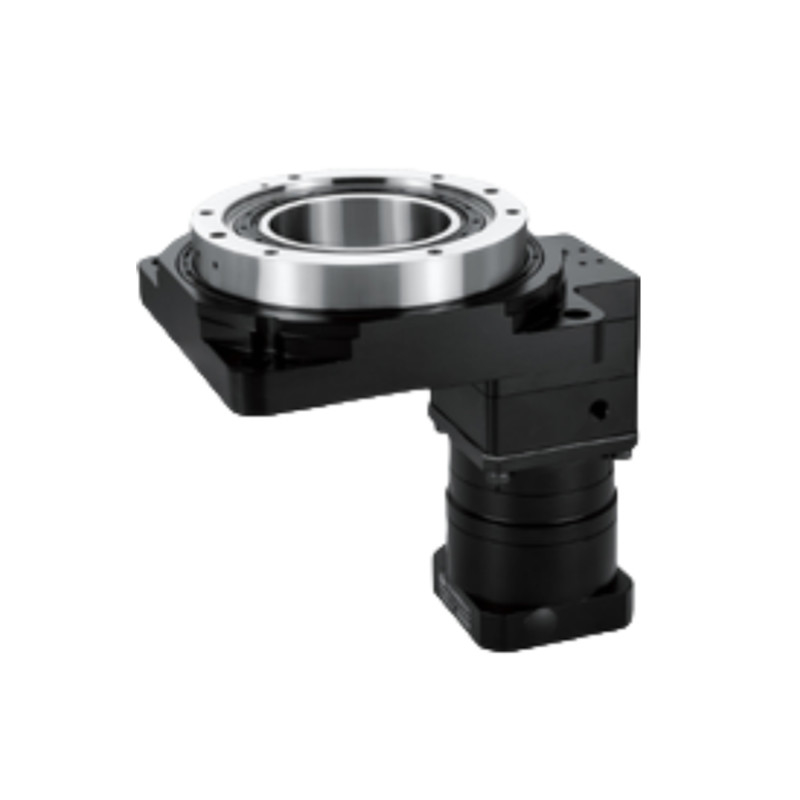

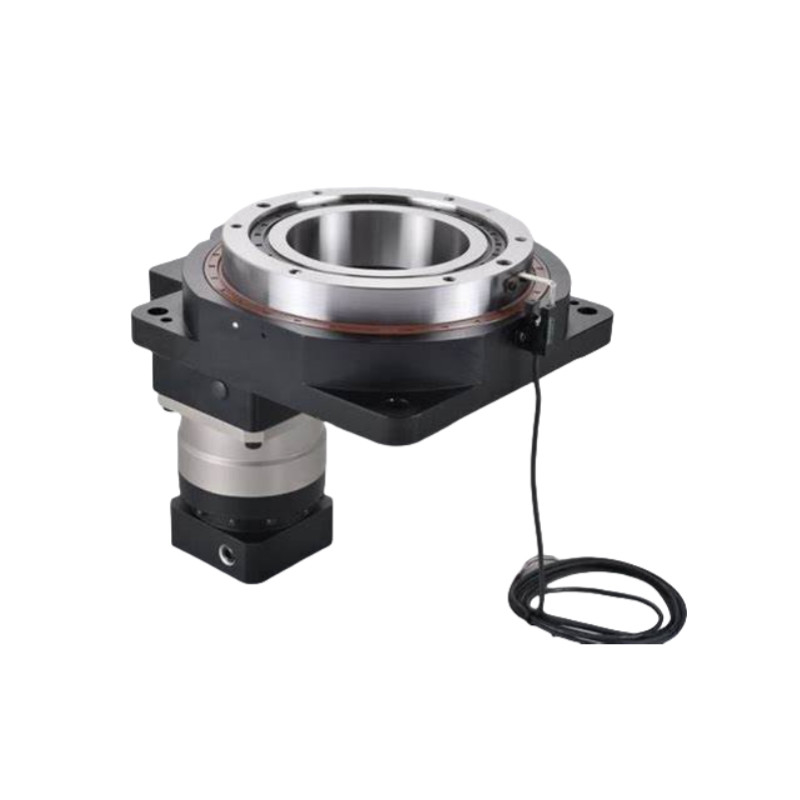

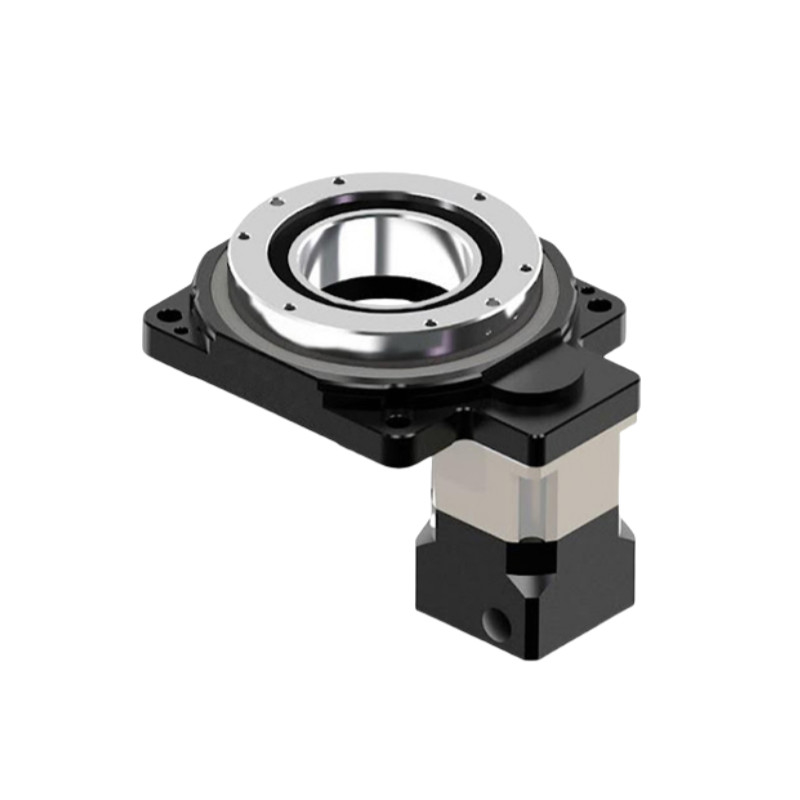

Detailed Images
Drawings
Applications of Hollow Rotary Platform
Robotics:
Used in robotic arms and manipulators for precise positioning and movement in assembly tasks and material handling.
Automation Systems:
Integrated into automated production lines for tasks such as sorting, packaging, and palletizing, where accurate rotational motion is essential.
CNC Machining:
Employed in CNC machines for precise rotation of workpieces during milling, drilling, and turning operations.
Medical Equipment:
Utilized in medical devices such as imaging systems, surgical robots, and laboratory automation for accurate positioning and movement.
Aerospace and Defense:
Applied in flight simulators, radar systems, and UAVs for precise orientation and stabilization.
Telecommunications:
Used in antenna positioning systems to ensure accurate alignment for optimal signal transmission.
Test and Measurement:
Integrated into testing equipment for rotating samples or components to evaluate performance under various conditions.
Entertainment and Media:
Utilized in camera rigs and lighting systems for smooth and controlled movement in film production and live events.
Industrial Equipment:
Applied in conveyors and sorting systems where rotational motion is needed for efficient material handling.
Research and Development:
Used in laboratories and research facilities for experimental setups requiring precise angular adjustments.
