Place of Origin:
China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
Right Angle Hollow Rotary Table
Right Angle Hollow Rotary Table is a kind of rotating load device that specially designed for 90 degree force direction changes in some application for the purpose of spacing saving or special mechanism design.
The adoption of the top spiral bevel gear designed soft body and the optimized design of contact tooth surface makes the even load and allow high torque output. When it combined with planetary reducer, the gear ratio shall become bigger which reaches up to 1:50.
Key Components
Base Plate: The foundation that supports the entire assembly and allows for mounting on machines.
Rotary Mechanism: This includes gears or motors that enable the 360-degree rotation of the table.
Hollow Shaft: The central hollow section that permits the passage of tools, coolant, or wiring.
Table Top: The surface on which workpieces are placed, often featuring T-slots for clamping.
Angle Adjustment Mechanism: Allows for precise angling of the table to achieve desired machining positions.
Bearing System: Provides smooth rotation and stability during operation.
Control System: May include digital readouts or CNC integration for precise positioning and movement.
Hollow Center: Allows for easy passage of tools, workpieces, or coolant, enhancing versatility.
Multi-Axis Capability: Enables machining or positioning at multiple angles, improving flexibility in operations.
Precision Bearings: Ensures smooth and accurate rotation, minimizing runout and enhancing machining quality.
Robust Construction: Built from high-quality materials for durability and stability under load.
Adjustable Speed Control: Allows operators to customize rotation speeds to match specific machining requirements.
T-Slot Design: Provides clamping options for securing workpieces easily.
Integration with CNC Systems: Supports automation and programming for complex machining tasks.
Performance Parameter
| Performance Parameter HRG280Z | |||||||
| Output Platform Support | Crossed Roller Bearing | Permissible Output Speed | 200rpm | Rotational Inertia | 361220x10-6 kg.m2 | ||
| Shift Motion | 360°(Rotation at any Angle) | Repetitive Positioning Accuracy | ±15 arc sec | Positioning Accuracy | ≤30 arc sec | ||
| Matching Motor(Size) | 750-1.5KW ServoMotor Φ19-Φ70-Φ90-M5 |
Allowable Axial Load | 7000N | Lubrication | Synthetic Grease | ||
| Reduction Ratio | 20 | 30 | 50 | Allowable Radial Load | 3500N | operating temperature | ‘－10℃~90℃ |
| Rated Output Torque | 120NM | Parallelism of Output Platform | 0.02mm | Service Life | 20000h | ||
| Max Acceleration Torque | 216NM | Runout of Output Platform Surface | 0.01mm | Level of Production | IP65 | ||
| Emergency Stop Torque | 600NM | Runout of Output Platform Excircle | 0.01mm | Level of Noise | ≤65dB | ||

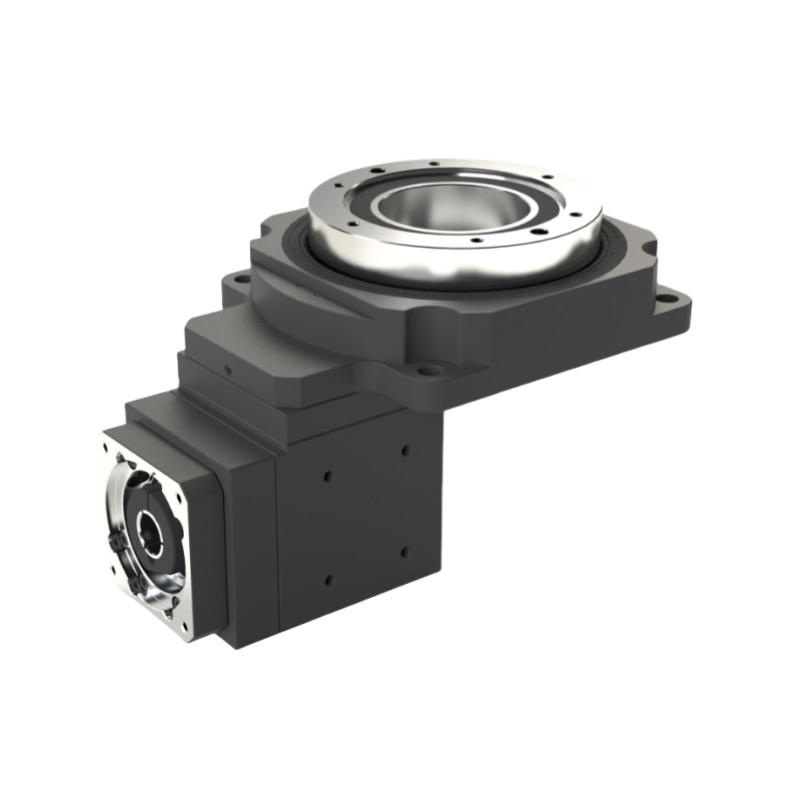

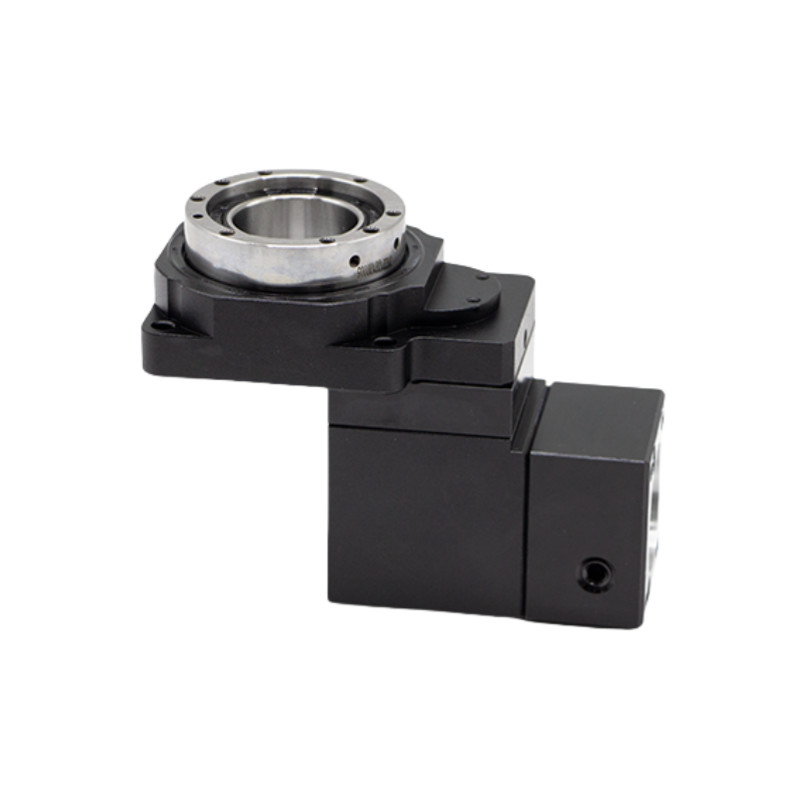

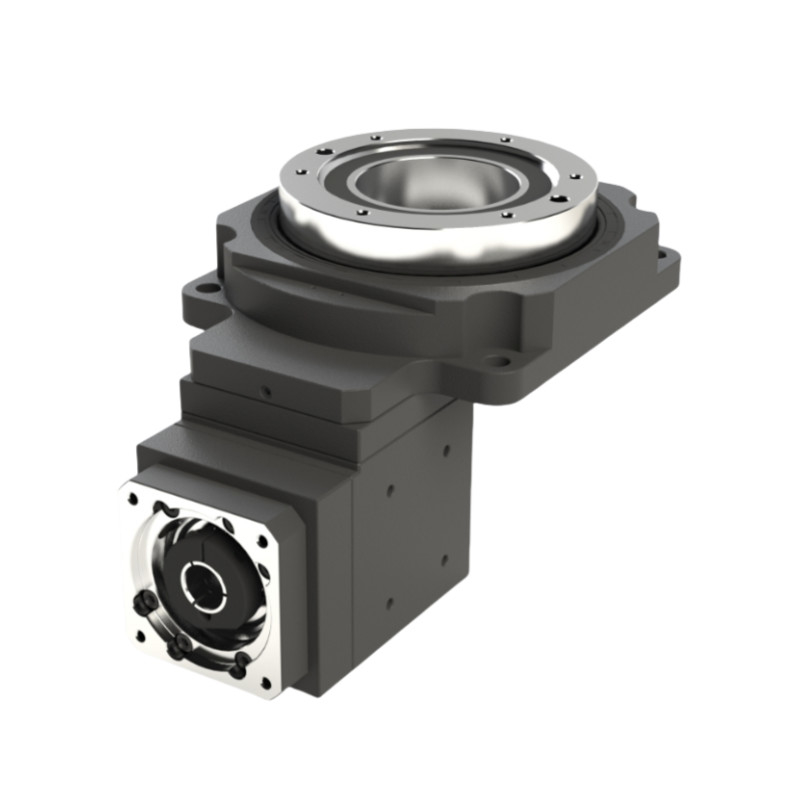

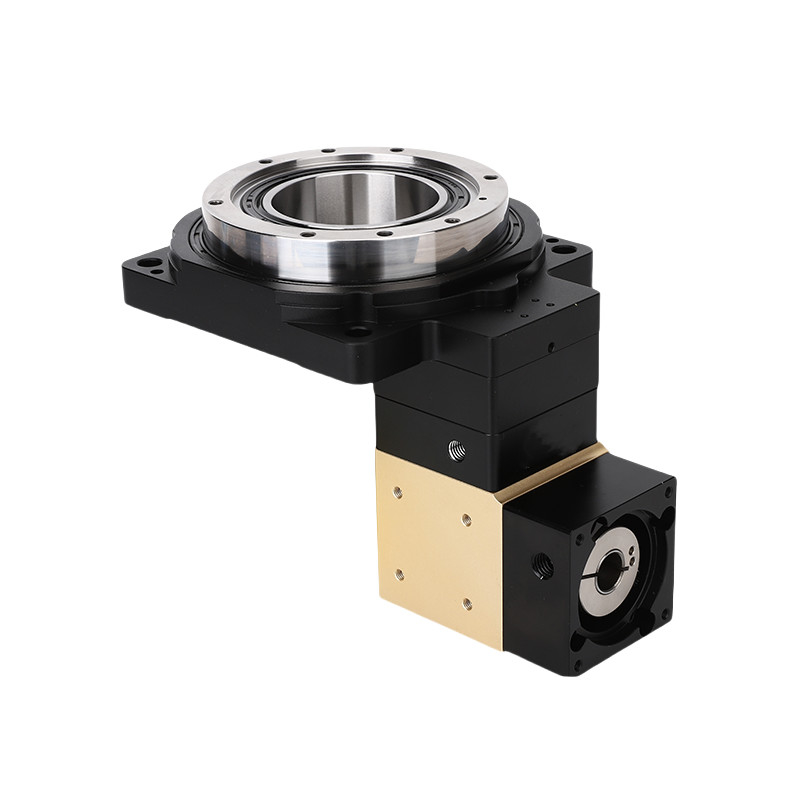

Detailed Images
 |
|
|
Drawings
Applications of Hollow Rotary Platform
CNC Milling: Enables precise machining at multiple angles without repositioning the workpiece.
Assembly Operations: Facilitates the assembly of complex parts by allowing easy access from different angles.
Inspection: Used in quality control to rotate components for thorough inspection.
Automated Systems: Integrates with robotic arms for tasks like welding or painting.
