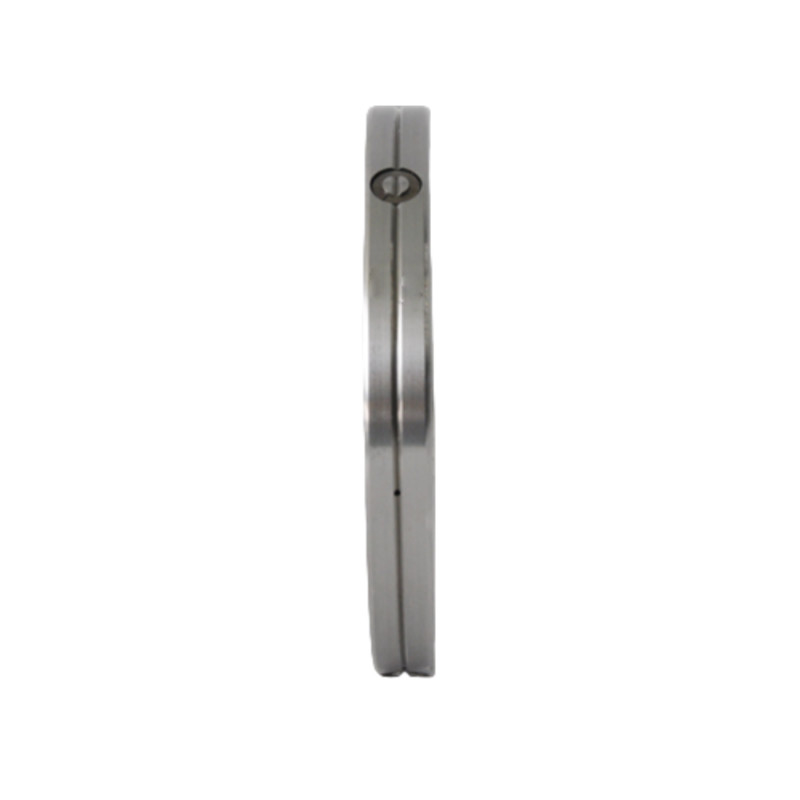

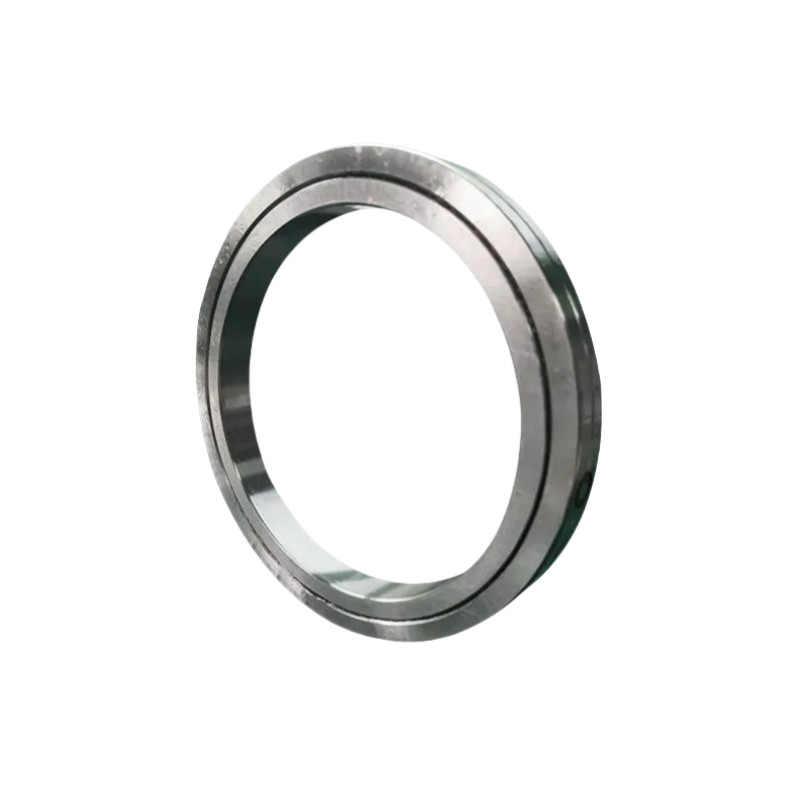

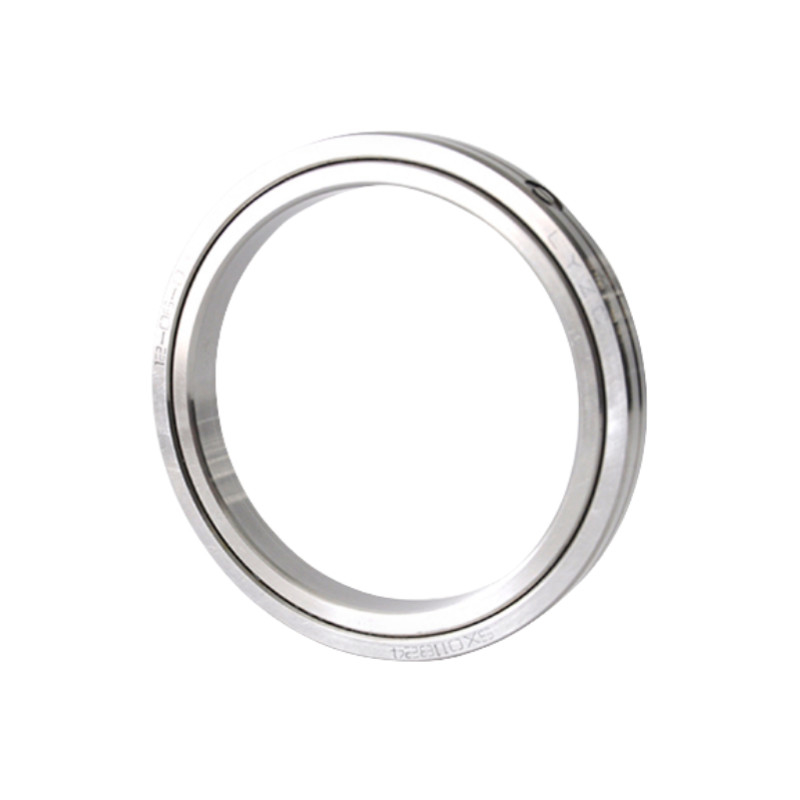

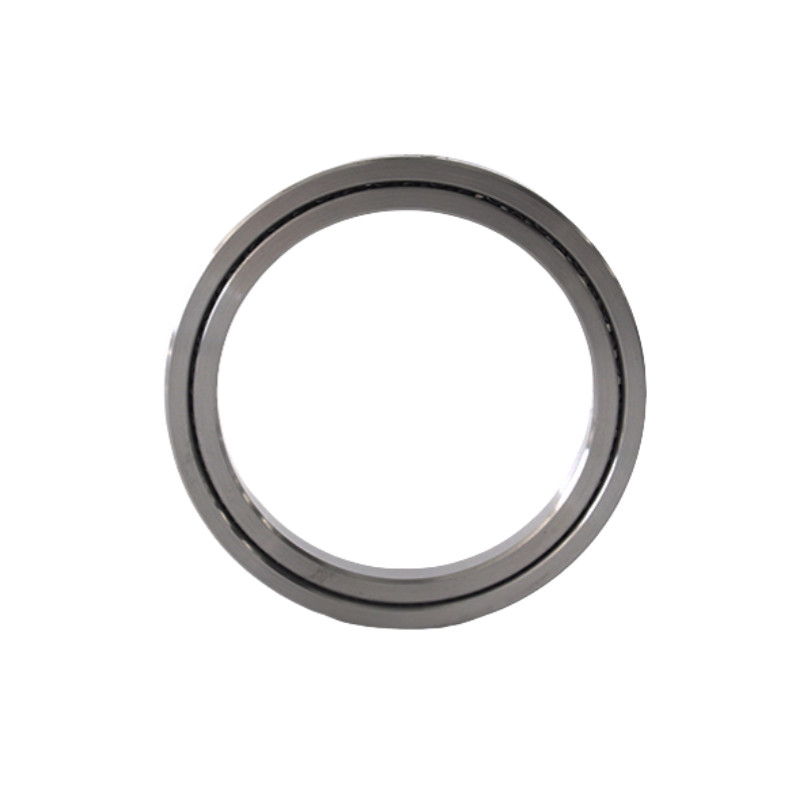

High Precision SX Series Cross Roller Slewing Bearing For Industrial Automation

SX Series Cross Roller Bearing

High Precision Cross Roller Bearing

Industrial Automation Cross Roller Bearing

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

SX Series

Request A Quote

Product Details

Model:

SX011814 To SX0118/500

Product:

SX Series Cross Roller Bearings

Material:

Bearing Steel, Stainless Steel, Plastic / Polymer Materials, Lubricant, Ceramic Materials

ID:

70 To 500 Mm

OD:

90 To 620 Mm

Roller Pitch Circle Diameter Dpw:

80 To 560 Mm

Chamfer:

0.6 To 3 R/min

Weight:

0.3 To 44 Kg

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

RV Series Robot Special Bearing For Industrial Robots

Get Best Price

SHF SHG Harmonic Reducer Bearings Special Bearing For Robot

Get Best Price

CSF CSG Harmonic Reducer Bearings Special For Robot

Get Best Price

RB Series Industrial Automation Cross Roller Bearings ID 20mm

Get Best Price

Contact Now

Product Description

SX Series Cross Roller Bearings

Name: High Precision SX Series Cross Roller Slewing Bearing For Industrial Automation
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: SX Series
Price: Negotiable USD
Availability: InStock

SX series (outer ring split type with rotating inner ring, thin section), this type has a smaller section than RB series. Due to the extremely thin structure, there are no mounting holes on the outer ring and inner ring, so this model requires a press-fit flange or a housing.

Features

1. High precision: P4 precision, P2 precision
2. High rigidity: This series bearing have preload
3. High load:This series bearing can bear double-direction axial load, radial load and tilting moment
4. Small size: This series bearing can save space for machine tools

Specifications

High Precision SX Series Cross Roller Slewing Bearing For Industrial Automation 1

Model NO.	Dimensions						Shoulder Heightd		Basic Load Rating(Axial)		Basic Load Rating(Radial)		Weight
	Inner Ring	Outer Ring	Roller Pitch Diameter	Width	Oil Holes	Chamfer	(mm)		Ca	C0a	Cr	C0r	Weight
	d	D	Dpw	B B1	S	rmin	ds	Dh	kN	kN	kN	kN	kg
SX011814	70	90	80	10	1.2	0.6	79.5	80.5	18	60	12	30	0.3
SX011818	90	115	102	13	1.2	1	101.5	102.5	26	96	17	47	0.4
SX011820	100	125	112	13	1.2	1	111.5	112.5	28	106	18	52	0.5
SX011824	120	150	135	16	1.5	1	134.4	135.6	41	153	26	75	0.8
SX011828	140	175	157	18	1.5	1.1	156.3	157.7	64	237	41	116	1.1
SX011832	160	200	180	20	1.5	1.1	179.2	180.8	69	272	44	133	1.7
SX011836	180	225	202	22	2	1.1	201.2	202.8	98	381	63	187	2.3
SX011840	200	250	225	24	2	1.5	224.2	225.8	106	425	68	208	3.1
SX011848	240	300	270	28	2	2	269.2	270.8	149	612	95	300	5.3
SX011860	300	380	340	38	2.5	2.1	339.2	340.8	245	1027	156	504	12
SX011868	340	420	380	38	2.5	2.1	379.2	380.8	265	1148	167	563	13.5
SX011880	400	500	450	46	2.5	2.5	449	451	385	1699	244	833	24
SX0118/500	500	620	560	56	2.5	3	559	561	560	2538	355	1244	44

Application


Industrial Automation	Medical Equipment	Aerospace	Precision Equipment
