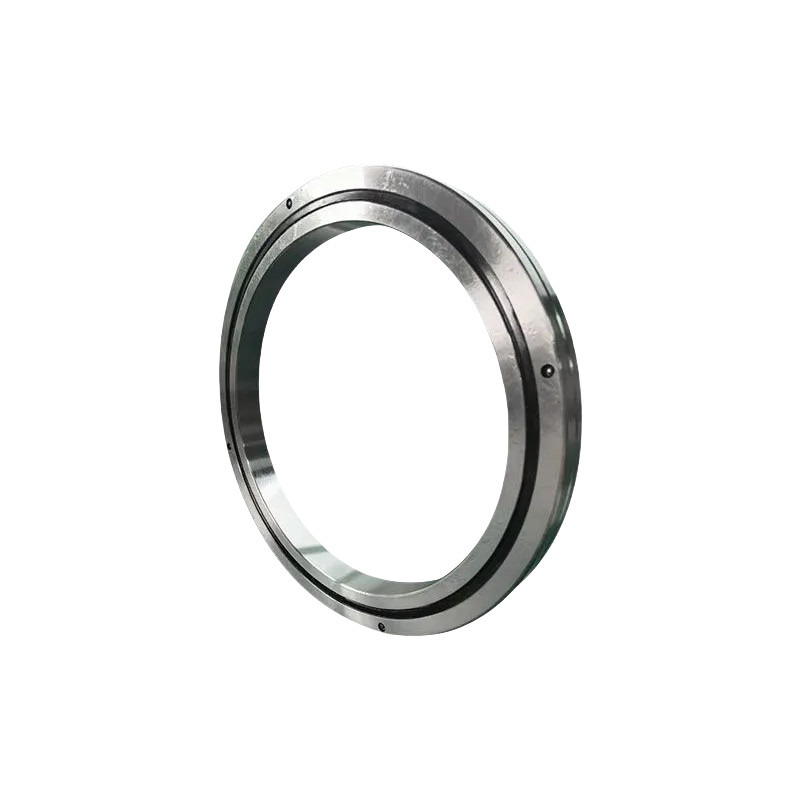

CRBTF Series Precision Equipment Cross Roller Ring Bearing Steel

CRBTF Series Cross Roller Ring Bearing

Steel Cross Roller Ring Bearing

Precision Equipment Cross Roller Ring Bearing

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

CRBTF Series

Request A Quote

Product Details

Model:

CRBTF105 To CRBTF405

Product:

CRBTF Series Cross Roller Bearings

Material:

Bearing Steel, Stainless Steel, Plastic / Polymer Materials, Lubricant, Ceramic Materials

ID:

10 To 40 Mm

OD:

43 To 73 Mm

Roller Pitch Circle Diameter Dpw:

26.5 To 56.5 Dpi

Chamfer:

0.15 R/min

Weight:

0.04 To 0.1 Kg

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

RV Series Robot Special Bearing For Industrial Robots

Get Best Price

SHF SHG Harmonic Reducer Bearings Special Bearing For Robot

Get Best Price

CSF CSG Harmonic Reducer Bearings Special For Robot

Get Best Price

RB Series Industrial Automation Cross Roller Bearings ID 20mm

Get Best Price

Contact Now

Product Description

CRBTF Series Cross Roller Bearings

Name: CRBTF Series Precision Equipment Cross Roller Ring Bearing Steel
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: CRBTF Series
Availability: InStock

CRBTF series is an ultra-thin wall structure with mounting holes suitable for extremely limited structural situations,integral inner and outer rings with mounting holes Since both the outer and inner rings have mounting holes, there is no need to fix the flange and support during installation seat. In addition, due to the overall structure of both the outer and inner rings, installation has almost no effect on performance, thus achieving stable rotational accuracy degrees and torques. Suitable for Situations in which the Outer and Inner Rings Rotate.

Features

1. High precision: P4 precision, P2 precision
2. High rigidity: This series bearing have preload
3. High load:This series bearing can bear double-direction axial load, radial load and tilting moment
4. Small size: This series bearing can save space for machine tools

Specifications

Model	Dimension (mm)					Shoulder Height(mm)		Basic Load Rating		Weight	Model	Inner Ring		Outer Ring
	ID	OD	Roller Pitch Circle Diameter	Height	Chamfer			Cr	Cor			Mounting Hole Central Dia. PCD1	Mounting Hole Size	Mounting Hole Central Dia. PCD2	Mounting Hole Size
	d	D	dp	B B1	rmin	ds (max.)	Dh (min.)	KN	KN	Kg
CRBTF105	10	43	26.5	5	0.15	21.5	28	1.5	1.4	0.04	CRBTF105	16	6-M2.5 thread through hole	35	6-D 2.9 through hole
															D 5.5 counterbore,depth2.8
CRBTF205	20	53	36.5	5	0.15	31.5	38	1.8	2.1	0.06	CRBTF205	26	6-M2.5 thread through hole	45	6-D 2.9 through hole
															D 5.5 counterbore,depth2.8
CRBTF305	30	63	46.5	5	0.15	41.5	48	2.1	2.7	0.08	CRBTF305	36	8-M2.5 thread through hole	55	8-D 2.9 through hole
															D 5.5 counterbore,depth2.8
CRBTF405	40	73	56.5	5	0.15	51.5	58	2.4	3.4	0.1	CRBTF405	46	8-M2.5 thread through hole	65	8-D 2.9 through hole
															D 5.5 counterbore,depth2.8

Application


Industrial Automation	Medical Equipment	Aerospace	Precision Equipment
