High Load Capacity Cross Roller turntable bearing Compact

High Load Capacity turntable bearing

Compact turntable bearing

Compact crossed roller slewing bearing

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

Compact Series

Request A Quote

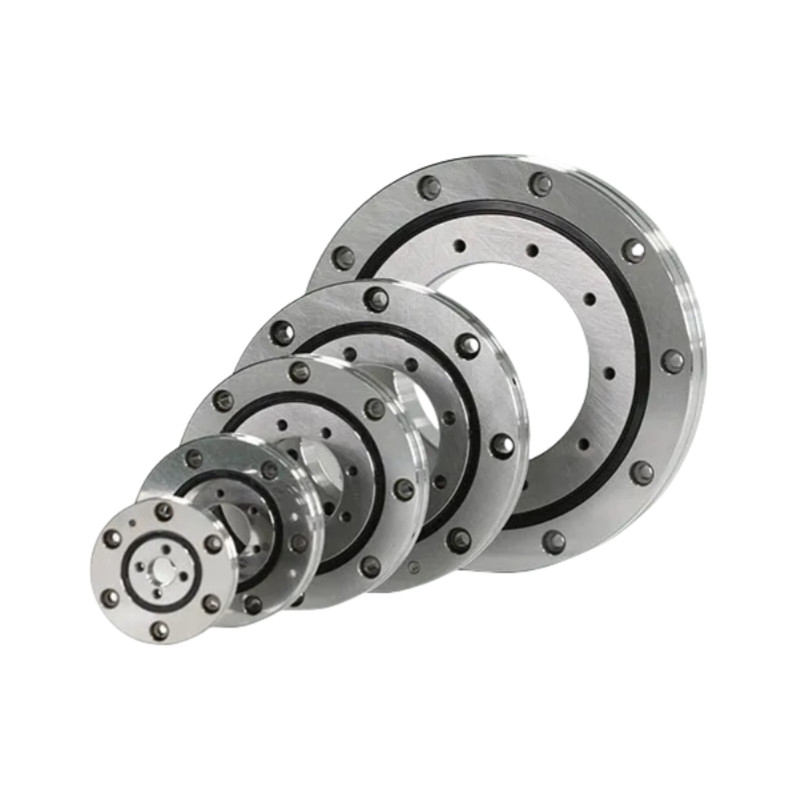

High Load Capacity Cross Roller turntable bearing Compact

Product Details

Model:

88-0148-00 To 88-0445-00

Product:

Compact Turntable Bearing

Material:

Bearing Steel, Stainless Steel, Plastic / Polymer Materials, Lubricant, Ceramic Materials

De:

208 To 539 Mm

Outer Ring:

91 To 351 Mm

Maximun Starting Torque:

10 To 55 Mm

Maximum Allowable Rotation Speed:

75 To 235 Rpm

Weight:

4 To 41 Kg

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

RV Series Robot Special Bearing For Industrial Robots

Get Best Price

SHF SHG Harmonic Reducer Bearings Special Bearing For Robot

Get Best Price

CSF CSG Harmonic Reducer Bearings Special For Robot

Get Best Price

RB Series Industrial Automation Cross Roller Bearings ID 20mm

Get Best Price

Contact Now

Product Description

Compact Turntable Bearings

Name: High Load Capacity Cross Roller turntable bearing Compact
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: Compact Series
Availability: InStock

Introduction

The high precision crossed roller bearings range 88 has been designed to meet customers' specific expectations and requirements in terms of application. The high precision crossed roller bearings range 88 offers high precision in positioning, which provides significant advantages for robots, indexing tables, positioners, machine tools, turntables, tool changers, welding cells, and other applications. Its high stiffness, homogeneous rotation with low torque, and high geometric quality make it an ideal choice for a wide range of industrial applications.
The crossed roller design with preload and ground raceway ensures reliable performance over the lifetime of the machine.

Features of Turntable Bearings

1. High Load Capacity: Turntable bearings can support substantial radial, axial, and tilting moment loads.

2. Smooth Rotation: They are designed to allow smooth, continuous rotation even under heavy load.

3. Precision: Some bearings are designed with high precision for applications where accurate positioning is critical, like in machinery or robotics.

How to Select a Turntable Bearing

1. Load Requirements: Determine the type (axial, radial, moment) and magnitude of the load.

2. Precision: Higher precision bearings may be required for robotics or medical equipment.

3. Environmental Factors: Consider dust, moisture, and temperature, as these can impact bearing performance.

4. Mounting Design: Some applications may benefit from flange-mounted designs for ease of installation.

Specifications

References	Weight KG	Dimensions mm									Fastening mm							2 equispaced grease nipples	Axial runout		Radial runout		Maximun starting torque	Maximum allowable rotation speed	Similiar
		Dimensions mm									Fastening mm							2 equispaced grease nipples	µm		µm		(unloaded)	rpm
		De	Di	Ce	Ci	HT	He	Hce	Hi	Hci	Dt	DI	HI	Fe	Ne	Fi	Ni	Dimensions	OR	IR	OR	IR	mm
		De	Di	h5	h5	HT	He	Hce	Hi	Hci	Dt	DI	HI	Fe	Ne	Fi	Ni	Dimensions	OR	IR	OR	IR	mm
88-0148-00	4	208	91	210	90	25	24.8	6	24.8	10	9	14	8.6	187	12	112	12	M6*1.00	4	4	4	4	10	235	RU148G
88-0178-00	6	239	116	240	115	28	27.8	8	27.8	10	9	14	8.6	217	12	139	12	M6*1.00	5	5	5	5	15	195	RU178G
88-0228-00	11	294	161	295	160	35	34.8	10	34.8	10	11	17.5	10.8	270	12	184	12	M10*1.00	6	6	6	6	20	150	RU228G
88-0297-00	21	379	211	380	210	40	39.8	10	39.8	10	13.5	20	13	350	16	240	16	M10*1.00	8	8	8	8	35	115	RU297G
88-0445-00	41	539	351	540	350	45	44.8	10	44.8	10	13.5	20	13	505	24	385	24	M10*1.00	12	12	12	12	55	75	RU445G

Drawing

High Load Capacity Cross Roller turntable bearing Compact 0

Application


Industrial Automation	Medical Equipment	Aerospace	Precision Equipment
