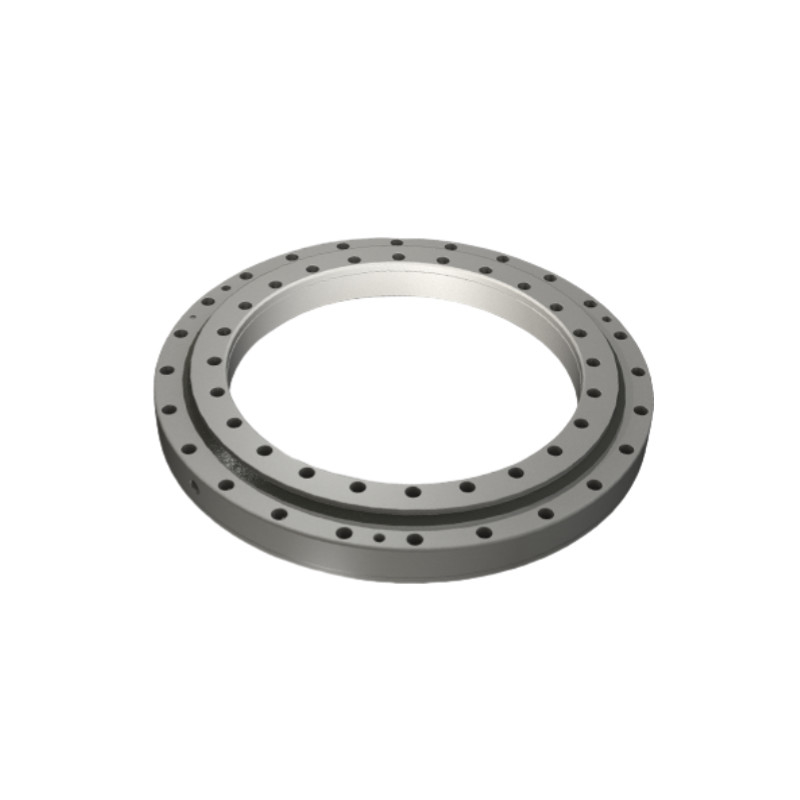

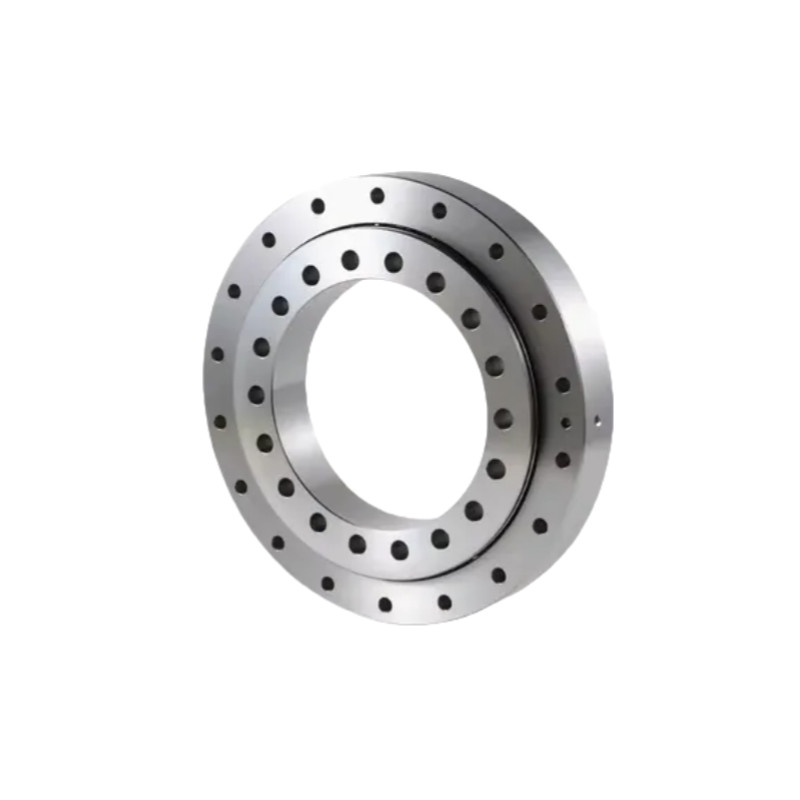

VSU Series Turntable Bearings
Introduction
The VSU series four-point contact ball slewing bearing, without gear ring, turntable bearing is a high-performance product that can be installed with a seal, equipped with an oil cup, and adjusted to provide optimal torque clearance in a range that suits your needs. Its accuracy is designed to meet the requirements of various working conditions.
The VSU series four-point contact ball slewing bearing and turntable bearing, which does not include a gear ring, is capable of bearing significant radial and axial loads, overturning moments, and other comprehensive loads. It is a highly versatile component that can perform multiple functions, including support, rotation, transmission, and fixation. The compact structure, simple installation and convenient maintenance make this product ideal for heavy and low-speed applications, such as lifting machinery, excavators, turntables, wind turbines, astronomical telescopes, tank turrets and other devices. It is a highly versatile product that is widely used in a variety of industries.
Features of Turntable Bearings
1. High Load Capacity: Turntable bearings can support substantial radial, axial, and tilting moment loads.
2. Smooth Rotation: They are designed to allow smooth, continuous rotation even under heavy load.
3. Precision: Some bearings are designed with high precision for applications where accurate positioning is critical, like in machinery or robotics.
How to Select a Turntable Bearing
1. Load Requirements: Determine the type (axial, radial, moment) and magnitude of the load.
2. Precision: Higher precision bearings may be required for robotics or medical equipment.
3. Environmental Factors: Consider dust, moisture, and temperature, as these can impact bearing performance.
4. Mounting Design: Some applications may benefit from flange-mounted designs for ease of installation.
Specifications
| Model |
Main dimensions |
Installation dimension |
Basic Rated Load |
Clearance |
| D |
d |
B |
B1 |
H |
Outer Ring |
|
Inner Ring |
|
Axial |
Radial |
| Pitch Center Distance |
Mounting Hole |
Pitch Center Distance |
Mounting Hole |
Dynamic |
Static |
Dynamic |
Static |
Radial |
Axial |
| VSU200414 |
486 |
342 |
44.5 |
44.5 |
56 |
460 |
24-φ14 |
367 |
24-φ14 |
169 |
560 |
111 |
248 |
0~0.05 |
0~0.08 |
| VSU200544 |
616 |
472 |
44.5 |
44.5 |
56 |
590 |
32-φ14 |
498 |
32-φ14 |
188 |
740 |
123 |
325 |
0~0.05 |
0~0.08 |
| VSU200644 |
716 |
572 |
44.5 |
44.5 |
56 |
690 |
36-φ14 |
598 |
36-φ14 |
200 |
880 |
131 |
385 |
0~0.05 |
0~0.08 |
| VSU200744 |
816 |
672 |
44.5 |
44.5 |
56 |
790 |
40-φ14 |
698 |
40-φ14 |
211 |
1010 |
138 |
445 |
0~0.05 |
0~0.08 |
| VSU200844 |
916 |
772 |
44.5 |
44.5 |
56 |
890 |
40-φ14 |
798 |
40-φ14 |
222 |
1150 |
145 |
510 |
0~0.05 |
0~0.08 |
| VSU200944 |
1016 |
872 |
44.5 |
44.5 |
56 |
990 |
44-φ14 |
898 |
44-φ14 |
231 |
1280 |
151 |
570 |
0~0.05 |
0~0.08 |
| VSU201094 |
1166 |
1022 |
44.5 |
44.5 |
56 |
1140 |
48-φ14 |
1048 |
48-φ14 |
244 |
1490 |
160 |
660 |
0~0.05 |
0~0.08 |
Drawing
Application
Heavy Machinery: Used in excavators, cranes, and other large construction equipment to support the rotating arm or boom.
Industrial Turntables: Used for rotation in large industrial turntables for manufacturing or storage.
Robotics: Precision turntable bearings are used in robotics where accurate rotation is essential.
Wind Turbines: Found in the yaw and pitch systems of wind turbines to help adjust the blades and orientation.
Medical Equipment: Precision versions are used in imaging equipment, like CT or MRI machines, for smooth rotation.
