Place of Origin:
Jiangsu, China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
HPJM-RE30-40-PRO-XX
video
P/N Interpretation
Product description
A robot joint motor is a critical component that powers the movement of a robotic arm or similar systems. It’s typically a rotary actuator, and its key requirements depend on the application, such as precision, torque, speed, and reliability.
Since your rotary actuator already integrates a motor, gearbox, and encoder for high precision, it’s well-suited for robotic joint applications.
Features
√ Excellent control characteristics
√ High efficiency and torque density
√ Positioning controllers can bedesigned directly into the robotjoint
√ Connectivity through support for avariety of Ethernet standards
√ Highly dynamic response with lowsystem losses
√ Easy to combine

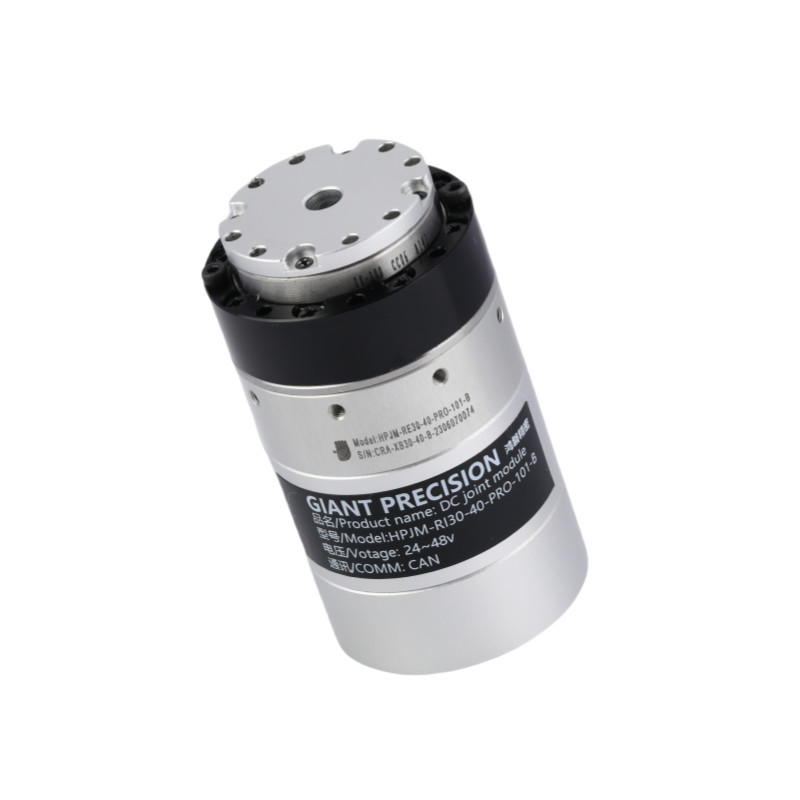

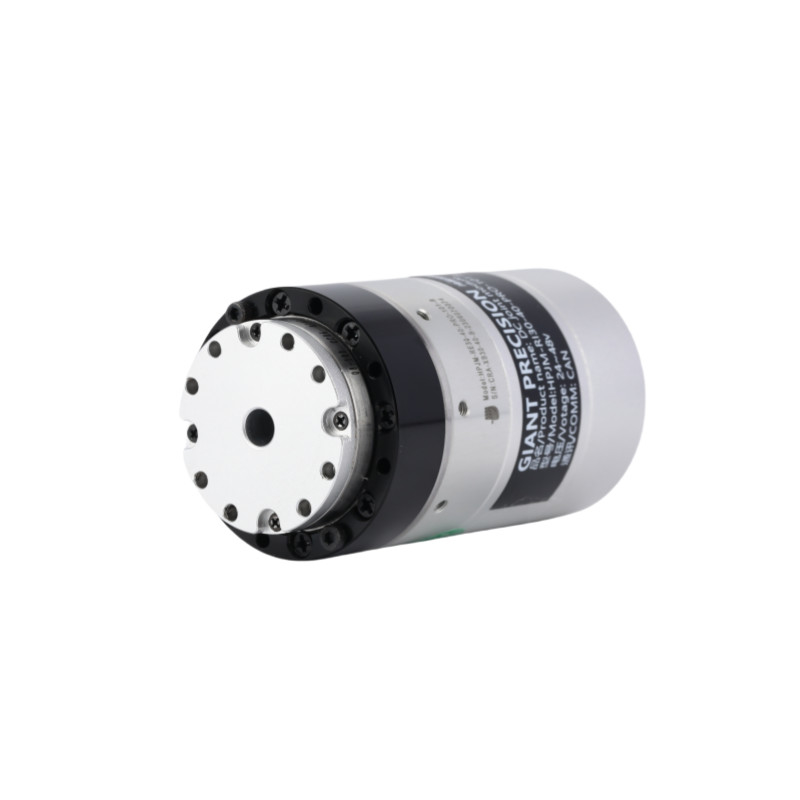

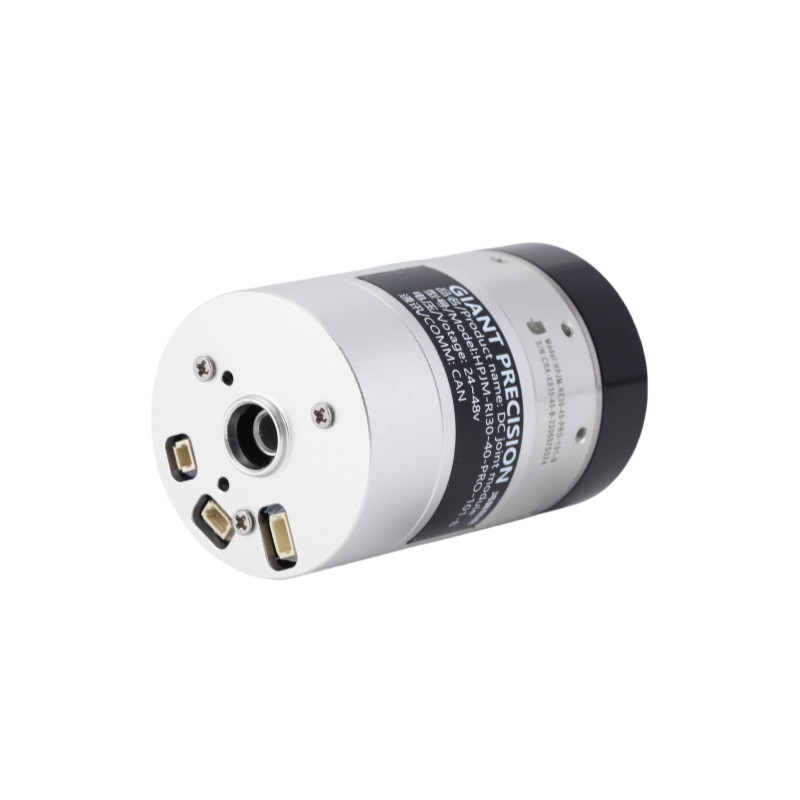

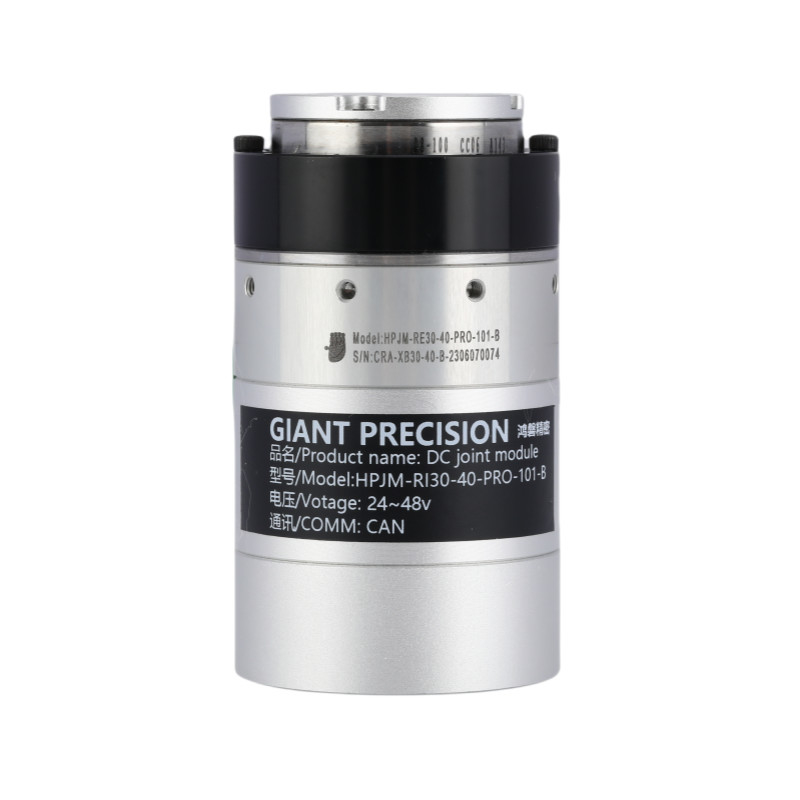

Detailed Images
Specification Sheet
| Reduction Ratio | 51 | 101 | ||
| Rated torque | N·m | 2.3 | 3.3 | |
| Maximum torque at start and stop | N·m | 3.3 | 4.8 | |
| Peak torque | N·m | 5.9 | 7.8 | |
| DC bus voltage 48VDC | Rated current (with aluminum heat sink) | A | 1 | |
| Maximum current | A | 3 | ||
| Rated speed | RPM | 80 | 40 | |
| Maximum speed | RPM | 105 | 50 | |
| Absolute encoder | Encoder Type | Hollow absolute multi-turn encoder | ||
| Encoder resolution (motor 1 rotation) | 17 bits | |||
| Motor multiple revolution counter | 216(65,536) | |||
| Backlash | Arc sec | 20 | ||
| Can be customized within 10Arc sec | ||||
| Mass | Without brake | kg | 0.13 | |
| Length | mm | 53.9 | ||
| Through Hole | mm | 5 | ||
| Mass | With brake | kg | 0.2 | |
| Length | mm | 67.5 | ||
| Through Hole | mm | 5 | ||
| Maximum continuous power of motor | W | 36 | ||
| Supply voltage | V | 24-48V | ||
| Communication bus | CAN | |||
| Motor insulation | Heat resistance grade:F(155℃) | |||
| Insulation resistance: Above 200M Ω(DC500V) | ||||
| Insulation withstand voltage: AC1500V(1 minute) | ||||
| Protection mechanism (protection level) | Fully enclosed and self-cooling (default IP50, special customized IP65, IP67, IP68) | |||
| Gear Ratio | Peak Torque (N.M) |
Max Allowable Torque At Average Load (N.m) |
Rated Torque at 2000RPM (N.m) | Peak Speed (RPM) |
Rated Speed (With 1/2 Rated Torque) (RPM) |
Gear Backlash (arcsec) |
| 51 | 3.3 | 2.3 | 1.8 | 118 | 90 | 40 |
| 101 | 4.8 | 3.3 | 2.8 | 59 | 45 | 40 |
| Rated Power (W) |
Supply Voltage (V) |
Max Continous Current (A) |
Rated Current (A) |
Resistance (Ω) |
Encoder Resolution (bit) |
Communication Bus |
| 36 | 24-48 | 2 | 1 | 2.08 | 17 | CAN |
| Torque Constant (N.m/A) |
Inductance (mH) |
Number of Pole-pairs | Hollow Shaft (mm) |
Length (mm) |
Mass (kg) |
Inertia (g*cm2) |
| 0.024 | 0.409 | 7 | 5 | 55.3±0.5 | 0.18 | 24 |
Application
|
|
|
| Robots and Dronesnh | Collaborative Robotic Arm | Automated Production Lines |
|
|
|
| Industrial Machines | Auto Industry | AGV Logistics |
