Place of Origin:
Jiangsu, China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
HPJM-RE80-110PRO-XX
video
P/N Interpretation
Product description
A robot joint motor is a critical component that powers the movement of a robotic arm or similar systems. It’s typically a rotary actuator, and its key requirements depend on the application, such as precision, torque, speed, and reliability.
Since your rotary actuator already integrates a motor, gearbox, and encoder for high precision, it’s well-suited for robotic joint applications.
An Integrated High Torque Robot Joint Module is a sophisticated mechanical device designed to facilitate movement in robotic systems. This module is characterized by its ability to generate substantial torque while maintaining compact dimensions. It integrates various components, including motors, gears, and sensors, into a single unit, simplifying installation and reducing the overall footprint of robotic systems.
The compact size includes servo drivers, motor side absolute value encoder, output side absolute value encoder, and frameless torque motors, brakes, precision harmonic reducers and other main components, which save customers hundreds of mechanical and electronic components selection, design, procurement, assembly labor and time costs.
Features
√ Exquisite design
√ Compact structure
√ Build Robot Fast

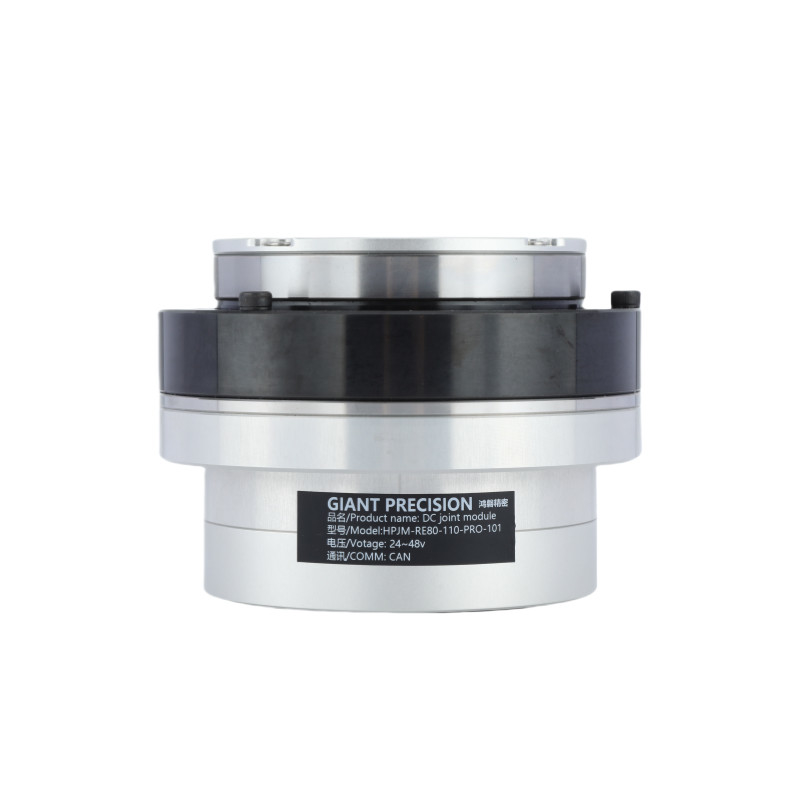

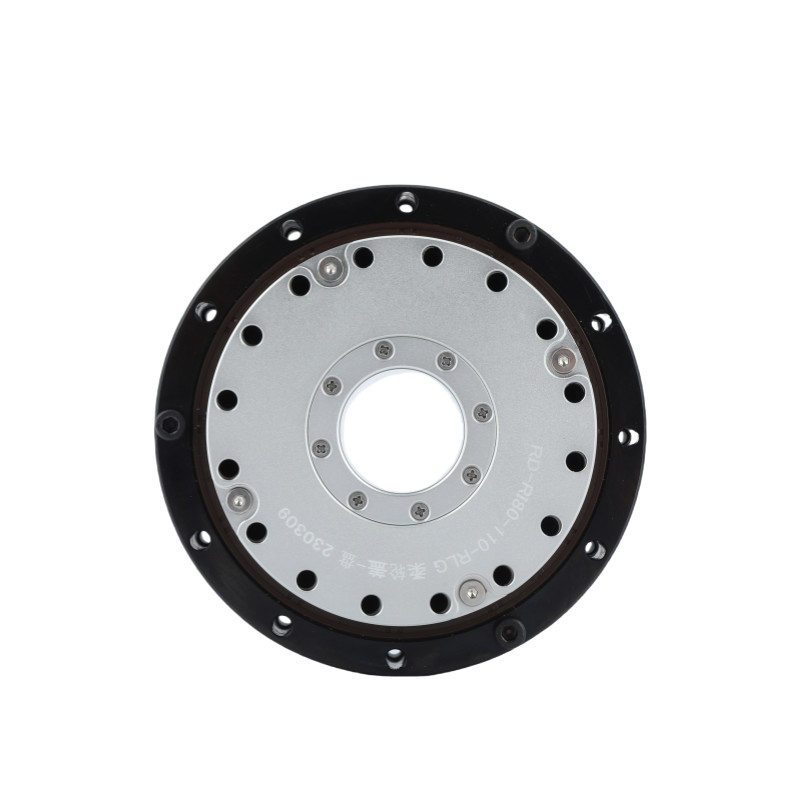

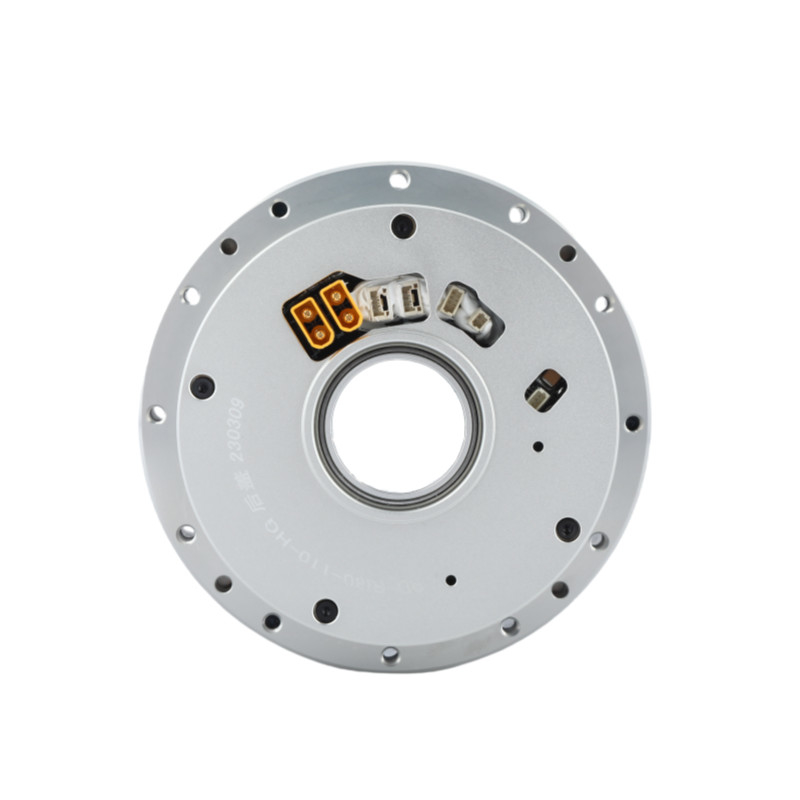

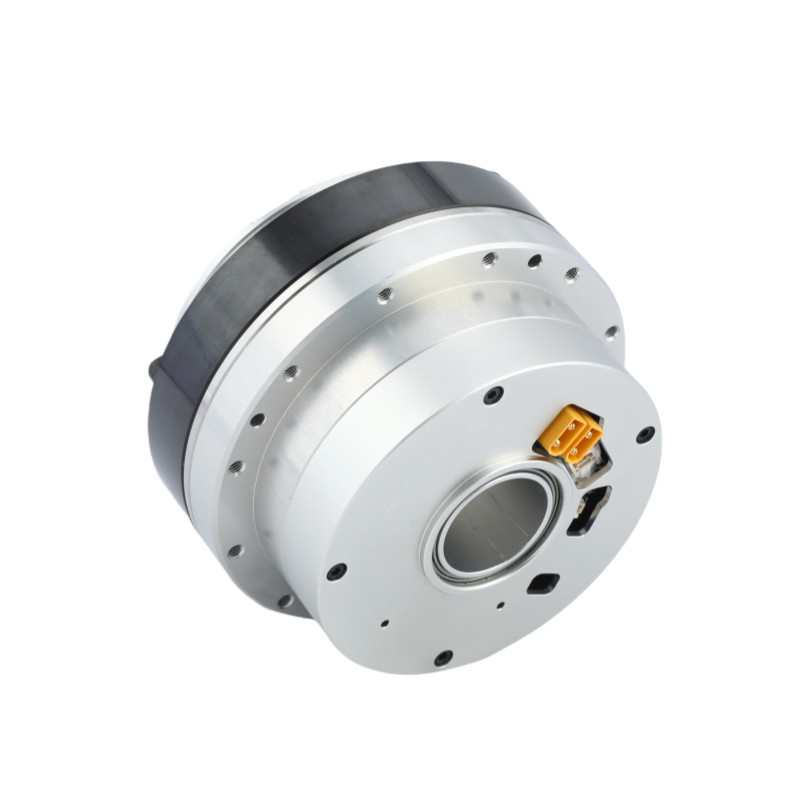

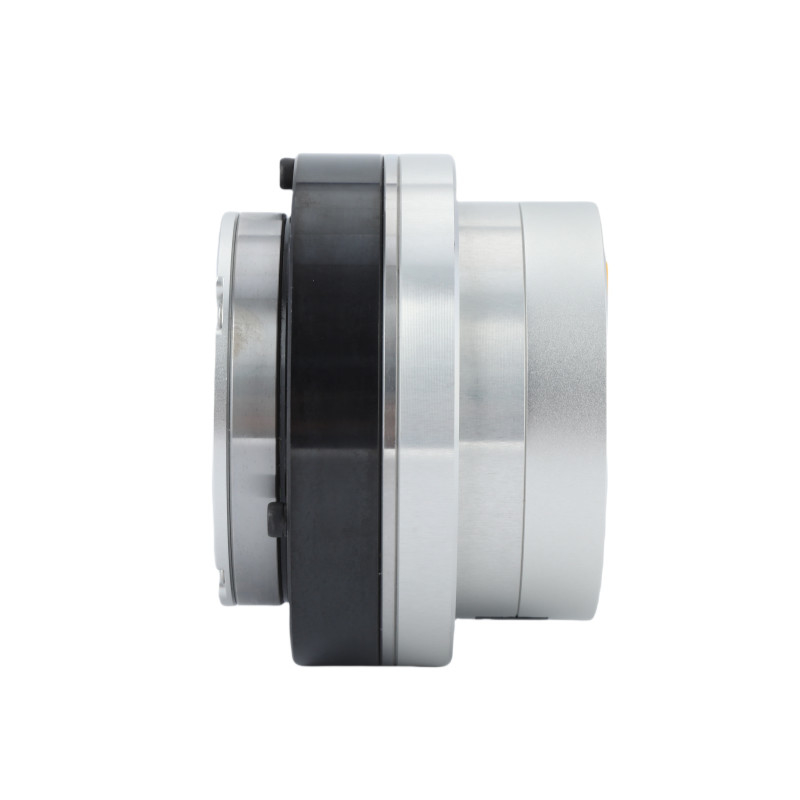

Detailed Images
Specification Sheet
| Reduction Ratio | 51 | 81 | 101 | 121 | 161 | ||
| Rated torque | N·m | 60 | 96 | 120 | |||
| Maximum torque at start and stop | N·m | 121 | 169 | 194 | 207 | 217 | |
| Peak torque | N·m | 205 | 280 | 315 | 335 | 348 | |
| Reduction Ratio | Rated current (with aluminum heat sink) | A | 10.4 | ||||
| Maximum current | A | 29.3 | |||||
| Rated speed | RPM | 47 | 30 | 23 | 17 | 12 | |
| Maximum speed | RPM | 54 | 35 | 27 | 23 | 16 | |
| Absolute encoder | Encoder Type | Hollow absolute multi-turn encoder | |||||
| Encoder resolution (motor 1 rotation) | 17 bits | ||||||
| Motor multiple revolution counter | 216(65,536) | ||||||
| Backlash | Arc sec | 20 | 10 | ||||
| Can be customized within 10Arc sec | |||||||
| Mass | Without brake | kg | 2 | ||||
| Length | mm | 80.6 | |||||
| Through Hole | mm | 15 | |||||
| Mass | With brake | kg | 2.57 | ||||
| Length | mm | 107.8 | |||||
| Through Hole | mm | 15 | |||||
| Maximum continuous power of motor | W | 750 | |||||
| Supply voltage | V | 24-48V | |||||
| Communication bus | CAN | ||||||
| Motor insulation | Heat resistance grade:F(155℃) | ||||||
| Insulation resistance: Above 200M Ω(DC500V) | |||||||
| Insulation withstand voltage: AC1500V(1 minute) | |||||||
| Protection mechanism (protection level) | Fully enclosed and self-cooling (default IP50, special customized IP65, IP67, IP68) | ||||||
| Gear Ratio | Peak Torque | Max Allowable Torque At Average Load (N.m) | Rated Torque at 2000RPM (N.m) | Peak Speed (RPM) |
Rated Speed (With 1/2 Rated Torque) (RPM) |
Gear Backlash (arcsec) |
| 51 | 121 | 68.5 | 48 | 65 | 54 | 20 |
| 81 | 169 | 107 | 78 | 43 | 35 | 20 |
| 101 | 194 | 133 | 84 | 36 | 27 | 10 |
| 121 | 207 | 133 | 84 | 30 | 23 | 10 |
| 161 | 217 | 133 | 84 | 22 | 17 | 10 |
| Rated Power (W) |
Supply Voltage (V) |
Max Continous Current (A) |
Rated Current (A) |
Resistance (Ω) |
Encoder Resolution (bit) |
Communication Bus |
| 750 | 24-48 | 10.4 | 9 | 0.13 | 17 | CAN |
| Torque Constant (N.m/A) |
Inductance (mH) |
Number of Pole-pairs | Hollow Shaft (mm) |
Length (mm) |
Mass (kg) |
Inertia (g*cm2) |
| 0.143 | 0.25 | 8 | 27 | 82.4±0.5 | 2.1 | 1255 |
Application
|
|
|
| Robots and Dronesnh | Collaborative Robotic Arm | Automated Production Lines |
|
|
|
| CNC Machines | Medical Devices | AGV Logistics |
