TDB-112-065-NH-A HONPINE Direct Drive DD Motor

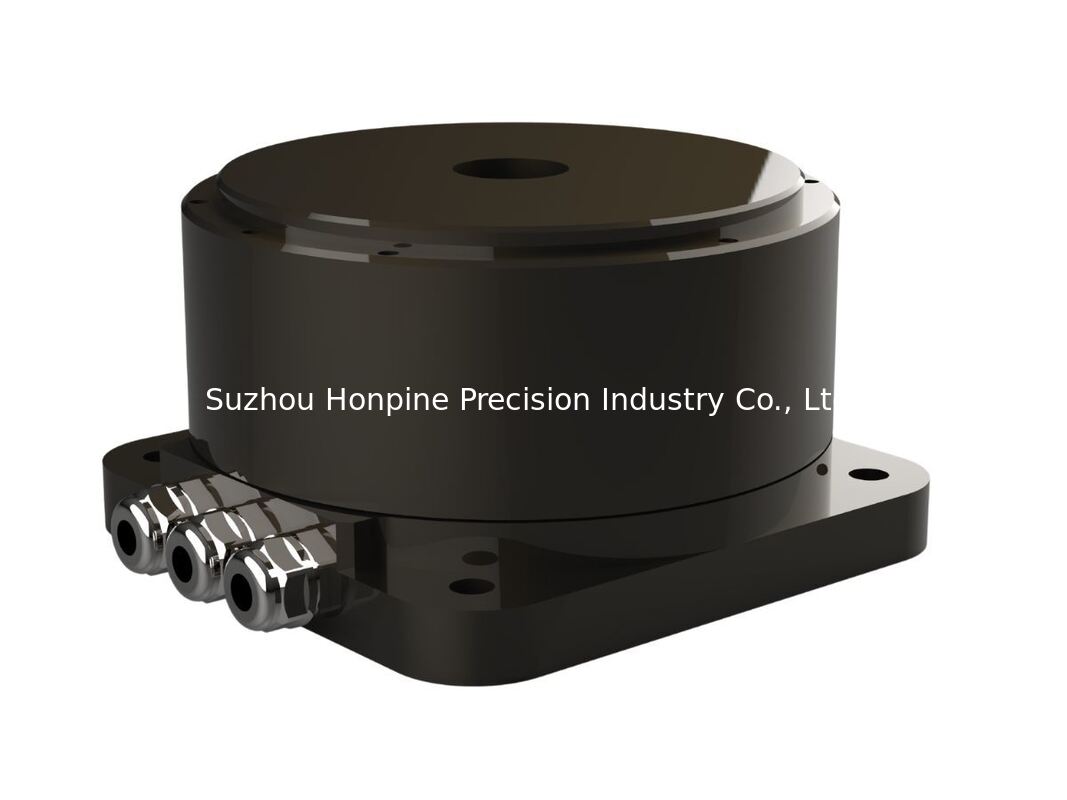

Introduction of HONPINE TDB-112-065-NH-A direct-drive motor

The TDB-112-065-NH-A direct-drive motor is structurally composed of four main parts: the stator (stationary part), the rotor (rotating part), the bearings, and the encoder (a sensor used to detect rotational position). The motor has a diameter of 112 mm, a height of 65 mm, and a weight of 2.8 kg. It delivers a continuous torque of 3 N·m and a peak torque of up to 9 N·m, with a rated power of 110 W, a continuous current of 2.5 Arms, and a peak current of 7.5 Arms. Its key features include high dynamic performance, high precision, optimal speed control, ultra-compact structure, excellent MTBF, and reduced maintenance requirements.

Specification of TDB-112-065-NH-A direct-drive motor

Introduction of HONPINE Direct Drive Torque Motor Factory

HONPINE specializes in the R&D and manufacturing of direct drive torque motors, having established a 5,000-square-meter facility dedicated to the development, production, and administration of its direct drive motor product lines. The facility is equipped with a comprehensive array of advanced machinery, including dynamometers, fully automated winding machines, CNC machining centers, laser interferometers, automated potting machines, and salt spray test chambers. Furthermore, the company has established sales and after-sales service centers in Singapore, Suzhou, and Shenzhen. To support the localization of semiconductor equipment manufacturing, the company commissioned a precision assembly cleanroom and an R&D laboratory in 2024. HONPINE has successfully obtained quality certifications such as ISO9001 and CE, and its independently developed products have been awarded dozens of patents for both inventions and utility models.
