Product Description

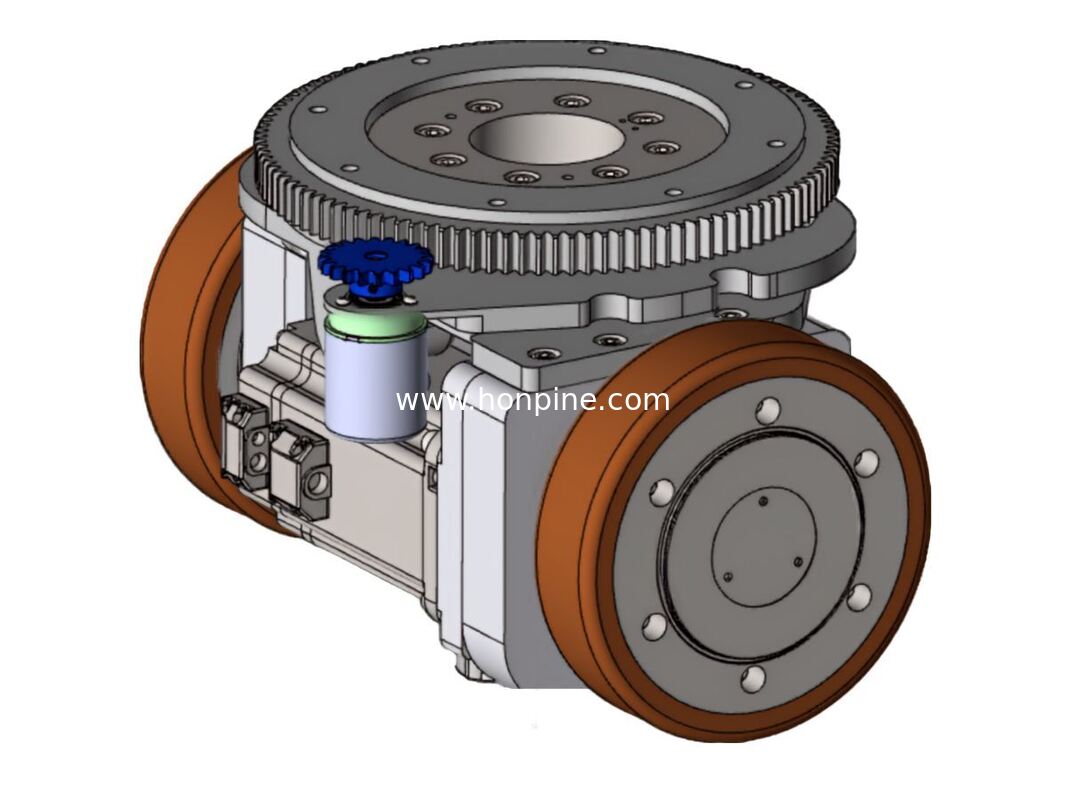

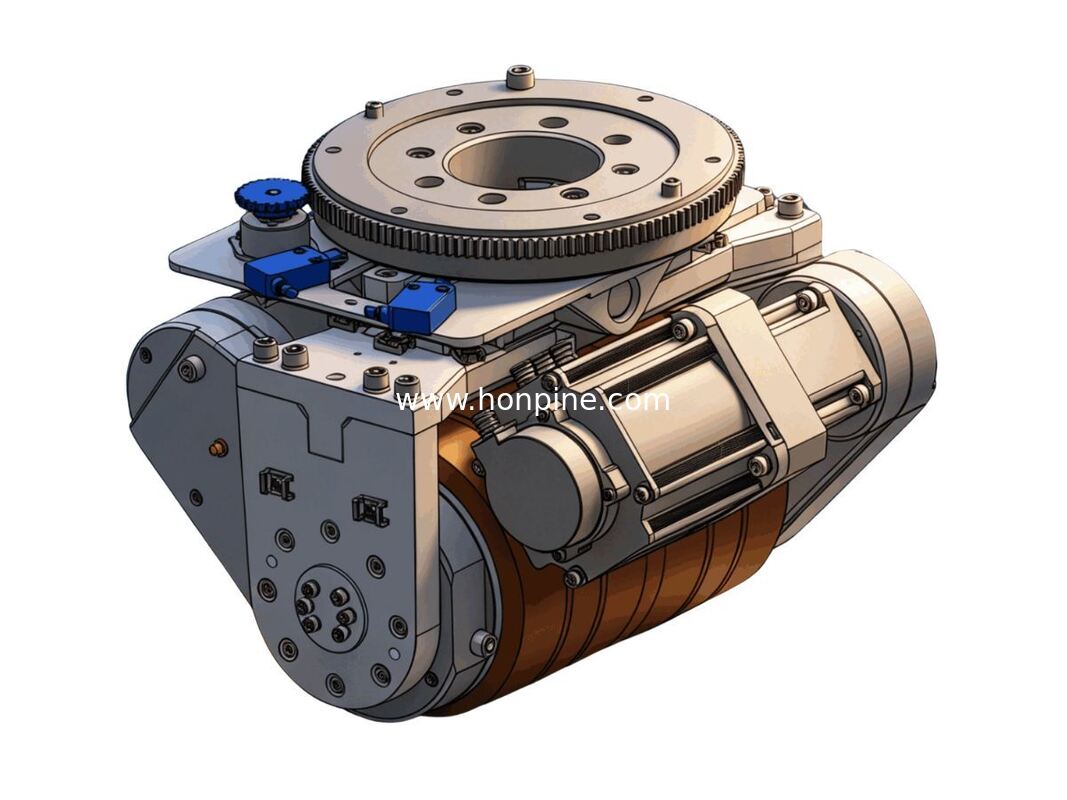

Description of PT HONPINE steering drive wheel

A differential steering drive wheel is a two-wheel drive system in which each wheel is equipped with an independent actuator, such as a DC motor. The name originates from the fact that the vehicle's motion vector is the result of the combined movements of the two independently driven wheels. By controlling the two drive motors to rotate in opposite directions or at different speeds, the motor torque is transmitted through a gearbox and polyurethane-coated wheels, causing the two wheels within the differential drive unit to rotate oppositely or at different speeds. This generates the required steering angle and enables vehicle maneuvering.

Specification of PTHONPINE Steering Drive Wheel

PTSeries Drive Unit	PT08	PT08-X	PT20	PT20-X	PT20V	PT25	PT30	PT38Y	PT40	PT55
Rated Load Capacity (kg)	400	400	1500	3000	4500	6000	8000	10000~20000	10000	18000
Rated Voltage (V)	48	48	48	48	48	48	48	48	48	48
Rated Power (W)	300×2	400×2	750×2	1000×2	2000~2600×2	2000~3000×2	2000~3000×2	2000~6000	2000~4000×2	4000~8000×2
Rated Speed (rpm)	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
Drive Wheel Gear Ratio (i)	8	8	24	17.5/26.25/35/70	41.67	45	60	30~120	121.5	120
Travel Speed (m/min)	0~94	0~94	0~78	0~107	0~45	0~52	0~47	0~90	0~31	0~39
Brake Voltage (V)	—	—	24	24	24	24	24	24	24	24
