Product Description
LSD - I series harmonic drives are known as the ultra-flat strain wave gear units.
This flexible design provides excellent positioning accuracy and rotational precision
These ultra-flat harmonic drives are highly suitable for use as robot end joints and customer-end reducers.
Key Features of LSD Series Harmonic Drive
Rated Parameters Table of LSD - I series Harmonic Drive
| Model | Reduction ratio | Rated torque at 2000r/min input | Permissible peak torque at start and stop | Permissible maximum value for average load torque | Permissible maximum momentary torque | Permissible maximum input rotational speed (Grease) |
Permissible average input rotational speed (Grease) |
Backlash | Weight | Design life | ||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | kg | Hour | ||
| 14 | 50 | 3.7 | 0.38 | 12 | 1.2 | 4.8 | 0.49 | 24 | 2.4 | 8500 | 3500 | ≤20 | 0.37 | 9000 |
| 80 | 5.4 | 0.55 | 16 | 1.6 | 7.7 | 0.79 | 35 | 3.6 | 10000 | |||||
| 100 | 5.4 | 0.55 | 19 | 1.9 | 7.7 | 0.79 | 35 | 3.6 | 10000 | |||||
| 17 | 50 | 11 | 1.1 | 23 | 2.3 | 18 | 1.9 | 48 | 4.9 | 7300 | 3500 | ≤20 | 0.49 | 9000 |
| 80 | 15 | 1.5 | 29 | 3 | 19 | 1.9 | 61 | 6.2 | 10000 | |||||
| 100 | 16 | 1.6 | 37 | 3.8 | 27 | 2.8 | 71 | 7.2 | 10000 | |||||
| 20 | 50 | 17 | 1.7 | 39 | 4 | 24 | 2.4 | 69 | 7 | 6500 | 3500 | ≤20 | 0.68 | 9000 |
| 80 | 24 | 2.4 | 51 | 5.2 | 33 | 3.4 | 89 | 9.1 | 10000 | |||||
| 100 | 28 | 2.9 | 57 | 5.8 | 34 | 3.5 | 95 | 9.7 | 10000 | |||||
| 25 | 50 | 27 | 2.8 | 69 | 7 | 38 | 3.9 | 127 | 13 | 5600 | 3500 | ≤20 | 1.25 | 9000 |
| 80 | 44 | 4.5 | 96 | 9.8 | 60 | 6.1 | 179 | 18 | 10000 | |||||
| 100 | 47 | 4.8 | 110 | 11 | 75 | 7.6 | 184 | 19 | 10000 | |||||
| 32 | 50 | 53 | 5.4 | 151 | 15 | 75 | 7.6 | 268 | 27 | 4800 | 3500 | ≤20 | 2.48 | 9000 |
| 80 | 83 | 8.5 | 213 | 22 | 117 | 12 | 398 | 41 | 10000 | |||||
| 100 | 96 | 10 | 233 | 24 | 151 | 15 | 420 | 43 | 10000 | |||||

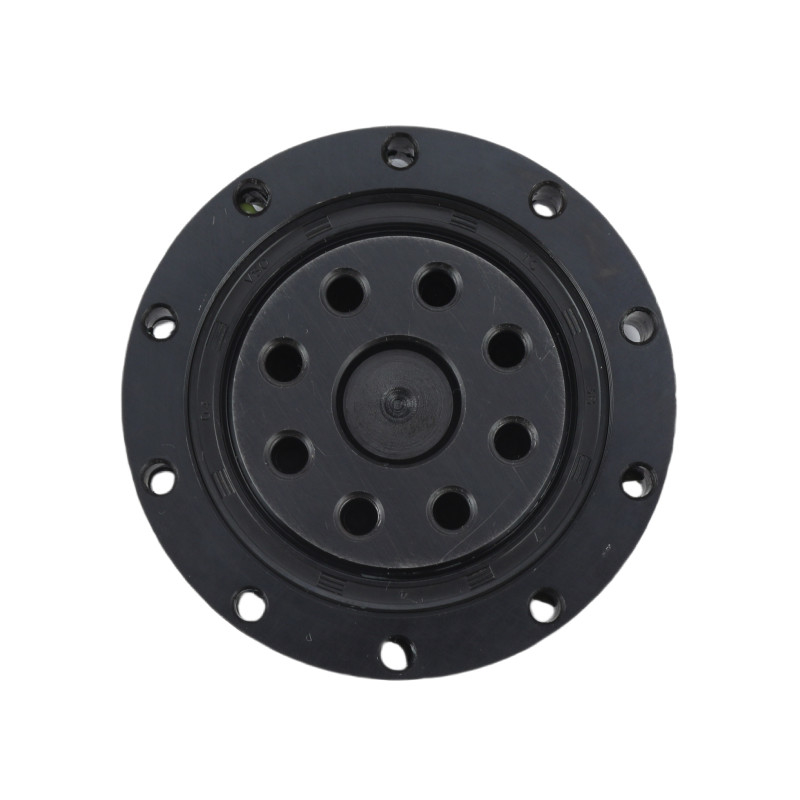

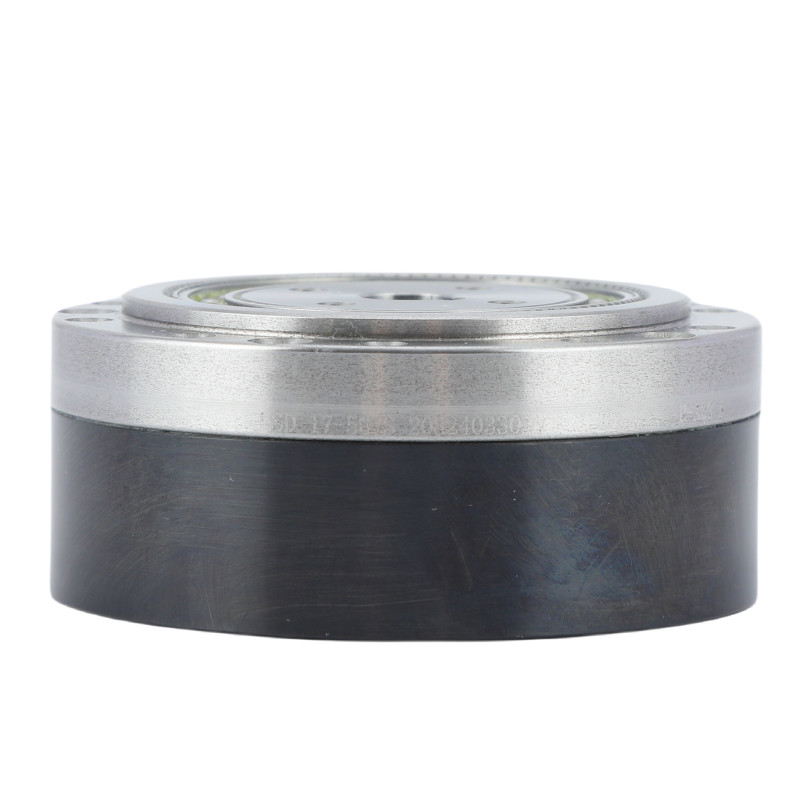

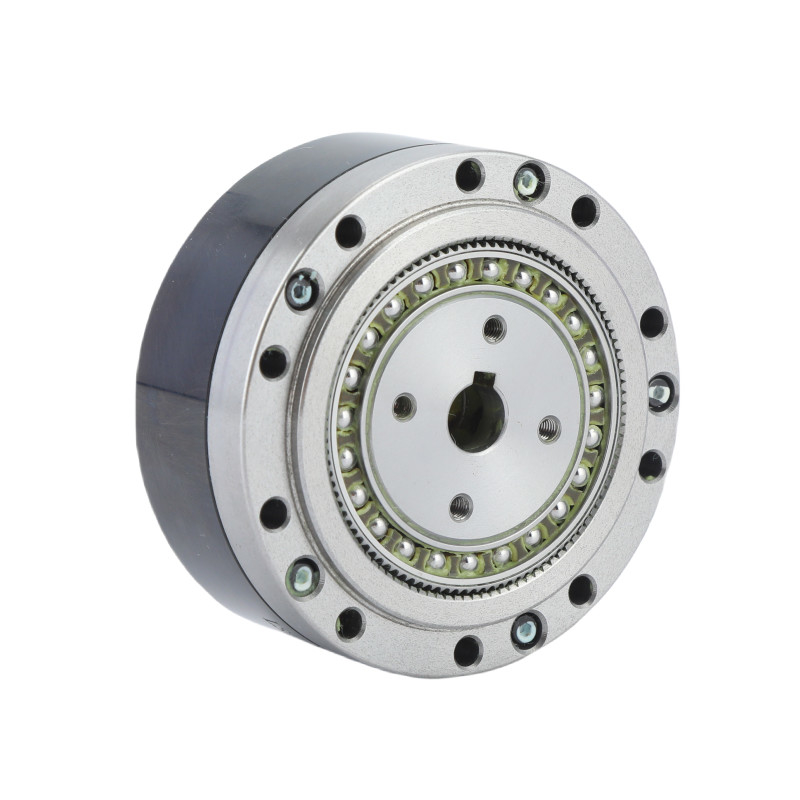

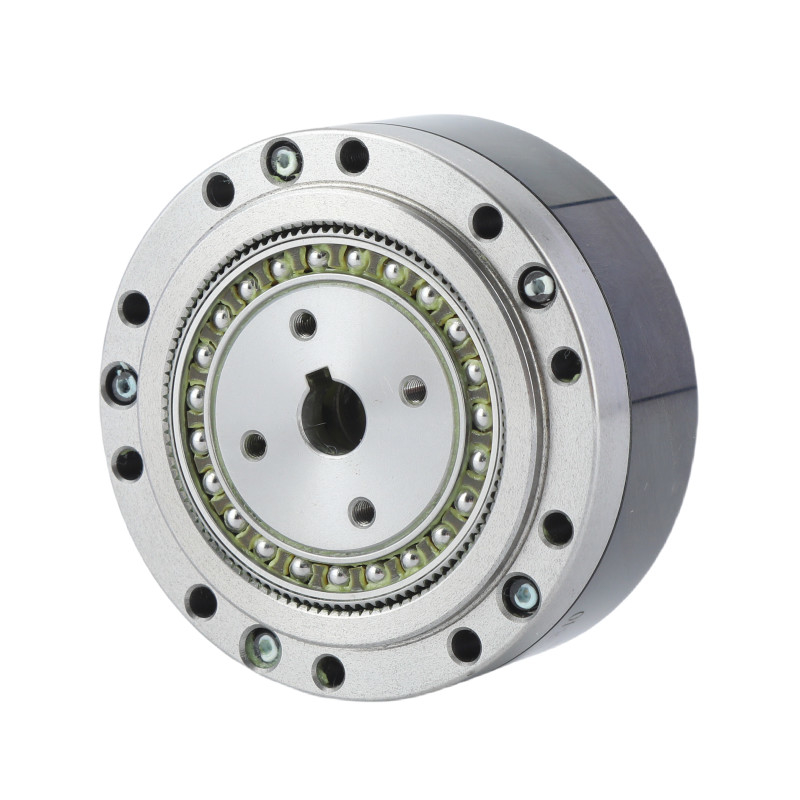

Detailed Images
| Key Attributes of LSD - I Series Ultra - Flat Strain Wave Reducer | |||
| Product | Ultra - Flat harmonic drive | ||
|
Material
|
Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants | ||
|
Reduction Ratio
|
50, 80, 100 | ||
|
Backlash
|
Less than 20 Arc Sec | ||
|
Average Input Speed
|
3500 r/min | ||
|
Max Input Speed
|
8500 r/min | ||
|
Design Life
|
10000 hours | ||
|
Model
|
14, 17, 20, 25, 32 | ||
|
Weight
|
0.37 to 2.48 kg | ||
| Warranty | 1 year | ||
Applications
| |
|
|
|
| Manufacturing Systems | Packaging Systems | Huamnoid Robots | Medical Devices |
PDF Drawings Download
LSD-14-P-XX-U-I.pdf LSD-14-XX-U-I.pdf LSD-17-P-XX-U-I.pdf
LSD-17-XX-U-I.pdf LSD-20-P-XX-U-I.pdf LSD-20-XX-U-I.pdf
