Place of Origin:
Jiangsu, China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
LSN-11-XX-U-I
Giant Precision's harmonic drive is zero to low backlash by design. It provides the highest level of transmission accuracy and can support a high ratio reduction in a single stage with minimal inertia. The highly accurate, torque-dense design makes harmonic drive the ideal solution for precision motion control applications.
Our Giant Precision Harmonic Drive range includes a wide variety of strain wave gearing options.
 |
|
Key Features of Harmonic Drive
Specifications of Harmonic Drive
Rated Parameters Table
| Model | Reduction ratio | Rated torque at 2000r/min input | Permissible peak torque at start and stop | Permissible maximum value for average load torque | Permissible maximum momentary torque | Permissible maximum input rotational speed (Grease) |
Permissible average input rotational speed (Grease) |
Backlash | Weight | Design life | ||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | kg | Hour | ||
| 11 | 50 | 3.5 | 0.36 | 8.3 | 0.85 | 5.5 | 0.56 | 17.0 | 1.73 | 8500 | 3500 | ≤30 | 0.17 | 10000 |
| 80 | 4.5 | 0.46 | 9.9 | 1.01 | 8.0 | 0.82 | 22.5 | 2.3 | 10000 | |||||
| 100 | 5.0 | 0.51 | 11 | 1.12 | 8.9 | 0.91 | 25.0 | 2.55 | 10000 | |||||
| Key Attributes of LSN-11-XX-U-I Ultralight Strain Wave Reducer | |||
| Product | Light Weight Model 11 Harmonic Drive | ||
|
Material
|
Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants | ||
|
Reduction Ratio
|
50, 80, 100 | ||
|
Backlash
|
Less than 30 Arc Sec | ||
|
Average Input Speed
|
3500 r/min | ||
|
Max Input Speed
|
8500 r/min | ||
|
Design Life
|
10000 hours | ||
|
Model
|
8 | ||
|
Weight
|
0.17 kg | ||
| Warranty | 1 year | ||
| Lead Time | 2 – 4 weeks | ||
| Application | Robotics & Automation, Semiconductor Equipment, Aerospace | ||

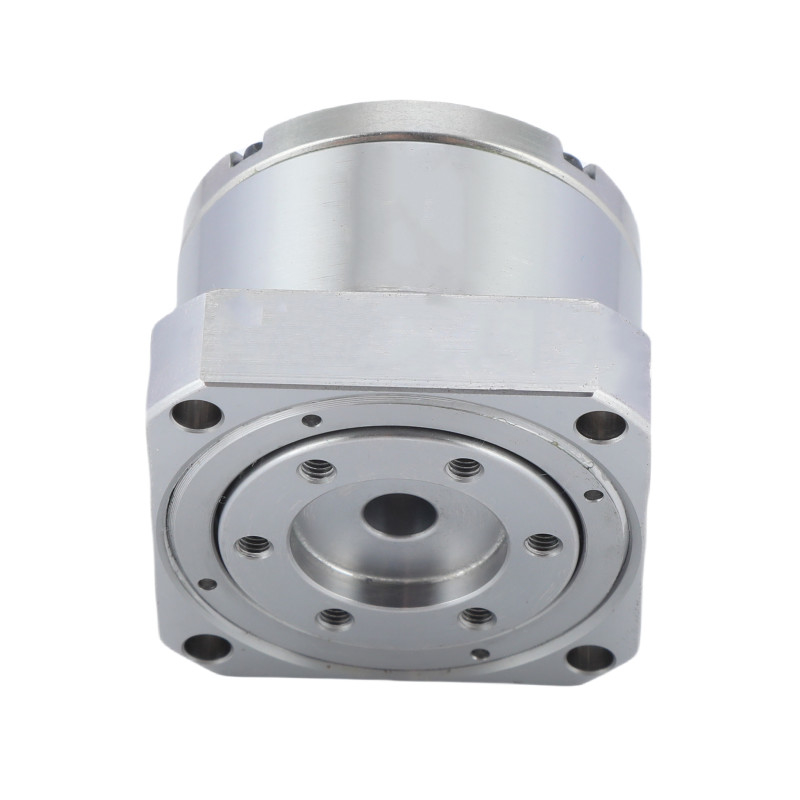

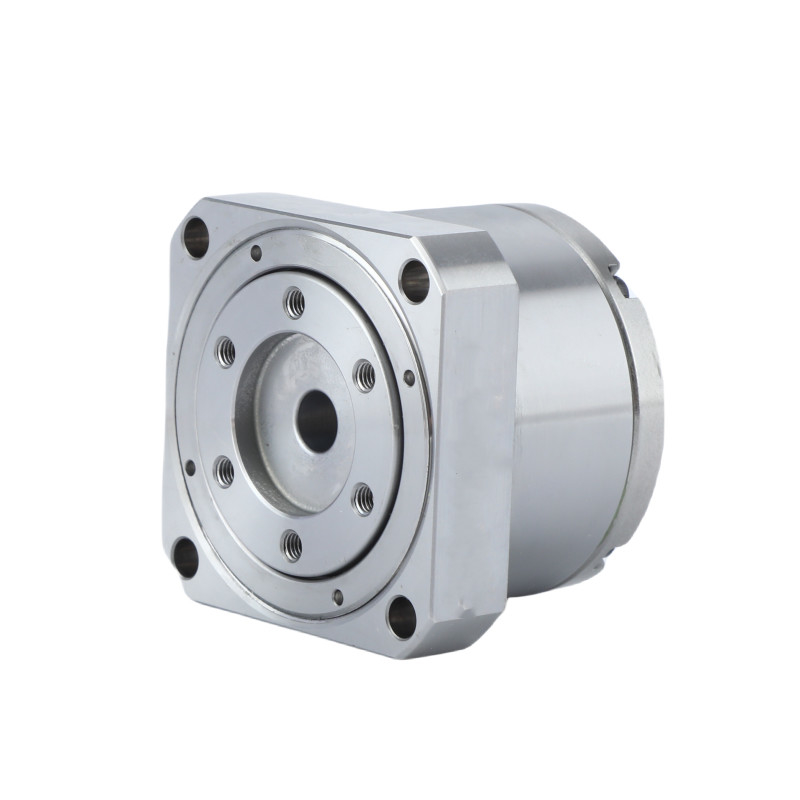

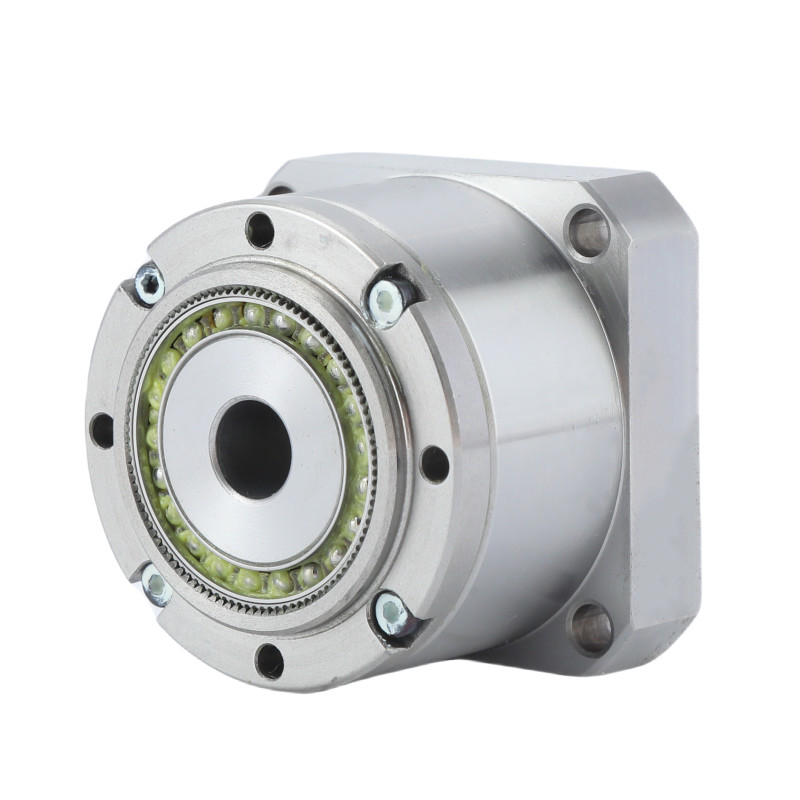

Detailed Images
Applications
|
|
|
| Industrial Robots | Aerospaces | Manufacturing Systems |
PDF Drawings Download
