Place of Origin:
Jiangsu, China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
LSN-25-XX-U-I
Key Features
• 1.46kg
• High Precision and Repeatability
• Smooth Motion and Low Noise
• Durability and Long Service Life
• Reduction ratios: 50:1, 80:1, 100:1, 120:1
Specifications
Rated parameters table of LSN-25-XX-U-I series
|
Model
|
Reduction ratio | Rated torque at 2000r/min input | Permissible peak torque at start and stop | Permissible maximum value for average load torque | Permissible maximum momentary torque | Permissible maximum input rotational speed | Permissible average input rotational speed | Backlash | Weight | Design life | ||||
| Grease | Grease | |||||||||||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | kg | Hour | ||
| 25 | 50 | 39 | 4 | 98 | 10 | 55 | 5.6 | 186 | 19 | 5600 | 3500 | ≤20 | LSN-I:1.14 | 10000 |
| 80 | 63 | 6.4 | 137 | 14 | 87 | 8.9 | 255 | 26 | 15000 | |||||
| 100 | 67 | 6.8 | 157 | 16 | 108 | 11 | 284 | 29 | 15000 | |||||
| 120 | 67 | 6.8 | 167 | 17 | 108 | 11 | 304 | 31 | 15000 | |||||

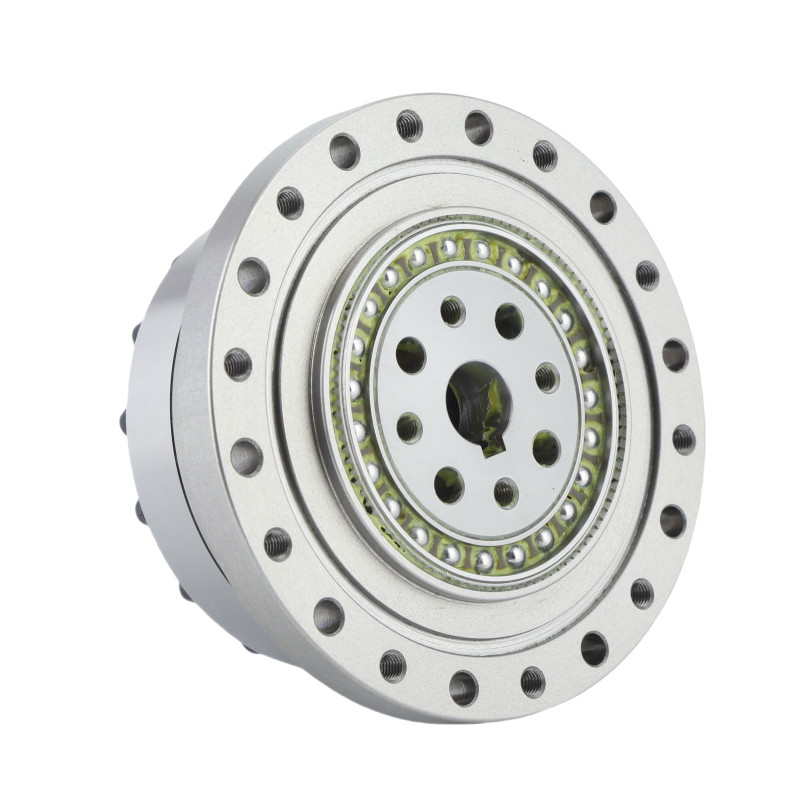

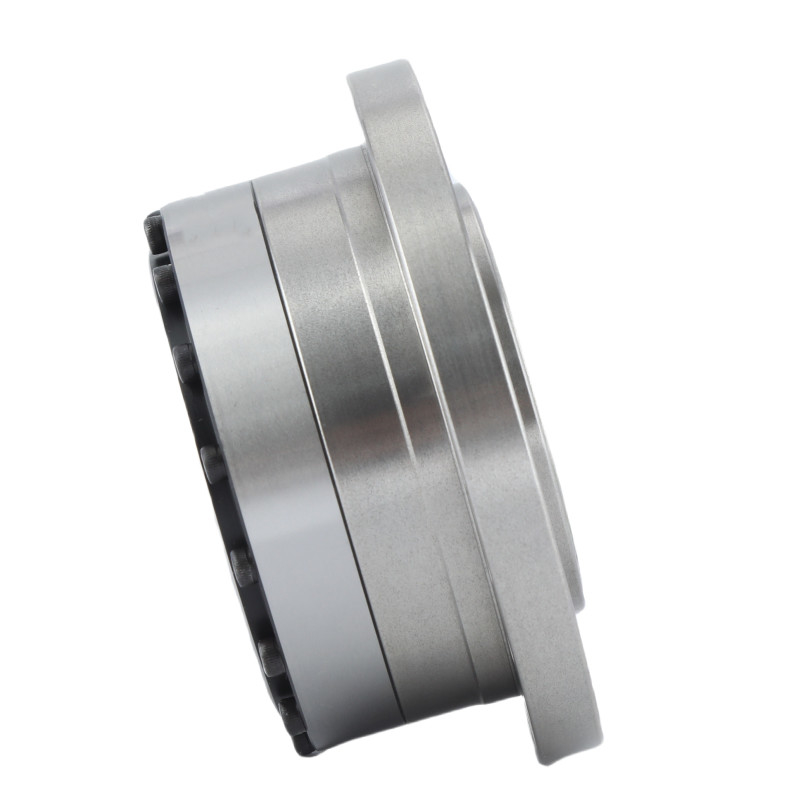

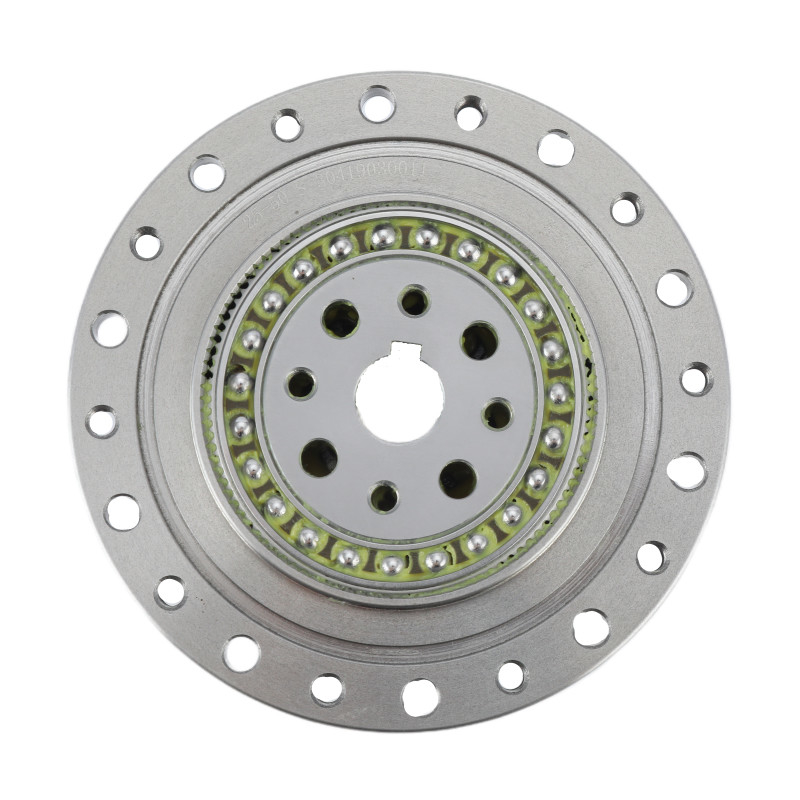

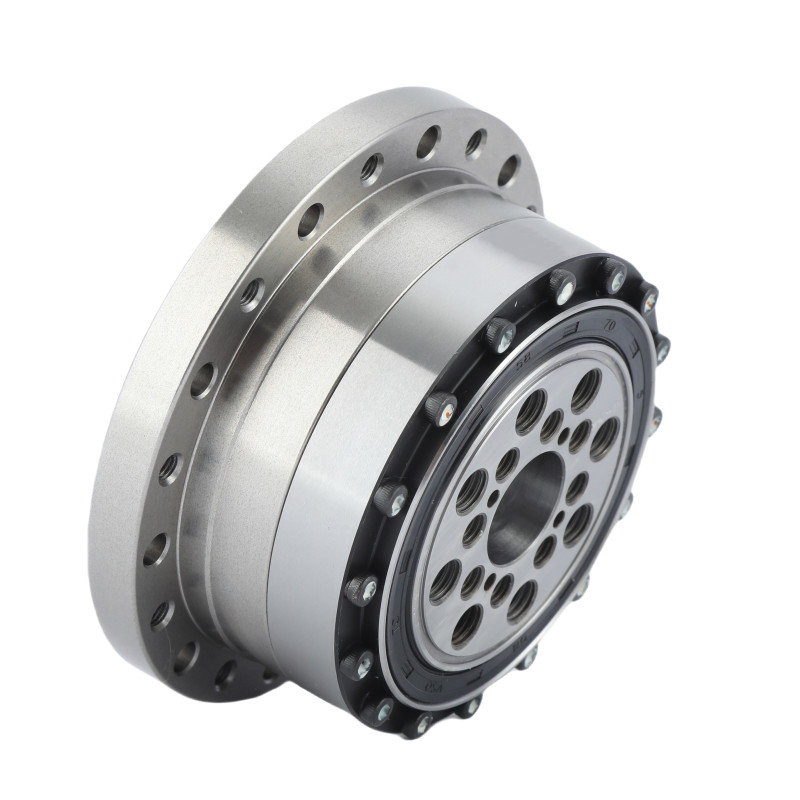

| Key Attributes of LSN-25-XX-U-I Strain Wave Reducer | |||
| Product | Model 25 Strain Wave Reducer | ||
|
Material
|
Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants | ||
|
Reduction Ratio
|
50:1, 80:1, 100:1, 120:1 | ||
|
Backlash
|
Less than 20 Arc Sec | ||
|
Average Input Speed
|
3500 r/min | ||
|
Max Input Speed
|
5600 r/min | ||
|
Design Life
|
15000 hours | ||
|
Model
|
25 | ||
|
Weight
|
1.14 kg | ||
| Warranty | 1 year | ||
| Application | Paper Machinery, Energy, Aerospace, Robots | ||
PDF Drawings Download
