Place of Origin:
Jiangsu, China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
LSN-32-XX-U-I
Key Features
• Weight: 2.47kg
• Less than 20 Arc Sec backlash
• Maximum Momentary Torque: 686Nm
• 15000 hours service life
• Reduction ratios: 50:1, 80:1, 100:1, 120:1
Specifications
Rated parameters table of LSN-32-XX-U-I series
|
Model
|
Reduction ratio | Rated torque at 2000r/min input | Permissible peak torque at start and stop | Permissible maximum value for average load torque | Permissible maximum momentary torque | Permissible maximum input rotational speed | Permissible average input rotational speed | Backlash | Weight | Design life | ||||
| Grease | Grease | |||||||||||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | kg | Hour | ||
| 32 | 50 | 76 | 7.8 | 216 | 22 | 108 | 11 | 382 | 39 | 4800 | 3500 | ≤20 | LSN-I:2.47 | 10000 |
| 80 | 118 | 12 | 304 | 31 | 167 | 17 | 568 | 58 | 15000 | |||||
| 100 | 137 | 14 | 333 | 34 | 216 | 22 | 647 | 66 | 15000 | |||||
| 120 | 137 | 14 | 353 | 36 | 216 | 22 | 686 | 70 | 15000 | |||||

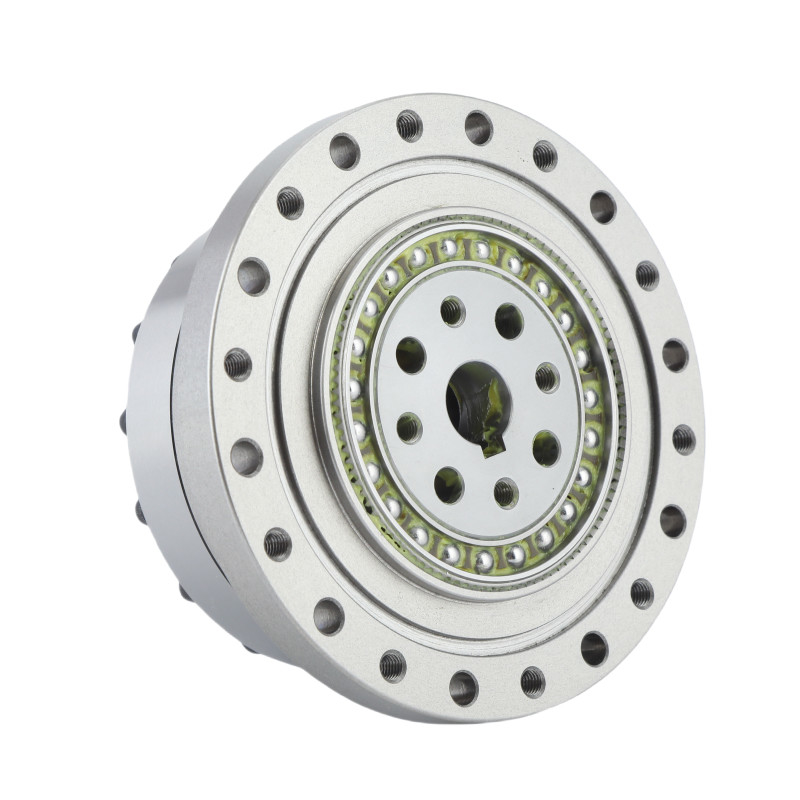

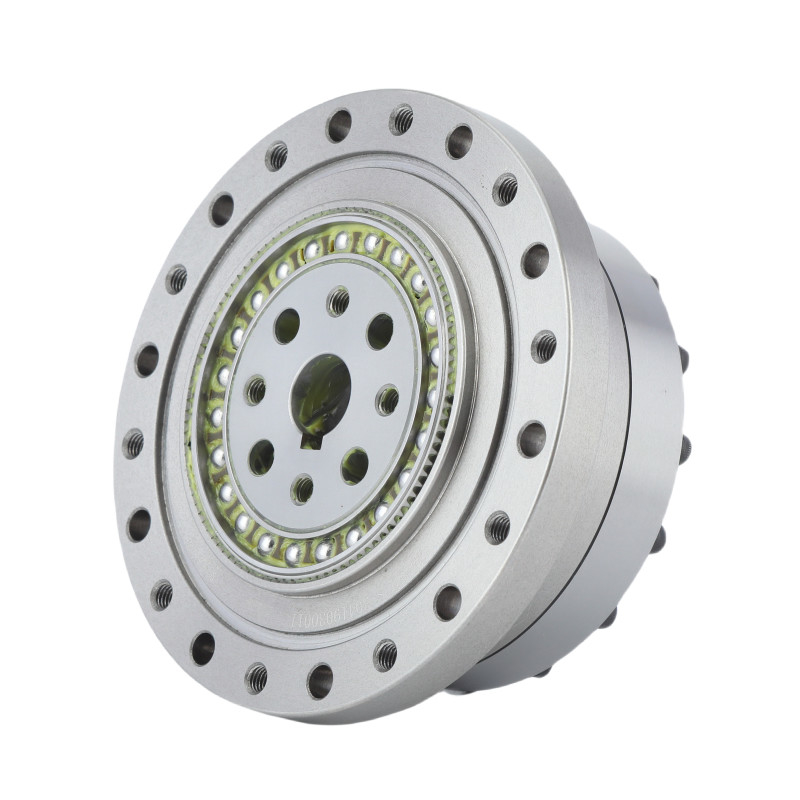

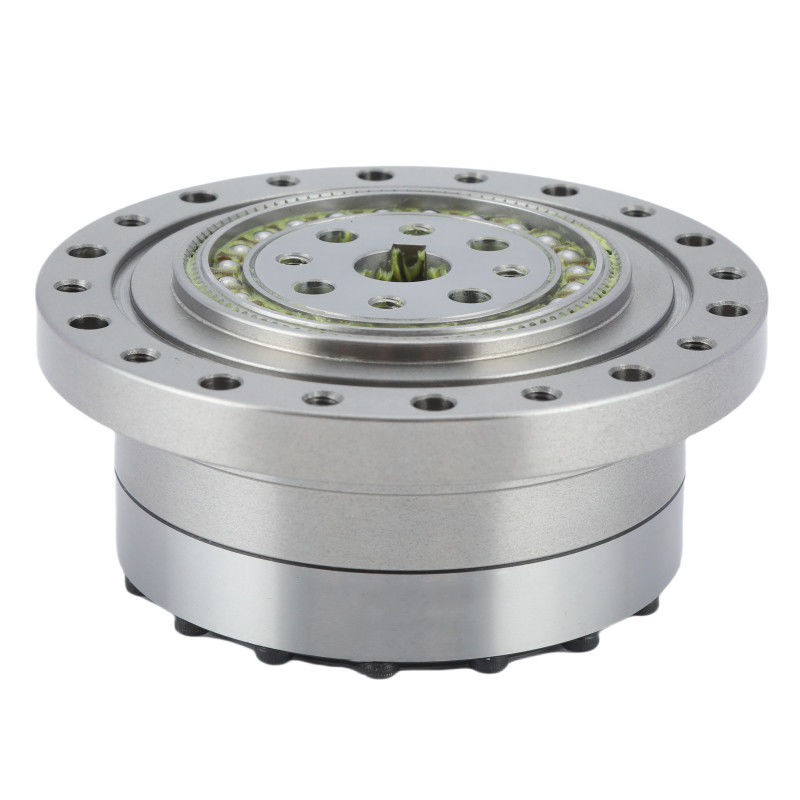

| Key Attributes of LSN-32-XX-U-I Strain Wave Reducer | |||
| Product | Model 32 Strain Wave Reducer | ||
|
Material
|
Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants | ||
|
Reduction Ratio
|
50, 80, 100, 120 | ||
|
Backlash
|
Less than 20 Arc Sec | ||
|
Average Input Speed
|
3500 r/min | ||
|
Max Input Speed
|
4800 r/min | ||
|
Design Life
|
15000 hours | ||
|
Model
|
32 | ||
|
Weight
|
2.47 kg | ||
| Warranty | 1 year | ||
| Application | Medical Equipment, Energy, Aerospace, Industrial Robots | ||
