Strainwave Harmonic Drive Reducer Gear Box CNC Mass Production

Strainwave harmonic drive reducer

CNC harmonic drive reducer

Strainwave harmonic gear box

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

LSS-11-XX-U-I

Request A Quote

Strainwave Harmonic Drive Reducer Gear Box CNC Mass Production

Product Details

Product:

Model 11 LSS - I Harmonic Gear Units

Material:

Steel, Aluminum, Polyurethane, Bearings And Seals, Lubricants

Reduction Ratio:

50:1, 80:1, 100:1

Backlash:

≤30 Arc Sec

Rated Torque At 2000r/min Input:

3.5 To 5 Nm

Average Input Speed:

3500 R/min

Design Life:

10000 Hours

Model:

Weight:

0.25 Kg

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units

Get Best Price

Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units

Get Best Price

High Reduction Ratio LSN Series Model 20 Strain Wave Reducer 0.73kg Light Weight Gear Units

Get Best Price

Compact And Lightweight Design LSN Series Strain Wave Reducer Model 14 Gear Units

Get Best Price

Contact Now

Product Description

Strainwave Harmonic Drive Reducer Gear Box

Parameter Table

Model	Reduction ratio	Rated torque at 2000r/min input	Permissible peak torque at start and stop	Permissible maximum value for average load torque	Permissible maximum momentary torque	Permissible maximum input rotational speed(Grease)	Permissible average input rotational speed(Greaae)	Moment of inertia
Model	Reduction ratio	Nm	Nm	Nm	Nm	r/min	r/min	kgcm2
11	50	3.5	8.3	5.5	17	8500	3500	1.4×10-2 1.2×10-2
	80	4.5	9.9	8	22.5
	100	5	11	8.9	25

Strainwave Harmonic Drive Reducer Gear Box CNC Mass Production 1

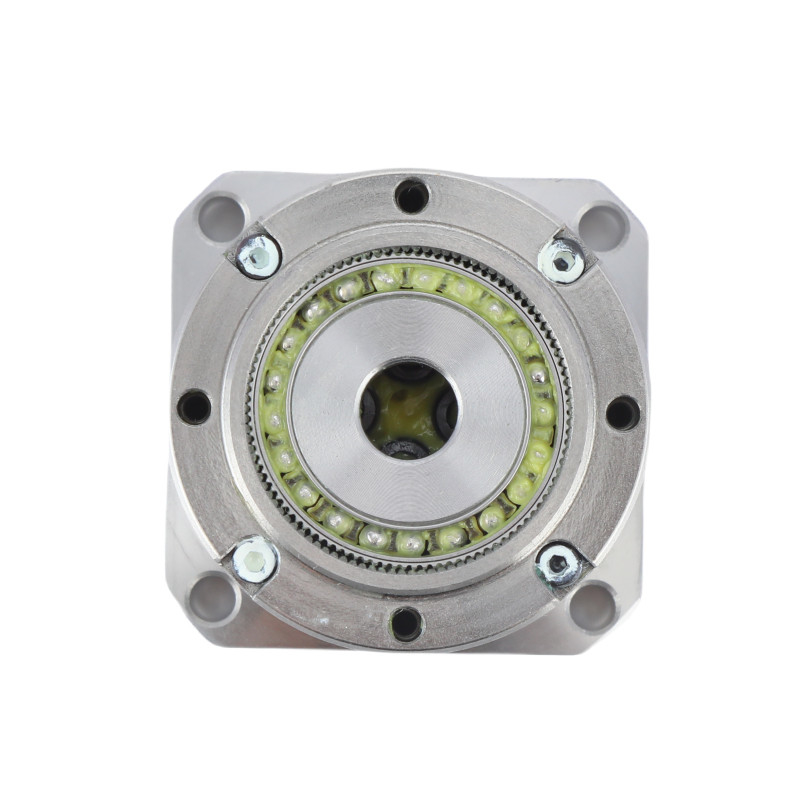

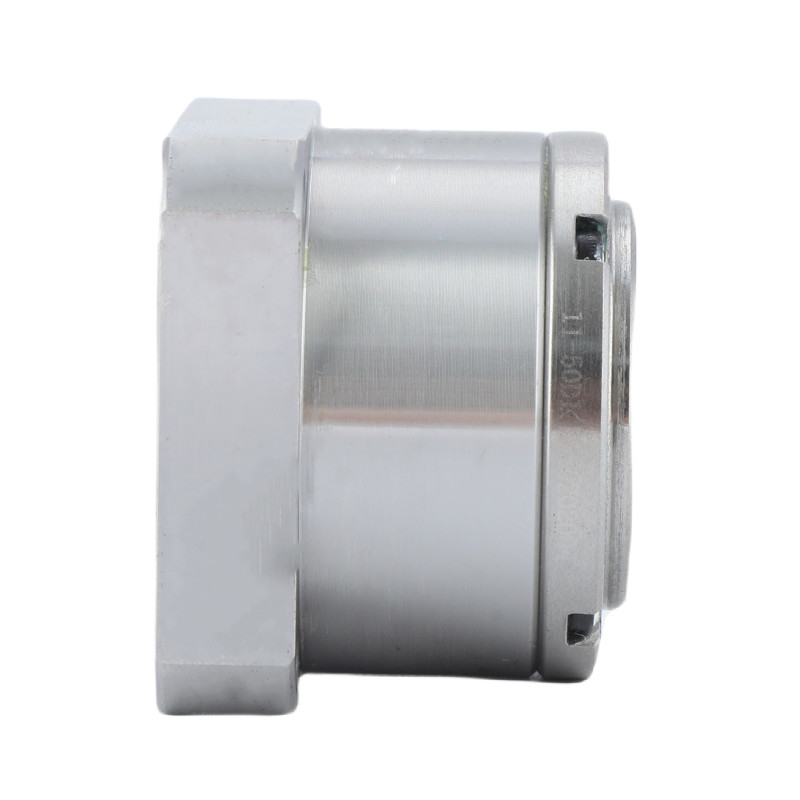

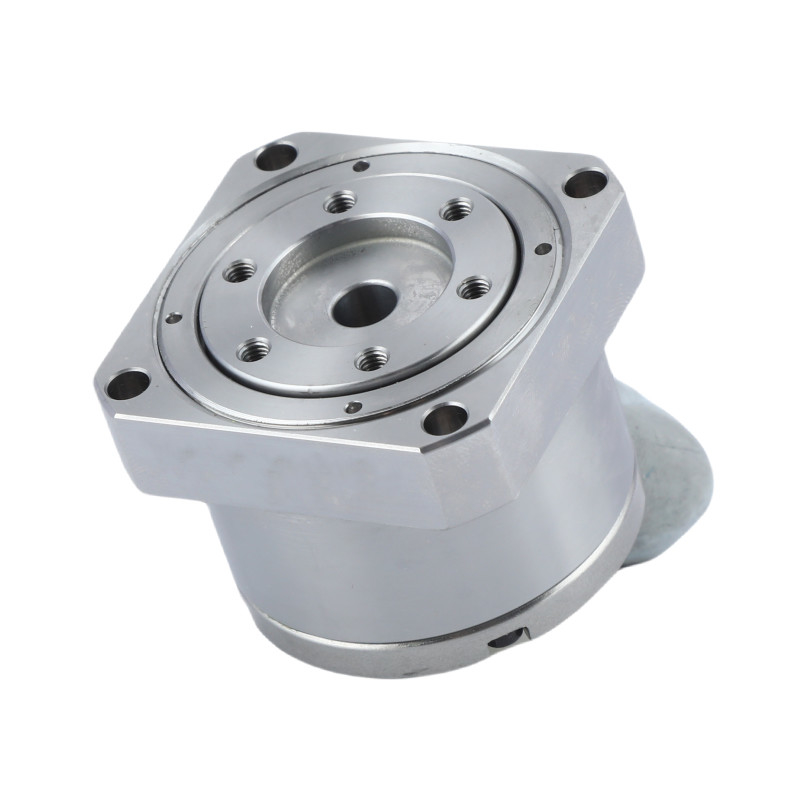

Detailed Images

Key Attributes of LSS - I Series Model 11 Harmonic Gear Units
Product	Harmonic Gear Units
Material	Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants
Reduction Ratio	50:1, 80:1, 100:1
Backlash	Less than 20 Arc Sec
Average Input Speed	3500 r/min
Max Input Speed	8500 r/min
Design Life	10000 hours
Model	11
Weight	0.25 kg
Warranty	1 Year

Applications


Semiconductor	Industrial Robots	Manufacturing Systems

PDF Drawings
