Name: High Torque Harmonic Gearing Strain Wave Reducer For Industrial Machinery
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: LSS-20-XX-U-I
Availability: InStock

Home > products > Harmonic Drive >

High Torque Harmonic Gearing Strain Wave Reducer For Industrial Machinery

Strain Wave harmonic gearing

Industrial Machinery harmonic gearing

High Torque strain wave reducer

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

LSS-20-XX-U-I

Request A Quote

High Torque Harmonic Gearing Strain Wave Reducer For Industrial Machinery

Product Details

Model:

Product:

Model 20 Harmonic Gear Units

Material:

Steel, Aluminum, Polyurethane, Bearings And Seals, Lubricants

Reduction Ratio:

50:1, 80:1, 100:1, 120:1, 160:1

Backlash:

≤20 Arc Sec

Rated Torque At 2000r/min Input:

25 To 40 Nm

Maximum Input Speed:

6500 R/min

Design Life:

15000 Hours

Weight:

0.96kg

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units

Get Best Price

Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units

Get Best Price

High Reduction Ratio LSN Series Model 20 Strain Wave Reducer 0.73kg Light Weight Gear Units

Get Best Price

Compact And Lightweight Design LSN Series Strain Wave Reducer Model 14 Gear Units

Get Best Price

Contact Now

Product Description

Strain wave reducers (harmonic drives)

are essential components in many modern mechanical systems, providing efficient, precise, and reliable gear reduction. Their unique design and capabilities make them indispensable in fields requiring high precision and compact, lightweight solutions.

Features

High Reduction Ratios can achieve very high reduction ratios in a single stage.

Compact and Lightweight due to their design, they offer a high reduction ratio in a much smaller and lighter package compared to traditional gear systems.

High Precision and Repeatability ensures minimal backlash, making them suitable for applications requiring high positional accuracy.

High Torque Transmission can transmit high torque relative to their size, which is beneficial for applications requiring significant force.

Model		20
Reduction ratio		50	80	100	120	160
Rated torque at 2000r/min input	Nm	25	34	40	40	40
Rated torque at 2000r/min input	kgfm	2.5	3.5	4.1	4.1	4.1
Permissible peak torque at start and stop	Nm	56	74	82	87	92
Permissible peak torque at start and stop	kgfm	5.7	7.5	8.4	8.9	9.4
Permissible maximum value for average load torque	Nm	34	47	49	49	49
Permissible maximum value for average load torque	kgfm	3.5	4.8	5	5	5
Permissible maximum momentary torque	Nm	98	127	147	147	147
Permissible maximum momentary torque	kgfm	10	13	15	15	15
Permissible maximum input rotational speed Grease	r/min	6500
Permissible average input rotational speed Grease	r/min	3500
Backlash	Arc Sec	≤20
Weight	kg	0.96
Design life	Hour	10000	15000	15000	15000	15000

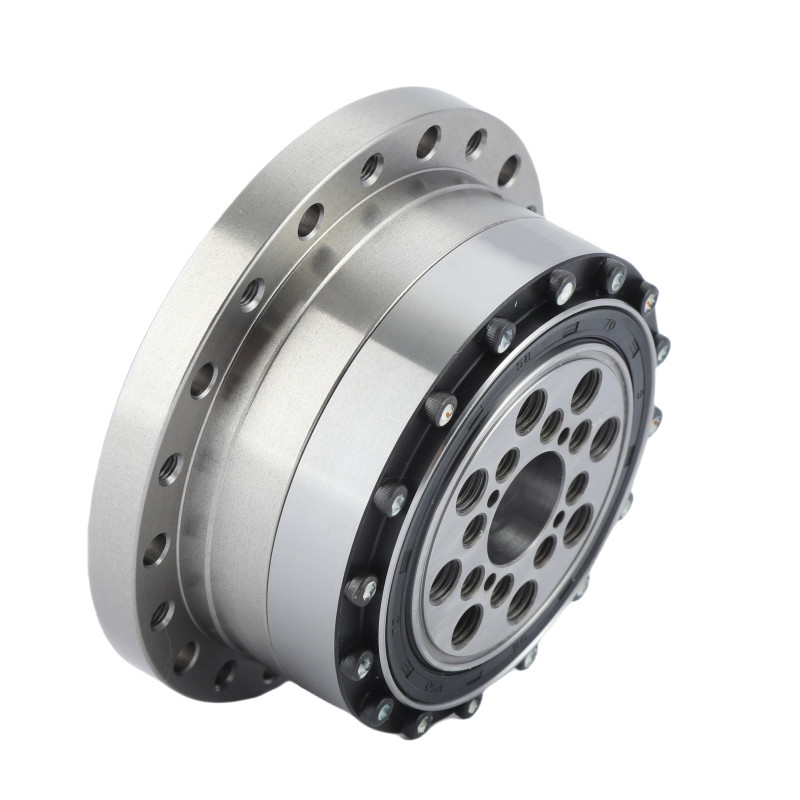

High Torque Harmonic Gearing Strain Wave Reducer For Industrial Machinery 1

	Key Attributes of LSS - I Model 20 Harmonic Gear Units
	Product	Model 20 Strain Wave Reducer
	Material	Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants
	Reduction Ratio	50:1, 80:1, 100:1, 120:1, 160:1
	Backlash	Less than 20 Arc Sec
	Average Input Speed	3500 r/min
	Max Input Speed	6500 r/min
	Design Life	15000 hours
	Model	20
	Weight	0.96 kg
	Warranty	1 Year
