Place of Origin:
China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
LSS-25-XX-U-I
 |

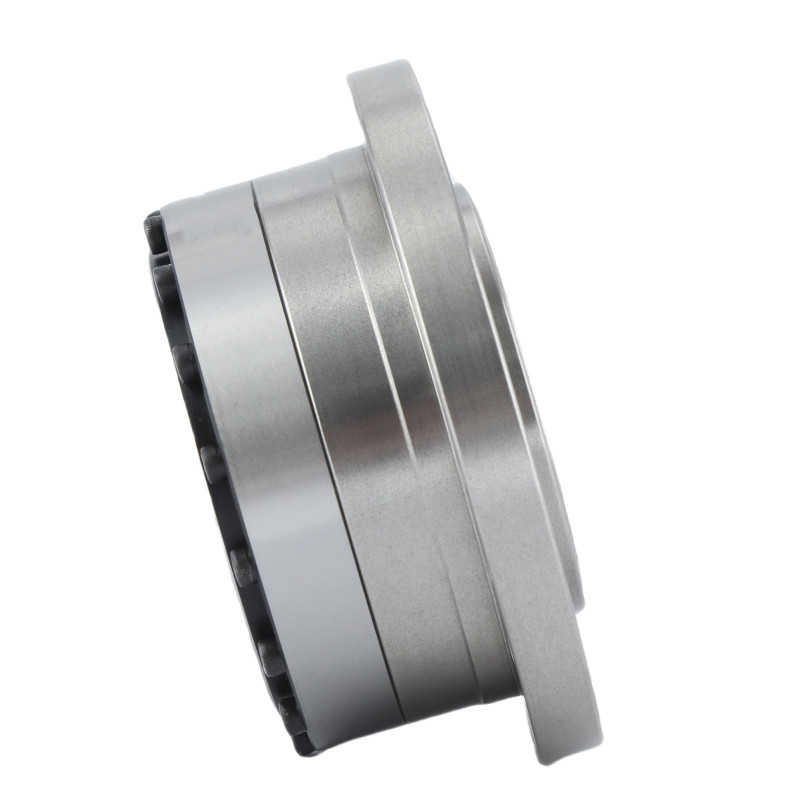

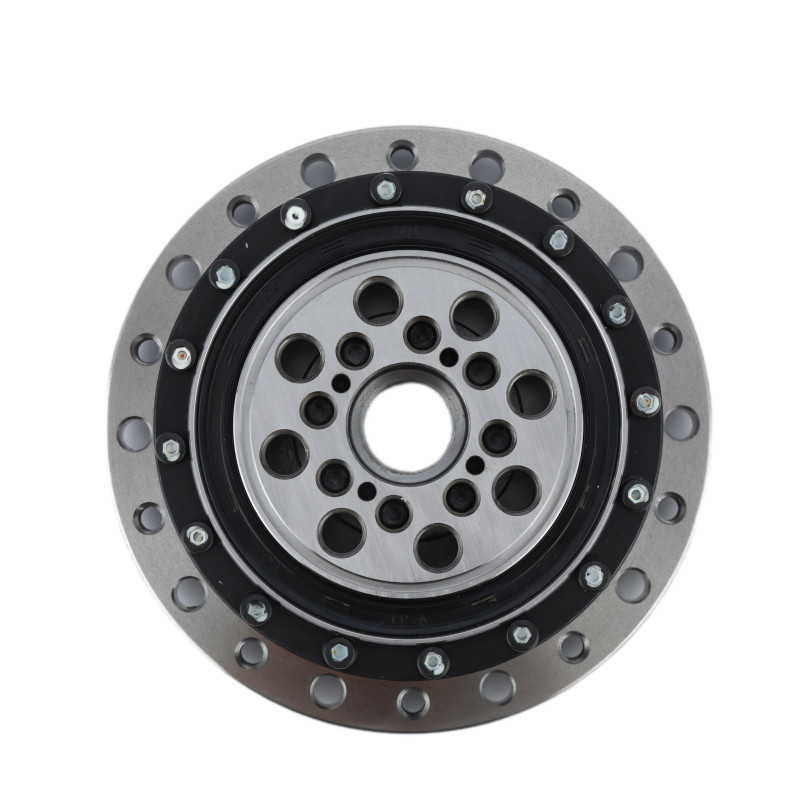

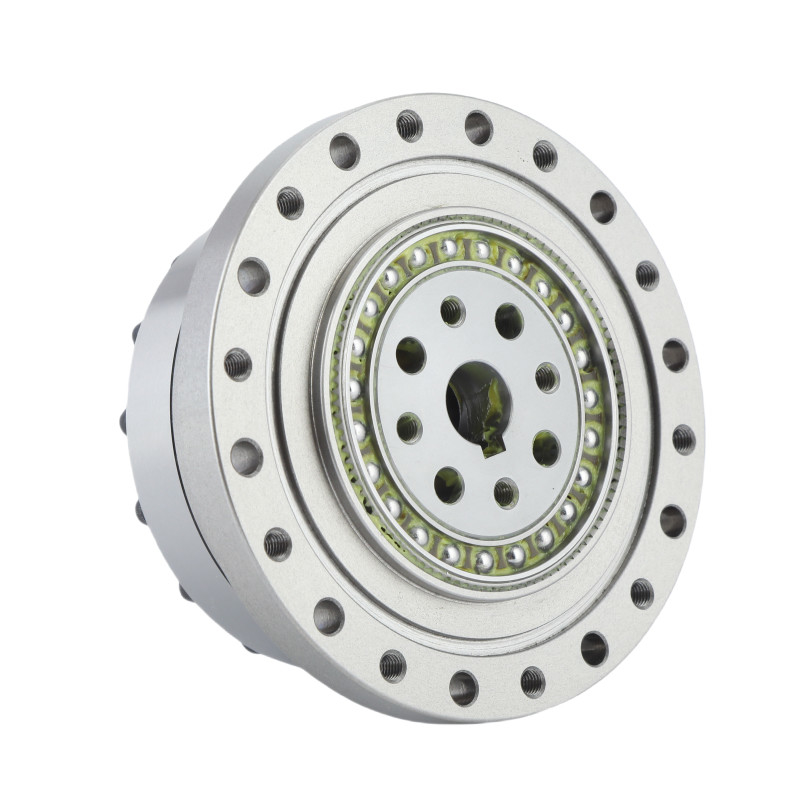

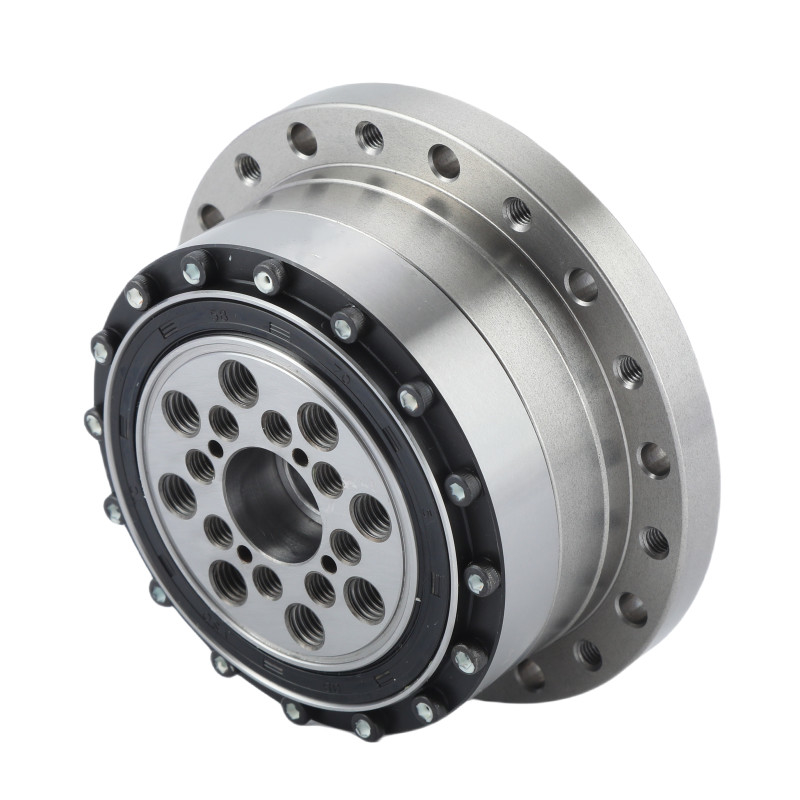

Strain wave reducers (harmonic drives) are essential components in many modern mechanical systems, providing efficient, precise, and reliable gear reduction. Their unique design and capabilities make them indispensable in fields requiring high precision and compact, lightweight solutions. |
ApplicationRobotics Used in robotic arms and joints for precise movement control. |
| Model | 25 | |||||
| Reduction ratio | 50 | 80 | 100 | 120 | ||
| Rated torque at 2000r/min input | Nm | 39 | 63 | 67 | 67 | |
| kgfm | 4 | 6.4 | 6.8 | 6.8 | ||
| Permissible peak torque at start and stop | Nm | 98 | 137 | 157 | 167 | |
| kgfm | 10 | 14 | 16 | 17 | ||
| Permissible maximum value for average load torque | Nm | 55 | 87 | 108 | 108 | |
| kgfm | 5.6 | 8.9 | 11 | 11 | ||
| Permissible maximum momentary torque | Nm | 186 | 255 | 284 | 304 | |
| kgfm | 19 | 26 | 29 | 31 | ||
| Permissible maximum input rotational speed (Grease) |
r/min | 5600 | ||||
| Permissible average input rotational speed (Grease) |
r/min | 3500 | ||||
| Backlash | Arc Sec | ≤10 | ||||
| Weight | kg | 1.46 | ||||
| Design life | Hour | 10000 | 15000 | 15000 | 15000 | |
|
Key Attributes of LSS - I Model 25 Harmonic Gear Units | |||
| Product | Model 25 Strain Wave Reducer | |||
|
Material
|
Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants | |||
|
Reduction Ratio
|
50:1, 80:1, 100:1, 120:1 | |||
|
Backlash
|
Less than 20 Arc Sec | |||
|
Average Input Speed
|
3500 r/min | |||
|
Max Input Speed
|
5600 r/min | |||
|
Design Life
|
15000 hours | |||
|
Model
|
20 | |||
|
Weight
|
1.46 kg | |||
| Warranty | 1 Year | |||
