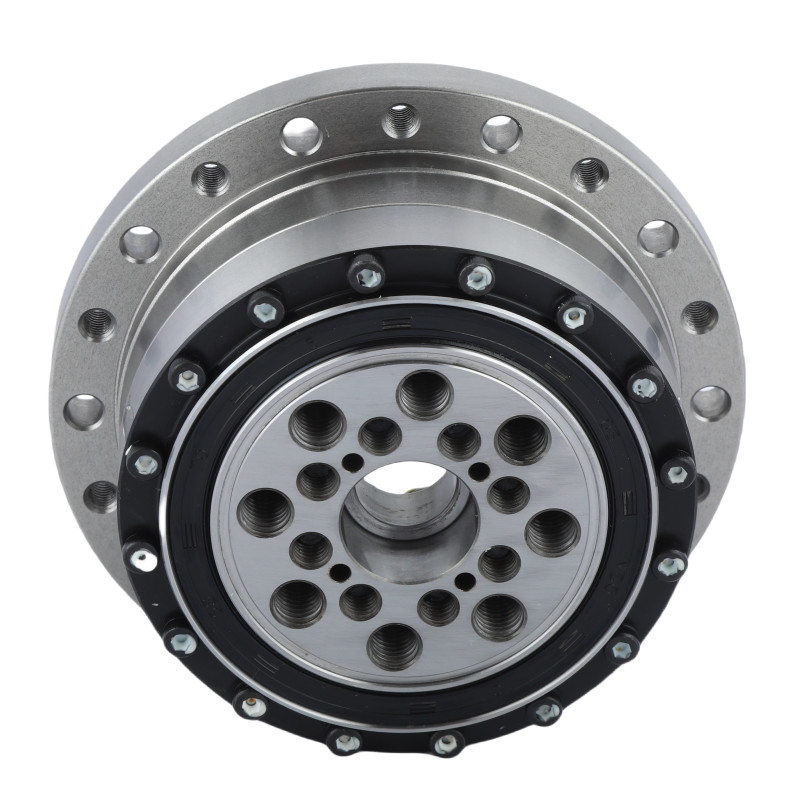

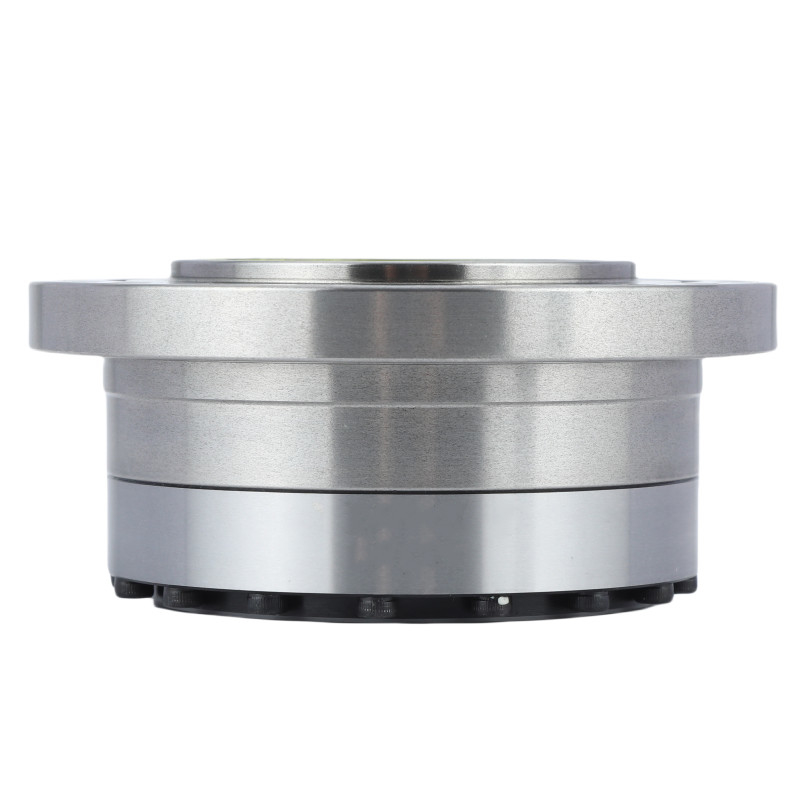

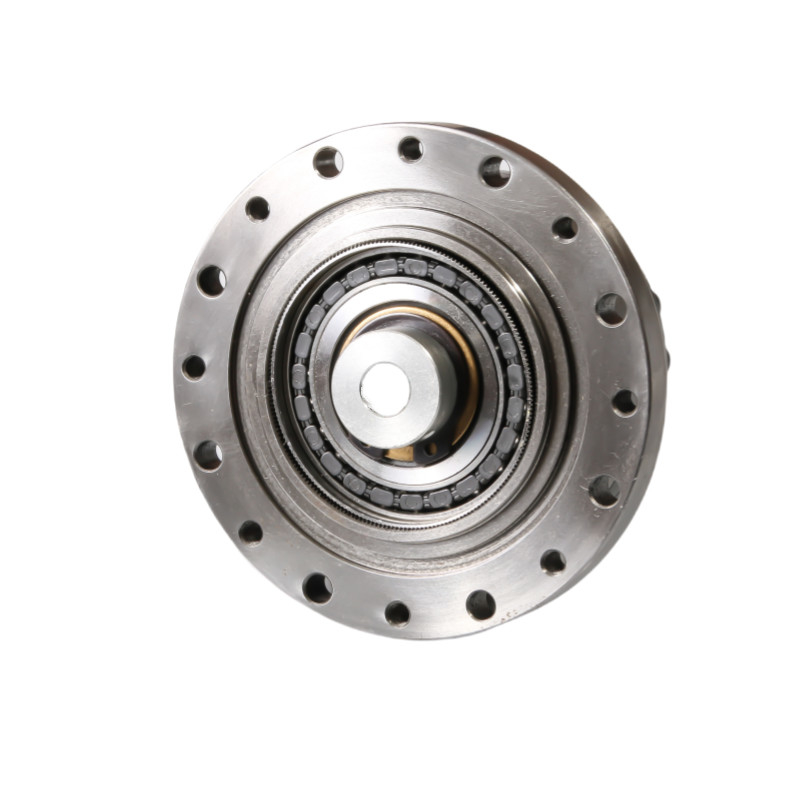

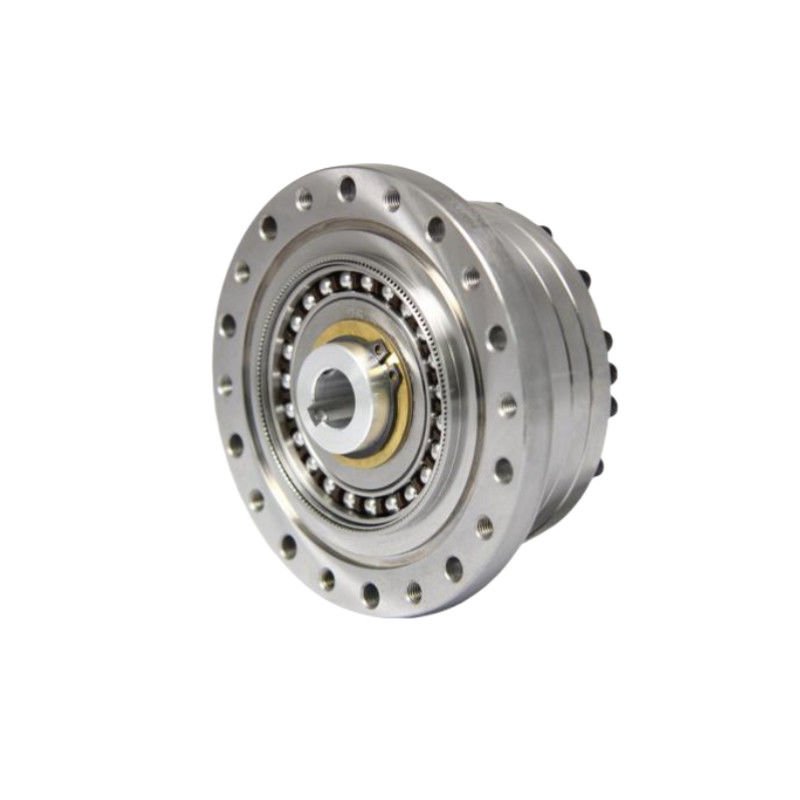

Name: Model 32 Harmonic Reducer Drive gear Control Strain Wave ODM
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: LSS-32-XX-U-II
Price: Negotiable USD
Availability: InStock

Home > products > Harmonic Drive >

Model 32 Harmonic Reducer Drive gear Control Strain Wave ODM

Model 32 harmonic reducer

ODM harmonic reducer

ODM harmonic drive reducer

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

LSS-32-XX-U-II

Request A Quote

Model 32 Harmonic Reducer Drive gear Control Strain Wave ODM

Product Details

Model:

Product:

Model 32 Harmonic Reducer

Components:

Wave Generator, Flexspline, Circular Spline

Reduction Ratio:

50:1, 80:1, 100:1, 120:1

Backlash:

≤20 Arc Sec

Maximum Input Speed:

4800 R/min

Design Life:

15000 Hours

Advantages:

High Torque Capacity, Compact Size, High Precision And Low Backlash

Weight:

3.11kg

Application:

Robotics, Aerospace, Medical Equipment, Industrial Machinery, Telecommunications, Renewable Energy

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units

Get Best Price

Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units

Get Best Price

High Reduction Ratio LSN Series Model 20 Strain Wave Reducer 0.73kg Light Weight Gear Units

Get Best Price

Compact And Lightweight Design LSN Series Strain Wave Reducer Model 14 Gear Units

Get Best Price

Contact Now

Product Description

Model 32 Harmonic Reducer Drive gear Control Strain Wave ODM 0

Applications

Strain wave reducers are used in various applications requiring high precision and reliability, including:

Robotics: For precise joint movement and positioning.
Aerospace: In control systems where reliability and precision are critical.
Medical Equipment: Such as surgical robots where accurate movements are crucial.
Industrial Machinery: For high-precision motion control in automation and manufacturing processes.

Model		32
Reduction ratio		50	80	100	120
Rated torque at 2000r/min input	Nm	76	118	137	137
Rated torque at 2000r/min input	kgfm	7.8	12	14	14
Permissible peak torque at start and stop	Nm	216	304	333	353
Permissible peak torque at start and stop	kgfm	22	31	34	36
Permissible maximum value for average load torque	Nm	108	167	216	216
Permissible maximum value for average load torque	kgfm	11	17	22	22
Permissible maximum momentary torque	Nm	382	568	647	686
Permissible maximum momentary torque	kgfm	39	58	66	70
Permissible maximum input rotational speed (Grease)	r/min	4800
Permissible average input rotational speed (Grease)	r/min	3500
Backlash	Arc Sec	≤20
Weight	kg	3.11
Design life	Hour	10000	15000	15000	15000

Model 32 Harmonic Reducer Drive gear Control Strain Wave ODM 2

	Key Attributes of LSS - II Model 32 Harmonic Gear Units
	Product	Model 32 Harmonic Drive
	Components	Wave Generator, Flexspline, Circular Spline
	Reduction Ratio	50:1, 80:1, 100:1, 120:1
	Backlash	Less than 20 Arc Sec
	Average Input Speed	4800 r/min
	Max Input Speed	3500 r/min
	Design Life	15000 hours
	Model	32
	Weight	3.11 kg
	Warranty	1 Year
