Strain Wave Generator Harmonic Drive Reducer Gearbox 8500r/min

8500r/Min wave generator harmonic drive

wave generator harmonic drive Gearbox

Harmonic Gearbox Reducer

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

LHT-14-XX-U-III

Request A Quote

Product Details

Product:

Model 14 Harmonic Reducer

Components:

Wave Generator, Flexspline, Circular Spline

Reduction Ratio:

50:1, 80:1, 100:1, 120:1

Backlash:

≤20 Arc Sec

Maximum Input Speed:

8500 R/min

Design Life:

15000 Hours

Weight:

0.7kg

Application:

Robotics, Aerospace, Medical Equipment

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units

Get Best Price

Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units

Get Best Price

High Reduction Ratio LSN Series Model 20 Strain Wave Reducer 0.73kg Light Weight Gear Units

Get Best Price

Compact And Lightweight Design LSN Series Strain Wave Reducer Model 14 Gear Units

Get Best Price

Contact Now

Product Description

Strain Wave Generator Harmonic Drive Reducer Gearbox

Strain Wave Generator Harmonic Drive Reducer Gearbox 8500r/min 0

Harmonic drive

is a type of gear mechanism used for high precision motion control. It consists of three main components: a wave generator, a flexspline, and a circular spline.

Features

High Precision The design inherently reduces backlash, allowing for highly accurate motion control.
Compact Size Provides high reduction ratios in a relatively small and lightweight package.
High Torque Capacity Can handle significant loads due to the distribution of force across many teeth.

Rated Parameter Table

Model		14
Reduction ratio		50	80	100	120
Rated torque at 2000r/min input	Nm	5.4	7.8	7.8	7.8
Rated torque at 2000r/min input	kgfm	0.55	0.8	0.8	0.8
Permissible peak torque at start and stop	Nm	18	23	28	28
Permissible peak torque at start and stop	kgfm	1.8	2.4	2.9	2.9
Permissible maximum value for average load torque	Nm	6.9	11	11	11
Permissible maximum value for average load torque	kgfm	0.7	1.1	1.1	1.1
Permissible maximum momentary torque	Nm	35	47	54	54
Permissible maximum momentary torque	kgfm	3.6	4.8	5.5	5.5
Permissible maximum input rotational speed (Grease)	r/min	8500
Permissible average input rotational speed (Grease)	r/min	3500
Backlash	Arc Sec	≤20
Weight	kg	0.7
Design life	Hour	10000	15000	15000	15000

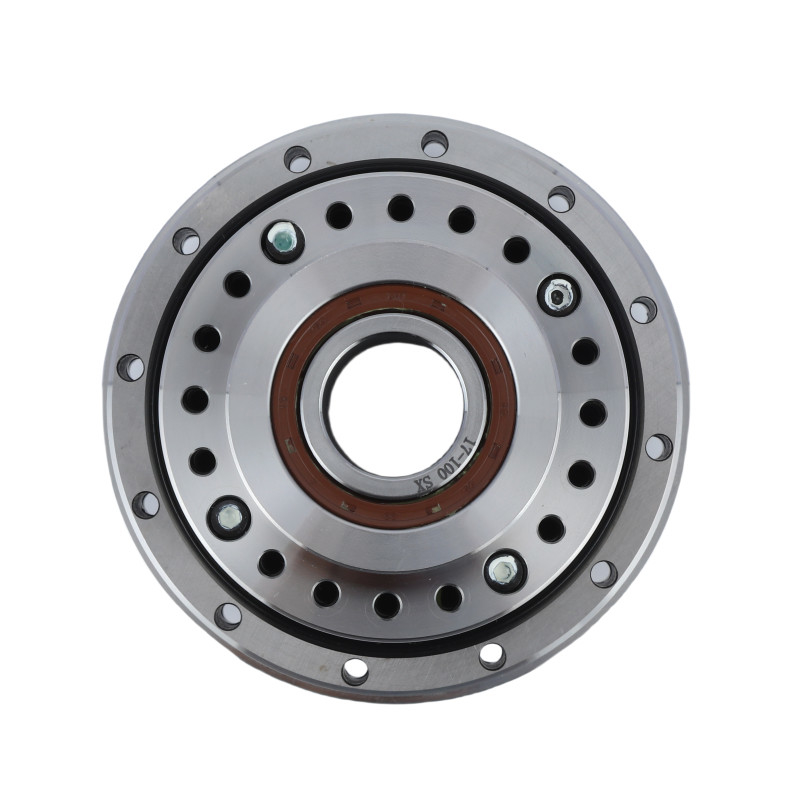

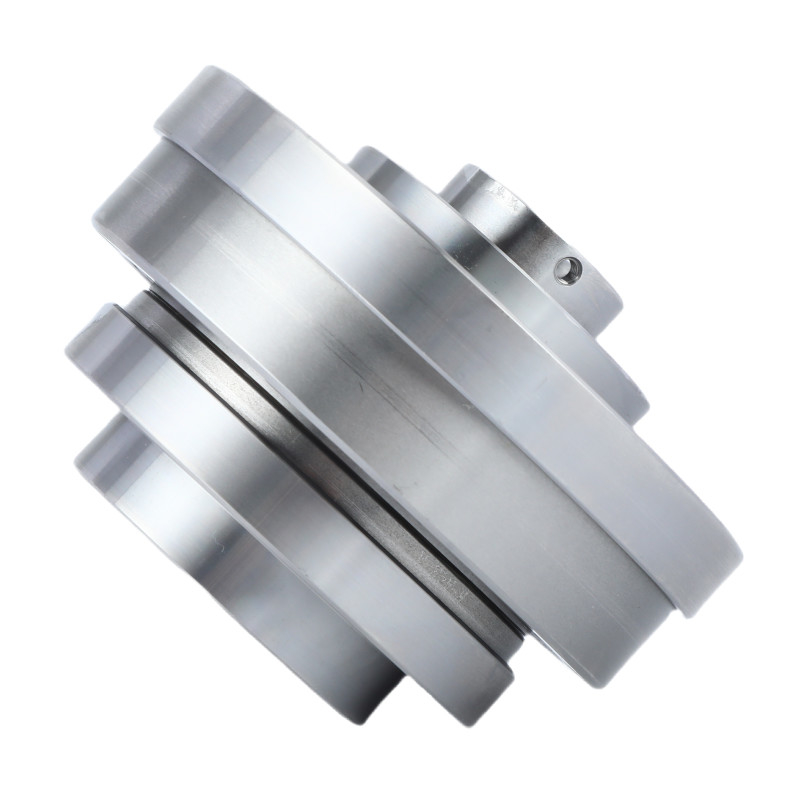

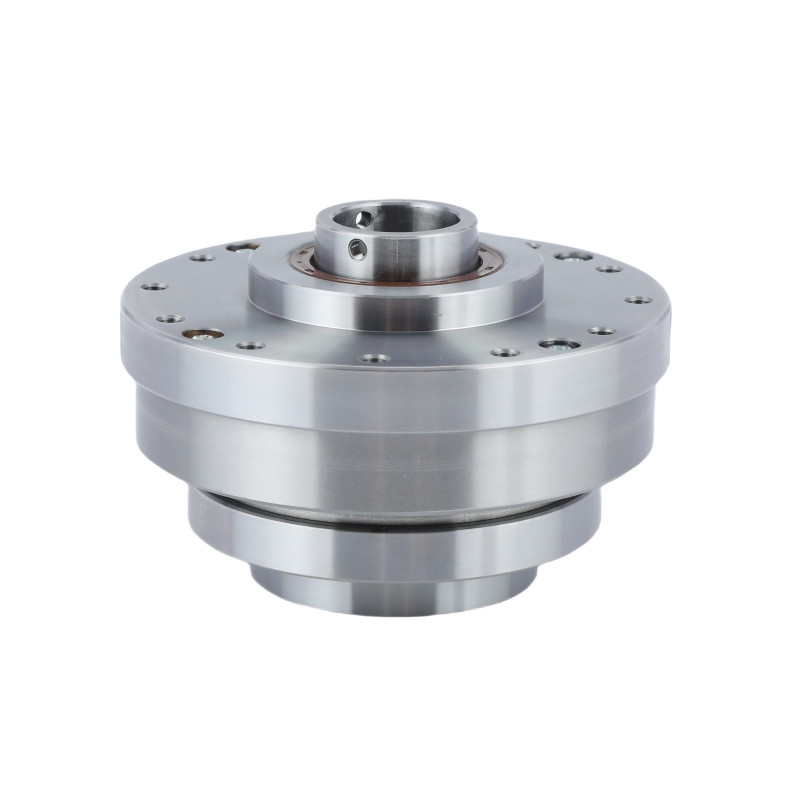

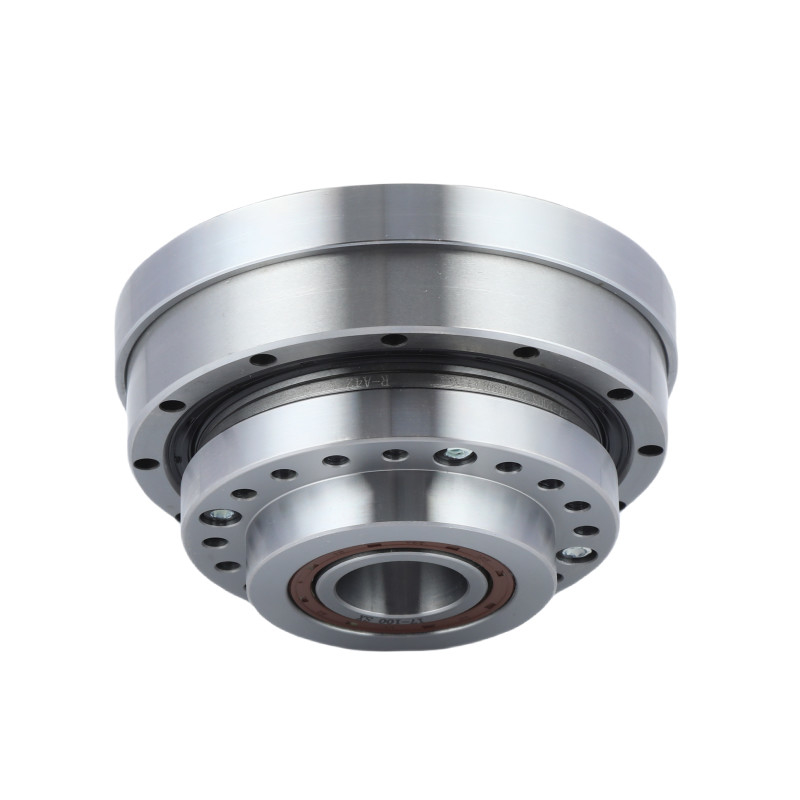

Detailed Images

	Key Attributes of LHT - III Model 14 Harmonic Gear Units
	Product	Model 14 Harmonic Drive
	Components	Wave Generator, Flexspline, Circular Spline
	Reduction Ratio	50:1, 80:1, 100:1, 120:1
	Backlash	Less than 20 Arc Sec
	Average Input Speed	8500 r/min
	Max Input Speed	3500 r/min
	Design Life	15000 hours
	Model	14
	Weight	0.7 kg
	Warranty	1 Year

Application


Industrial Robots	CNC Machines	Aerospaces
