ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots

ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots

ODM harmonic speed reducer

Humanoid Robots harmonic speed reducer

ODM harmonic drive wave generator

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

LHT-20-XX-U-III

Contact Us
Request A Quote

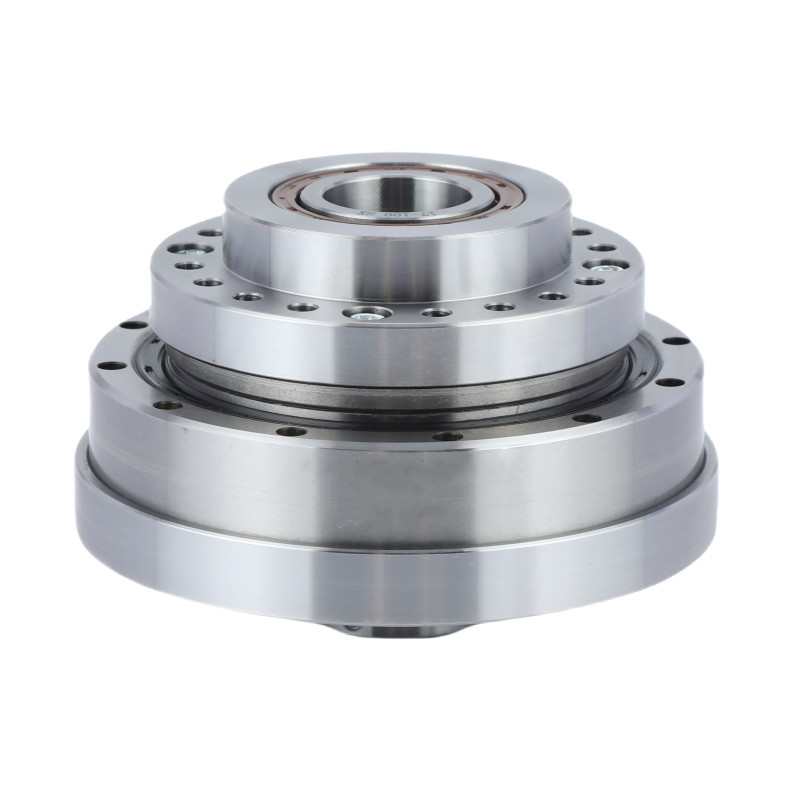

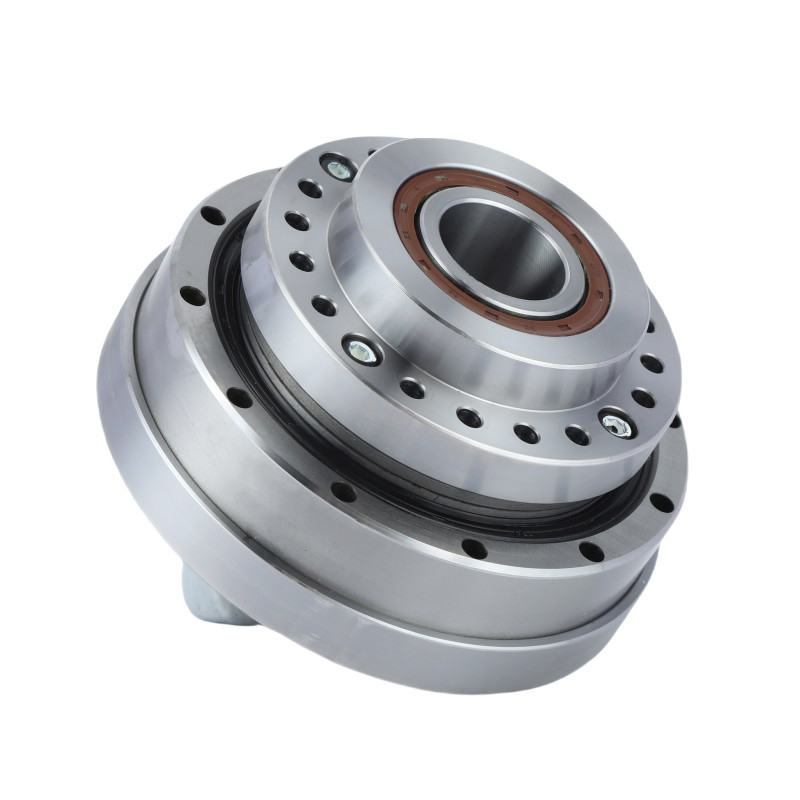

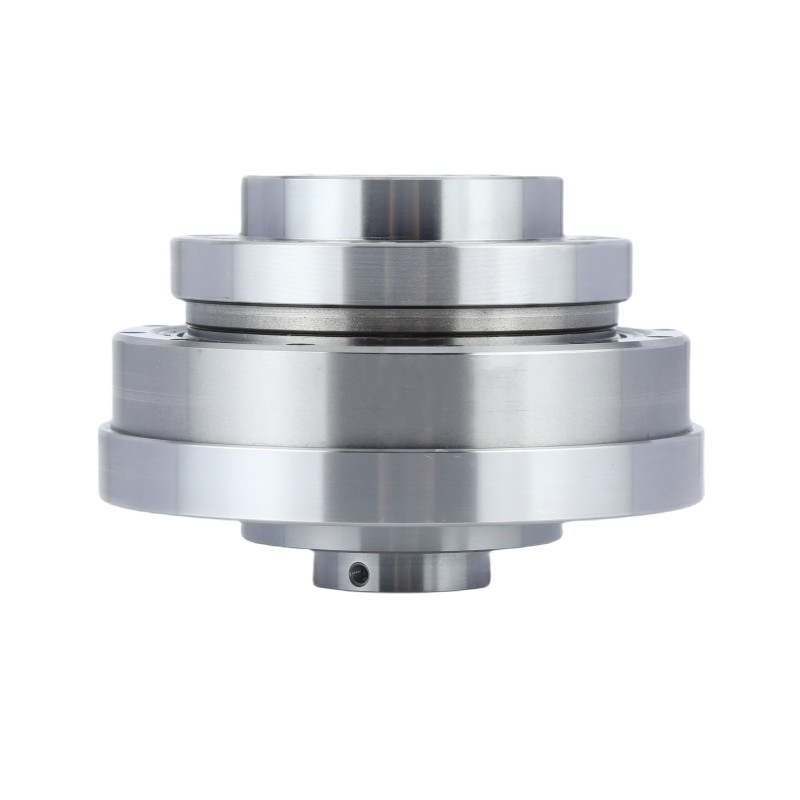

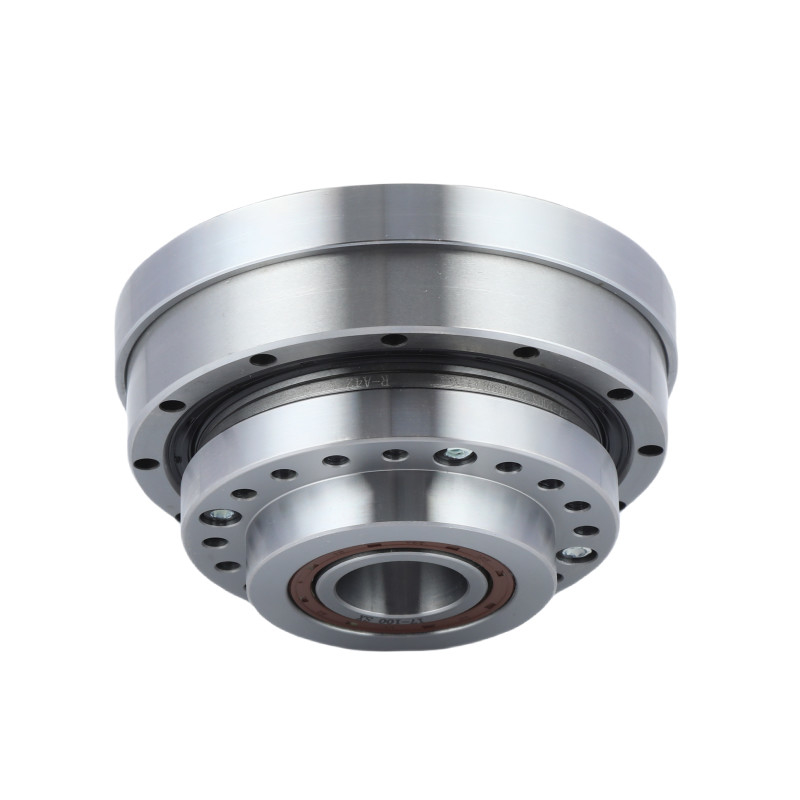

ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots
ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots
Product Details
Product:
Model 20 Harmonic Reducer
Components:
Wave Generator, Flexspline, Circular Spline
Reduction Ratio:
50:1, 80:1, 100:1
Backlash:
≤20 Arc Sec
Maximum Input Speed:
6500 R/min
Average Input Speed:
3500 R/min
Design Life:
15000 Hours
Weight:
1.32kg
Application:
Robotics, Aerospace, Medical Equipment
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
To Be Negotiated
Packaging Details
Carton Box
Delivery Time
3-4 Weeks
Payment Terms
T/T
Supply Ability
20000 Sets per Month
RELATED PRODUCTS
Good price Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units online

Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units

Get Best Price
Good price Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units online

Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units

Get Best Price
Good price High Reduction Ratio LSN Series Model 20 Strain Wave Reducer 0.73kg Light Weight Gear Units online

High Reduction Ratio LSN Series Model 20 Strain Wave Reducer 0.73kg Light Weight Gear Units

Get Best Price
Good price Compact And Lightweight Design LSN Series Strain Wave Reducer Model 14 Gear Units online

Compact And Lightweight Design LSN Series Strain Wave Reducer Model 14 Gear Units

Get Best Price
Contact Us
Contact Now
Product Description

 LHT - III Series Strain Wave Reducer Harmonic Gears

ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots 0

Product description

A harmonic drive is backlash-free with a high-ratio of speed reduction by design. This is advantageous for systems that require precise gear positioning.

The base shaft turns the strain wave generator, which is elliptical with bearings around the circumference.

With operating principles and construction that maximize output torque and minimize size and weight,

harmonic gears offer advantages such as high reduction ratios in a single stage, zero backlash, and high precision that cannot be equaled by conventional gear trains.

ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots 1

Features

1. High Precision and Repeatability: Essential for applications requiring exact positioning and control.

2. Compact Size: Saves space, allowing for more compact and lightweight designs.

3. High Torque-to-Weight Ratio: Provides strong torque output without significant weight.

4. Low Wear and Long Life: Due to the rolling contact of teeth, which minimizes wear and extends the lifespan of the drive.

5. Smooth Operation: Provides smooth and consistent motion, ideal for delicate tasks.

Specification

Model 20
Reduction ratio 50 80 100
Rated torque at 2000r/min input Nm 17 24 28
Permissible peak torque at start and stop Nm 39 51 57
Permissible maximum value for average load torque Nm 24 33 34
Permissible maximum momentary torque Nm 69 89 95
Permissible maximum input rotational speed r/min 6500
Permissible average input rotational speed r/min 3500
Backlash Arc Sec ≤20
Weight Kg 1.32
Design life Hour 9000 10000 10000

ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots 2

Detailed Images

ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots 3

ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots 4

ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots 5

ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots 6 Key Attributes of LHT - III Model 20 Harmonic Gear Units
Product Model 20 Harmonic Drive
Components
 Wave Generator, Flexspline, Circular Spline
Reduction Ratio
 50:1, 80:1, 100:1
Backlash
 Less than 20 Arc Sec
Average Input Speed
 6500 r/min
Max Input Speed
 3500 r/min
Design Life
 15000 hours
Model
 20
Weight
  1.32kg
Warranty 1 Year

Applications

ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots 7   ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots 8   ODM Harmonic Speed Reducer Drive Wave Generator For Humanoid Robots 9
Optical Machines 3D Printing And Paper Making Manufacturing Systems
