ERG - HP Series High Precision Rotary Gripper For 3C Electronics

ERG - HP Series High Precision Rotary Gripper For 3C Electronics

High Precision Rotary Gripper

HP Series Rotary Gripper

3C Electronics Rotary Gripper

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

ERG - HP Series

Contact Us
Request A Quote
ERG - HP Series High Precision Rotary Gripper For 3C Electronics ERG - HP Series High Precision Rotary Gripper For 3C Electronics ERG - HP Series High Precision Rotary Gripper For 3C Electronics ERG - HP Series High Precision Rotary Gripper For 3C Electronics
Product Details
Product:
ERG - HP Series Electric Rotary Gripper
Adjustable Stroke:
20 Mm
Single Finger Gripping Force:
4-23 N
Rated Torque:
0.1 N
Peak Torque:
0.25 N
Rotation Angle:
Infinite Rotation
Maximum Rotational Speed:
1500°/s
Maximum Recommended Load:
0.35KG
Rated Voltage:
DC 24V±10%
Compliant With International Standards:
CE, RoHS
Opening/closing Time:
0.1S/10mm
Dimension:
180mm*40mm*40mm
Communication Protocolx:
IO-Link, CANopen, EtherCAT
Payment & Shipping Terms
Minimum Order Quantity
To Be Negotiated
Price
To Be Negotiated
Packaging Details
Carton Box
Delivery Time
3-4 Weeks
Payment Terms
T/T
Supply Ability
20000 Sets per Month
RELATED PRODUCTS
Good price Heavy Duty LEPG Series Electric Parallel Grippers For Robots In Lithium Batteries online video

Heavy Duty LEPG Series Electric Parallel Grippers For Robots In Lithium Batteries

Get Best Price
Good price WEPG Series High-Precision Weighing Gripper For 3C Electronics With Real - Time Weighing Function online

WEPG Series High-Precision Weighing Gripper For 3C Electronics With Real - Time Weighing Function

Get Best Price
Good price ERG - HP Series High Precision Rotary Gripper For 3C Electronics online

ERG - HP Series High Precision Rotary Gripper For 3C Electronics

Get Best Price
Good price ZRG Series Lifting And Rotating Gripper For 3C Electronics And Precision Manufacturing online video

ZRG Series Lifting And Rotating Gripper For 3C Electronics And Precision Manufacturing

Get Best Price
Contact Us
Contact Now
Product Description
ERG - HP Series
Electric Rotary Gripper

The ERG-HP series rotary gripper is a "high-precision" version of the rotary gripper, with features such as micron-level rotation positioning, precise force control, intelligent feedback, and multi-axis interpolation linkage.

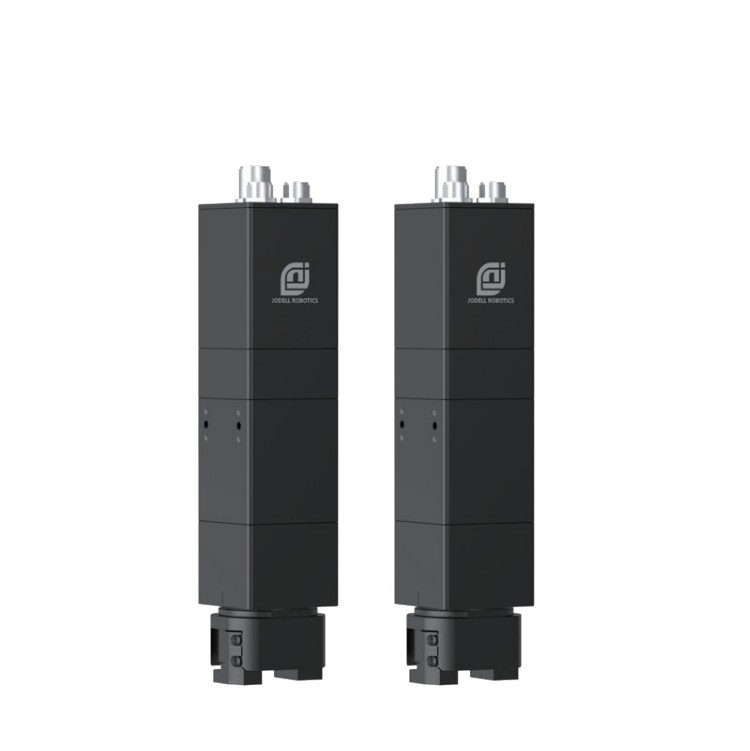

ERG - HP Series High Precision Rotary Gripper For 3C Electronics 0

   ERG - HP Series High Precision Rotary Gripper For 3C Electronics 1 ERG - HP Series High Precision Rotary Gripper For 3C Electronics 2
Integrated Drive and Control Grab Feedback Networking Applications



Adjustable stroke
20mm
 Rated current Direct: 0.3A; Rotation: 2.6A
Single finger gripping force
 4-23N Rotation Backlash ZERO backlash
Rated torque
0.1N
 Rotation repetition accuracy ±0.1°
Peak torque
0.25N
 Clamping repeatability accuracy ±0.02mm
Rotation angle
Infinite rotation
 Opening/closing time 0.1S/10mm
Maximum rotational speed
1500°/s
 Dimension 180mm*40mm*40mm
*Maximum recommended load
0.35KG
 communication protocol IO-Link, CANopen
EtherCAT
Rated voltage
DC 24V±10%



Drawing

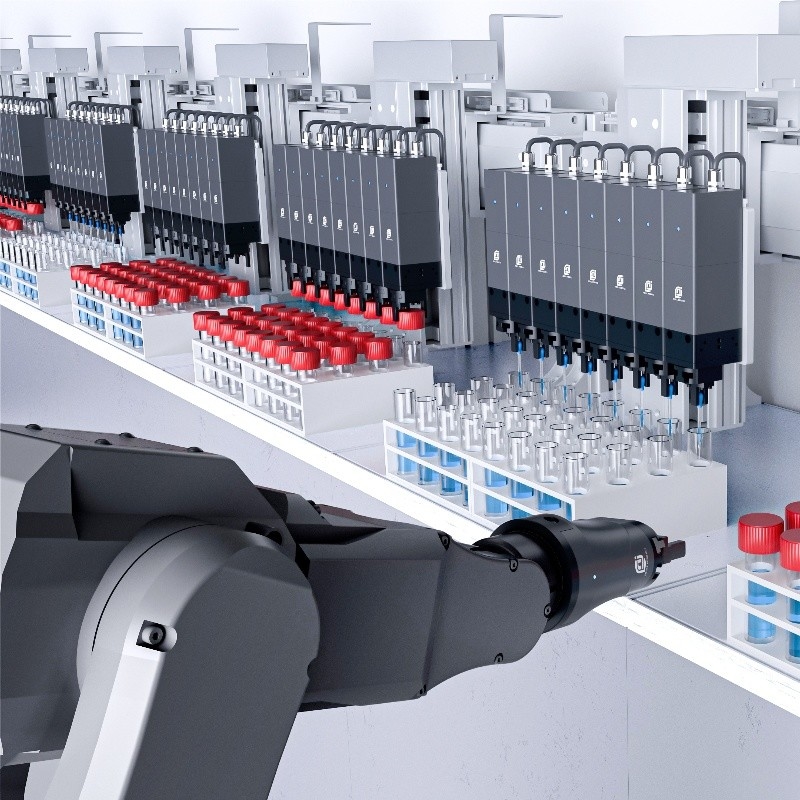

ERG - HP Series High Precision Rotary Gripper For 3C Electronics 3Application



  • 3C Electronics
  • Auto Parts
  • Precision Manufacturing
  • Medical Aesthetics
  • Life Sciences
  • Education and Research
