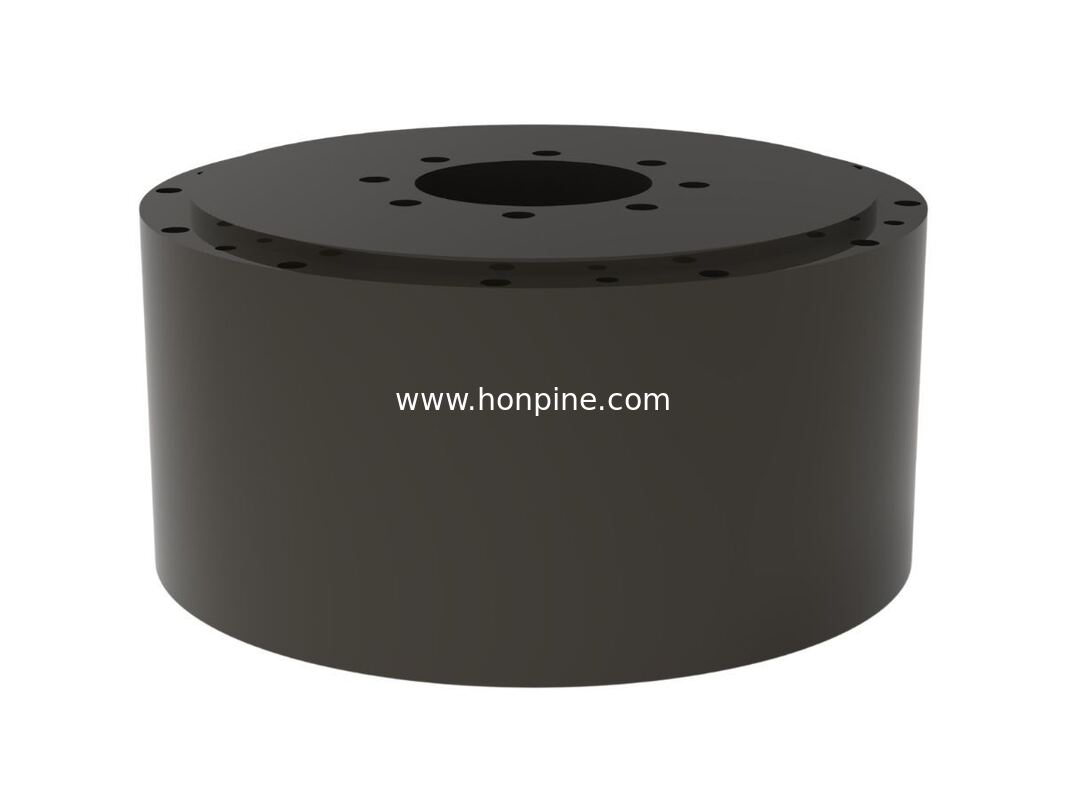

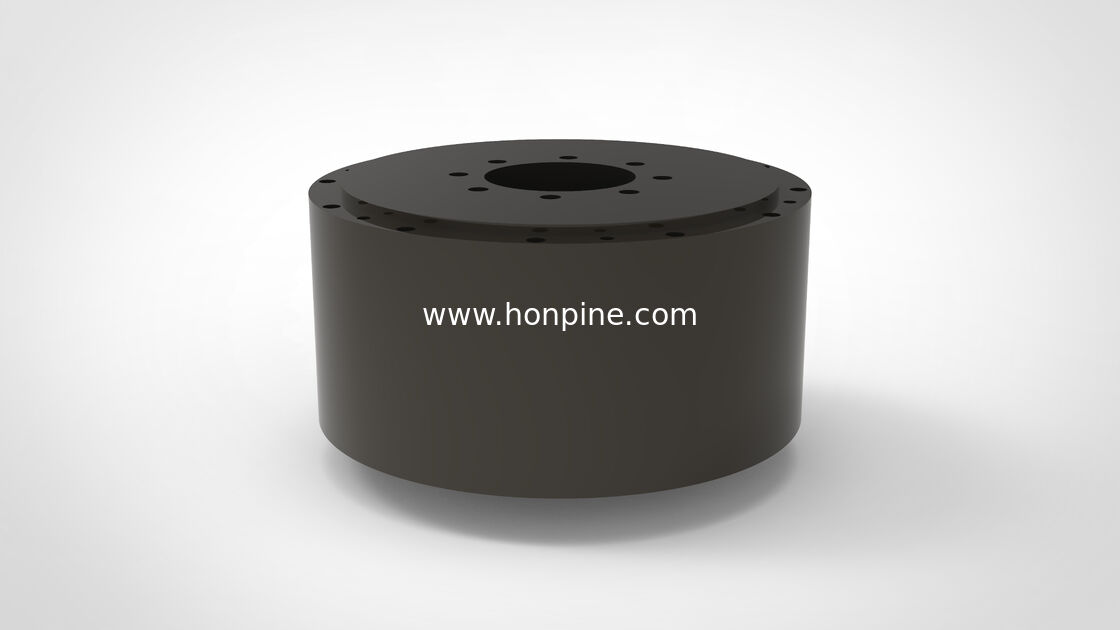

HONPINE TDB-263-138-NH-RD Direct Drive DD Motor

HONPINE TDB-263-138-NH-RD Direct Drive DD Motor

Place of Origin:

china

Brand Name:

HONPINE

Model Number:

TDB-263-138-NH-RD

Contact Us
Request A Quote
HONPINE TDB-263-138-NH-RD Direct Drive DD Motor HONPINE TDB-263-138-NH-RD Direct Drive DD Motor
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton with foam
RELATED PRODUCTS
Good price TDB-112-065-NH-A HONPINE Direct Drive DD Motor online

TDB-112-065-NH-A HONPINE Direct Drive DD Motor

Get Best Price
Good price HONPINE TDB-170-095-NH-A Direct Drive Torque Motor online

HONPINE TDB-170-095-NH-A Direct Drive Torque Motor

Get Best Price
Good price HONPINE TDB-170-125-NH-B Industrial Servo Drives Direct Drive DD Torque Motor online

HONPINE TDB-170-125-NH-B Industrial Servo Drives Direct Drive DD Torque Motor

Get Best Price
Good price TDB-263-113-NH-A HONPINE Direct Drive Precision Torque Motor online

TDB-263-113-NH-A HONPINE Direct Drive Precision Torque Motor

Get Best Price
Contact Us
Contact Now
Product Description

Product Introduction of HONPINE TDB-263-138-NH-RD DD motor

The load of the TDB-263-138-NH-RD DD motor is mounted directly onto the motor rotor, eliminating mechanical backlash and achieving exceptionally high servo stiffness. It features an integrated high-end absolute encoder, which significantly enhances the efficiency and safety of automation systems. This direct coupling allows for a more responsive control loop in precision equipment. We offer comprehensive support for customized designs and contract manufacturing (OEM/ODM). If your precision applications require direct drive technology, please contact us for a professional solution.



Specification of HONPINE TDB-263-138-NH-RD DD motor

Performance Unit Performance Unit
Continuous Torque 150 N ·m Peak Torque 300 N ·m
Continuing Current 7.1 Arms Peak Current 14.2 Arms
Rated power 1885 W Torque constant 21.9 N ·m/Arms
Resistance@25℃ 4.2 Ohms L-L Inductance 13.9 mH
Back-EMF constant@25℃ 17.8 Vrms/rad/s Moment of Inertia 0.16 Kg ·m^2
Accuracy ±15 Arc sec Repeatability ±2 Arc sec
Max.Axial Load 4000 N Max.Moment Load 400 N ·m
Axial Runout 8 um Radial Runout 8 um
Max.Speed 120 rpm Mass of Motor 35 Kg
Pole Number 40 Resolution 23 bit Biss-C
Diameter 263 mm Height 138 mm
