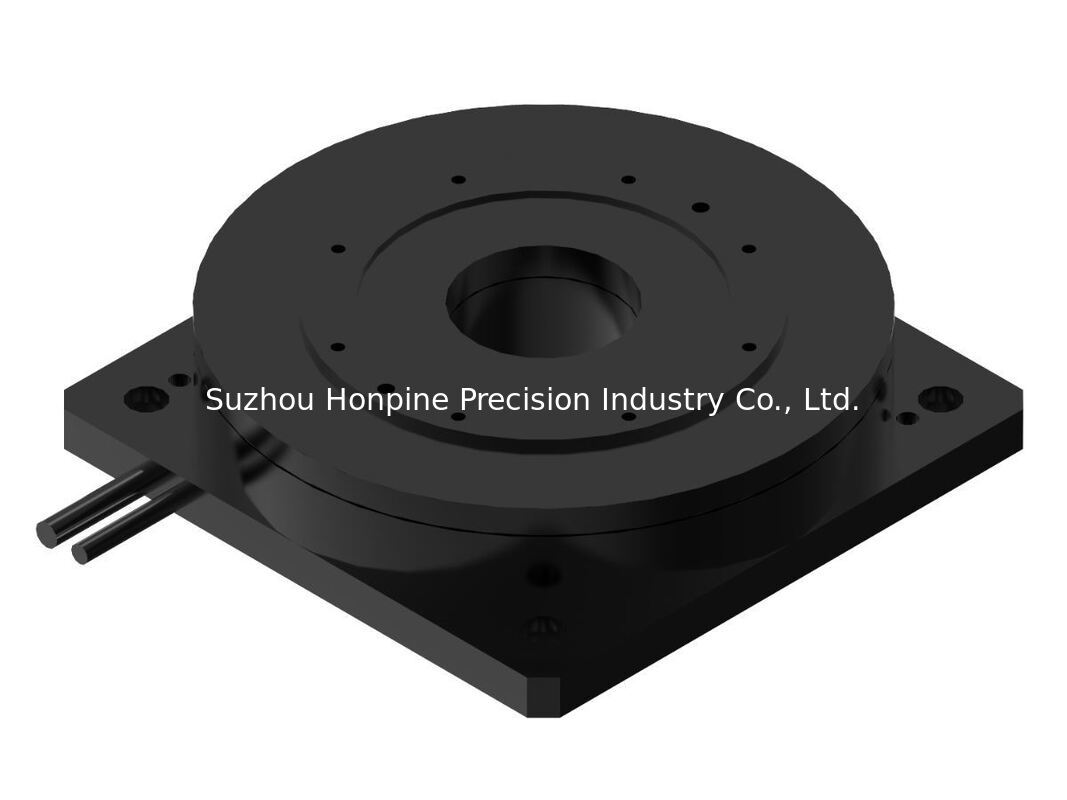

HONPINE TDB-150-037-NH-A Direct Drive Torque Motor

HONPINE TDB-150-037-NH-A Direct Drive Torque Motor

Place of Origin:

china

Brand Name:

HONPINE

Model Number:

TDB-150-037-NH-A

Contact Us
Request A Quote
HONPINE TDB-150-037-NH-A Direct Drive Torque Motor
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton with foam
Payment Terms
T/T
Supply Ability
2000000
RELATED PRODUCTS
Good price TDB-112-065-NH-A HONPINE Direct Drive DD Motor online

TDB-112-065-NH-A HONPINE Direct Drive DD Motor

Get Best Price
Good price HONPINE TDB-170-095-NH-A Direct Drive Torque Motor online

HONPINE TDB-170-095-NH-A Direct Drive Torque Motor

Get Best Price
Good price HONPINE TDB-170-125-NH-B Industrial Servo Drives Direct Drive DD Torque Motor online

HONPINE TDB-170-125-NH-B Industrial Servo Drives Direct Drive DD Torque Motor

Get Best Price
Good price TDB-263-113-NH-A HONPINE Direct Drive Precision Torque Motor online

TDB-263-113-NH-A HONPINE Direct Drive Precision Torque Motor

Get Best Price
Contact Us
Contact Now
Product Description

Description of HONPINE TDB-150-037-NH-A Direct Drive Torque Motor

The TDB-150-037-NH-A direct drive torque motor features a flat, low-profile design with a 150 mm outer diameter, delivering 1 N·m continuous torque and 3.5 N·m peak torque. Its external rotor architecture provides superior torque density within a compact footprint. Closed-loop commutation is achieved through an incremental encoder, ensuring precise and reliable motion control. The direct drive structure eliminates the need for gearboxes, making maintenance significantly easier — offering the best cost-performance ratio without compromising positioning accuracy.

Specification of HONPINE TDB-150-037-NH-A Direct Drive Torque Motor

Performance Unit Performance Unit
Continuous Torque 1 N ·m Peak Torque 3.5 N ·m
Continuing Current 4.6 Arms Peak Current 16 Arms
rated power 42 W Torque constant 0.22 N ·m/Arms
Resistance@25℃ 2 Ohms L-L Inductance 1 mH
Back-EMF constant@25℃ 0.2 Vrms/rad/s Moment of Inertia 0.001 Kg ·m^2
Accuracy ±20 Arc sec Repeatability ±1.5 Arc sec
Max.Axial Load 200 N Max.Moment Load 10 N ·m
Axial Runout 5 um Radial Runout 5 um
Max.Speed 400 Rpm Mass of Motor 2.8 Kg
Pole Number 16 Resolution 11740 Lines/Rev
Diameter 150 mm Height 37 mm
