Name: HONPINE TDB-080-050-NH-RD-T DD motor
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: TDB-080-050-NH-RD-T
Availability: InStock

Home > Products > Direct Drive Motor >

HONPINE TDB-080-050-NH-RD-T DD motor

Place of Origin:

china

Brand Name:

HONPINE

Model Number:

TDB-080-050-NH-RD-T

Request A Quote

Product Details

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Carton with foam

TDB-112-065-NH-A HONPINE Direct Drive DD Motor

Get Best Price

HONPINE TDB-170-095-NH-A Direct Drive Torque Motor

Get Best Price

HONPINE TDB-170-125-NH-B Industrial Servo Drives Direct Drive DD Torque Motor

Get Best Price

TDB-263-113-NH-A HONPINE Direct Drive Precision Torque Motor

Get Best Price

Contact Now

Product Description

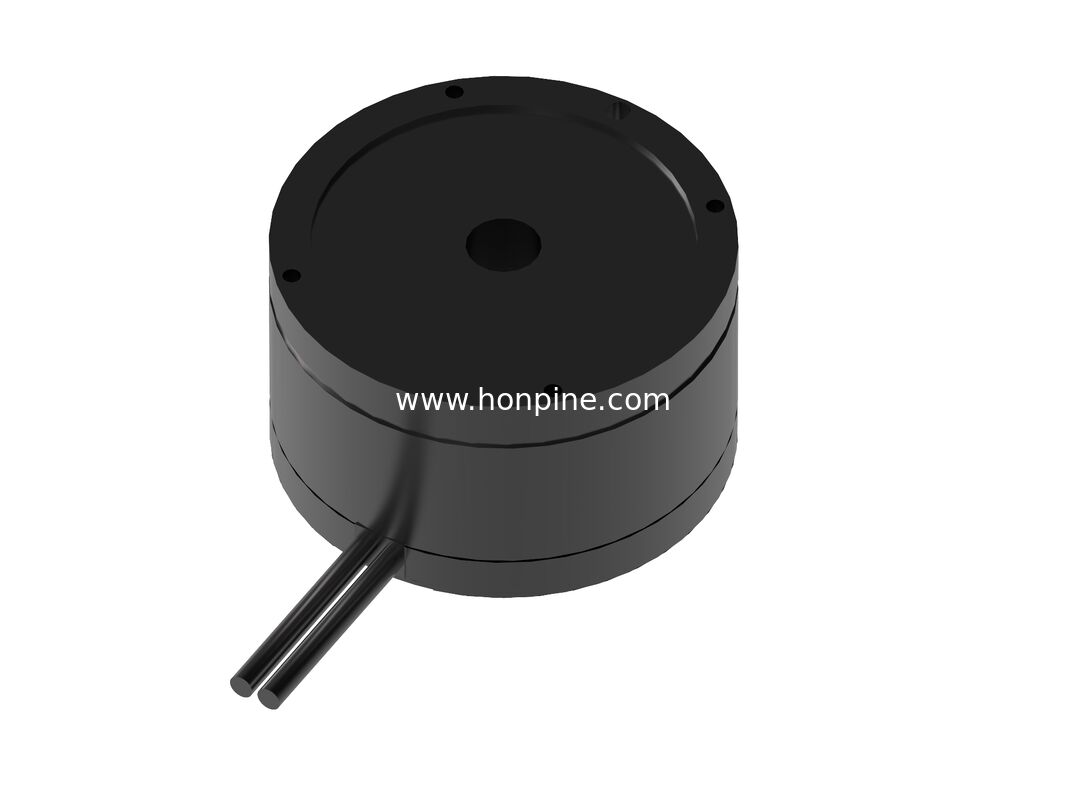

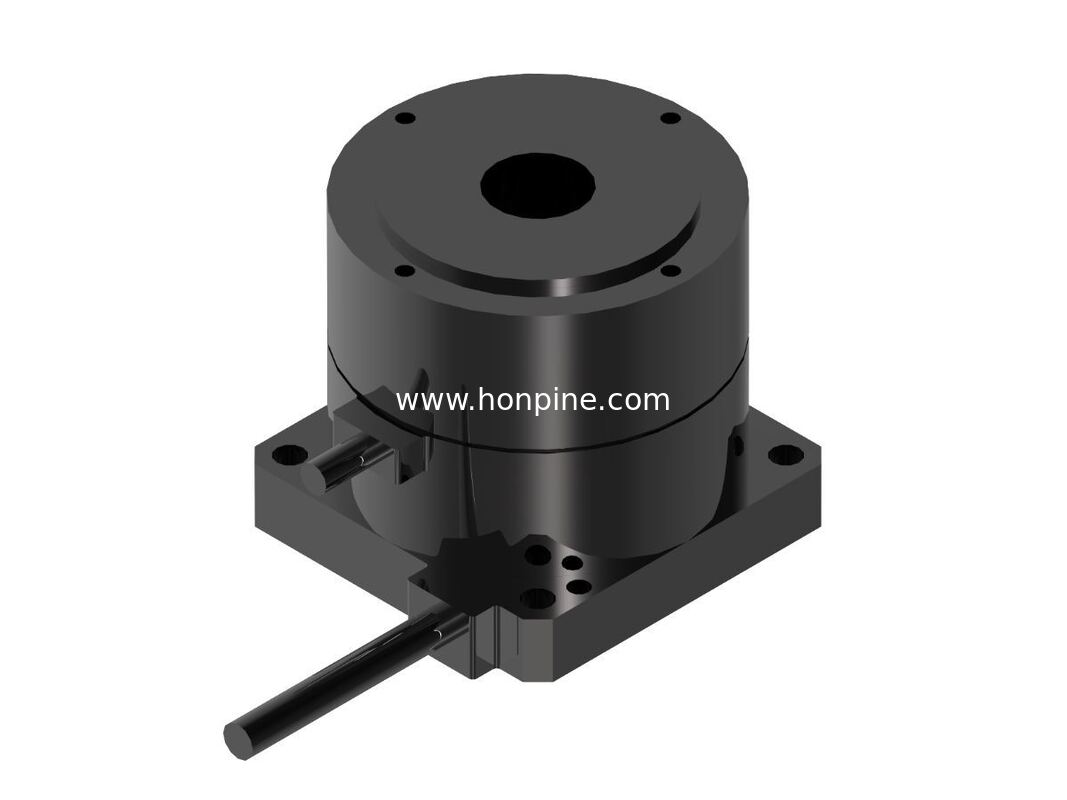

HONPINE TDB-080-050-NH-RD-T DD Motor Description

The TDB-080-050-NH-RD-T DD motor features a compact direct-drive structure with an outer diameter of 80 mm and a height of 50 mm, making it suitable for applications requiring high-precision rotary positioning and stable torque output. This model provides a continuous torque of 0.6 N·m, a peak torque of 2 N·m, and a maximum speed of 450 rpm. Equipped with an RD encoder and a sensorless design without Hall sensors, it offers fast response, minimal backlash, smooth operation, and high positioning accuracy. It is well suited for applications such as automated rotary tables, precision inspection systems, semiconductor equipment, and high-end medical devices.

Specification of HONPINE TDB-080-050-NH-RD-T DD Motor

Performance	Unit	Performance	Unit
Continuous Torque	0.6 N ·m	Peak Torque	2 N ·m
Continuing Current	1.7 Arms	Peak Current	5.9 Arms
Rated power	29 W	Torque constant	0.35 N ·m/Arms
Resistance@25℃	2.8 Ohms L-L	Inductance	2 mH
Back-EMF constant@25℃	0.24 Vrms/rad/s	Moment of Inertia	0.0018 Kg ·m^2
Accuracy	±50 Arc sec	Repeatability	±2.5 Arc sec
Max.Axial Load	50 N	Max.Moment Load	1N ·m
Axial Runout	5 um	Radial Runout	5 um
Max.Speed	450 rpm	Mass of Motor	1.2 Kg
Pole Number	22	Resolution	500000 Counts/Rev
Diameter	80 mm	Height	50 mm
