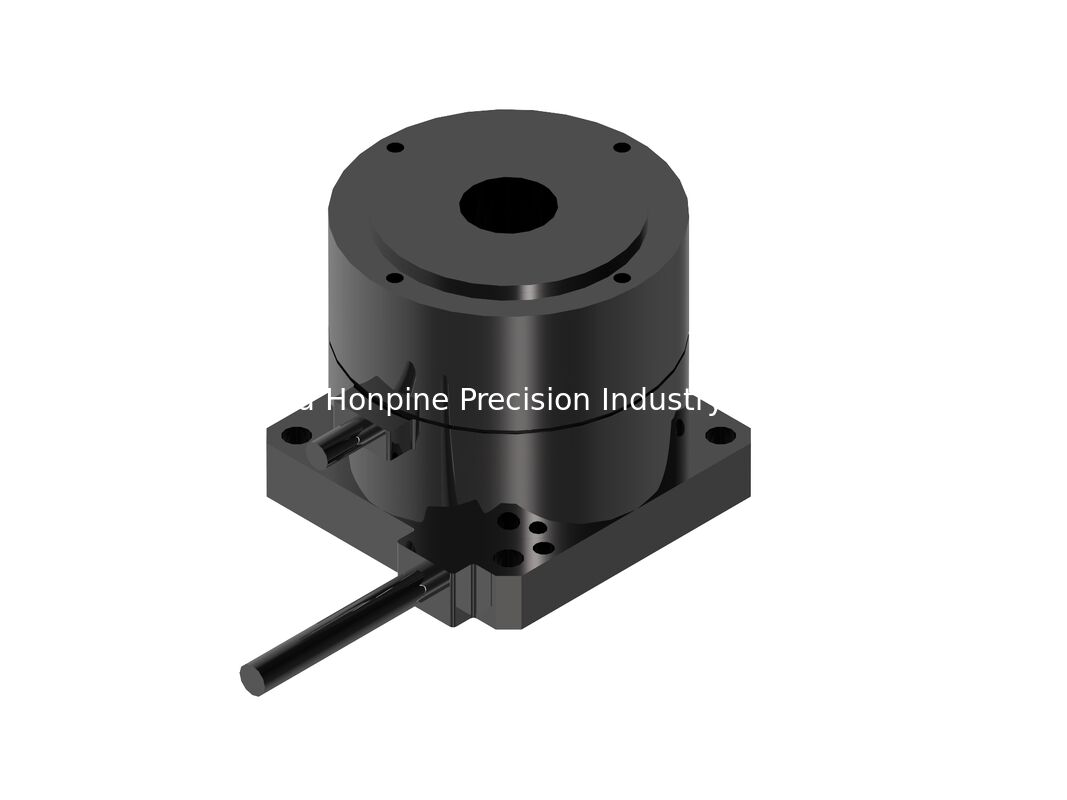

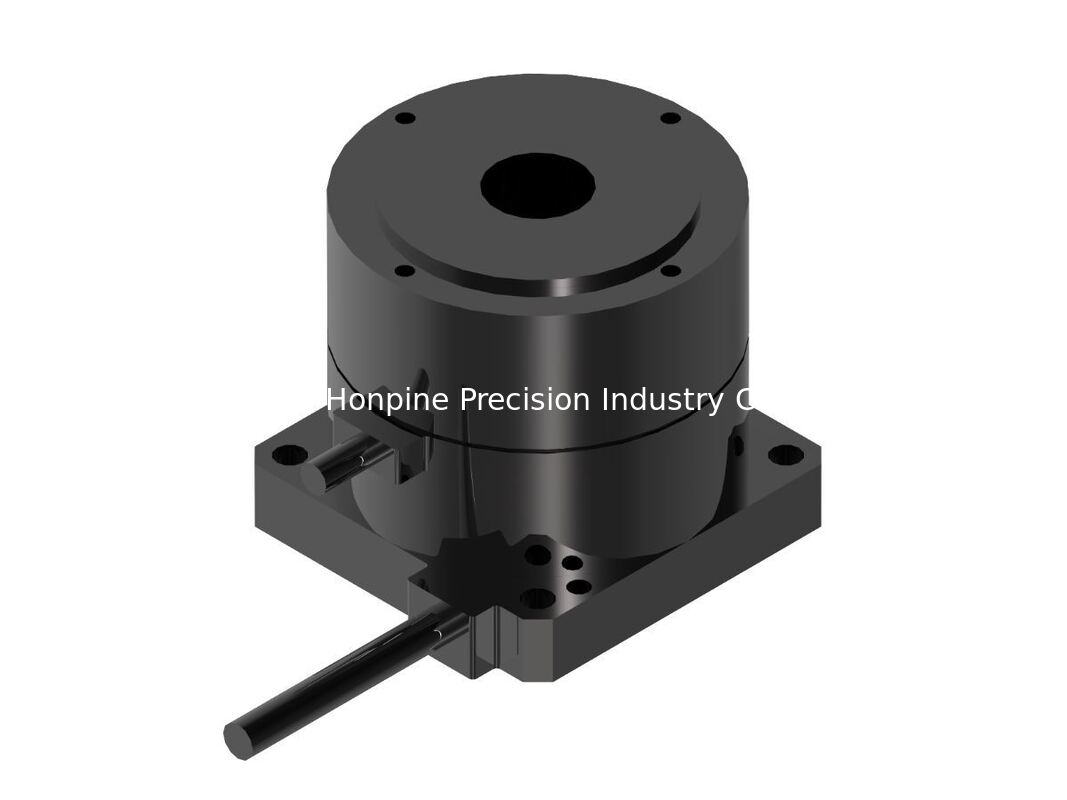

Name: TDB-040-038-NH-AY Direct Drive Precision Torque Motor
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: TDB-040-038-NH-AY
Availability: InStock

Home > Products > Direct Drive Motor >

TDB-040-038-NH-AY Direct Drive Precision Torque Motor

Place of Origin:

china

Brand Name:

HONPINE

Model Number:

TDB-040-038-NH-AY

Request A Quote

Product Details

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Carton with foam

Supply Ability

2000000

TDB-112-065-NH-A HONPINE Direct Drive DD Motor

Get Best Price

HONPINE TDB-170-095-NH-A Direct Drive Torque Motor

Get Best Price

HONPINE TDB-170-125-NH-B Industrial Servo Drives Direct Drive DD Torque Motor

Get Best Price

TDB-263-113-NH-A HONPINE Direct Drive Precision Torque Motor

Get Best Price

Contact Now

Product Description

Description of TDB-040-038-NH-AY HONPINE Direct Drive Torque Motor

The TDB-040-038-NH-AY direct drive (DD) torque motor features a compact structure, high precision, and fast response, making it suitable for high-precision positioning and direct drive applications. Combining compact size with strong performance, it is well suited for semiconductor equipment, precision stages, and automation systems.

Specification of TDB-040-038-NH-AY HONPINE Direct Drive Torque Motor

Performance	Unit	Performance	Unit
Continuous Torque	0.13 N ·m	Peak Torque	0.39 N ·m
Continuing Current	0.63 Arms	Peak Current	1.9 Arms
rated power	7 W	Torque constant	0.21 N ·m/Arms
Resistance@25℃	7.5 Ohms L-L	Inductance	1.5 mH
Back-EMF constant@25℃	0.123 Vrms/rad/s	Moment of Inertia	5x10^-6 Kg ·m^2
Accuracy	±40 Arc sec	Repeatability	±2.5 Arc sec
Max.Axial Load	20 N	Max.Moment Load	0.4 N ·m
Axial Runout	5 um	Radial Runout	5 um
Max.Speed	500 rpm	Mass of Motor	0.075 Kg
Pole Number	22	Resolution	819200 Counts/Rev
Diameter	40 mm	Height	38.5 mm
Based on digital encoders; standard end-of-travel limits. Relevant parameters and specifications are subject to change without prior notice.		For optional contact bounce levels, measurements are based on constant load and constant temperature.
