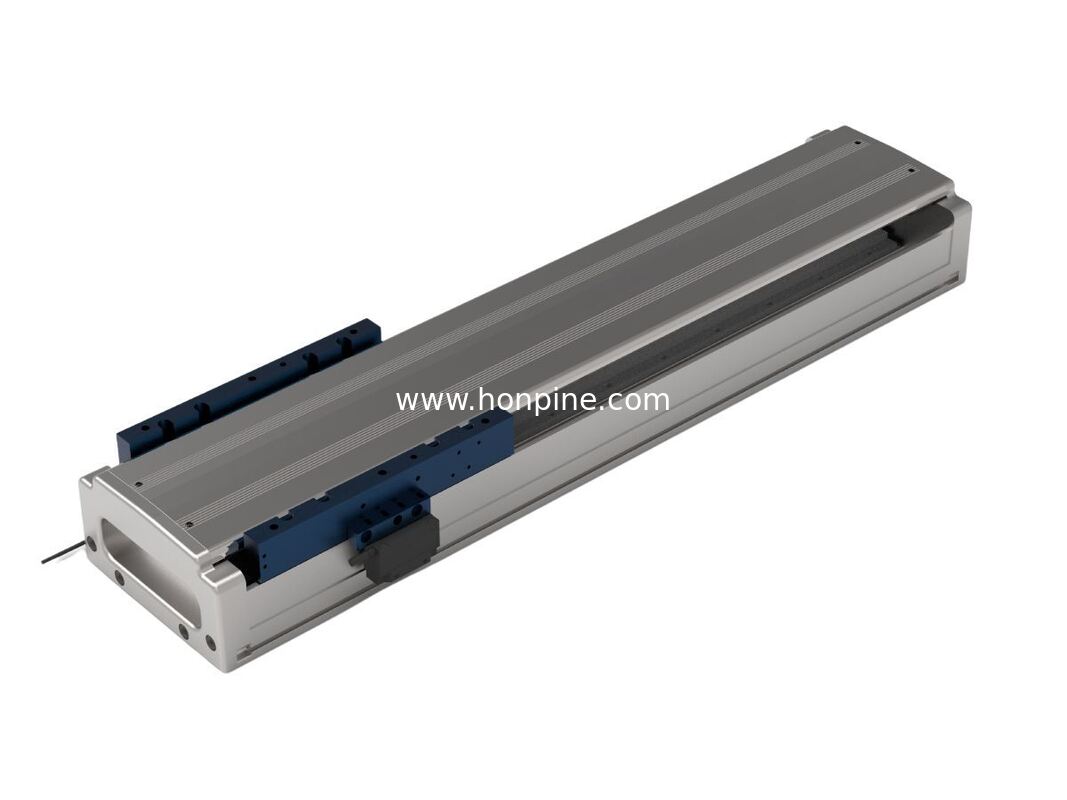

Single-Axis Mechanical Motion Linear Motor Slide Actuator

Single-Axis Mechanical Motion Linear Motor Slide Actuator

Place of Origin:

china

Brand Name:

HONPINE

Model Number:

TLSA-120-C1

Contact Us
Request A Quote
Single-Axis Mechanical Motion Linear Motor Slide Actuator Single-Axis Mechanical Motion Linear Motor Slide Actuator Single-Axis Mechanical Motion Linear Motor Slide Actuator
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton with foam
Payment Terms
T/T
RELATED PRODUCTS
Good price Single-Axis Mechanical Motion Linear Motor Slide Actuator online

Single-Axis Mechanical Motion Linear Motor Slide Actuator

Get Best Price
Good price HONPINE TDB-170-050-NH-A Direct Drive Torque Motor online

HONPINE TDB-170-050-NH-A Direct Drive Torque Motor

Get Best Price
Good price TDB-112-065-NH-A HONPINE Direct Drive DD Motor online

TDB-112-065-NH-A HONPINE Direct Drive DD Motor

Get Best Price
Good price HONPINE TDB-170-095-NH-A Direct Drive Torque Motor online

HONPINE TDB-170-095-NH-A Direct Drive Torque Motor

Get Best Price
Contact Us
Contact Now
Product Description

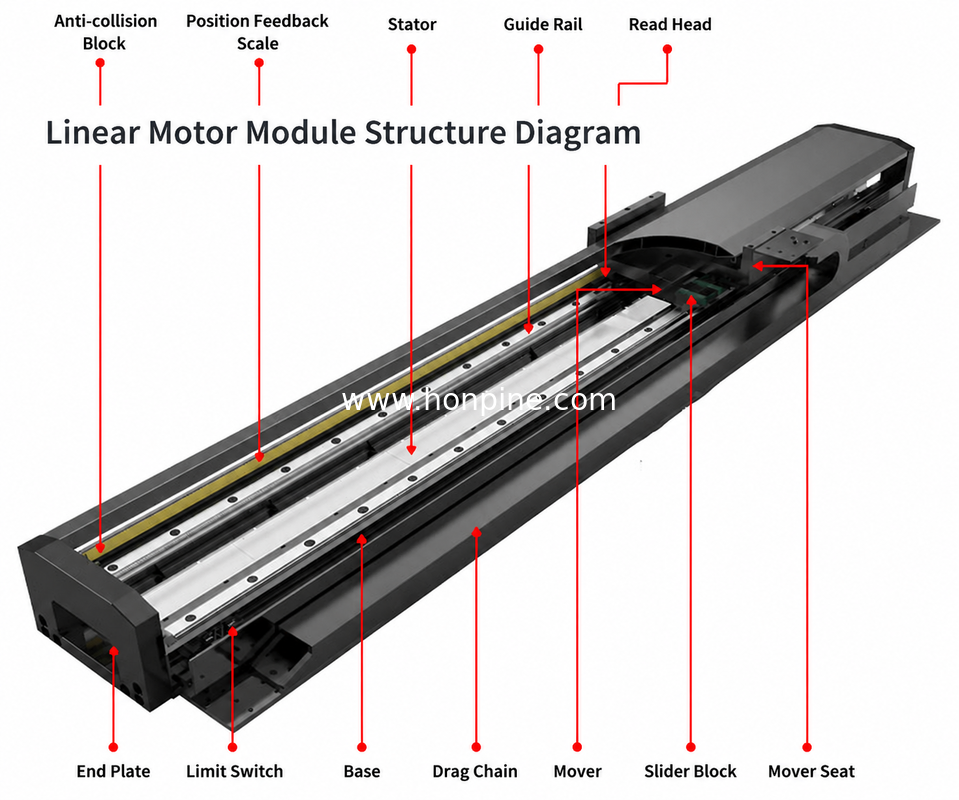

Description of HONPINE TLSA Linear Motor Module

The TLSA-120-C1 Single-Axis Linear Motor Module, also known as a linear motor slide, linear actuator, or precision positioning stage, converts electrical energy directly into linear mechanical motion. By eliminating intermediate transmission mechanisms, it offers a simplified structure, long stroke, high acceleration, rapid response, and exceptional precision. Consequently, it is widely utilized in the semiconductor industry, new energy battery manufacturing, 3C electronics production, precision machining, inspection equipment, laser cutting and welding, dispensing and coating machines, CNC machine tools, and engraving machines.



Parameter of HONPINE TLSA Linear Motor Module



Motor TCQ-030-C1C2-UN-5.0 Cable length:5m
Drives Continuous Current:2.2A Peak Current:8.4A
Feedback Magnetic Scale: 1μm resolution Cable length:5m
Optical Scale: 0.5μm resolution Cable length:5m
Guide 15 Dual Guide Rails
Performance Parameter
Thrust Continuous Thrust:120N Peak Thrust:480N
length Special dimensions and lengths can be customized upon request
Accuracy Magnetic Scale: Repeatability:±5μm/500mm Optical Scale: Repeatability:±2μm/500mm
Straightness ±10μm/300mm
Weight 4.8kg for 80mm travel (Increases by 0.75kg per additional 40mm)
Installation Mode Horizontal Installation / Side-mount Installation
