Place of Origin:
Jiangsu, China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
RV - F

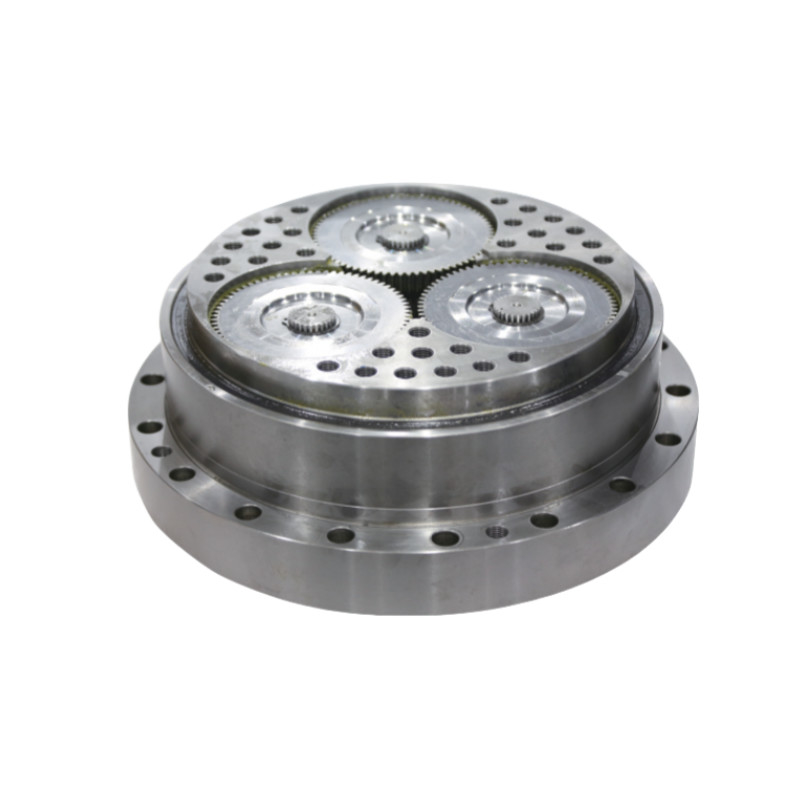

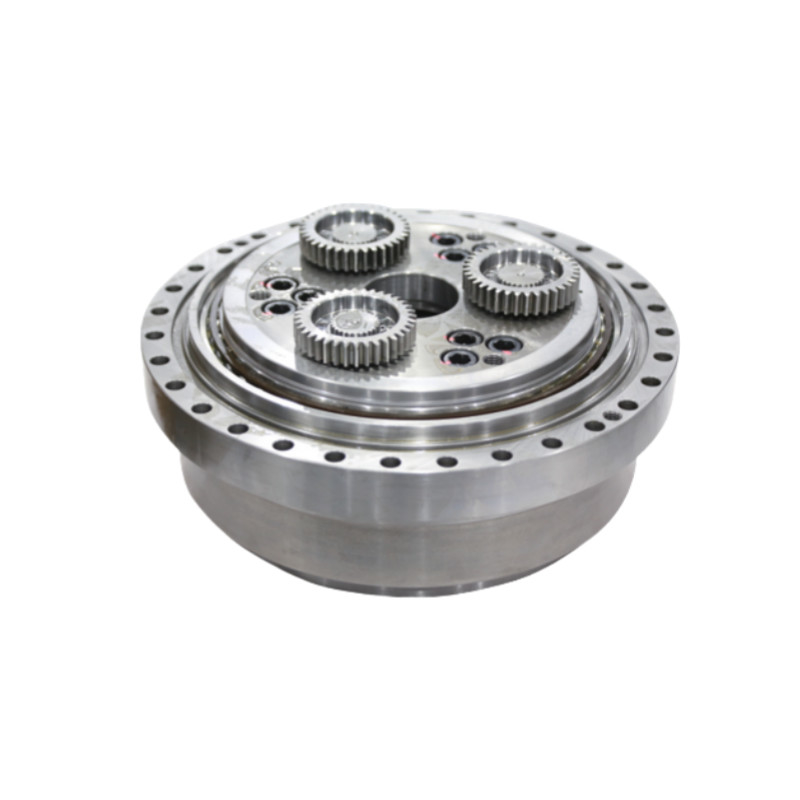

RV - F series gearboxes are typically utilized in industrial applications requiring high precision, high torque, and reliability.
High precision, compact design, high torque density, low noise, high efficiency, and high reliability helps to meet the demand for precision transmission systems in industrial equipment.
Key Features
Specifications
Parameters table of RV - F series
| Output Speed(r/min) | 15 | Flexural rigidity (reference value) | Allowable flexural torque | Momentary max. allowable flexural torque |
Allowable acceleration/ deceleration torque |
Momentary max. allowable torque |
Angular transmission error | Backlash | Gear backlash | Torsional rigidity(reference value) | Allowable thrust load | ||
| Model | Reduction ratio of a single reducer unit | Output torque | Input power | ||||||||||
| Nm(kgf-m) | kW | Nm/arc.min. (kgf-m/ arc.min.) | Nm(kgf-m) | Nm(kgf-m) | Nm(kgf-m) | Nm(kgf-m) | MAX.Arc.min. | MAX.Arc.min. | MAX.Arc.min. | Nm/arc.min. (kgf-m/Arc.min.) | N(kgf) | ||
| BX550F | 40 | 5390 | 11.3 | 9100 (928) |
10780 (1100) |
21560 (2200) |
13475 (1375) |
26950 (2750) |
1 | 1 | 1 | 1666 (170) |
31360 (3200) |
| BX700F | 200.33 | 6860 | 14.4 | 12700 (1296) |
15000 (1530) |
30000 (3061) |
17150 (1750) |
34300 (3500) |
1 | 1 | 1 | 2120 (216) |
44000 (4489) |
| 250.6 | |||||||||||||
| Key Attributes of RV - F Series RV Reducer | |||
| Product | High Precision RV Reducer | ||
|
Material
|
Steel, Aluminum | ||
|
Output torque
|
5390 to 6860 Nm | ||
| Output speed | 15 r/min | ||
|
Backlash
|
MAX. 1 Arc.min. |
||
|
Momentary max. allowable torque
|
26950 to 34300 Nm | ||
|
Lost motion
|
MAX. 1 Arc.min. | ||
|
Model
|
BX550F, BX700F |
||
| Color | Sliver | ||
| Warranty | 1 year | ||
Application
