Place of Origin:
Jiangsu, China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
RV - E with flanged
Applications of RV - E With Flanged Reduction GearheadRobotics: extensively in robotic joints, provide the precision and strength needed for various tasks, such as welding, assembly, and material handling.
Machine Tools: ensure accurate positioning and movement control, critical for precise machining operations.
Automated Manufacturing: enhance precision and efficiency in automated production lines, handling repetitive tasks reliably.
Specifications
Parameters table of RV - E with Flanged series
| Model | Reduction ratio | Reduction Gearbox | Dimensional Drawing | ||||||||||||
| Rated torque | Rated output speed | Design life | Allowable acceleration/ deceleration torque |
Momentary max. allowable torque |
Allowable input speed | Allowable output speed | output speed reference value(the rated torque continuously runs) | Backlash | Lost motion | Torsional rigidity (reference value) |
Start efficiency | Allowable torque | |||
| (Nm) | (rpm) | (h) | (Nm) | (Nm) | (rpm) | (rpm) | (rpm) | (arc.min.) | (arc.min.) | (Nm/arc.min.) | (%) | (Nm) | |||
| BX20E | 57 | 167 | 15 | 6000 | 412 | 833 | 3500 | 61 | 56 | 1 | 1 | 49 | 75 | 882 | BX20E/i57C |
| 81 | 43 | 42 | BX20E/i81C BX20E/i81C1 BX20E/i81CS BX20E/i81CS1 |
||||||||||||
| 121 | 29 | 29 | BX20E/i121C BX20E/i121C1 BX20E/i121CS BX20E/i121CS1 |
||||||||||||
| BX40E | 81 | 412 | 15 | 1029 | 2058 | 3000 | 37 | 34 | 108 | 70 | 1666 | BX40E/i81C BX40E/i81C1 BX40E/i81CS BX40E/i81CS1 |
|||
| 121 | 25 | 25 | BX40E/i121C BX40E/i121C1 BX40E/i121CS BX40E/i121CS1 |
||||||||||||
| BX80E | 81 | 784 | 15 | 1960 | 3920 | 3000 | 37 | 29 | 196 | 75 | 2156 | BX80E/i81CS | |||
| 101 | 30 | 28 | BX80E/i101C | ||||||||||||
| 121 | 25 | 25 | BX80E/i121C BX80E/i121CS |
||||||||||||
| 153 | 20 | 20 | BX80E/i153C | ||||||||||||
| BX110E | 81 | 1078 | 15 | 2695 | 5390 | 3000 | 37 | 25 | 294 | 75 | 2940 | BX110E/i81CN | |||
| 111 | 27 | 18 | BX110E/i111CS | ||||||||||||

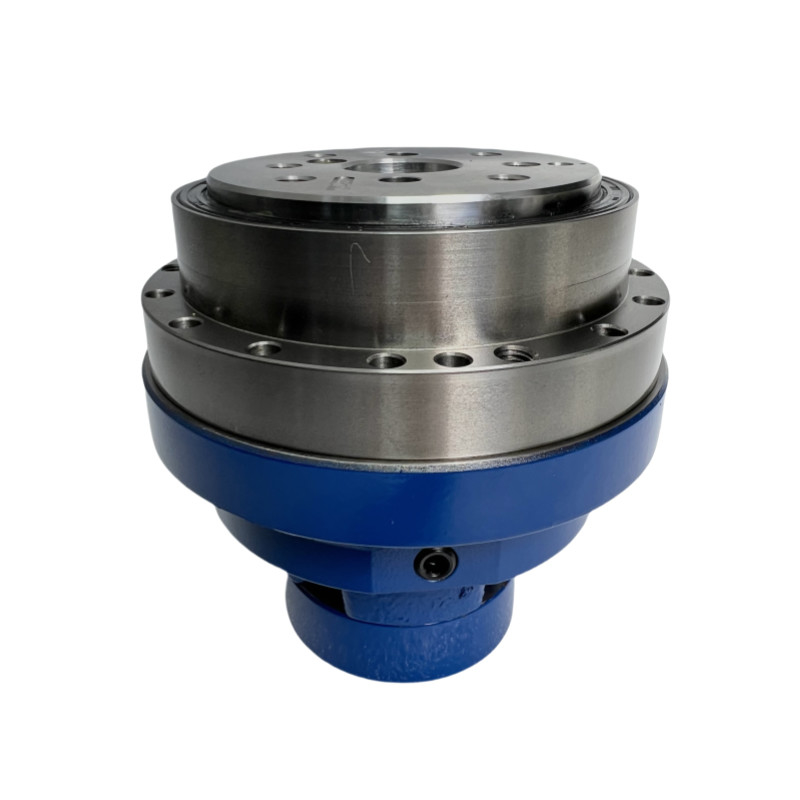

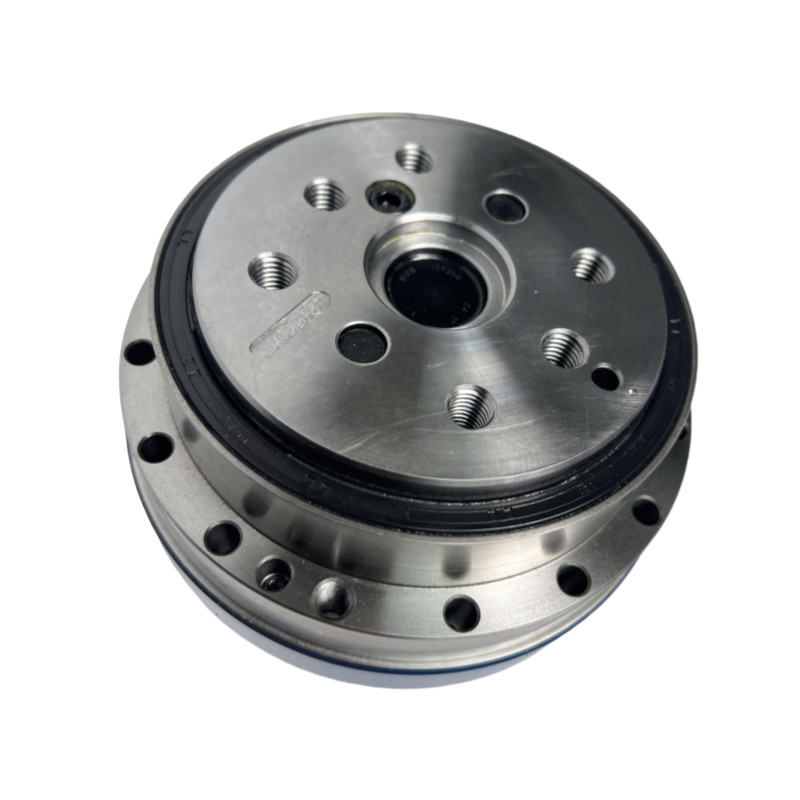

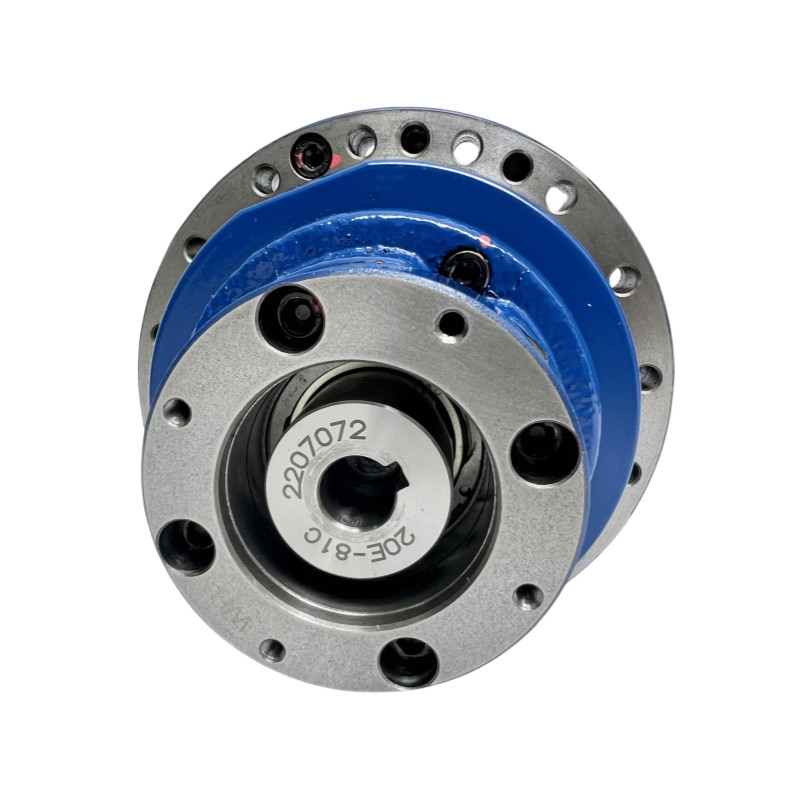

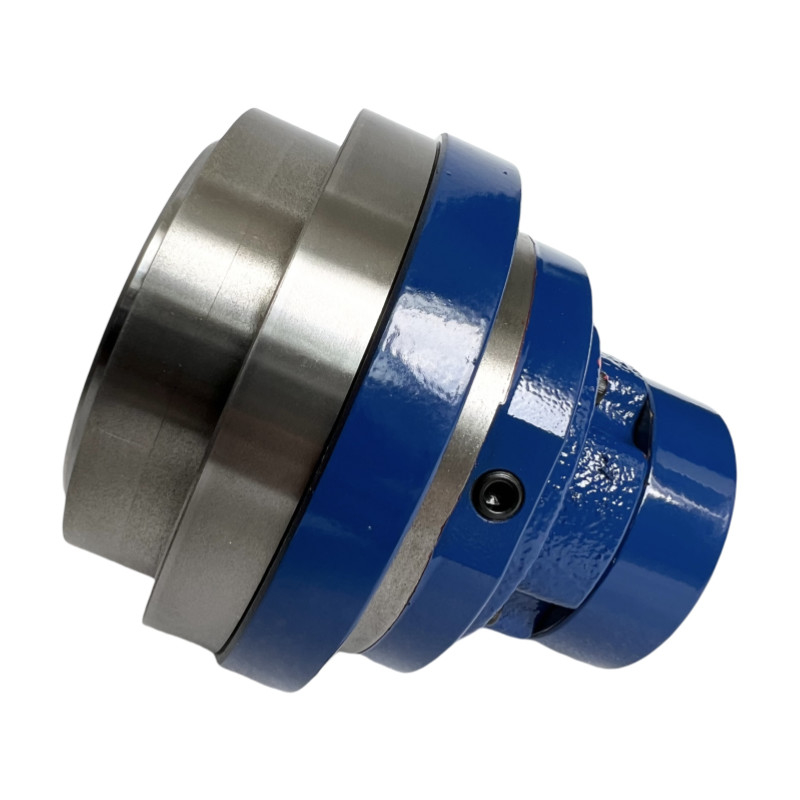

Detailed images
| Key Attributes of RV - E with Flanged Series | |||
| Product | RV - E with Flanged Reduction Gearhead | ||
|
Material
|
Steel, Aluminum | ||
|
Rated torque
|
167 to 1078 Nm | ||
| Rated output speed | 15 r/min | ||
|
Backlash
|
MAX. 1 Arc.min. |
||
| Allowable acceleration/ deceleration torque | 412 to 2695 Nm | ||
|
Lost motion
|
MAX. 1 Arc.min. | ||
|
Model
|
BX20E, BX40E, BX80E, BX110E |
||
| Color | Sliver | ||
| Start efficiency | 75% | ||
| Design life | 6000 hours | ||
| Features | High torque capacity, Minimal backlash, Durability and robustness | ||
| Warranty | 1 year | ||
Application
