Place of Origin:
Jiangsu, China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
LSN-40-XX-U-I

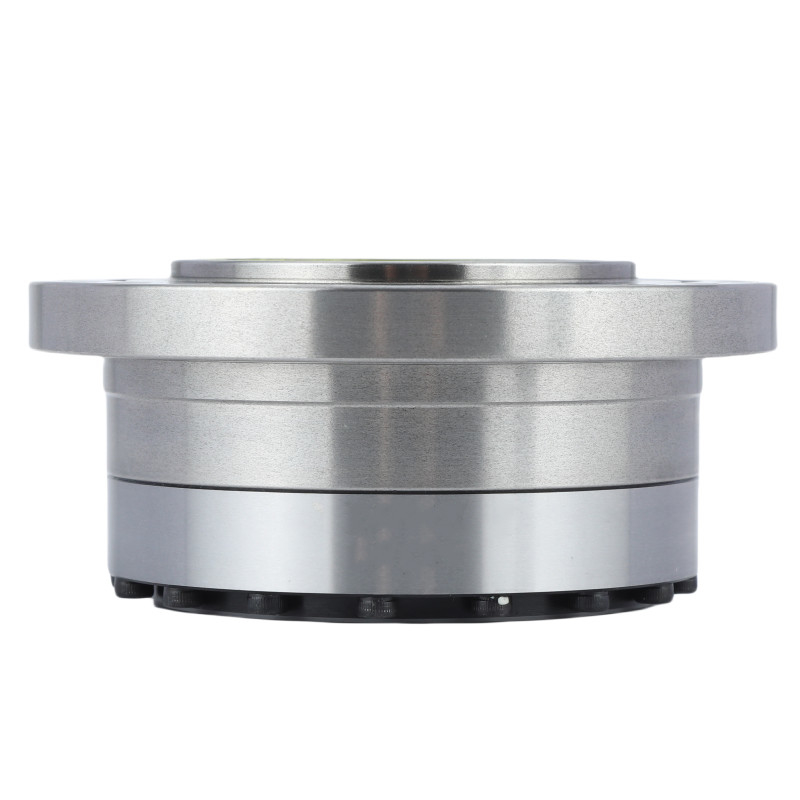

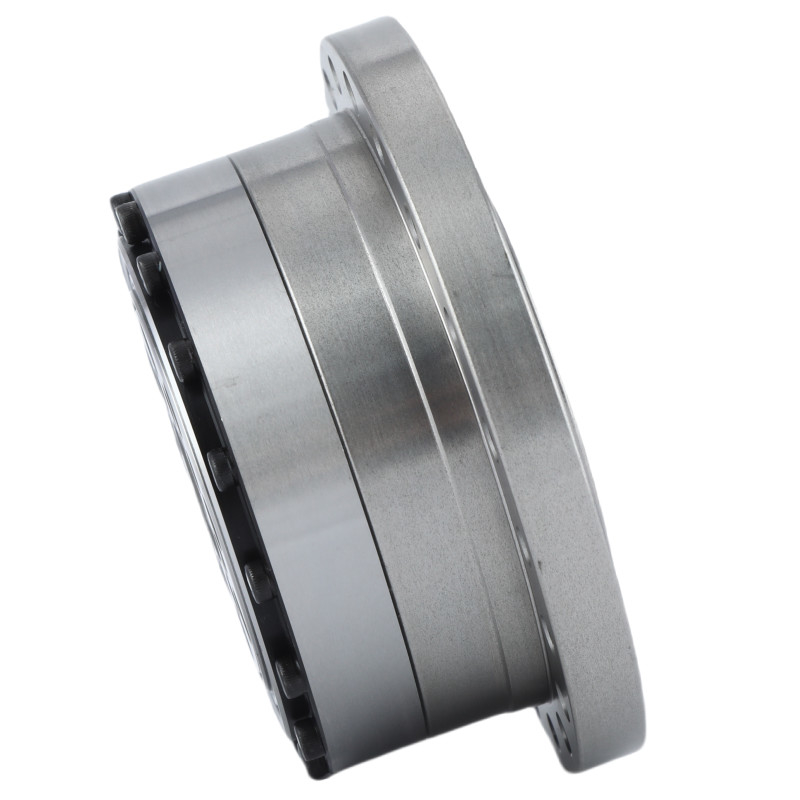

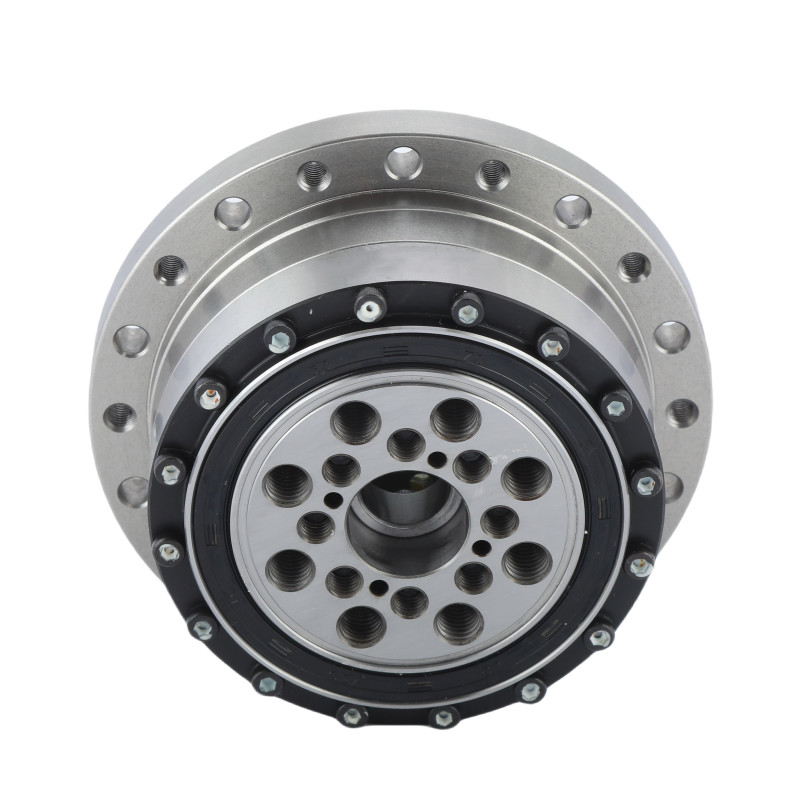

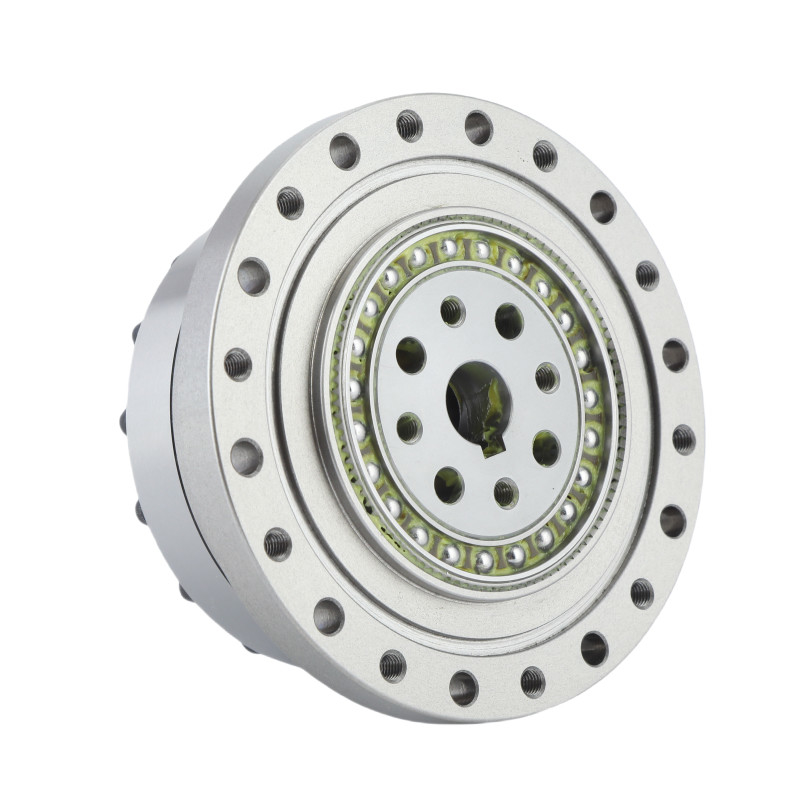

High Efficiency Model 40 Strain Wave Reducer
Key Features
• 3.64kg
• Less than 20 Arc Sec backlash
• Average input speed: 3000 r/min
• Maximum input speed: 4000 r/min
• Compact and Lightweight Design
• Reduction ratios: 50:1, 80:1, 100:1, 120:1
Specifications
Rated Parameters Table of LSN-40-XX-U-I series
|
Model
|
Reduction ratio | Rated torque at 2000r/min input | Permissible peak torque at start and stop | Permissible maximum value for average load torque | Permissible maximum momentary torque | Permissible maximum input rotational speed | Permissible average input rotational speed | Backlash | Weight | Design life | ||||
| Grease | Grease | |||||||||||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | kg | Hour | ||
| 40 | 50 | 137 | 14 | 402 | 41 | 196 | 20 | 686 | 70 | 4000 | 3000 | ≤20 | LSN-I:3.64 | 10000 |
| 80 | 206 | 21 | 519 | 53 | 284 | 29 | 980 | 100 | 15000 | |||||
| 100 | 265 | 27 | 568 | 58 | 372 | 38 | 1080 | 110 | 15000 | |||||
| 120 | 294 | 30 | 617 | 63 | 451 | 46 | 1180 | 120 | 15000 | |||||
| Key Attributes of LSN-40-XX-U-I Strain Wave Reducer | |||
| Product | Model 40 Strain Wave Reducer | ||
|
Material
|
Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants | ||
|
Reduction Ratio
|
50:1 to 120:1 | ||
|
Backlash
|
Less than 20 Arc Sec | ||
|
Average Input Speed
|
3000 r/min | ||
|
Max Input Speed
|
4000 r/min | ||
|
Design Life
|
15000 hours | ||
|
Model
|
40 | ||
|
Weight
|
3.64 kg | ||
| Warranty | 1 year | ||
| Application | Robotics, Aerospace, Industrial Automation | ||
Applications
|
|
|
| Semiconductor | Industrial Robots | Medical Devices |
| |
|
|
| Huamnoid Robots | Aerospaces | CNC Machines |
