Place of Origin:
China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
LHT-17-XX-U-III
High Precision Harmonic Drive Strain wave Gear Boxes Reducer
|
High Precision
High Torque Capacity
|
Rated Parameter Table
| Model | 17 | |||||
| Reduction ratio | 50 | 80 | 100 | 120 | ||
| Rated torque at 2000r/min input | Nm | 16 | 22 | 24 | 24 | |
| kgfm | 1.6 | 2.2 | 2.4 | 2.4 | ||
| Permissible peak torque at start and stop | Nm | 34 | 43 | 54 | 54 | |
| kgfm | 3.5 | 4.4 | 5.5 | 5.5 | ||
| Permissible maximum value for average load torque | Nm | 26 | 27 | 39 | 39 | |
| kgfm | 2.6 | 2.7 | 4 | 4 | ||
| Permissible maximum momentary torque | Nm | 70 | 87 | 110 | 86 | |
| kgfm | 7.1 | 8.9 | 11 | 8.8 | ||
| Permissible maximum input rotational speed (Grease) |
r/min | 7300 | ||||
| Permissible average input rotational speed (Grease) |
r/min | 3500 | ||||
| Backlash | Arc Sec | ≤20 | ||||
| Weight | kg | 0.99 | ||||
| Design life | Hour | 10000 | 15000 | 15000 | 15000 | |

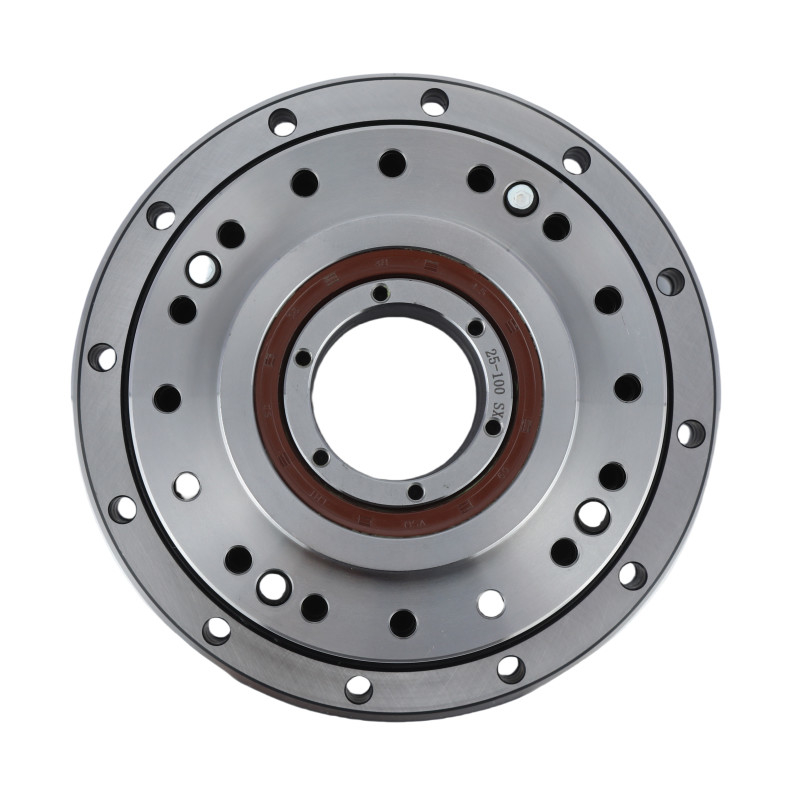

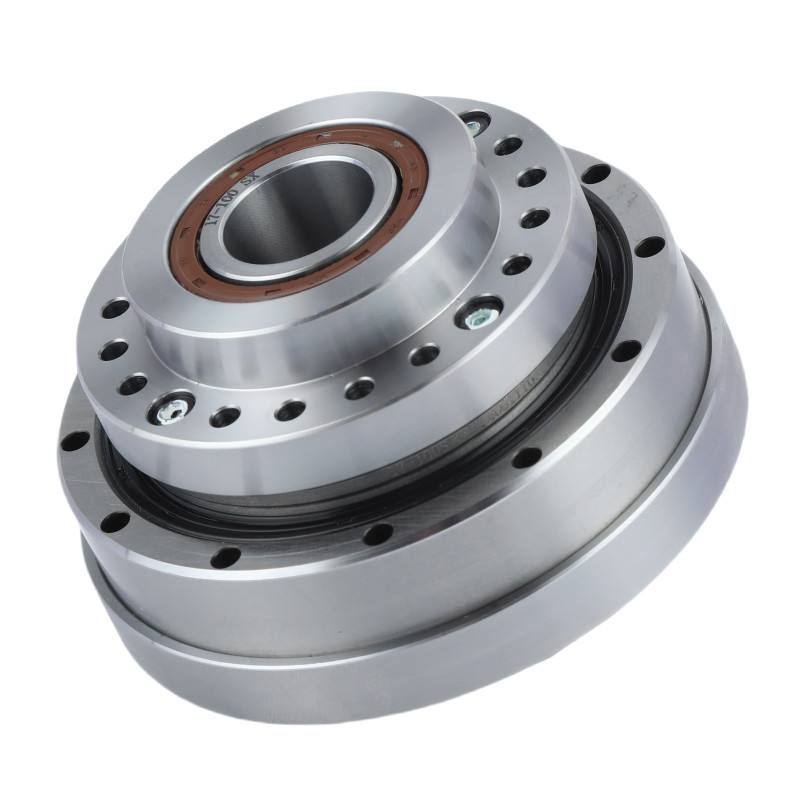

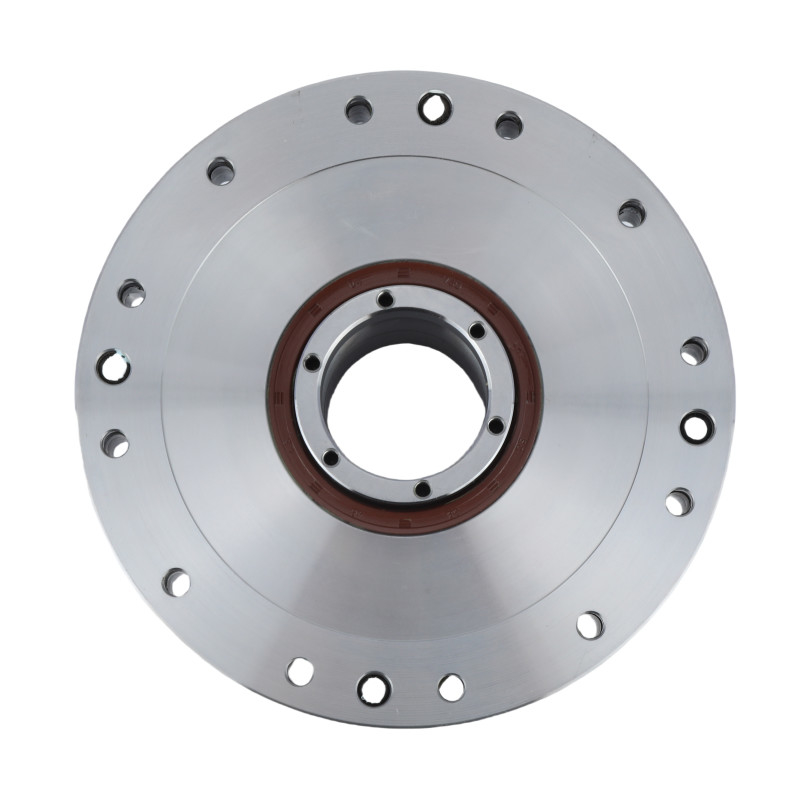

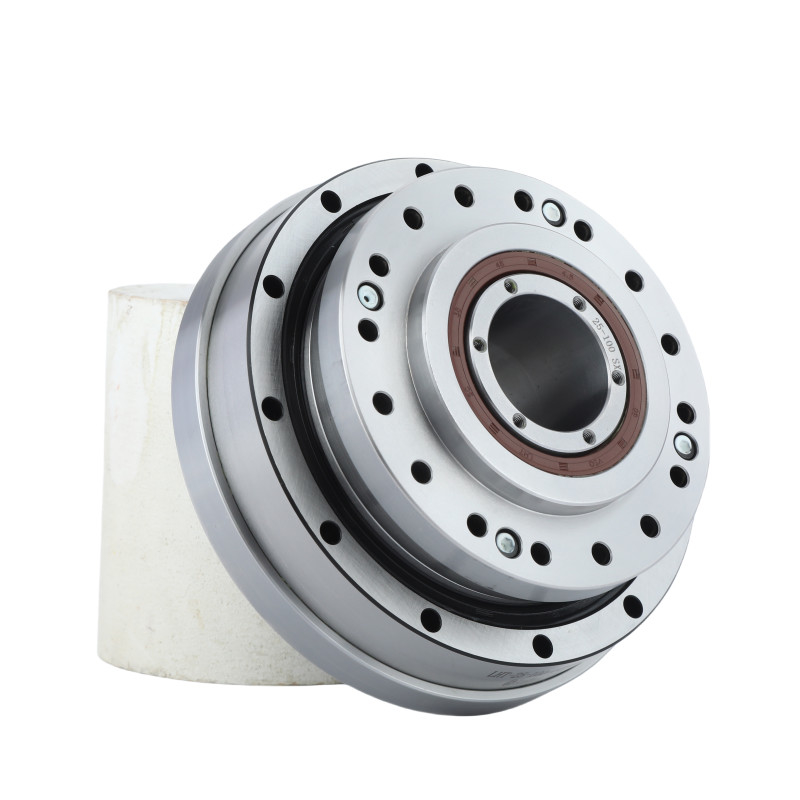

Detailed Images
|
Key Attributes of LHT - III Model 17 Harmonic Gear Units | |||
| Product | Model 17 Harmonic Drive | |||
|
Components
|
Wave Generator, Flexspline, Circular Spline | |||
|
Reduction Ratio
|
50:1, 80:1, 100:1, 120:1 | |||
|
Backlash
|
Less than 20 Arc Sec | |||
|
Average Input Speed
|
7300 r/min | |||
|
Max Input Speed
|
3500 r/min | |||
|
Design Life
|
15000 hours | |||
|
Model
|
17 | |||
|
Weight
|
0.99 kg | |||
| Warranty | 1 Year | |||
Applications
|
|
|
| 3D Printing And Paper Making | Medical Devices | Optical Machines |
|
|
|
| Aerospaces | Huamnoid Robots | Industrial Robots |
