Name: Compact Strain Wave Harmonic Drive Zero Backlash Gear Reducer For Robotic Arms
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: LHT-25-XX-U-I
Price: Negotiable USD
Availability: InStock

Home > products > Harmonic Drive >

Compact Strain Wave Harmonic Drive Zero Backlash Gear Reducer For Robotic Arms

harmonic drive Gear Reducer

Robotic Arms harmonic drive

Robotic Arms zero backlash gear reducer

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

LHT-25-XX-U-I

Request A Quote

Compact Strain Wave Harmonic Drive Zero Backlash Gear Reducer For Robotic Arms

Product Details

Features:

High Gear Ratios, Zero Backlash, High Torque Capacity, Compact And Lightweight, Reliability And Durability, Flexibility In Design

Product:

LHT - I Model 25 Harmonic Reducer

Components:

Wave Generator, Flexspline, Circular Spline

Reduction Ratio:

50:1, 80:1, 100:1, 120:1

Backlash:

≤20 Arc Sec

Maximum Input Speed:

5600 R/min

Average Input Speed:

3500 R/min

Design Life:

15000 Hours

Weight:

1.22kg

Application:

Robotics, Aerospace, Medical Devices, CNC Machinery, Automotive

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units

Get Best Price

Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units

Get Best Price

High Reduction Ratio LSN Series Model 20 Strain Wave Reducer 0.73kg Light Weight Gear Units

Get Best Price

Compact And Lightweight Design LSN Series Strain Wave Reducer Model 14 Gear Units

Get Best Price

Contact Now

Product Description

Compact Strain Wave Zero Backlash Harmonic Drive

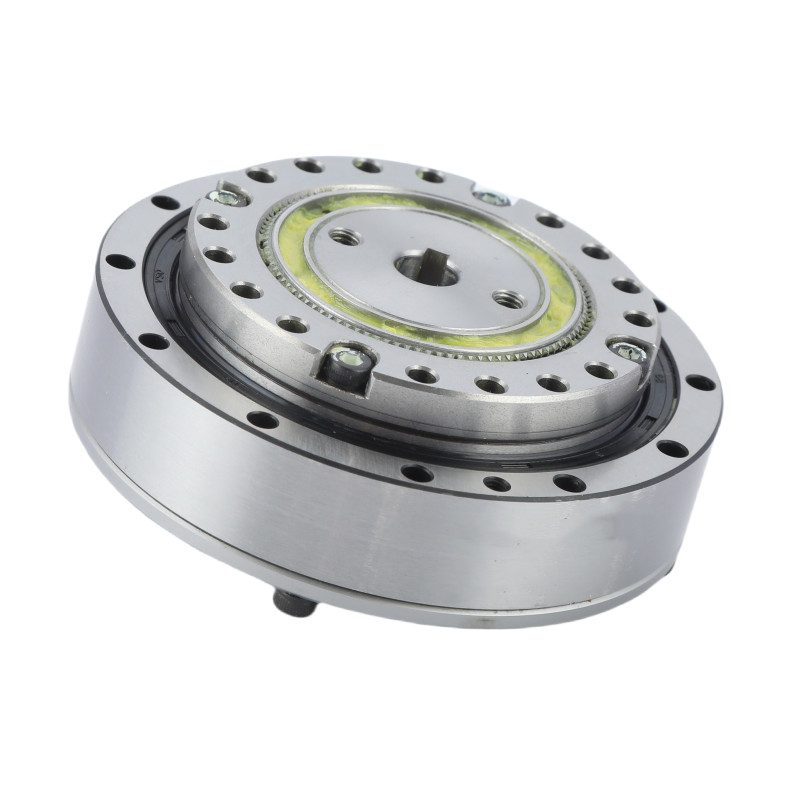

Compact Strain Wave Harmonic Drive Zero Backlash Gear Reducer For Robotic Arms 0

High Torque Capacity

Torque Transmission Despite their compact size, harmonic drives can transmit high torque. This is due to the large number of teeth in contact between the flexspline and the circular spline.

High Precision and Repeatability

Accuracy The design ensures high precision in motion control, making harmonic drives suitable for applications that require accurate and repeatable positioning.

High Efficiency

Energy Efficient Harmonic drives exhibit high mechanical efficiency, typically around 80-90%, which reduces energy consumption and improves system performance.

Parameter Table

Model		25
Reduction ratio		50	80	100	120
Rated torque at 2000r/min input	Nm	39	63	67	67
Rated torque at 2000r/min input	kgfm	4	6.4	6.8	6.8
Permissible peak torque at start and stop	Nm	98	137	157	167
Permissible peak torque at start and stop	kgfm	10	14	16	17
Permissible maximum value for average load torque	Nm	55	87	108	108
Permissible maximum value for average load torque	kgfm	5.6	8.9	11	11
Permissible maximum momentary torque	Nm	186	255	284	304
Permissible maximum momentary torque	kgfm	19	26	29	31
Permissible maximum input rotational speed (Grease)	r/min	5600
Permissible average input rotational speed (Grease)	r/min	3500
Backlash	Arc Sec	≤20
Weight	kg	1.22
Design life	Hour	10000	15000	15000	15000

Compact Strain Wave Harmonic Drive Zero Backlash Gear Reducer For Robotic Arms 5

	Key Attributes of LHT - I Model 25 Harmonic Gear Units
	Product	Model 25 Harmonic Drive
	Components	Wave Generator, Flexspline, Circular Spline
	Reduction Ratio	50:1, 80:1, 100:1, 120:1
	Backlash	Less than 20 Arc Sec
	Average Input Speed	5600 r/min
	Max Input Speed	3500 r/min
	Design Life	15000 hours
	Model	25
	Weight	1.22 kg
	Warranty	1 Year

Applications


Industrial Robots	Huamnoid Robots	Manufacturing Systems
