Place of Origin:
China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
LHT-40-XX-U-III
Large Hollow LHT - III Series Harmonic Gears
Product description
Strain wave gearing (also known as harmonic gearing) is a type of mechanical gear system that uses a flexible spline with external teeth, which is deformed by a rotating elliptical plug to engage with the internal gear teeth of an outer spline.
Strain wave gearing utilizes a unique operating principle which is based upon the elastic mechanics of metals. The greatest benefits are the zero-backlash characteristics and the weight and space savings compared to other gears because our gear mechanism consists of only three basic parts. They are the: Wave Generator, Flexspline and Circular Spline.
|
Strain wave reducer consist of three main components
|
Specification
| Model | 40 | |||||
| Reduction ratio | 50 | 80 | 100 | 120 | ||
| Rated torque at 2000r/min input | Nm | 178 | 268 | 345 | 382 | |
| kgfm | 18 | 27 | 35 | 39 | ||
| Permissible peak torque at start and stop | Nm | 523 | 675 | 738 | 802 | |
| kgfm | 53 | 69 | 75 | 82 | ||
| Permissible maximum value for average load torque | Nm | 255 | 369 | 484 | 586 | |
| kgfm | 26 | 38 | 49 | 60 | ||
| Permissible maximum momentary torque | Nm | 892 | 1270 | 1400 | 1530 | |
| kgfm | 91 | 130 | 143 | 156 | ||
| Permissible maximum input rotational speed (Grease) | r/min | 4000 | ||||
| Permissible average input rotational speed (Grease) | r/min | 3000 | ||||
| Backlash | Arc Sec | ≤20 | ||||
| Weight | Kg | 7.2 | ||||
| Design life | Hour | 15000 | ||||

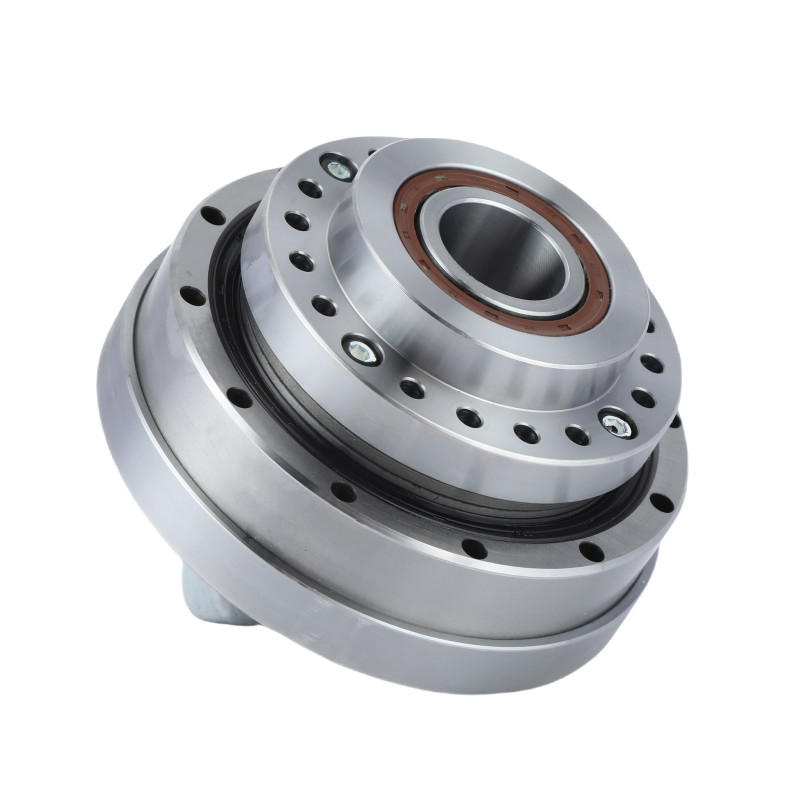

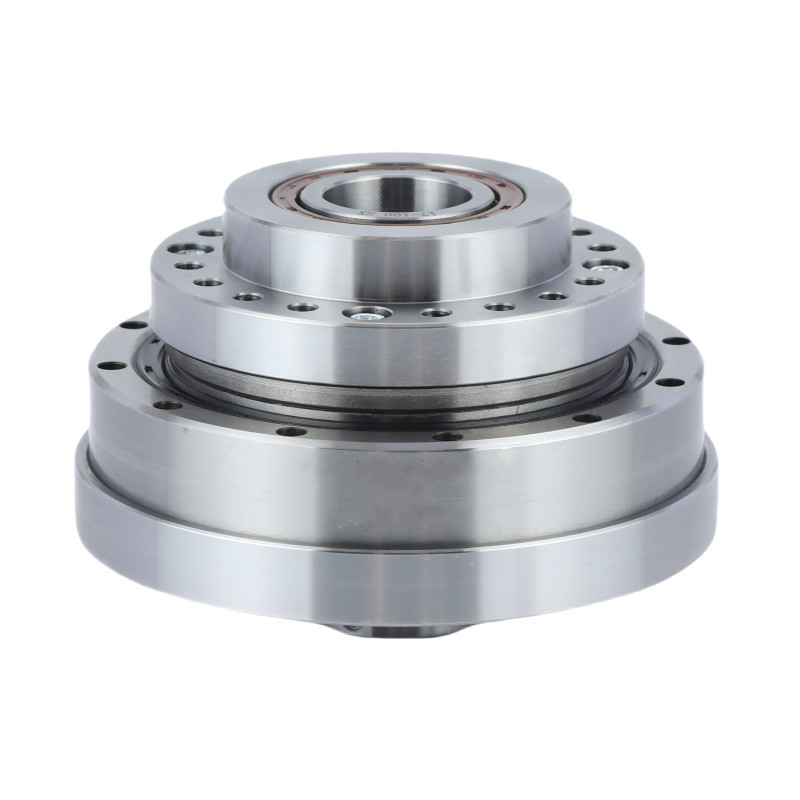

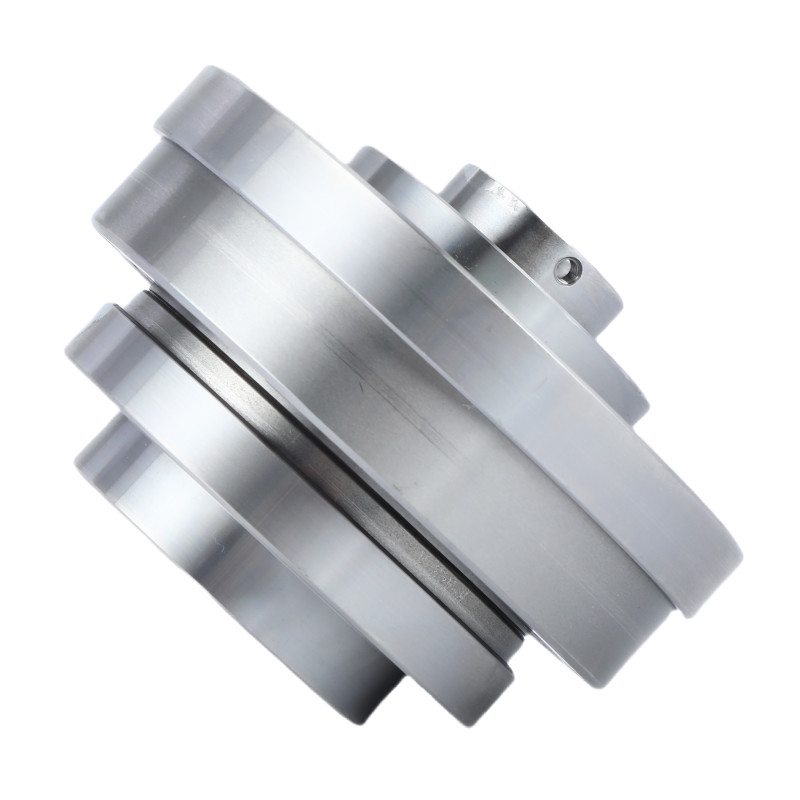

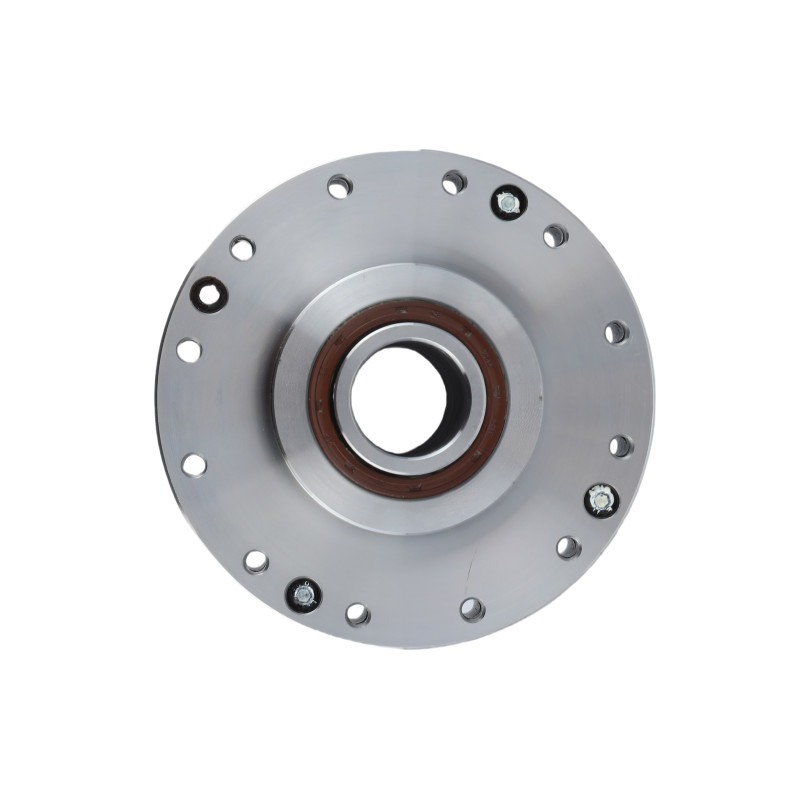

Detailed Images
|
Key Attributes of LHT - III Model 40 Harmonic Gear Units | |||
| Product | Model 40 Strain Wave Reducer | |||
|
Components
|
Wave Generator, Flexspline, Circular Spline | |||
|
Reduction Ratio
|
50:1, 80:1, 100:1, 120:1 | |||
|
Backlash
|
Less than 20 Arc Sec | |||
|
Average Input Speed
|
4000 r/min | |||
|
Max Input Speed
|
3500 r/min | |||
|
Design Life
|
15000 hours | |||
|
Model
|
40 | |||
|
Weight
|
7.2kg | |||
| Warranty | 1 Year | |||
Applications
|
|
|
|
| Industrial Robot | Humanoid Robot | Medical Devices | Manufacturing System |
