Circular Spline Strain Wave Harmonic Drive
Product description
The strain wave gearing uses the elasticity of metal. The mechanism has three basic components: a wave generator, a flex spline , and a circular spline.
More complex versions have a fourth component normally used to shorten the overall length or to increase the gear reduction within a smaller diameter, but still follow the same basic principles.
 |
Components 1. The wave generator is made of two separate parts: an elliptical disk called a wave generator plug and an outer ball bearing. 2. The flex spline is shaped like a shallow cup. The sides of the spline are very thin, but the bottom is relatively rigid. This results in significant flexibility of the walls at the open end due to the thin wall, and in the closed side being rigid enough to be tightly secured. 3. The circular spline is a rigid circular ring with teeth on its inside. The flex spline and wave generator are placed inside the circular spline, meshing the teeth of the flex spline and the circular spline. |
Specification
| Model | Reduction ratio | Rated torque at 2000r/min input | Permissible peak torque at start and stop | Permissible maximum value for average load torque | Permissible maximum momentary torque | Permissible maximum input rotational speed(Grease) | Permissible average input rotational speed(Grease) | Backlash | Weight | Design life | ||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | Kg | Hour | ||
| 17 | 50 | 21 | 2.1 | 44 | 4.5 | 34 | 3.4 | 91 | 9 | 7300 | 3500 | ≤20 | 0.9 | 10000 |
| 80 | 29 | 2.9 | 56 | 5.7 | 35 | 3.6 | 113 | 12 | 15000 | |||||
| 100 | 31 | 3.2 | 70 | 7.2 | 51 | 5.2 | 143 | 15 | 15000 | |||||
| 120 | 31 | 3.2 | 70 | 7.2 | 51 | 5.2 | 112 | 11 | 15000 | |||||
Drawings

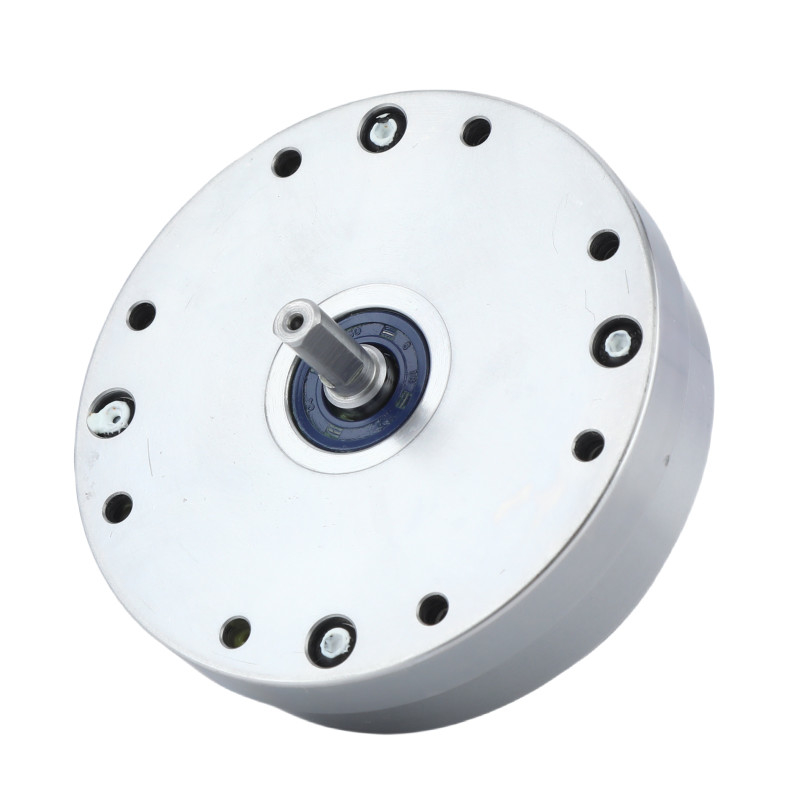

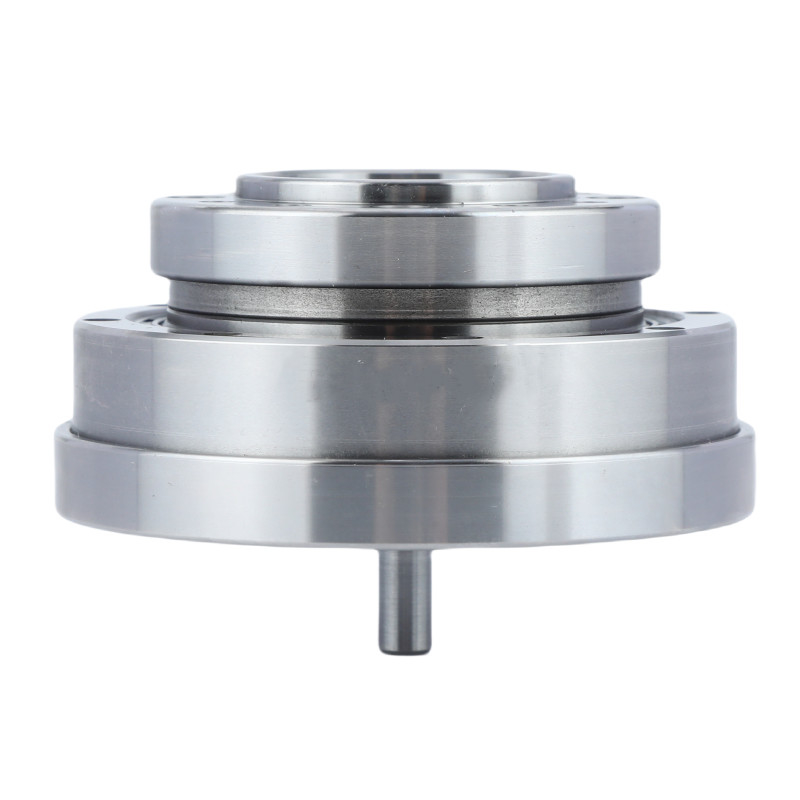

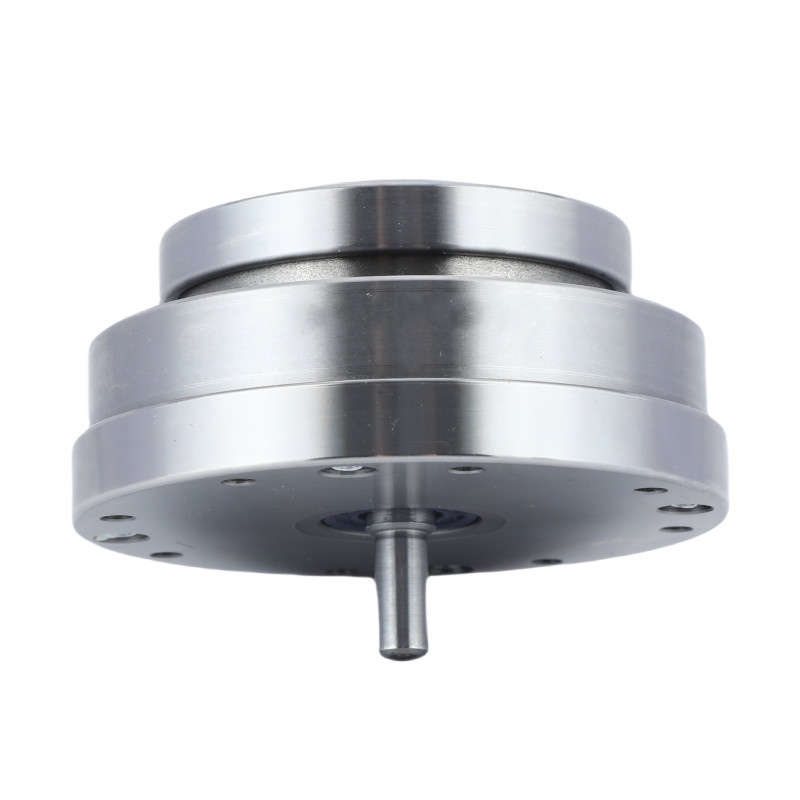

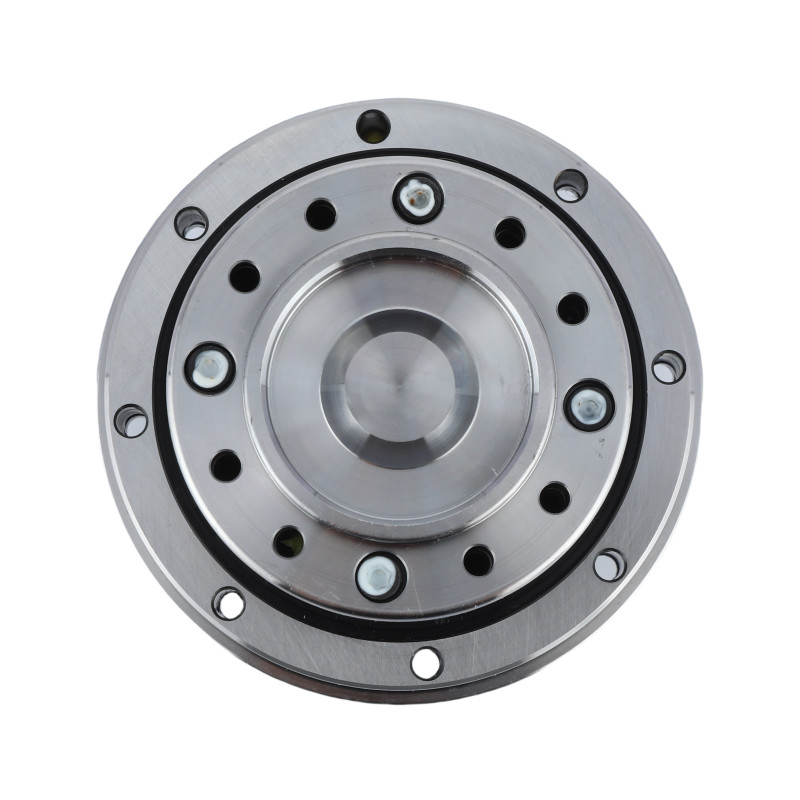

Detailed images
| Key Attributes of LHT - IV Model 17 Harmonic Gear Units | |||
| Product | Model 17 Harmonic Drive | ||
|
Components
|
Wave Generator, Flexspline, Circular Spline | ||
|
Reduction Ratio
|
50:1, 80:1, 100:1, 120:1 | ||
|
Backlash
|
Less than 20 Arc Sec | ||
|
Average Input Speed
|
7300 r/min | ||
|
Max Input Speed
|
3500 r/min | ||
|
Design Life
|
15000 hours | ||
|
Model
|
17 | ||
|
Weight
|
0.9kg | ||
| Warranty | 1 Year | ||
Applications
|
|
|
| Semiconductor | CNC Machines | Packaging Systems |
|
|
|
| Huamnoid Robots | Aerospaces | Industrial Robots |
