High Reduction Harmonic Drive Gear Box Strain Wave Reducer For Robotics

High Reduction harmonic drive gear box

Strain Wave harmonic drive gear box

Harmonic strain wave reducer

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

LSN-14-XX-U-II

Request A Quote

High Reduction Harmonic Drive Gear Box Strain Wave Reducer For Robotics

Product Details

Features:

High Torque Capacity, High Precision And Low Backlash

Model:

Product:

Model 14 Strain Wave Reducer

Components:

Wave Generator, Flexspline, Circular Spline

Reduction Ratio:

50:1, 80:1, 100:1, 120:1

Backlash:

≤20 Arc Sec

Rated Torque At 2000r/min Input:

5.4 To 7.8 Nm

Peak Torque At Start And Stop:

18 To 28 Nm

Average Input Speed:

3500 R/min

Design Life:

15000 Hours

Weight:

0.39kg

Application:

New Energy Industry，Robotics, Aerospace, CNC Machines

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Light Weight 2.47kg Model 32 Strain Wave Reducer Low Backlash Harmonic Gear Units

Get Best Price

Low Backlash And High Efficiency Model 25 Strain Wave Reducer Ultralight Harmonic Gear Units

Get Best Price

High Reduction Ratio LSN Series Model 20 Strain Wave Reducer 0.73kg Light Weight Gear Units

Get Best Price

Compact And Lightweight Design LSN Series Strain Wave Reducer Model 14 Gear Units

Get Best Price

Contact Now

Product Description

High Reduction Ratios Harmonic Gears Strain Wave Reducer

LSN series are high torque housed component gear set combined with a precision cross roller output bearing & flange. It is a very compact, robust and easy to use gearhead solution. The LSN II series is available in 5 sizes with ratios 50:1 to 160:1. If your application does not require high torque, LSN series gearhead is a great alternative gearhead. There is also a lightweight version.

Key Features

Zero Backlash
Peak Torque at Start and Stop: 18Nm to 28Nm
Accuracy <1 arc-min
Reduction ratios 50:1 to 120:1
High torsional stiffness
High efficiency
Smooth operation
Robust cross roller output bearing
Output flange for direct mounting of load

Specifications

Model	Reduction ratio	Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load torque		Permissible maximum momentary torque		Permissible maximum input rotational speed	Permissible average input rotational speed	Backlash	Weight	Design life
		Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load torque		Permissible maximum momentary torque		Grease	Grease	Backlash	Weight	Design life
		Nm	kgfm	Nm	kgfm	Nm	kgfm	Nm	kgfm	r/min	r/min	Arc Sec	kg	Hour
14	50	5.4	0.55	18	1.8	6.9	0.7	35	3.6	8500	3500	≤20	0.39	10000
	80	7.8	0.8	23	2.4	11	1.1	47	4.8					15000
	100	7.8	0.8	28	2.9	11	1.1	54	5.5					15000
	120	7.8	0.8	28	2.9	11	1.1	54	5.5					15000

High Reduction Harmonic Drive Gear Box Strain Wave Reducer For Robotics 1

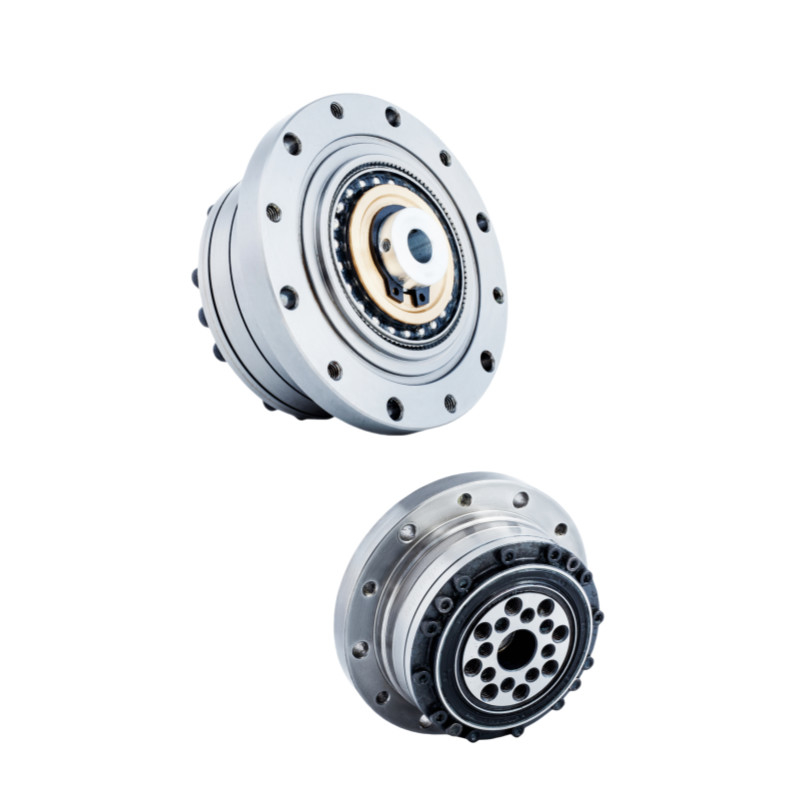

Detailed Images

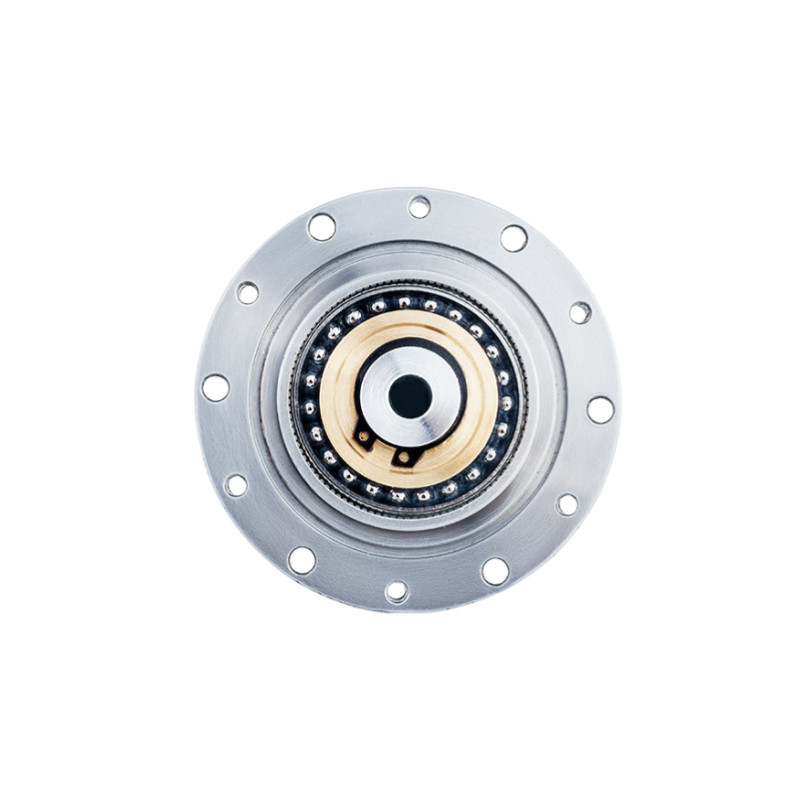

High Reduction Harmonic Drive Gear Box Strain Wave Reducer For Robotics 2

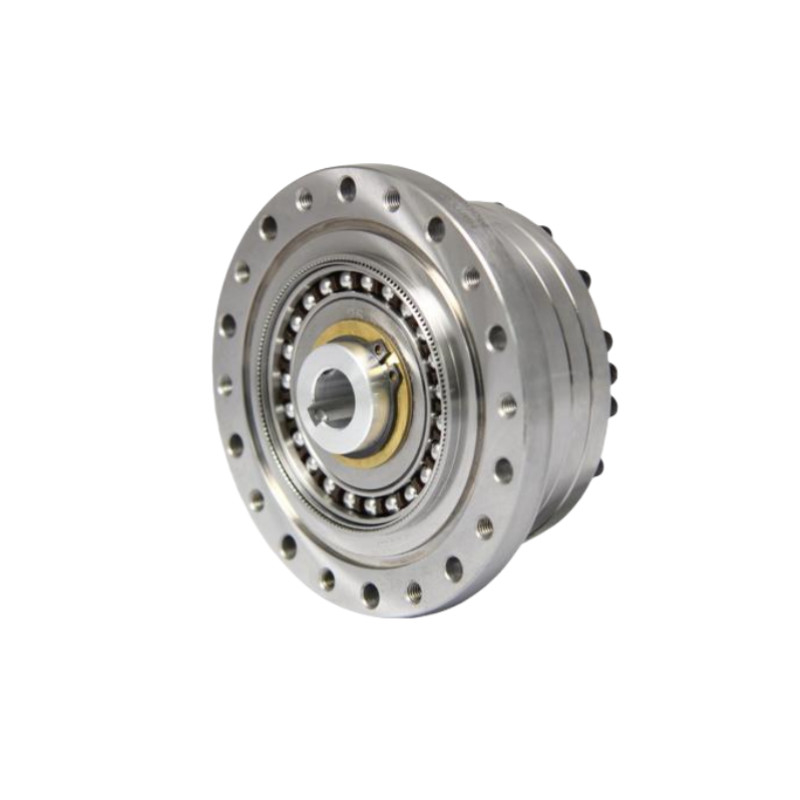

High Reduction Harmonic Drive Gear Box Strain Wave Reducer For Robotics 3

High Reduction Harmonic Drive Gear Box Strain Wave Reducer For Robotics 4

	Key Attributes of LSN - II Model 14 Harmonic Gear Units
	Product	Model 14 Harmonic Drive
	Components	Wave Generator, Flexspline, Circular Spline
	Reduction Ratio	50:1, 80:1, 100:1, 120:1
	Backlash	Less than 20 Arc Sec
	Average Input Speed	3500 r/min
	Max Input Speed	8500 r/min
	Design Life	15000 hours
	Model	14
	Weight	0.39 kg
	Warranty	1 Year

Applications


Industrial Robots	Medical Devices	Huamnoid Robots

Optical Machines	Aerospaces	Manufacturing Systems
