Place of Origin:
China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
EPG Series
|
|
 |
|
|
|
| Extra Large Stroke | Precise Control | IP65 Protection Level | Grab Feedback | Power Failure Self-Locking |
|

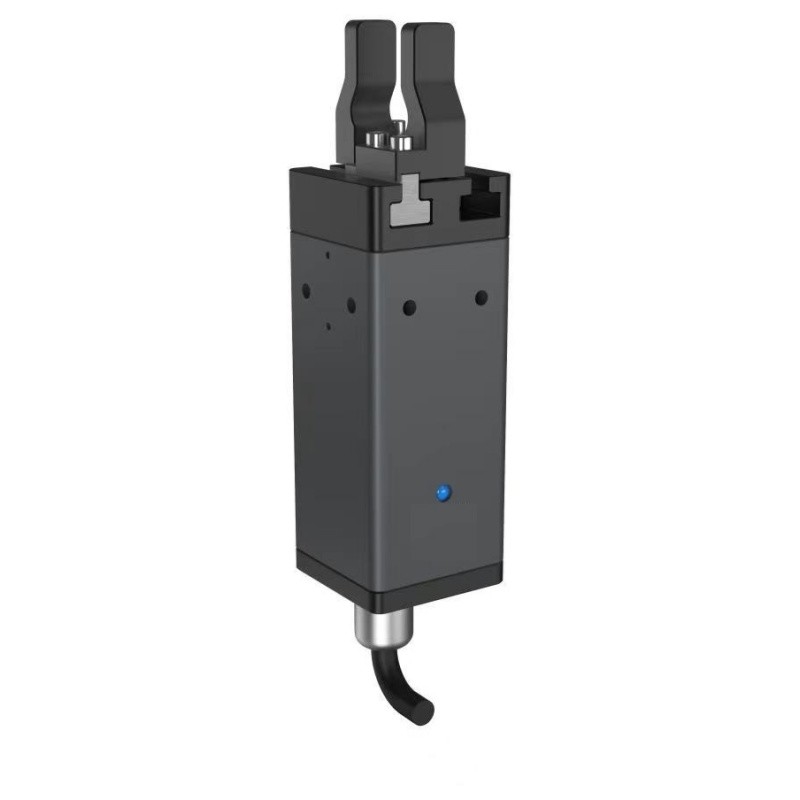

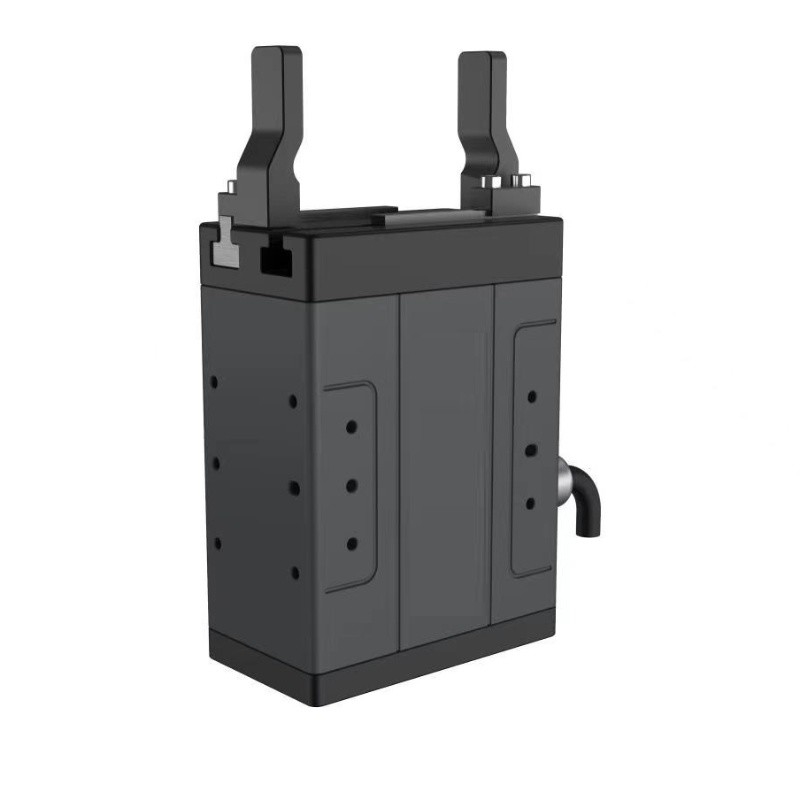

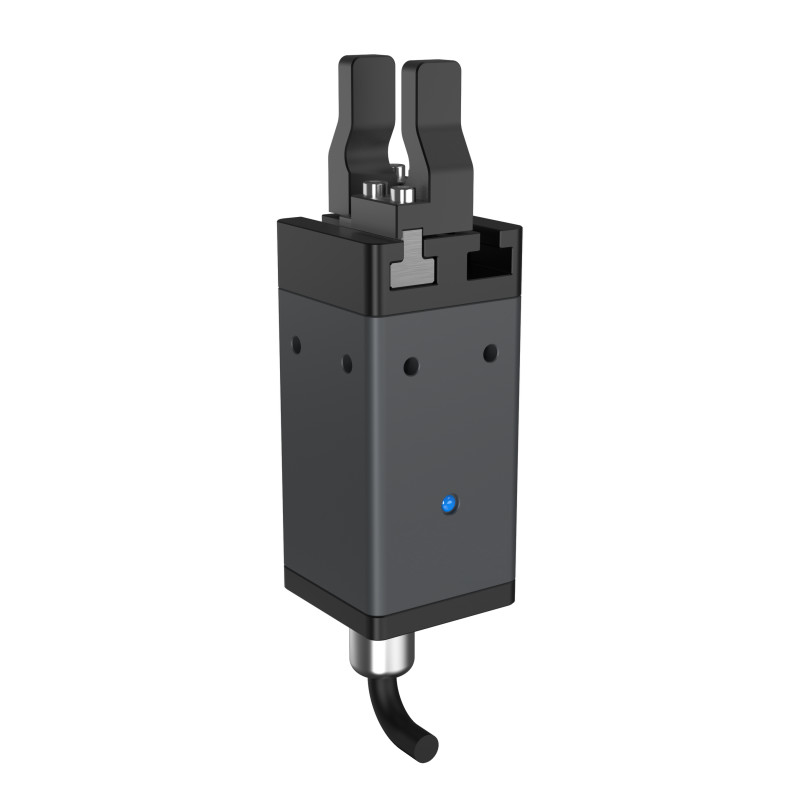

Product overview |
|||||||
|
|
|
|
|
|
|
|
|
|
Model
|
EPG26-006
|
EPG26-015
|
EPG30-150
|
EPG40-050
|
EPG40-100
|
EPG50-060
|
EPG50-100
|
|
Adjustable stroke
|
0-26mm
|
0-26 mm
|
0-30mm
|
0-40mm
|
0-40mm
|
0-50mm
|
0-50mm
|
|
Single finger gripping force
|
1-6N
|
1-15N
|
50-150N
|
2-50N
|
40-100N
|
2-60N
|
40-100N
|
|
Opening/closing time
|
0.25s
|
0.3s
|
0.3s
|
0.5s
|
0.9s
|
0.6s
|
1.10s
|
|
Position repetition accuracy
|
±0.02mm
|
±0.02mm
|
±0.02mm
|
±0.02mm
|
±0.02mm
|
±0.02mm
|
±0.02mm
|
|
*Maximum recommended load
|
0.1kg
|
0.3kg
|
3Kg
|
0.8kg
|
2kg
|
1kg
|
2kg
|
|
Drop detection
|
support
|
support
|
support
|
support
|
support
|
support
|
support
|
|
Usage environment
|
5-40 ℃, below 85% RH
|
5-40 ℃, below 85% RH
|
5~45 ℃, below 85% RH
|
5-40 ℃, below 85% RH
|
5-40 ℃, below 85% RH
|
5-40 ℃, below 85% RH
|
5-40 ℃, below 85% RH
|
|
Running noise
|
＜40dB
|
＜40dB
|
＜40dB
|
＜40dB
|
＜40dB
|
＜40dB
|
＜40dB
|
|
Body weight
|
0.20Kg
|
0.25Kg
|
0.9Kg
|
0.36Kg
|
0.37Kg
|
0.57Kg
|
0.53Kg
|
|
IP level
|
IP40
|
IP40
|
IP40
|
IP40,IP65 Optional
|
IP40,IP65 Optional
|
IP40,IP65 Optional
|
IP40,IP65 Optional
|
|
Rated voltage
|
DC 24V±10%
|
DC 24V±10%
|
DC 24V±10%
|
DC 24V±10%
|
DC 24V±10%
|
DC 24V±10%
|
DC 24V±10%
|
|
Maximum current
|
0.85A
|
0.85A
|
0.85A
|
0.85A
|
0.85A
|
0.85A
|
0.6A
|
|
Rated current
|
0.4A
|
0.4A
|
0.4A
|
0.4A
|
0.4A
|
0.4A
|
0.25A
|
|
communication protocol
|
Modbus RTU(RS 485)
|
Modbus RTU(RS 485)
|
Modbus RTU(RS 485)
|
Modbus RTU(RS 485),
|
Modbus RTU(RS 485),
|
Modbus RTU(RS 485),
|
Modbus RTU(RS 485), |
| Digital I/O Optional | Digital I/O Optional | Digital I/O Optional | Digital I/O Optional | ||||
|
Compliant with international standards
|
CE,RoHS
|
CE,RoHS
|
CE,RoHS
|
CE,RoHS
|
CE,RoHS
|
CE,RoHS
|
CE,RoHS
|
|
Vertical allowable static load Fz
|
100N
|
150N
|
150N
|
200N
|
200N
|
200N
|
200N
|
|
*Permissible static moment of slider Mx
|
0.8N·m
|
1.2N·m
|
1.2N·m
|
2N·m
|
2N·m
|
2N·m
|
2.5N·m
|
|
*The allowable static moment of the slider My
|
0.6N·m
|
0.9N·m
|
0.9N·m
|
1.5N·m
|
1.5N·m
|
1.5N·m
|
2N·m
|
|
*The allowable static moment Mz of the slider
|
0.5N·m
|
0.55N·m
|
0.55N·m
|
2N·m
|
2N·m
|
2N·m
|
2.8N·m
|
