Place of Origin:
China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:

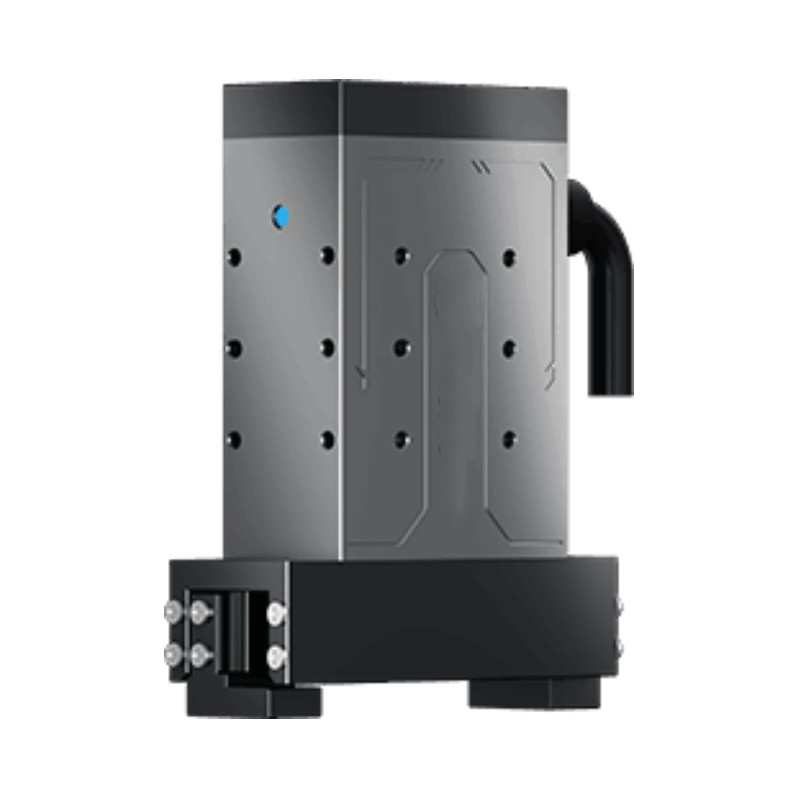

EPG-HP Series
 |
|
|
|
|
| High Precision | High Stiffness | Five Sided Installation | Grab Feedback | Networking Applications |
| Product overview | ||
|
|
|
|
Model
|
EPG-HP26-050
|
EPG-HP50-050
|
|
Adjustable stroke
|
0-26mm
|
0-50mm
|
|
Single finger gripping force
|
5-50N
|
5-50N
|
|
Opening/closing time
|
0.35s
|
0.5s
|
|
Position repetition accuracy
|
±0.02mm
|
±0.02mm
|
|
*Maximum recommended load
|
1kg
|
1kg
|
|
Drop detection
|
support
|
support
|
|
Usage environment
|
5-40 ℃, below 85% RH
|
5-40 ℃, below 85% RH
|
|
Running noise
|
＜40dB
|
＜40dB
|
|
Body weight
|
0.45kg
|
0.45kg
|
|
IP level
|
IP40
|
IP40
|
|
Rated voltage
|
DC 24V±10%
|
DC 24V±10%
|
|
Maximum current
|
0.6A
|
0.6A
|
|
Rated current
|
0.25A
|
0.25A
|
|
communication protocol
|
Modbus RTU(RS 485) Digital I/O optional
|
Modbus RTU(RS 485) Digital I/O optional
|
|
Compliant with international standards
|
CE,RoHS
|
CE,RoHS
|
|
Vertical allowable static load Fz
|
200N
|
200N
|
|
Permissible static moment of slider Mx
|
3N·m
|
3N·m
|
|
The allowable static moment of the slider My
|
2.5N·m
|
2.5N·m
|
|
The allowable static moment Mz of the slider
|
3.5N·m
|
3.5N·m
|
| Application | ||
| |
|
|
| Life Sciences | 3C | New Energy |
