Place of Origin:
China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
ERG Series
|
|
|
|

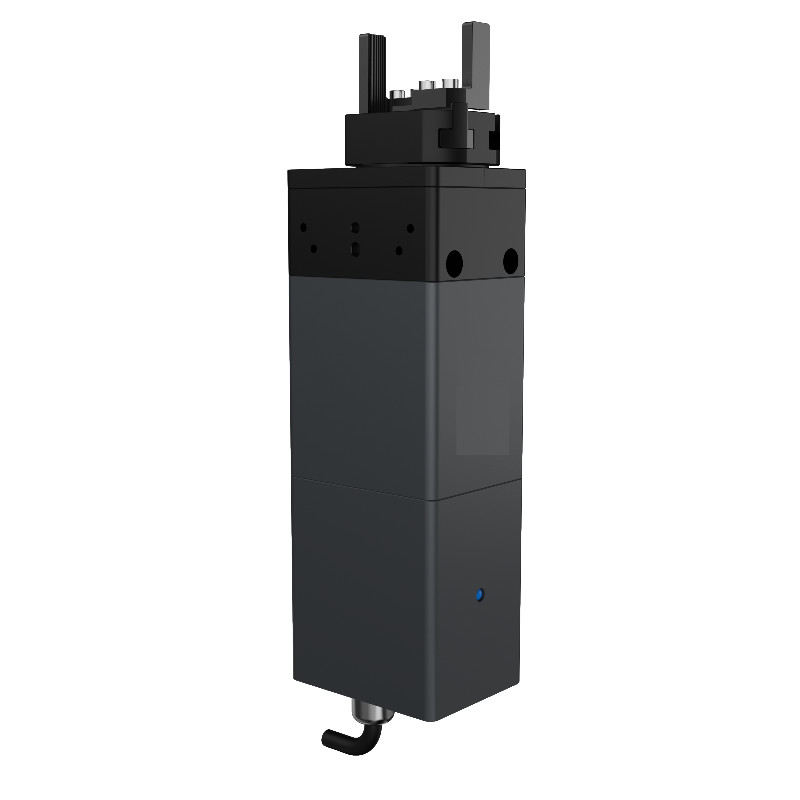

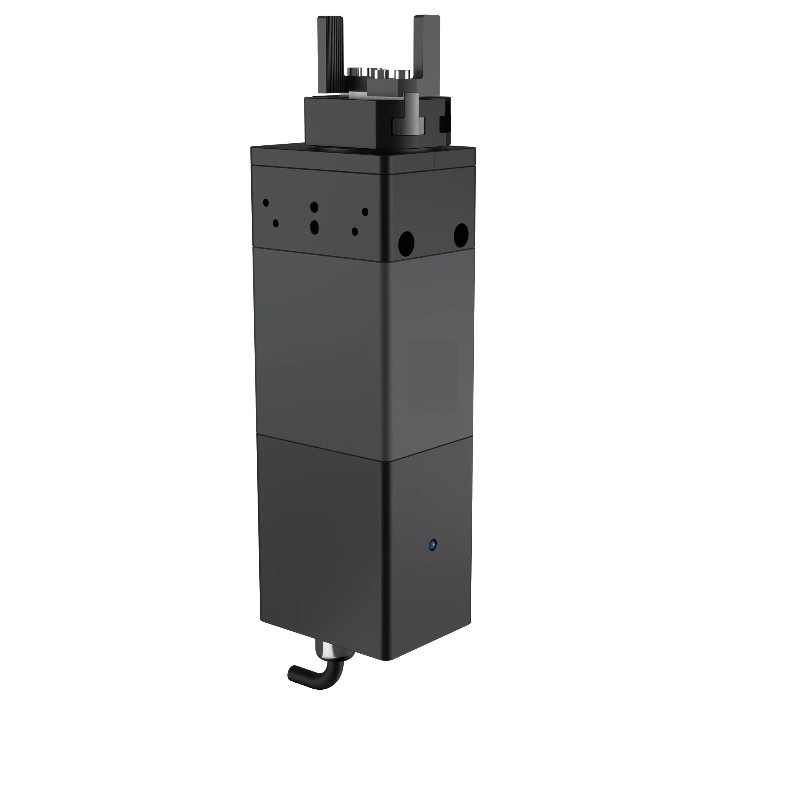

| Integrated Drive and Control | Grab Feedback | Networking Applications |
| Product overview | ||||
|
|
|
|
|
|
model
|
ERG08-023
|
ERG25-100L
|
ERG32-150
|
ERG32-150T
|
|
Adjustable stroke
|
0-8mm
|
0-25mm
|
0-32mm
|
0-32mm
|
|
Single finger gripping force
|
4-23N
|
40-100N
|
40-100N
|
40-100N
|
|
Opening/closing time
|
0.15s
|
/
|
0.5s
|
0.5s
|
|
Opening/closing speed
|
/
|
80mm/s
|
/
|
/
|
|
Peak torque
|
0.3 N·m
|
1 N·m
|
1 N·m
|
1.5 N·m
|
|
Rated torque
|
0.12 N.m
|
0.2 N·m
|
0.2 N·m
|
0.3 N·m
|
|
Rotation angle
|
Infinite rotation
|
Infinite rotation
|
Infinite rotation
|
Infinite rotation
|
|
Maximum rotational speed
|
1500°/s
|
1500°/s
|
1500°/s
|
1000°/s
|
|
Maximum allowable inertia
|
100kg/mm²
|
200kg/mm²
|
200kg/mm²
|
200kg/mm²
|
|
Clamping repeatability accuracy
|
±0.02mm
|
±0.02mm
|
±0.02mm
|
±0.02mm
|
|
Rotation repetition accuracy
|
±0.5°
|
±0.5°
|
±0.5°
|
±0.5°
|
|
*Maximum recommended load
|
0.3Kg
|
1.5Kg
|
1.5Kg
|
1.5Kg
|
|
Drop detection
|
support
|
support
|
support
|
support
|
|
Power outage maintenance
|
/
|
support
|
/
|
/
|
|
Usage environment
|
5-40 ° C, below 85% RH
|
5-40 ° C, below 85% RH
|
5-40 ° C, below 85% RH
|
5-40 ° C, below 85% RH
|
|
Running noise
|
＜70dB
|
＜60dB
|
＜70dB
|
＜70dB
|
|
Body weight
|
0.6Kg
|
0.75Kg
|
0.7Kg
|
0.7Kg
|
|
IP level
|
IP40
|
IP40
|
IP40
|
IP40
|
|
Rated voltage
|
DC 24V±10%
|
DC 24V±10%
|
DC 24V±10%
|
DC 24V±10%
|
|
Maximum current
|
2A
|
4A
|
4A
|
4A
|
|
Rated current
|
0.4A
|
0.5A
|
0.5A
|
0.6A
|
|
communication protocol
|
Modbus RTU(RS485)
|
Modbus RTU(RS 485)+I/O
|
Modbus RTU(RS 485)
|
Modbus RTU(RS 485)
|
|
Compliant with international standards
|
CE,RoHS
|
CE,RoHS
|
CE,RoHS
|
CE,RoHS
|
|
Vertical allowable static load Fz
|
100N
|
200N
|
200N
|
200N
|
|
Permissible static moment of slider Mx
|
1.5N.m
|
2 N·m
|
2 N·m
|
2 N·m
|
|
The allowable static moment of the slider My
|
1.5N.m
|
2 N·m
|
2 N·m
|
2 N·m
|
|
The allowable static moment Mz of the slider
|
1.5N.m
|
2 N·m
|
2 N·m
|
2 N·m
|
Application
