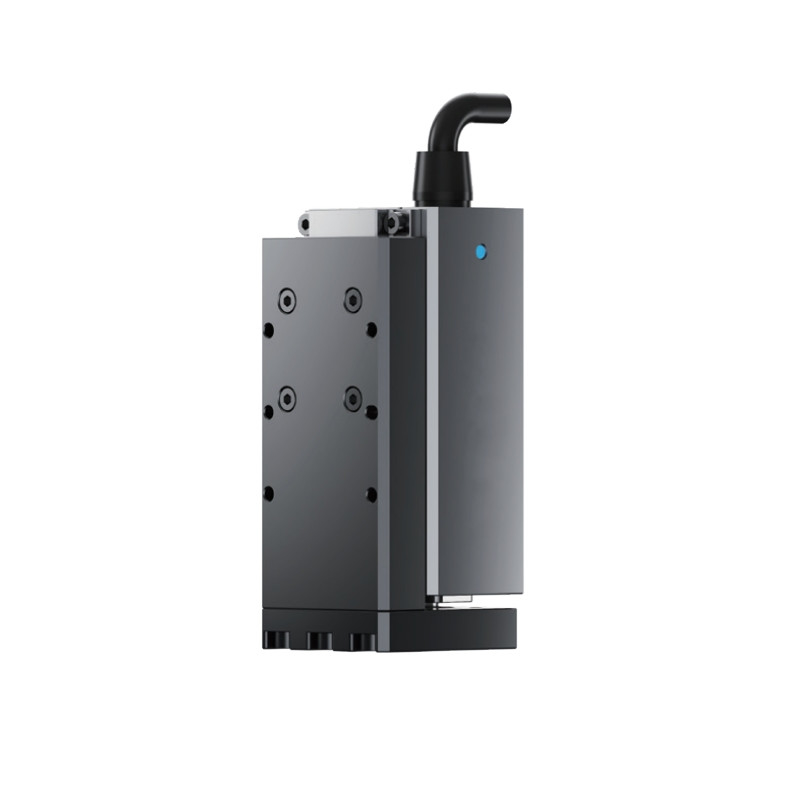

Miniature Ultra Thin Size ELS Series Electric Linear Slide Table With High Energy Density

ELS Series Electric Linear Slide Table

Ultra Thin Electric Linear Slide Table

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

ELS Series

Request A Quote

Product Details

Product:

ELS Series Electric Linear Slide Table

Protection Level:

IP40

Dynamic Allowable Load Torque Mx:

12.5N·m

Dynamic Allowable Load Torque My:

10N·m

Static Allowable Load Torque Mx:

32N·m

Motor Type:

DC Servo Motor

Rated Power W:

20W

Peak Current A:

Rated Current A:

1.5A

Rated Voltage V:

DC 24V ±10%

Compliant With International Standards:

CE，FCC，RoHS

Payment & Shipping Terms

Minimum Order Quantity

To Be Negotiated

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Heavy Duty LEPG Series Electric Parallel Grippers For Robots In Lithium Batteries

Get Best Price

WEPG Series High-Precision Weighing Gripper For 3C Electronics With Real - Time Weighing Function

Get Best Price

ERG - HP Series High Precision Rotary Gripper For 3C Electronics

Get Best Price

video

ZRG Series Lifting And Rotating Gripper For 3C Electronics And Precision Manufacturing

Get Best Price

Contact Now

Product Description

ELS Series

Miniature Electric Table Type Cylinder

The ELS series is a miniature electric table type cylinder independently developed and manufactured by Jodell,with high energy density, heavy load capacity, and compact design. It can be applied to various application scenarios to complete complex tasks, such as pick and place, arrangement, and handling.


Integrated Drive and Control	High Positioning Accuracy	Direct Drive Closed-Loop Control Technology	Ultra Thin Size

Product overview

Model	ELS-SW	ELS-SW	ELS-SW	ELS-30	ELS-30	ELS-30	ELS-50	ELS-50	ELS-50
Total Travel	30,50mm	30,50mm	30,50mm	30mm	30mm	30mm	50mm	50mm	50mm
Lead of lead screw mm	2mm	4mm	6mm	2mm	4mm	6mm	2mm	4mm	6mm
Rated thrust N	100N	50N	30N	100N	50N	30N	100N	50N	30N
Minimum thrust N	30N	15N	9N	30N	15N	9N	30N	15N	9N
Maximum speed mm/s	100mm/s	200mm/s	300mm/s	100mm/s	200mm/s	300mm/s	100mm/s	200mm/s	300mm/s
Maximum acceleration G	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Maximum Portable Weight - Horizontal kg	6kg	3kg	2kg	6kg	3kg	2kg	6kg	3kg	2kg
Maximum Portable Weight - Vertical kg	1.5kg	0.75kg	0.5kg	1.5kg	0.75kg	0.5kg	1.5kg	0.75kg	0.5kg
Position repetition accuracy mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Body width mm	36mm	36mm	36mm	45mm	45mm	45mm	45mm	45mm	45mm
Function Description	Position mode/Push mode	Position mode/Push mode	Position mode/Push mode	Position mode/Push mode	Position mode/Push mode	Position mode/Push mode	Position mode/Push mode	Position mode/Push mode	Position mode/Push mode
Communication protocol	Built in: Modbus RTU (RS485)	Built in: Modbus RTU (RS485)	Built in: Modbus RTU (RS485)	Built in: Modbus RTU (RS485)	Built in: Modbus RTU (RS485)	Built in: Modbus RTU (RS485)	Built in: Modbus RTU (RS485)	Built in: Modbus RTU (RS485)	Built in: Modbus RTU (RS485)
Communication protocol	Digital I/O, IO link optional	Digital I/O, IO link optional	Digital I/O, IO link optional	Digital I/O, IO link optional	Digital I/O, IO link optional	Digital I/O, IO link optional	Digital I/O, IO link optional	Digital I/O, IO link optional	Digital I/O, IO link optional
Recommended usage environment	0~40°C,＜85% RH	0~40°C,＜85% RH	0~40°C,＜85% RH	0~40°C,＜85% RH	0~40°C,＜85% RH	0~40°C,＜85% RH	0~40°C,＜85% RH	0~40°C,＜85% RH	0~40°C,＜85% RH
Interface cable outlet method	Tail outlet/side outlet	Tail outlet/side outlet	Tail outlet/side outlet	Tail outlet/side outlet	Tail outlet/side outlet	Tail outlet/side outlet	Tail outlet/side outlet	Tail outlet/side outlet	Tail outlet/side outlet
Walking lifespan	50 million round trips/5000 km	50 million round trips/5000 km	50 million round trips/5000 km	50 million round trips/5000 km	50 million round trips/5000 km	50 million round trips/5000 km	50 million round trips/5000 km	50 million round trips/5000 km	50 million round trips/5000 km
Rated voltage V	DC 24V ±10%	DC 24V ±10%	DC 24V ±10%	DC 24V ±10%	DC 24V ±10%	DC 24V ±10%	DC 24V ±10%	DC 24V ±10%	DC 24V ±10%
Rated current A	1.5A	1.5A	1.5A	1.5A	1.5A	1.5A	1.5A	1.5A	1.5A
Peak current A	3A	3A	3A	3A	3A	3A	3A	3A	3A
Rated power W	20W	20W	20W	20W	20W	20W	20W	20W	20W
Motor type	DC servo motor	DC servo motor	DC servo motor	DC servo motor	DC servo motor	DC servo motor	DC servo motor	DC servo motor	DC servo motor
Static allowable load torque Mx	32N·m	32N·m	32N·m	32N·m	32N·m	32N·m	32N·m	32N·m	32N·m
Static allowable load torque My	20N·m	20N·m	20N·m	20N·m	20N·m	20N·m	20N·m	20N·m	20N·m
Static allowable load torque Mz	23N·m	23N·m	23N·m	23N·m	23N·m	23N·m	23N·m	23N·m	23N·m
Dynamic allowable load torque Mx	12.5N·m	12.5N·m	12.5N·m	12.5N·m	12.5N·m	12.5N·m	12.5N·m	12.5N·m	12.5N·m
Dynamic allowable load torque My	10N·m	10N·m	10N·m	10N·m	10N·m	10N·m	10N·m	10N·m	10N·m
Dynamic allowable load torque Mz	10N·m	10N·m	10N·m	10N·m	10N·m	10N·m	10N·m	10N·m	10N·m
Protection level	IP40	IP40	IP40	IP40	IP40	IP40	IP40	IP40	IP40
Compliant with international standards	CE,FCC,RoHS	CE,FCC,RoHS	CE,FCC,RoHS	CE,FCC,RoHS	CE,FCC,RoHS	CE,FCC,RoHS	CE,FCC,RoHS	CE,FCC,RoHS	CE,FCC,RoHS
Installation method	Horizontal installation, vertical installation, side standing installation, suspended ceiling installation	Horizontal installation, vertical installation, side standing installation, suspended ceiling installation	Horizontal installation, vertical installation, side standing installation, suspended ceiling installation	Horizontal installation, vertical installation, side standing installation, suspended ceiling installation	Horizontal installation, vertical installation, side standing installation, suspended ceiling installation	Horizontal installation, vertical installation, side standing installation, suspended ceiling installation	Horizontal installation, vertical installation, side standing installation, suspended ceiling installation	Horizontal installation, vertical installation, side standing installation, suspended ceiling installation	Horizontal installation, vertical installation, side standing installation, suspended ceiling installation

Application

3C Electronics	Lithium Battery	Precision Manufacturing	Electrical Equipment	Automobiles and Related	Education
