Place of Origin:
China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
RG Series
|
|
|
|
|
|
|

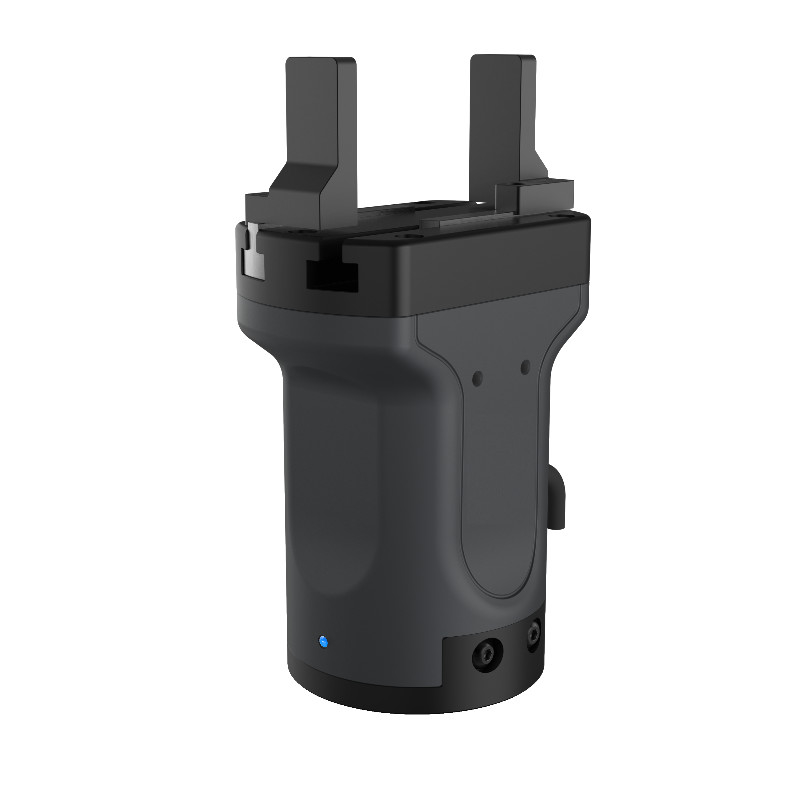

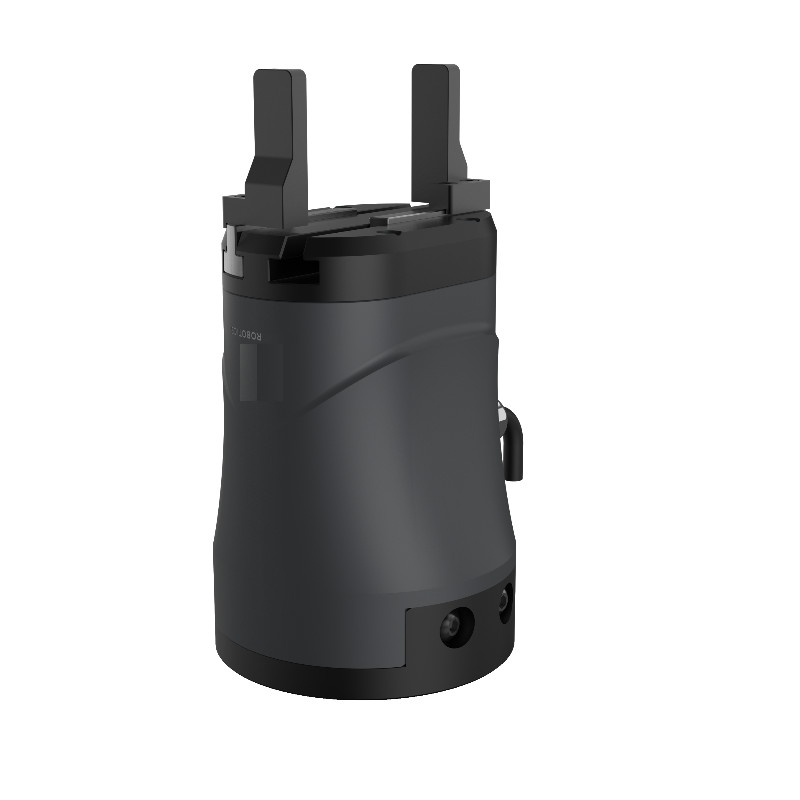

| Extra Large Stroke | Precise Control | IP65 Protection Level | Drop Detection | Grab Feedback | Power Failure Self-Locking |
| Product overview | ||
|
|
|
|
model
|
RG52-050
|
RG75-300
|
|
Adjustable stroke
|
0-52mm
|
0-75mm
|
|
Single finger gripping force
|
2-50N
|
40-300N
|
|
Opening/closing time
|
0.65s
|
0.55s
|
|
Position repetition accuracy
|
±0.02mm
|
±0.02mm
|
|
*Maximum recommended load
|
1Kg
|
6kg
|
|
Drop detection
|
support
|
support
|
|
Power outage maintenance
|
support
|
support
|
|
Usage environment
|
5-40 ℃, below 85% RH
|
5-40 ℃, below 85% RH
|
|
Running noise
|
＜40dB
|
＜40dB
|
|
Body weight
|
0.75Kg
|
1.5Kg
|
|
IP level
|
IP54
|
IP65
|
|
Rated voltage
|
DC 24V±10%
|
DC 24V±10%
|
|
Maximum current
|
0.8A
|
1.5A
|
|
Rated current
|
0.5A
|
0.55A
|
|
communication protocol
|
Modbus RTU(RS 485) Digital I/O
|
Modbus RTU(RS 485)
|
|
Compliant with international standards
|
CE,RoHS
|
CE,RoHS
|
|
Vertical allowable static load Fz
|
200N
|
400 N
|
|
Permissible static moment of slider Mx
|
2.5N.m
|
8 N·m
|
|
The allowable static moment of the slider My
|
2N.m
|
8 N·m
|
|
The allowable static moment Mz of the slider
|
2.8N.m
|
8 N·m
|
