Name: High Precision RCG Series Robot Center Gripper For Robotics
Brand: Suzhou Giant Precision Industry Co., Ltd.
SKU: RCG Series
Availability: InStock

Home > Products > Electric Gripper >

High Precision RCG Series Robot Center Gripper For Robotics

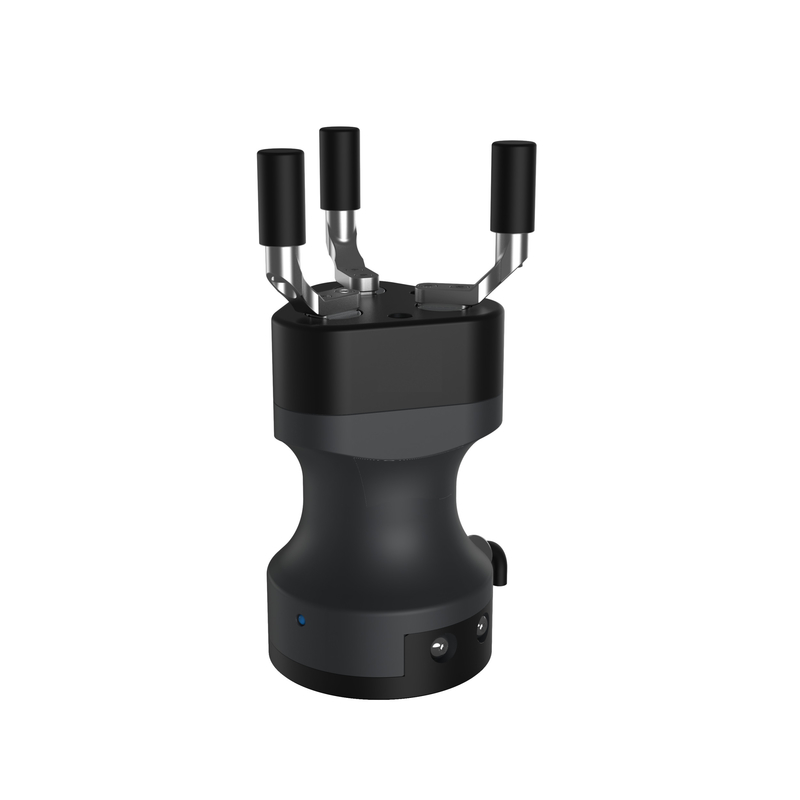

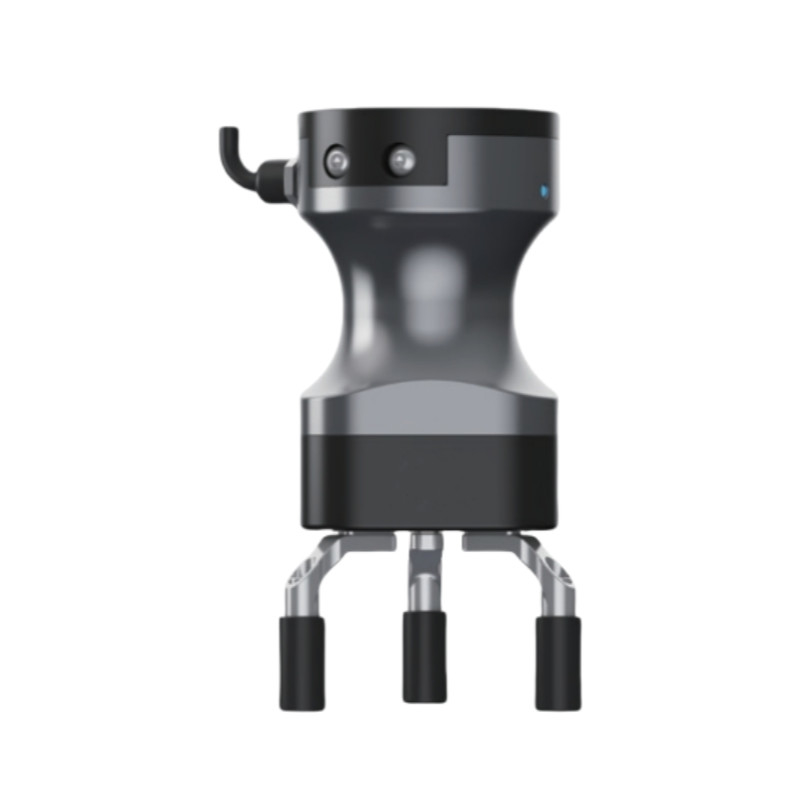

RCG Series Robot Center Gripper

Robot Center Gripper For Robotics

High Precision Robot Center Gripper

Place of Origin:

China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

RCG Series

Request A Quote

Product Details

Product:

RCG Series Robot Center Gripper

Recommended Maximum Clamping Diameter:

90mm

Single Finger Gripping Force:

65N

Maximum Recommended Load:

2KG

Position Repetition Accuracy:

±0.02mm

Power Outage Maintenance:

Support

Usage Environment:

5-40 ℃, Below 85% RH

Running Noise:

＜40dB

Body Weight:

1KG

IP Level:

IP40

Rated Voltage:

DC 24±10 V

Compliant With International Standards:

CE, RoHS

Communication Protocol:

Modbus RTU(RS485)

Payment & Shipping Terms

Minimum Order Quantity

To Be Negotiated

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Heavy Duty LEPG Series Electric Parallel Grippers For Robots In Lithium Batteries

Get Best Price

WEPG Series High-Precision Weighing Gripper For 3C Electronics With Real - Time Weighing Function

Get Best Price

ERG - HP Series High Precision Rotary Gripper For 3C Electronics

Get Best Price

video

ZRG Series Lifting And Rotating Gripper For 3C Electronics And Precision Manufacturing

Get Best Price

Contact Now

Product Description

RCG Series

Robot Center Gripper


Extra Large Stroke	IP40 Protection Level	Grab Feedback	Power Failure Self-Locking

Product overview

model	RCG90-065
Single finger gripping force	65N
Recommended maximum clamping diameter	90mm
Position repetition accuracy	±0.02 mm
*Maximum recommended load	2 kg
Power outage maintenance	support
Usage environment	5-40℃,85% RH以下
Running noise	＜40 dB
Body weight	1Kg
IP level	IP40
Rated voltage	DC 24±10 V
Maximum current	1.5 A
Rated current	0.45 A
Compliant with international standards	CE,RoHS
communication protocol	Modbus RTU(RS485)
