Place of Origin:
China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:

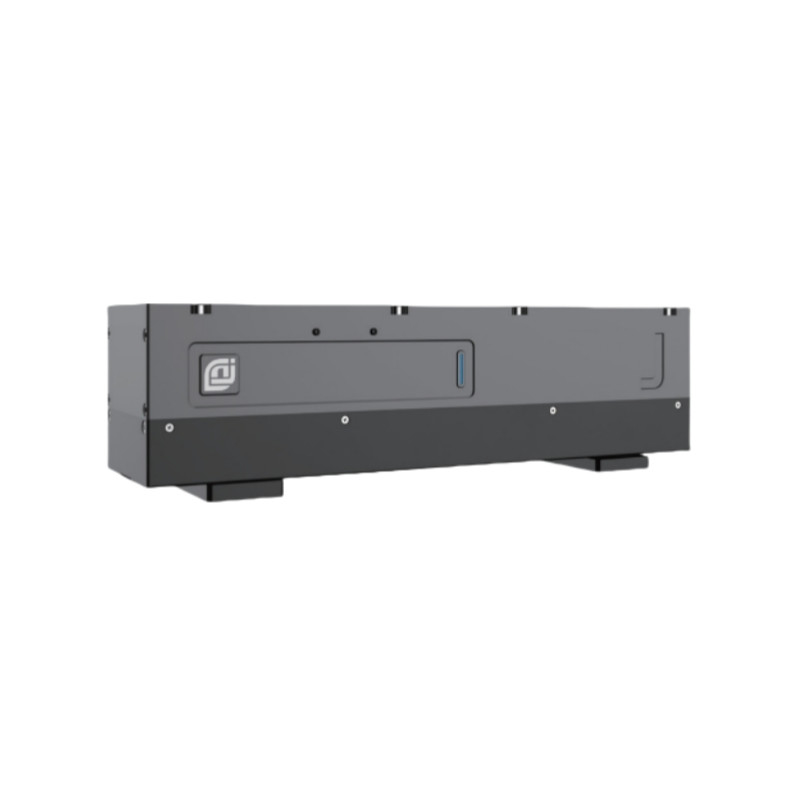

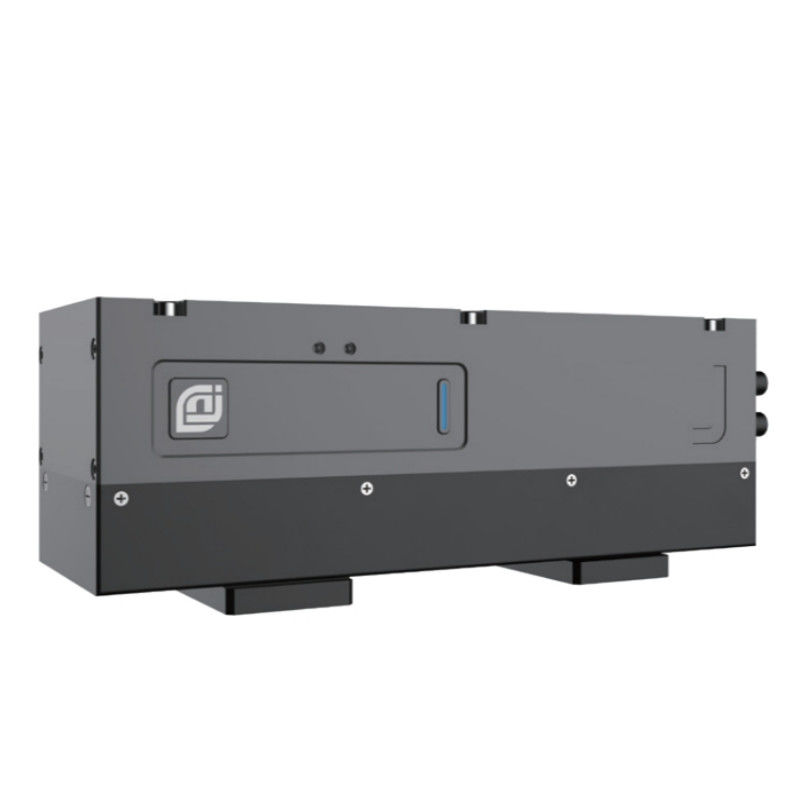

EPG - L Series
|
|
 |
|
| Integrated Drive and Control | Grab Feedback | Networking Applications |
|
Model
|
EPG-L180-350
|
|
Clamping force range
|
100-350N
|
|
Open/close time
|
1s
|
|
Maximum recommended load
|
6Kg
|
|
Drop detection
|
In the tank
|
|
Use environment
|
0-50°C below 85%RH
|
|
Operational noise
|
＜60dB
|
|
Body weight
|
3kg
|
|
IP rating
|
IP40
|
|
Rated voltage
|
DC24±10%V
|
|
Maximum current
|
2.8A
|
|
Communication protocols
|
I/O
|
|
Comply with international standards
|
CE,RoHS
|
|
The vertical imitation describes the Xu Jing load Fz
|
1000N
|
|
The slide allows for a static moment Mx
|
76.5N. M
|
|
The slider allows for the static moment My
|
72.5N. M
|
|
The slider allows for the static moment My
|
72.5N. M |
Application
