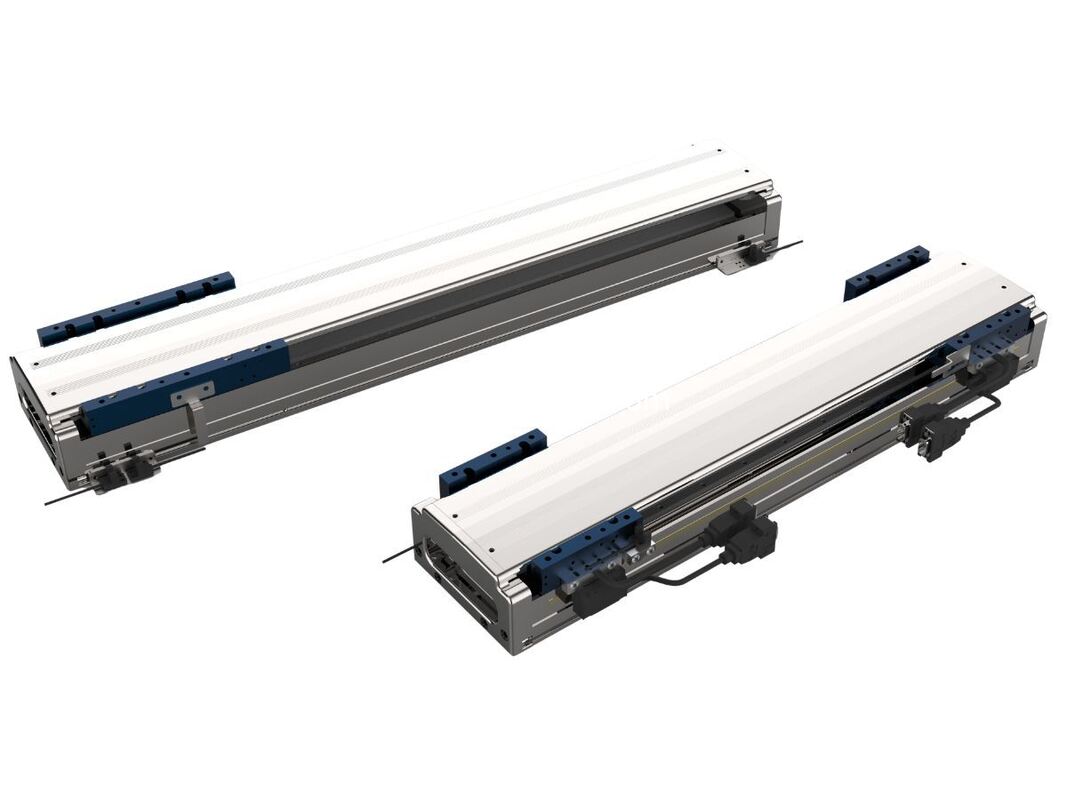

Customizable High Precision Linear Motor Module

Customizable High Precision Linear Motor Module

Place of Origin:

china

Brand Name:

HONPINE

Model Number:

TLSA-140-C1

Contact Us
Request A Quote
Customizable High Precision Linear Motor Module
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton with foam
Payment Terms
T/T
Supply Ability
2000000
RELATED PRODUCTS
Good price Single-Axis Mechanical Motion Linear Motor Slide Actuator online

Single-Axis Mechanical Motion Linear Motor Slide Actuator

Get Best Price
Good price HONPINE TDB-170-050-NH-A Direct Drive Torque Motor online

HONPINE TDB-170-050-NH-A Direct Drive Torque Motor

Get Best Price
Good price TDB-112-065-NH-A HONPINE Direct Drive DD Motor online

TDB-112-065-NH-A HONPINE Direct Drive DD Motor

Get Best Price
Good price HONPINE TDB-170-095-NH-A Direct Drive Torque Motor online

HONPINE TDB-170-095-NH-A Direct Drive Torque Motor

Get Best Price
Contact Us
Contact Now
Product Description

Description of TLSA-140-C1 series high-rigidity linear motor module



The TLSA-140-C1 series is a high-precision, high-rigidity linear motor module with customizable lengths, suitable for precision automation, semiconductor equipment, industrial handling, and linear motion platforms. As a key transmission component in high-precision automation equipment, linear modules play an increasingly important role in the industrial automation field, helping companies achieve automated production, improve efficiency and quality, and reduce costs and error rates.



Parameter of TLSA-140-C1 series high-rigidity linear motor module



Configuration
Motor TCL-030-C1-5.0 Power cable length:5m
Drives 3A Peak current:12A
Feedback Magnetic scale: 1 μm resolution
Optical scale: 0.5 μm resolution		 Cable length
Guide Type 15 (dual guide rails)
Performance Parameter
Thrust Continuous thrust:86N Peak thrust:270N
length Special-length linear motor module, customizable according to customer requirements
Accuracy Magnetic scale: repeatability ±5 μm/500 mm Optical scale: repeatability ±2 μm/500 mm
Straightness ±5μm/300mm
Weight 80 mm travel: 5.8 kg (each additional 48 mm travel adds 0.75 kg)
hnstallaion mode Horizontal / side-mount installation
