Place of Origin:
Jiangsu, China
Brand Name:
Giant Precision
Certification:
ISO9001
Model Number:
RV - C
RV - C series is known as the hollow shaft RV reducer, it maintains high accuracy, rigidity, torque, load support.
Key Features
Specifications
 |
Specification | Output Torque kgf-m(Nm) |
| 10 | 10(98) | |
| 27 | 27(265) | |
| 50 | 50(490) | |
| 100 | 100(980) | |
| 120 | 120(1176) | |
| 200 | 200(1961) | |
| 320 | 320(3136) | |
| 400 | 400(3920) | |
| 500 | 500(4900) |
Parameters table of RV - C series
| Model |
Torsional Rigidity Nm/arc.min. |
Dimension(mm) | Allowable bending torque (Nm) |
Allowable thrust load (N) |
Torsional stiffness | Backlash/Lost motion | ||
| a | b | Nm/arc.min. | arc.min | Determining rotational speed (Nm) |
||||
| BX10C | 421 | 28 | 119.2 | 686 | 5880 | 47 | MAX1 | ±2.94 |
| BX27C | 1068 | 38.2 | 150.3 | 980 | 8820 | 147 | ±7.94 | |
| BX50C | 1960 | 50.4 | 187.1 | 1764 | 11760 | 255 | ±14.7 | |
| BX100C | 2813 | 58.7 | 207.6 | 2450 | 13720 | 510 | ±29.4 | |
| BX120C | 2813 | 58.7 | 207.6 | 2450 | 13720 | 510 | ±29.4 | |
| BX200C | 9800 | 76 | 280.4 | 8820 | 19600 | 980 | ±58.8 | |
| BX320C | 12740 | 114.5 | 360.5 | 20580 | 29400 | 1960 | ±94.1 | |
| BX500C | 24500 | 125 | 413.4 | 34300 | 39200 | 3430 | ±147.0 | |

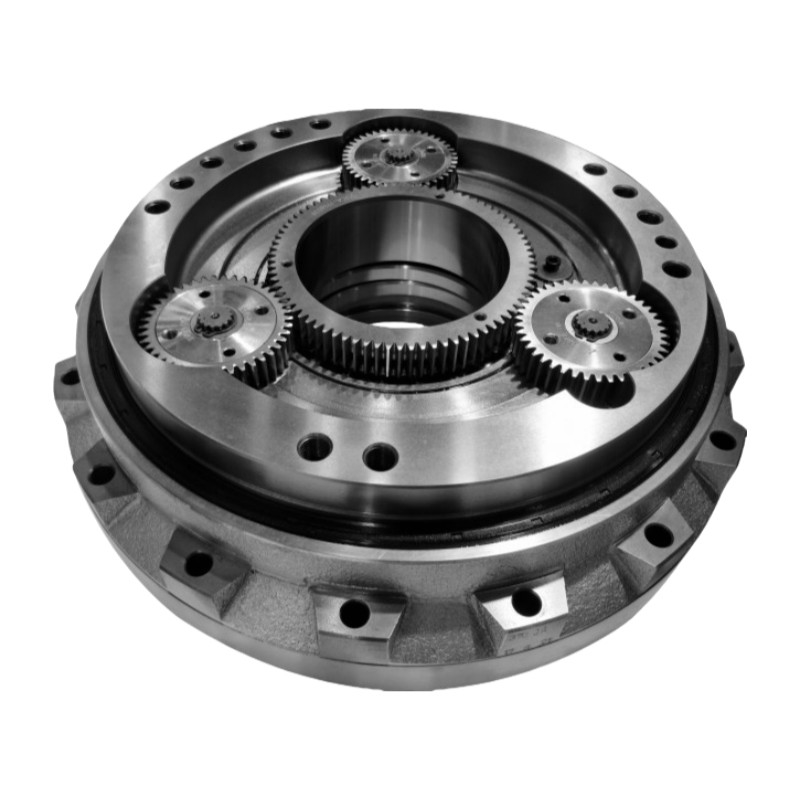

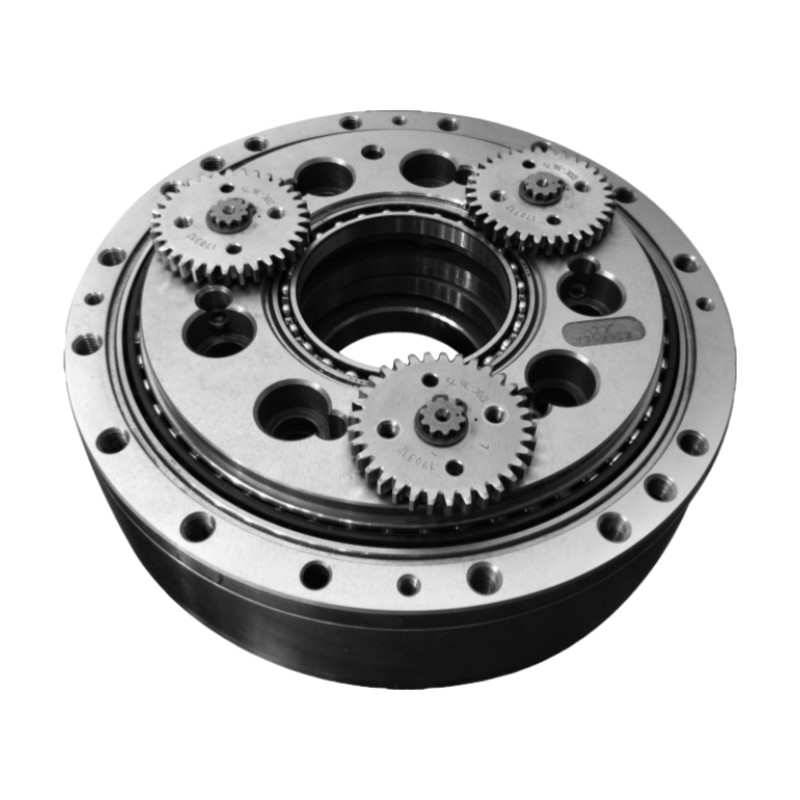

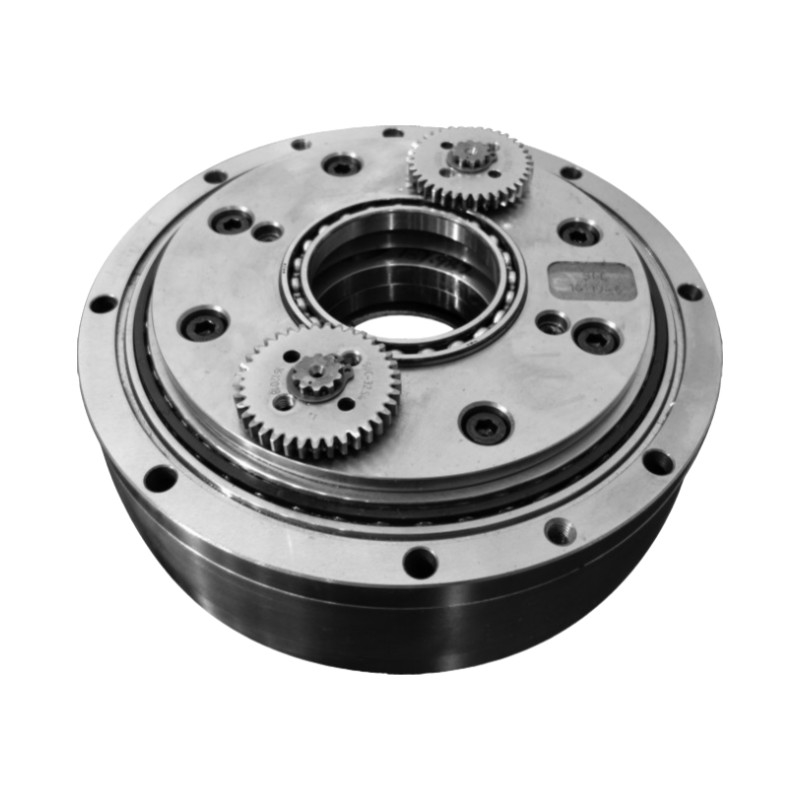

Detailed Images
| Key Attributes of RV - C Series Hollow Shaft RV Reducer | |||
| Product | Hollow Shaft RV Reducer | ||
|
Material
|
Steel, Aluminum | ||
|
Torsional Rigidity
|
421 to 24500 Nm/arc.min. | ||
| Output speed (r/min) | 5 to 60 | ||
|
Backlash
|
MAX. 1 Arc.min. |
||
|
Momentary max. allowable torque
|
1372 to 78400 Nm | ||
|
Max allowable output rotation speed
|
80 r/min | ||
|
Model
|
BX10C, BX27C, BX50C, BX100, BX120C, BX200C, BX320C, BX500C |
||
|
Weight
|
4.6 to 154kg | ||
| Warranty | 1 year | ||
Application
