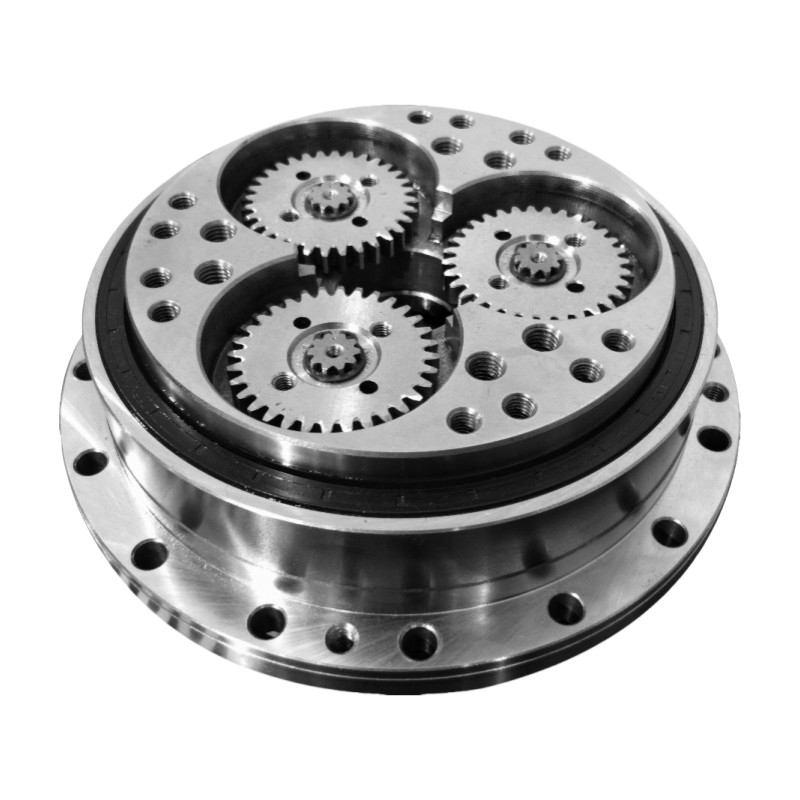

OEM Planetary RV Gear Robot Speed Reducer High Precision

RV robot speed reducer

Planetary robot speed reducer

OEM rv gear reducer

Place of Origin:

Jiangsu, China

Brand Name:

Giant Precision

Certification:

ISO9001

Model Number:

RV - E

Request A Quote

OEM Planetary RV Gear Robot Speed Reducer High Precision

Product Details

Product:

Solid Shaft E Series RV Reducer

Material:

Steel, Aluminum

Torsional Rigidity:

372 To 7448 Nm/arc.min.

Rated Torque:

167 To 4410 Nm

Output Torque:

17 To 450 Nm

Lost Motion:

MAX. 1 Arc.min.

Rated Output Speed:

15 R/min

Model:

BX20E, BX40E, BX80E, BX110E, BX160E, BX320E, BX320E3, BX450E

Weight:

4.7 To 66.4 Kg

Color:

Sliver

Design Life:

6000 Hours

Warranty:

1 Year

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

To Be Negotiated

Packaging Details

Carton Box

Delivery Time

3-4 Weeks

Payment Terms

T/T

Supply Ability

20000 Sets per Month

Compact Robotic Gear RV Speed Reducer Minimal Backlash

Get Best Price

RV-C Flanged Robot Speed Reducer Gearhead Hollow Shaft

Get Best Price

Flanged Reduction Harmonic Gearhead RV Gear Reducer Solid Series

Get Best Price

RV-E Flanged Planetary Wheel Drive Reduction Gearbox Low Backlash

Get Best Price

Contact Now

Product Description

Solid Shaft High Torque High Load Support Capability E Series RV Reducer

RV - E series is known as the solid shaft RV reducer, this precision reduction gear has excellent accuracy, rigidity, torque, and load sup capabilities.

Key Features

Backlash less than 1 arc.min.
Lost motion less than 1 arc.min.
Internal main bearing

Specifications

	Specification	Output Torque kgf-m(Nm)
	20	17(167)
	40	42(412)
	80	80(784)
	110	110(1078)
	160	160(1568)
	320	320(3136)
	450	450(4410)

Parameters table of RV - E series

Model	Torsional Rigidity	Dimension(mm)		Rated torque (T0)	Rated output speed (N0)	Torsional stiffness	Lost motion		Backlash	Allowable bending torque (Nm)	Allowable thrust load (N)	Weight (kg)
Model	Nm/arc.min.	a	b	Rated torque (T0)	Rated output speed (N0)	Nm/arc.min.	arc.min	Determining rotational speed (Nm)	Arc.min.	Allowable bending torque (Nm)	Allowable thrust load (N)	Weight (kg)
BX20E	372	20.1	113.3	167Nm	15 r/min	49	MAX1	±5.00	MAX1	882	3920	4.7
BX40E	931	29.6	143.7	412Nm		108		±12.3		1666	5194	9.3
BX80E	1176	33.4	166	784Nm		196		±23.5		2156	7840	13.1
BX110E	1470	32.2	176.6	1078Nm		294		±32.3		2940	10780	17.4
BX160E	2940	47.8	210.9	1568Nm		392		±47.0		3920	14700	26.4
BX320E BX320E3	4900	56.4	251.4	3136Nm		980		±94.0		7056	19600	44.3
BX450E	7448	69	292.7	4410Nm		1176		±132.0		8820	24500	66.4

Detailed Images

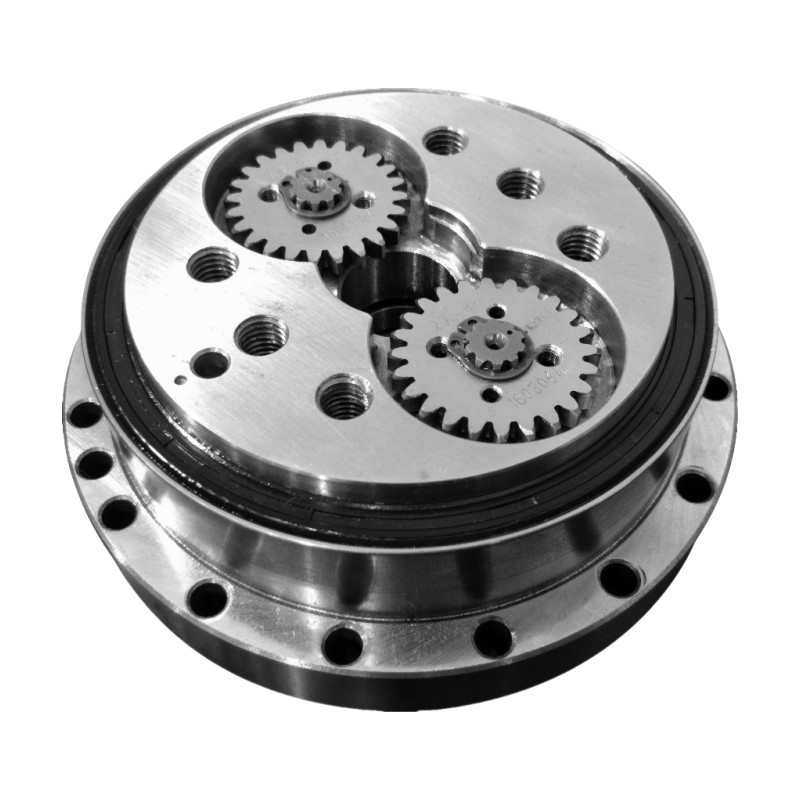

OEM Planetary RV Gear Robot Speed Reducer High Precision 1

Key Attributes of RV - E Series Solid Shaft RV Reducer
Product	Solid Shaft RV Reducer
Material	Steel, Aluminum
Standard ratio	57 to 160
Output Torque	17 to 450 Nm
Torsional Rigidity	372 to 7448 Nm/arc.min.
Rated torque	167 to 4410 Nm
Backlash	MAX. 1 Arc.min.
Momentary max. allowable torque	833 to 22050 Nm
Rated output speed	15 r/min
Model	BX20E, BX40E, BX80E, BX110E, BX160E, BX320E, BX320E3, BX450E
Weight	4.7 to 66.4kg
Design life	6000 hours
Warranty	1 year

Application

Vertical Articulated Robot Shaft Drives
SCARA, Pick & Place
Machine Head Indexer

OEM Planetary RV Gear Robot Speed Reducer High Precision 4
